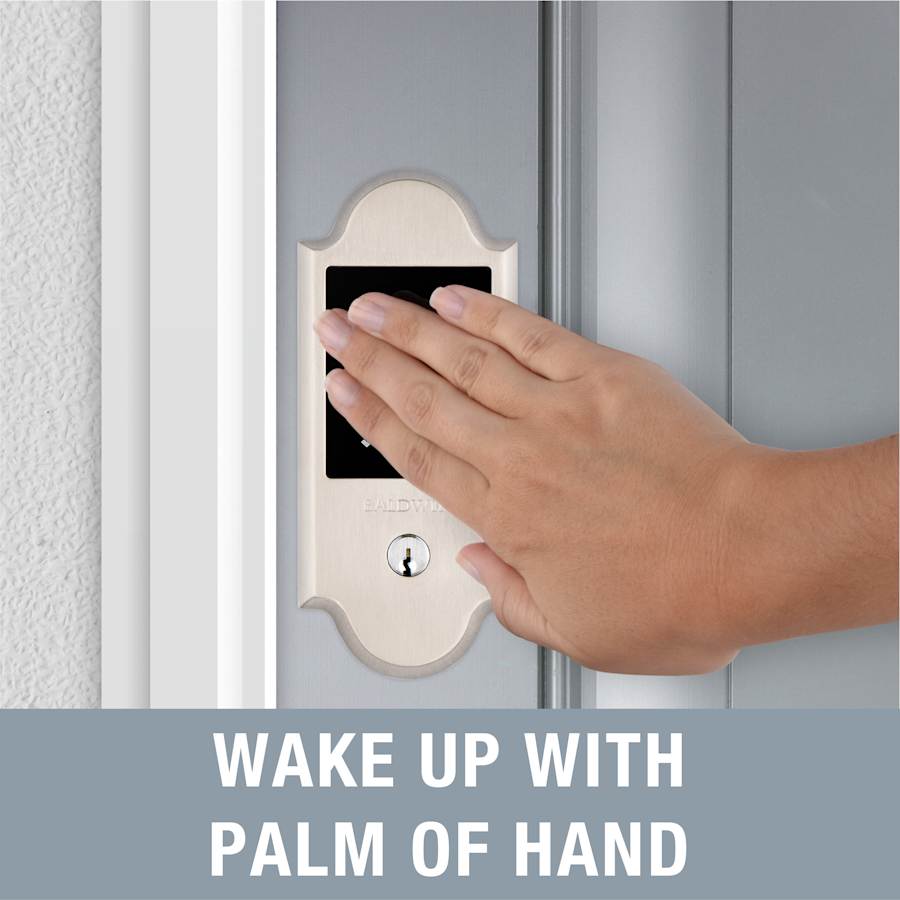

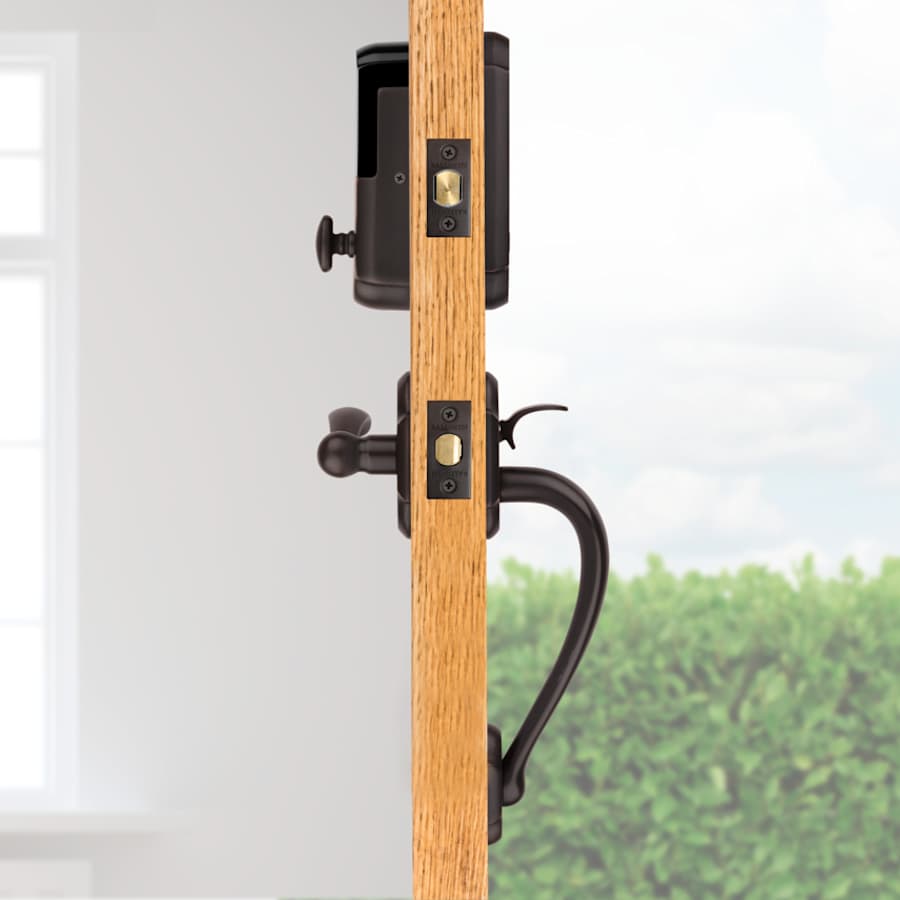

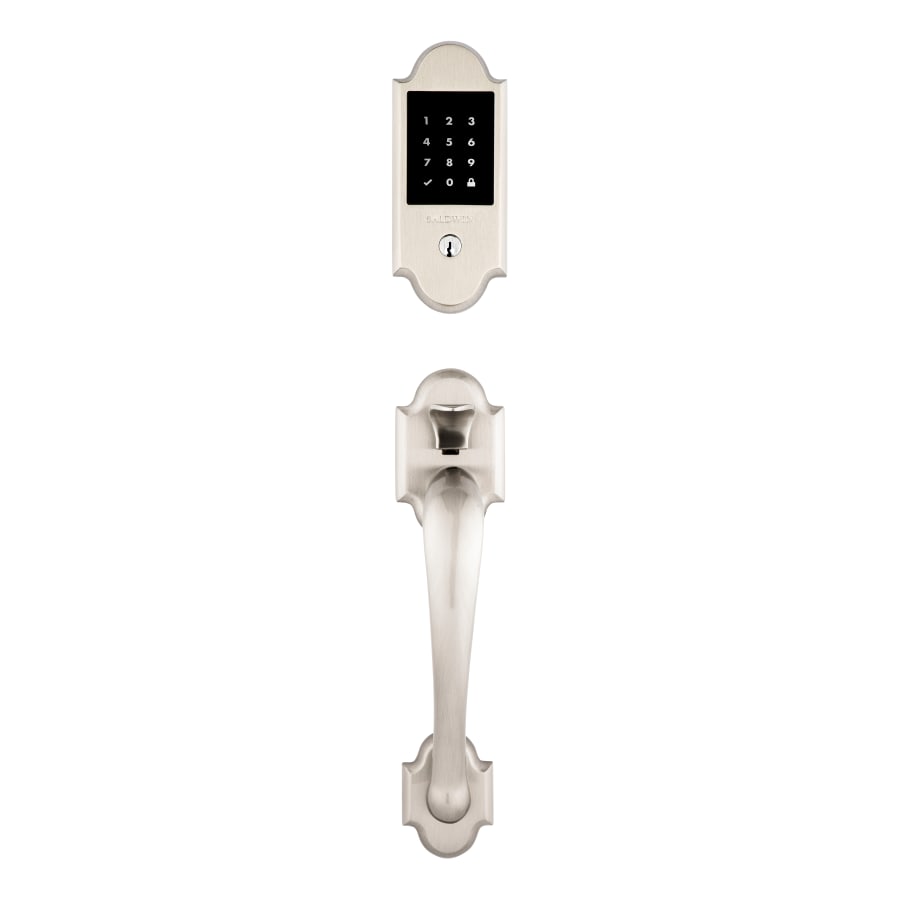

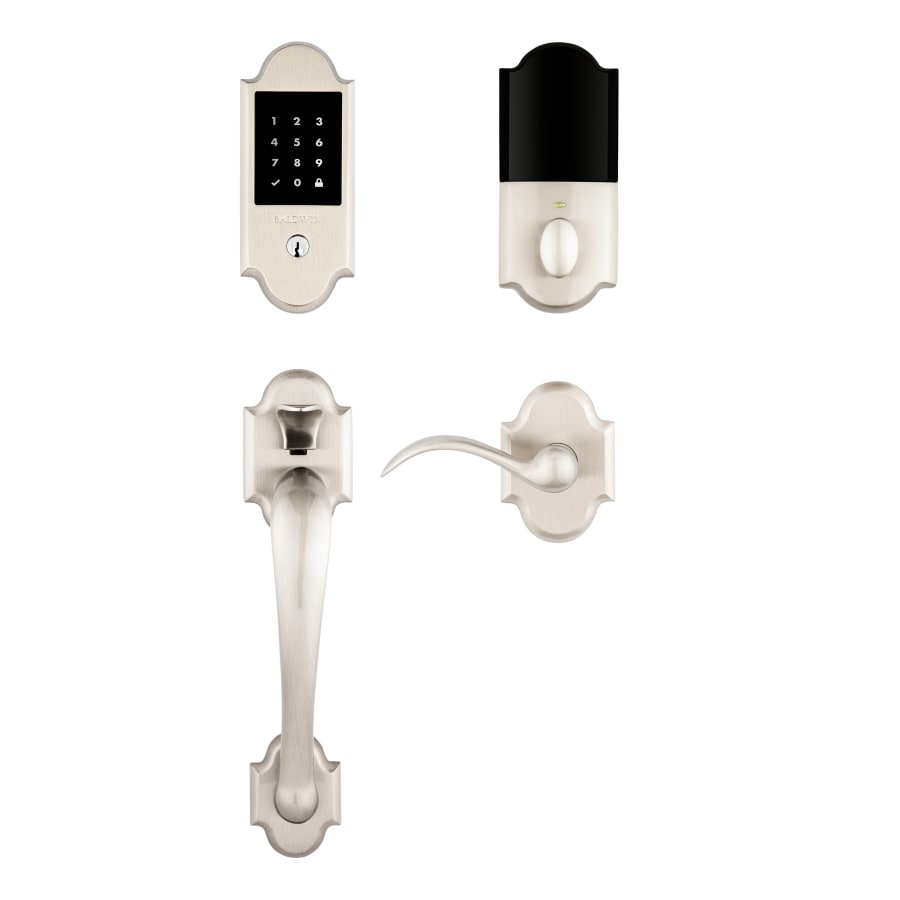

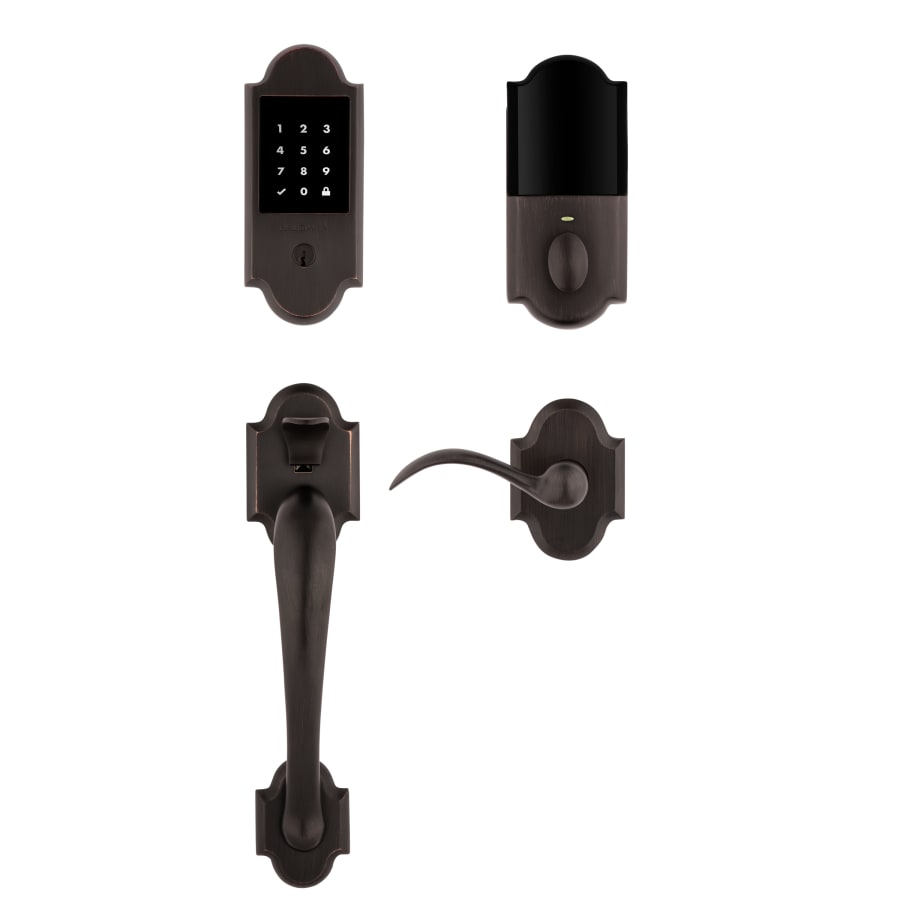

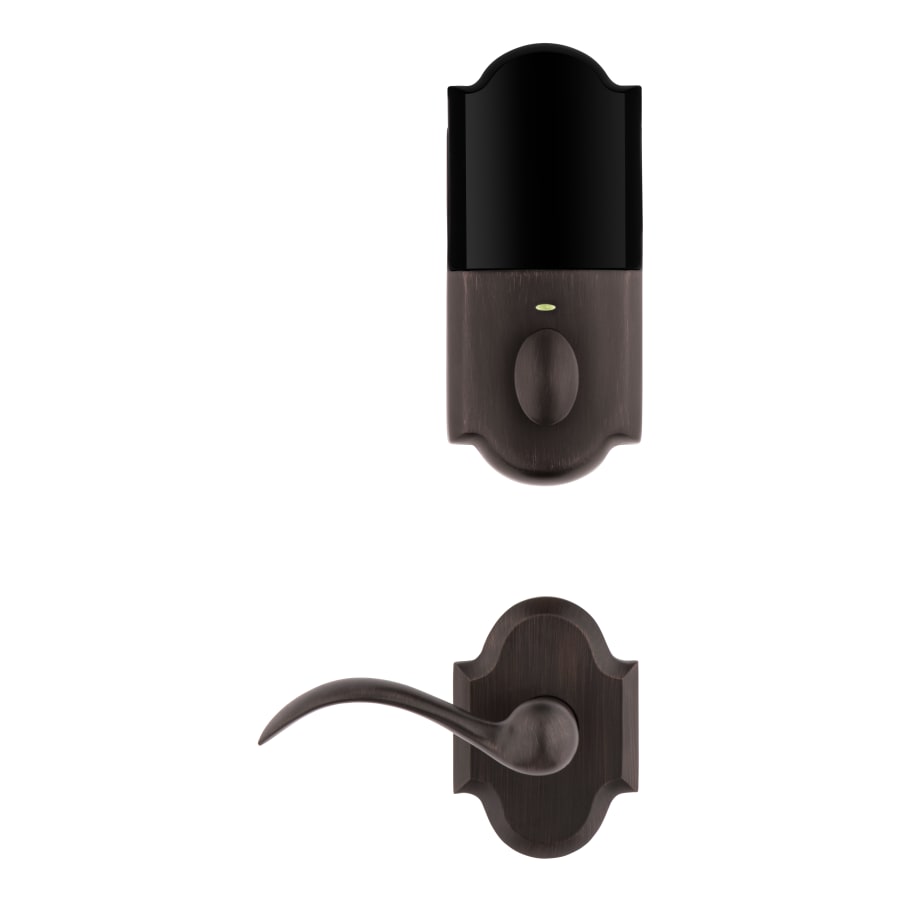

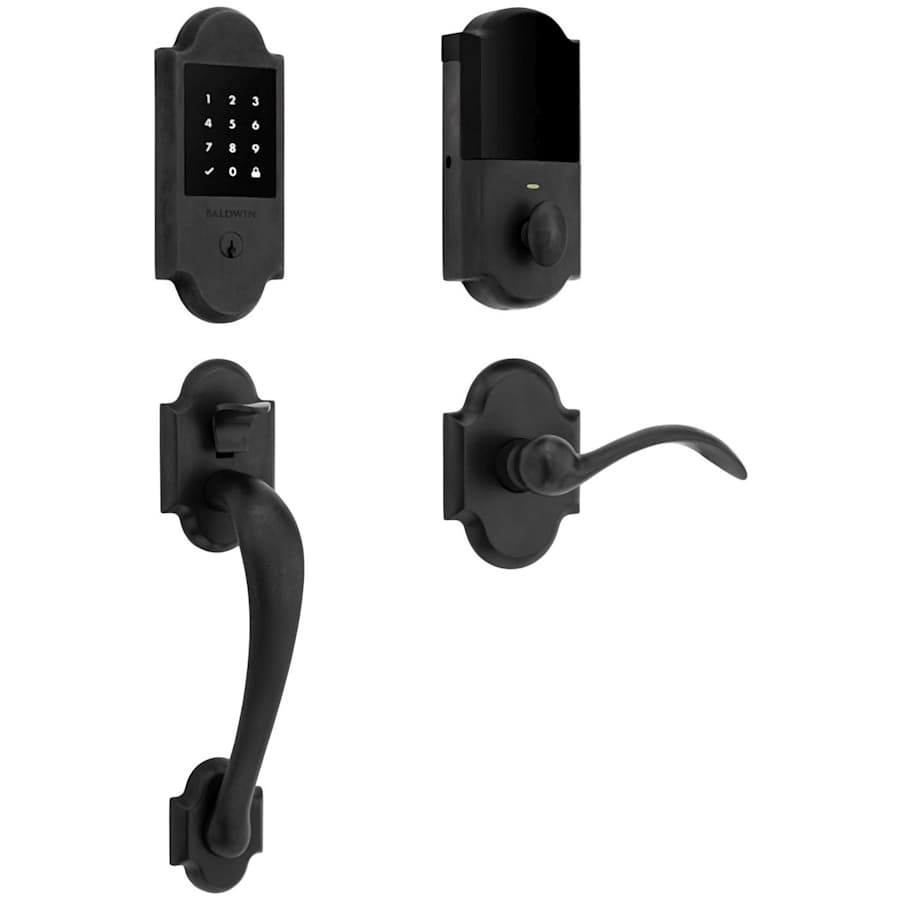

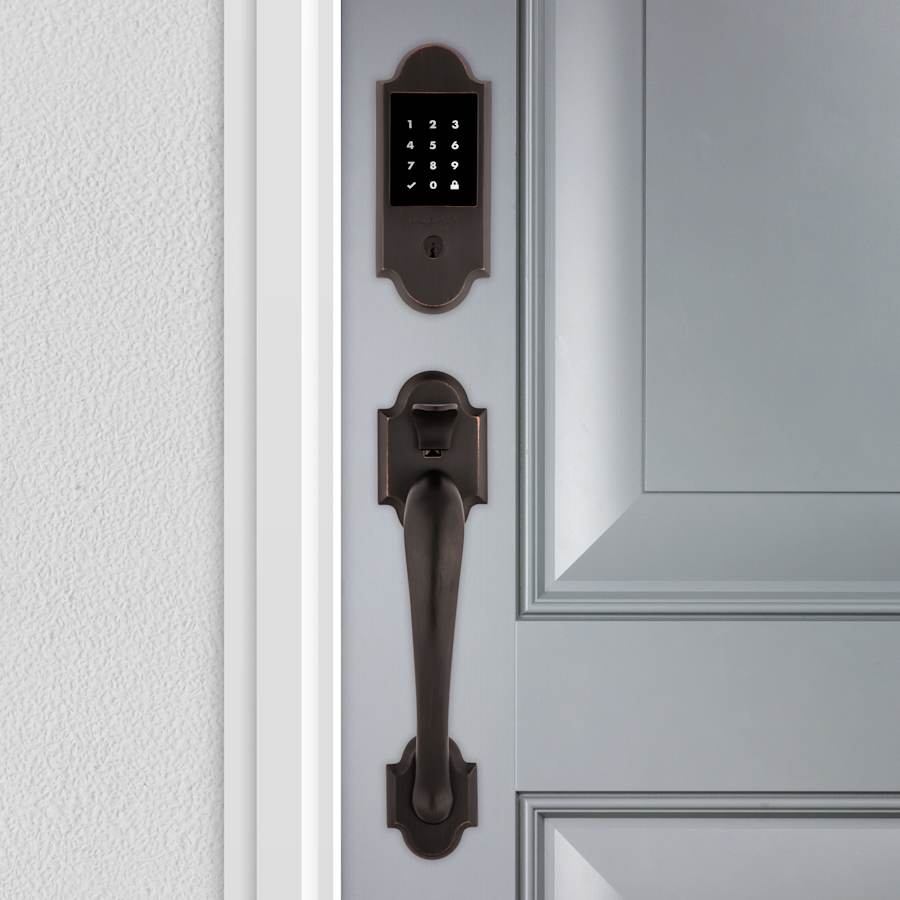

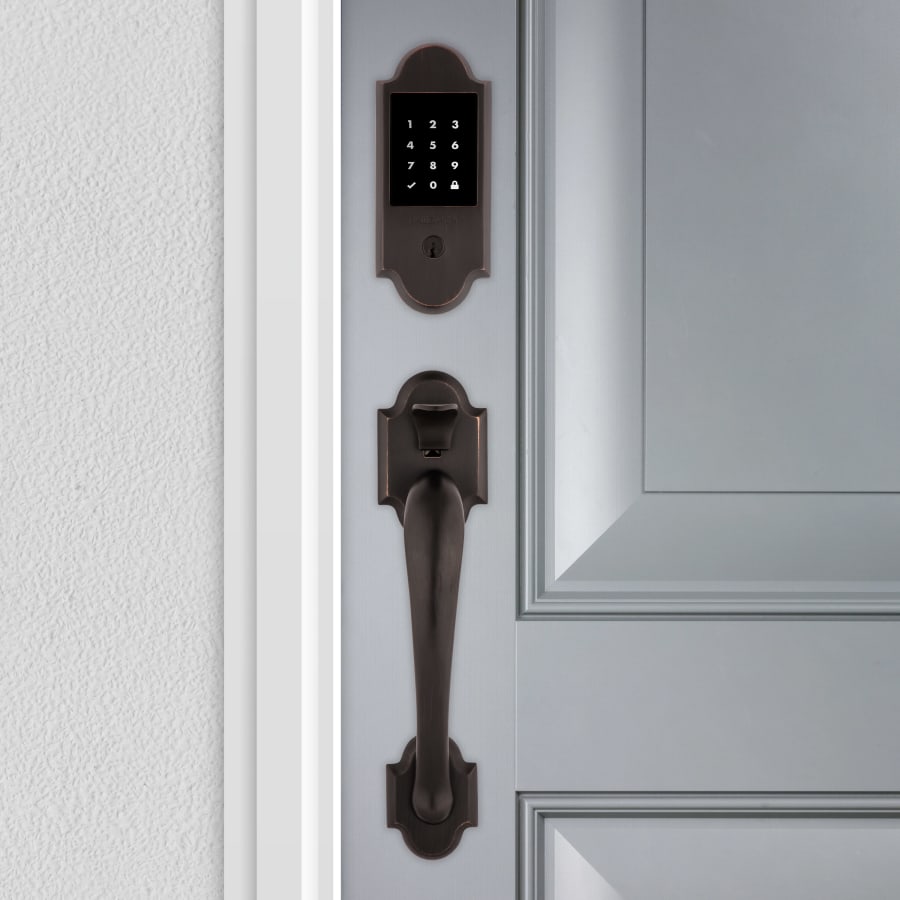

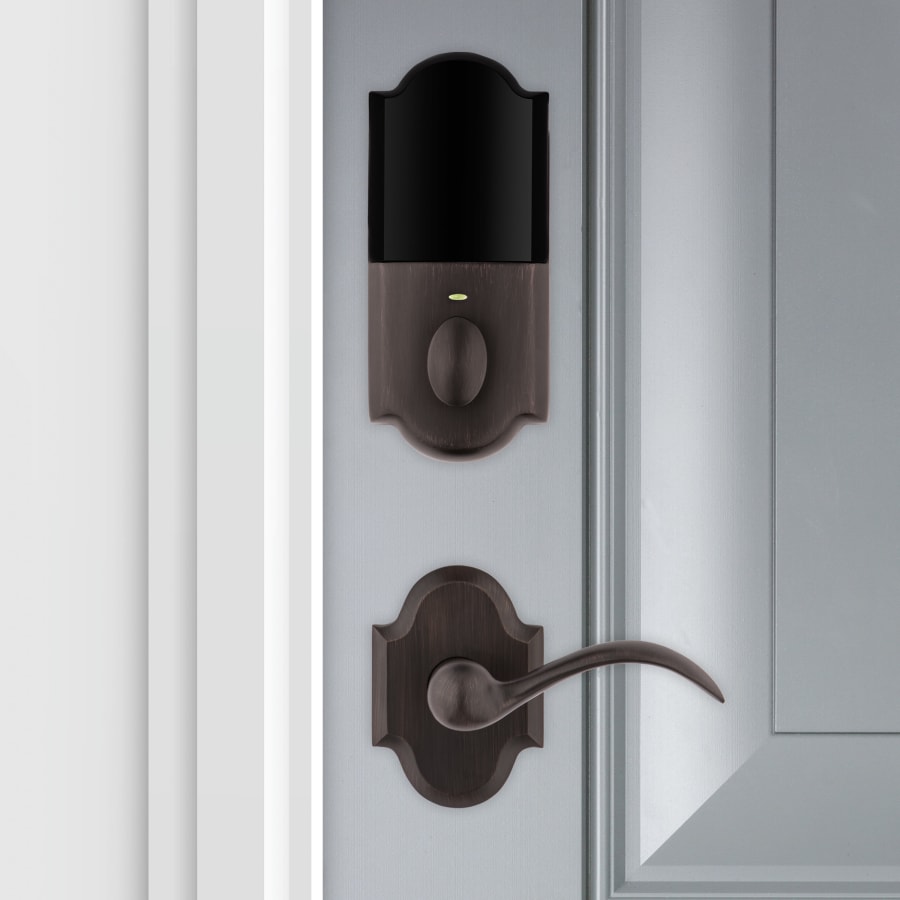

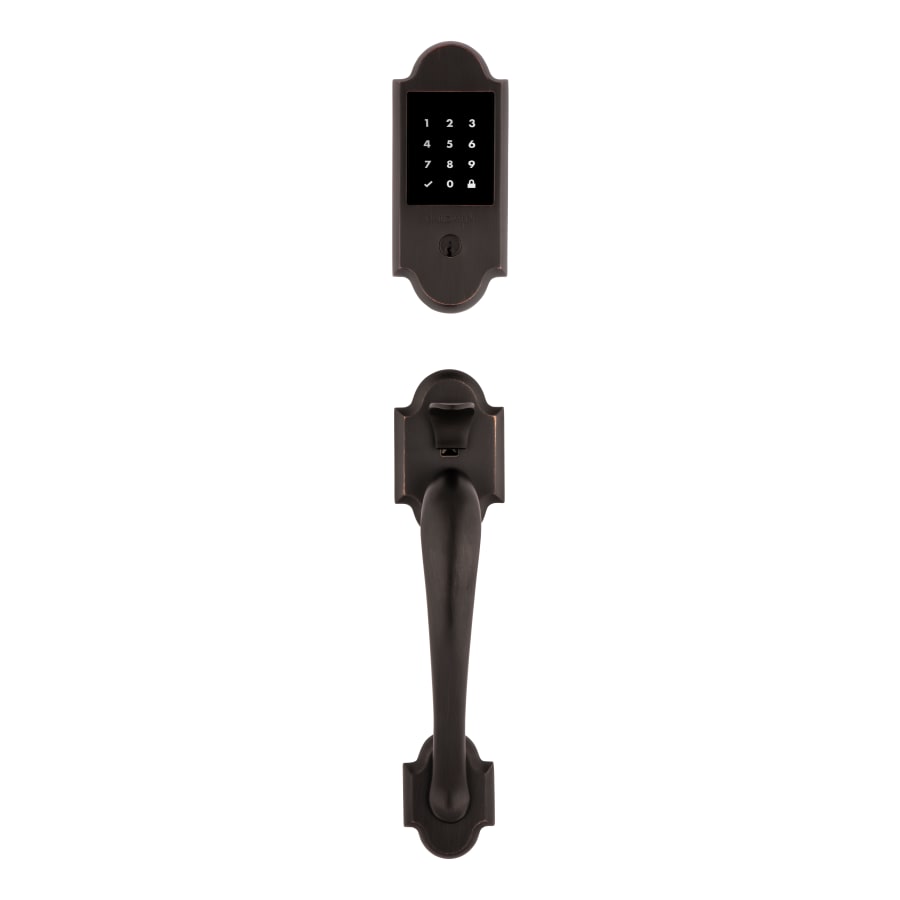

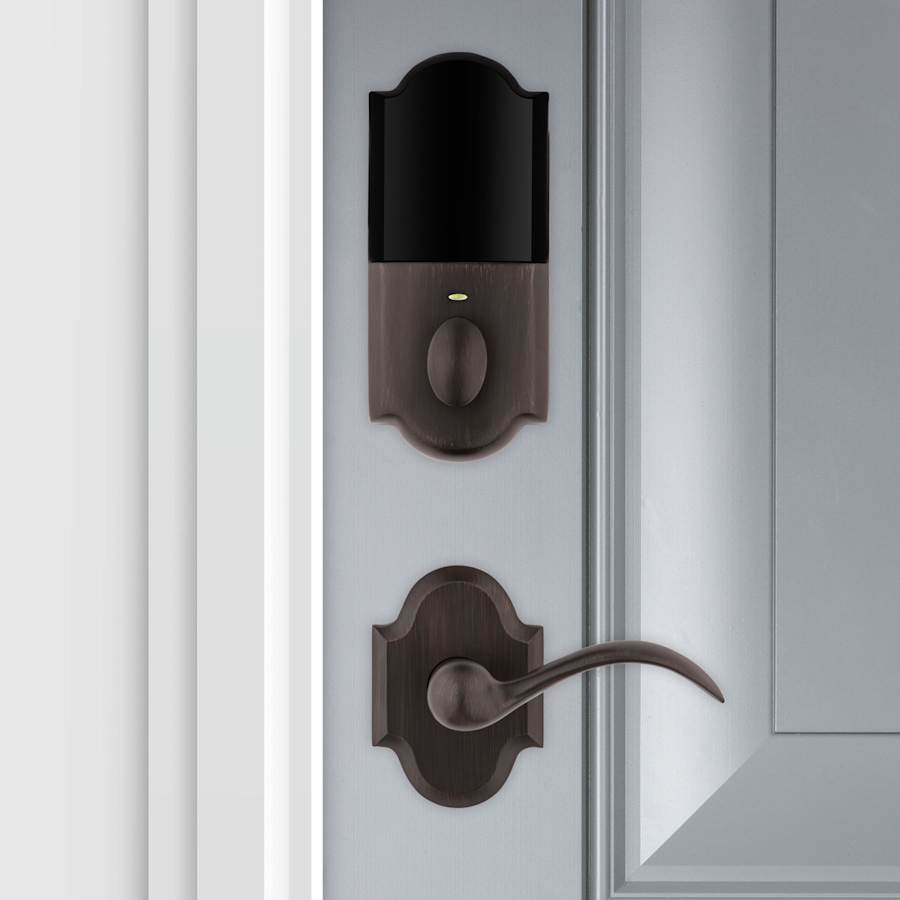

Electronic Touchpad with Handleset: The electronic touchpad allows you to lock and unlock the handleset without the use of a key. It has the versatility of keyless operation while still retaining the functionality of keyed entry, having both a touchpad and lock cylinder on the outside and a thumb turn on the interior. It’s perfect for front doors, side or back doors, and garage entry doors.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid forged brass for durability and dependability
Covered by Baldwin’s 1 year electronics, 5 year finish, and limited lifetime mechanical manufacturer warranties

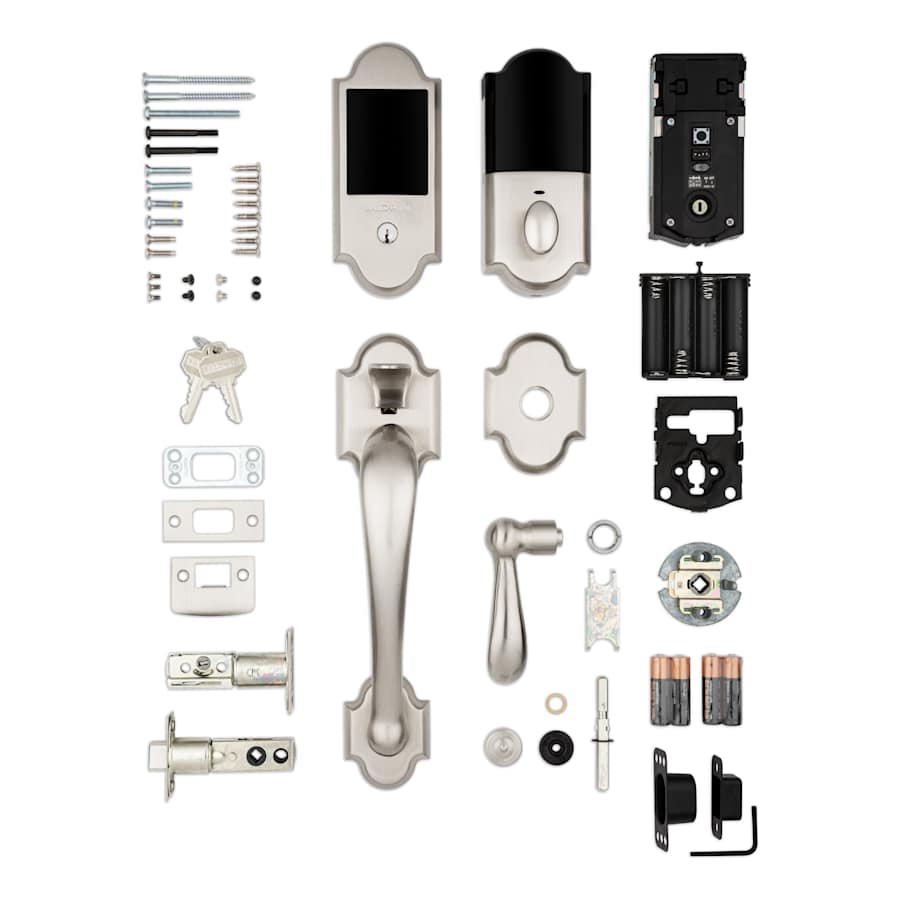

Installs easily with all necessary mounting hardware included
4 AA batteries required for deadbolt operation included
Up to 16 customizable user codes with 4-8 digits each

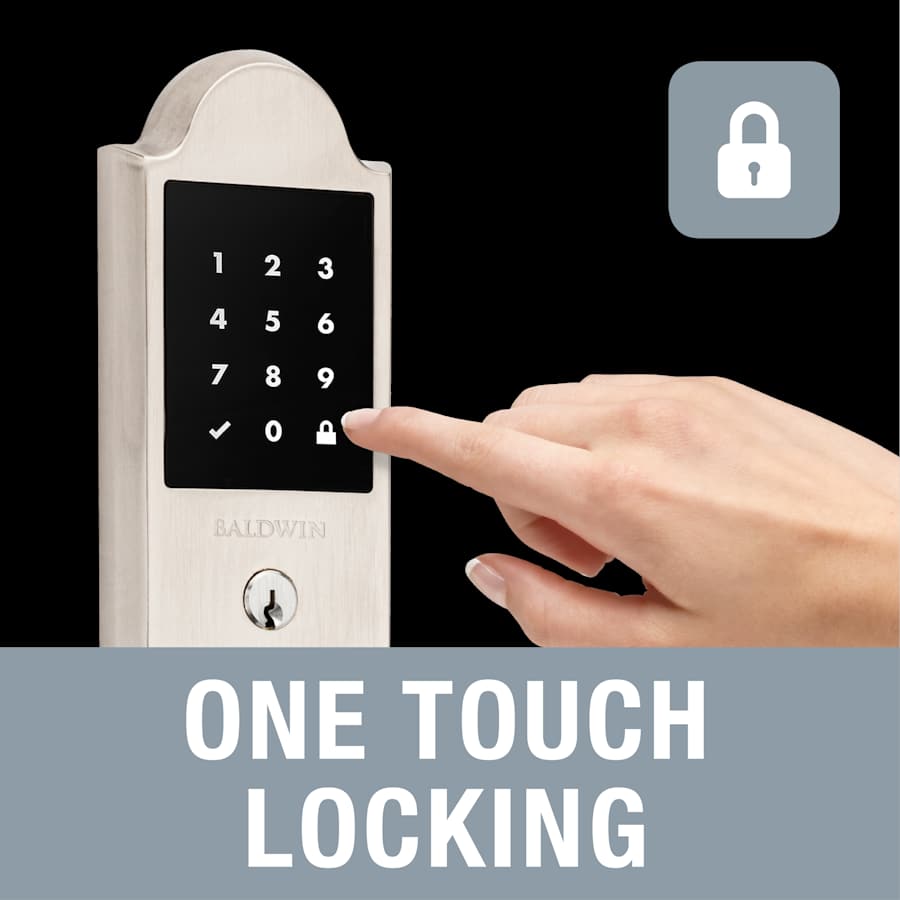

One touch locking allows for you to secure your door quickly without need of key or code
20 minute UL rated deadbolt
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8″
Door Thickness: 1-3/4″
Handing: Right
Cylinder: 5 Pin C
Latch Faceplate: Square Corner
Overall Height: 19-1/2″
Handle Height: 12-9/16″
Handle Width: 2-7/8″
Handle Projection: 3-5/16″
Trim Height: 12-9/16″
Trim Width: 3″
Interior Handle Length: 4-1/8″
Interior Handle Projection: 2-1/16″

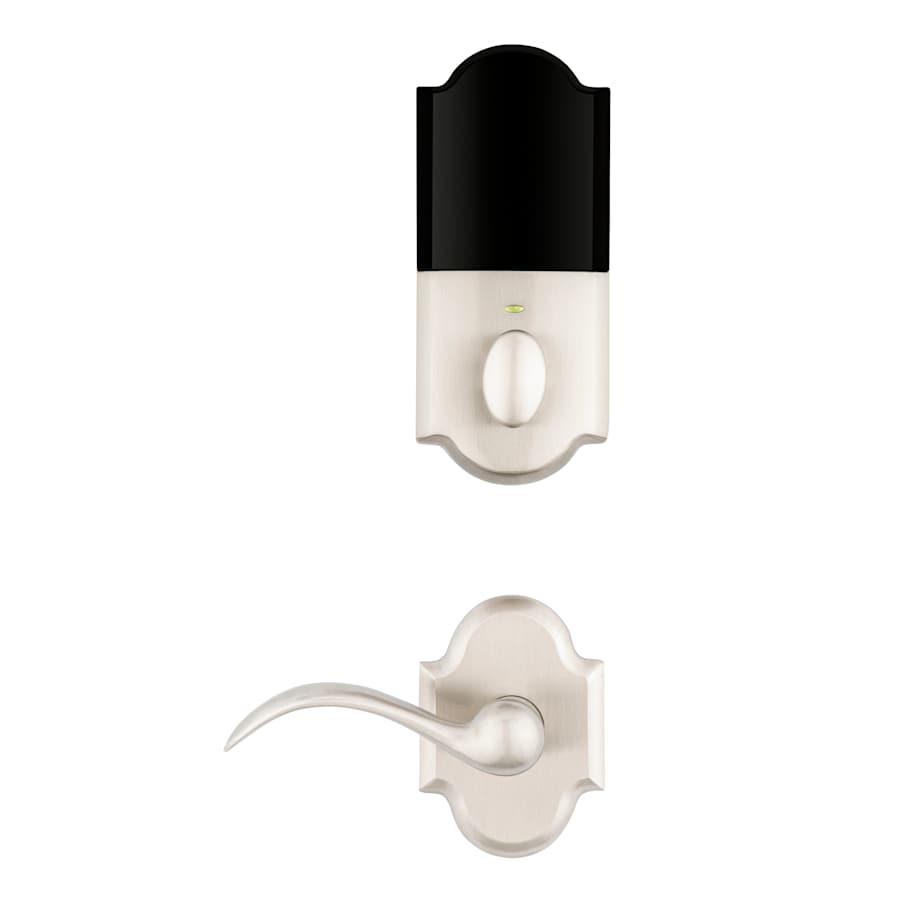

Interior Trim Height: 10-9/16″
Interior Trim Width: 3″
Material: Brass
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Boulder Collection
Specifications
| Product Weight | 9.2, 9.55 lbs. |
| Handle Projection | 3.31, 3.3125 in. |
| Handle Width | 2.875 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4" |
| Edge Bore | 1" |
| Handle Height | 12.59375, 12.59 in. |
| Trim Height | 12.59375, 12.59 in. |
| Trim Width | 3.00, 3 in. |
| Center to Center | 5.5 in. |
| Overflow Height | 19.53, 19.53125 in. |
| Grip Center to Center | 8 in. |
| Interior Trim Height | 10.5625, 10.56 in. |
| Interior Trim Width | 2.97, 2.96875 in. |
| Interior Handle Length | 4.125, 4.13 in. |
| Interior Handle Projection | 2.09, 2.09375 in. |
| Manufacturer Warranty | 1 Year Electronics, 1 Year Finish, 5 Year Finish, Limited Lifetime Mechanical |
| Collection | Estate Pre-Configured, Touchscreen, Estate |
| Series | Boulder |
| Approved for Commercial Use | No |
| Country Of Origin | Mexico |
| ADA | No |
| Certifications | ANSI, UL |
| ANSI Certification | A156.36 |
| BHMA Certification | Grade 2 |
| Material | Brass |
| Smart Home | No |
| Thermostat | Traditional |
| Concealed Screws | Yes |
| Function | Keyless Entry, Electronic Keyless Entry |
| Handshower | Right |
| Handle Material | Metal |
| Handle Style | Grip, Lever |
| Shape | Wave |
| Trim Design | Boulder |
| Latch Faceplate | Square Corner |
| Solid Construction | Solid Brass |
| Keyway | C |
| Cylinder | 5 Pin |
| Cylinder Type | Single Cylinder |
| Interior Handle Style | Lever |
| Mounting | Sectional |
| Battery Quantity | 4 |
| Insulation Type | Touchscreen |
| Lit Keypad | Yes |
| Number of Codes | 16 |
| Remote Access | No |
| Temporary Access | Yes |
| Usage Monitoring | No |
| Lock Style | Single Point |
| Adjustable Throughbolt | No |
| Handle Design | Boulder |
| Interconnected | No |
| Auto-Lock Capable | Yes |
| Motorized Deadbolt | Yes |
| Power Source | Battery |
| Battery Size | AA |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Battery Included | Yes |
| Color | Antique Nickel, Distressed Oil Rubbed Bronze, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Chrome, Satin Black, Satin Brass and Black, Satin Brass and Brown, Satin Nickel, Venetian Bronze, Vintage Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
