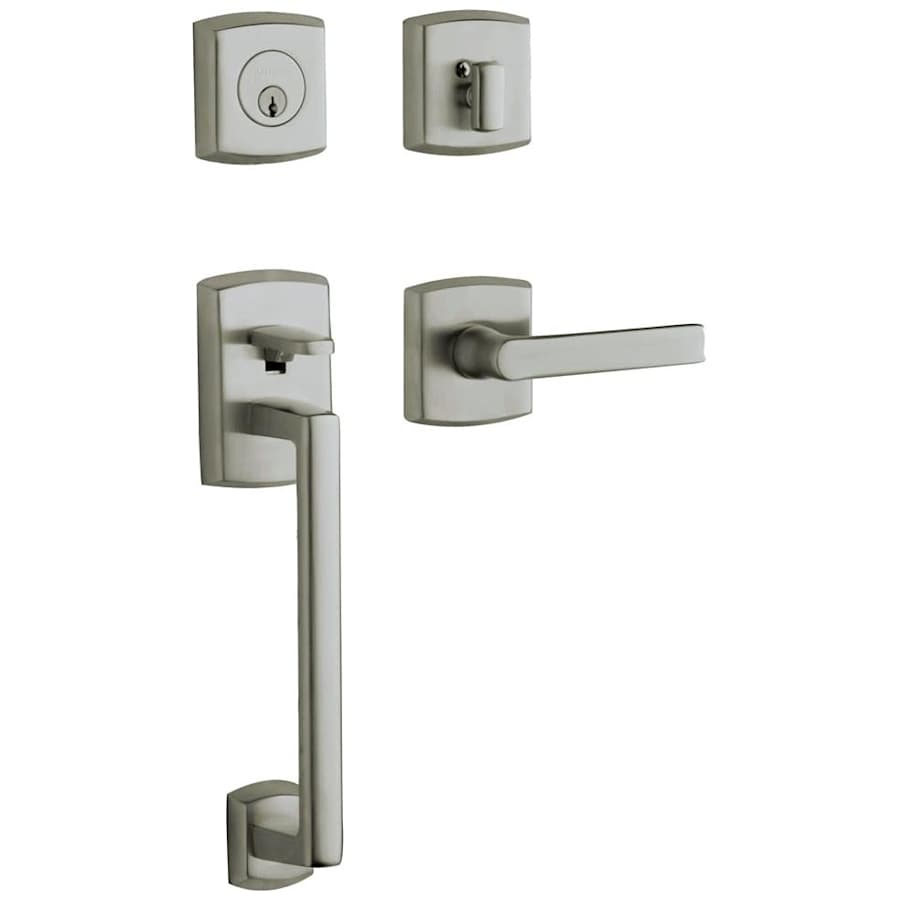

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Â
Features:
Tested to exceed ANSI/BHMA Grade 1 security requirements
Constructed of solid forged brass for durability and dependability
Covered by Baldwin’s 1 year electronics, 5 year finish, and limited lifetime mechanical manufacturer warranties
Installs easily with all necessary mounting hardware included
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8-1/2″
Door Thickness: 1-3/4″
Handing: Left
Cylinder: 5 Pin C
Latch Faceplate: Square Corner
Overall Height: 15-7/16″
Handle Height: 11-3/4″
Handle Projection: 2-1/2″
Trim Height: 11-3/4″
Trim Width: 2-13/16″
Interior Handle Length: 4-3/4″
Interior Handle Projection: 2-1/16″
Interior Trim Height: 5-3/4″
Interior Trim Width: 2-3/4″
Material: Brass
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Soho Collection
Specifications
| Thermostat | Modern |
| Material | Brass |
| Handle Style | Grip |
| Handle Material | Metal |
| Concealed Screws | Yes |
| Handshower | Left |
| Latch Faceplate | Square Corner |
| Solid Construction | Solid Brass |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Style | Contemporary/Modern |
| Cylinder | 5 Pin C, 5 Pin |
| Lock Style | Single Point |
| Mounting | Sectional |
| Keyway | C |
| Interconnected | No |
| Trim Design | Soho |
| Handle Design | Soho |
| Interior Handle Style | Lever |
| Adjustable Throughbolt | No |
| Product Weight | 6.5 lbs. |
| Overflow Height | 15.41 in. |
| Handle Height | 11.78 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4" |
| Edge Bore | 1" |
| Center to Center | 5.5 in. |
| Trim Height | 11.78 in. |
| Trim Width | 2.81 in. |
| Grip Center to Center | 8.5, 8 in. |
| Handle Projection | 2.53 in. |
| Interior Handle Length | 4.75 in. |
| Interior Handle Projection | 2.09 in. |
| Interior Trim Height | 5.75 in. |
| Interior Trim Width | 2.78 in. |
| Approved for Commercial Use | No |
| Collection | Estate Pre-Configured, Estate |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| ADA | No, Yes |
| Certifications | ANSI |
| Series | Soho |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 1 |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Antique Nickel, Distressed Antique Nickel, Distressed Oil Rubbed Bronze, Distressed Venetian Bronze, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime PVD Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Satin Black, Satin Brass and Black, Satin Chrome, Venetian Bronze, Polished Chrome |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
