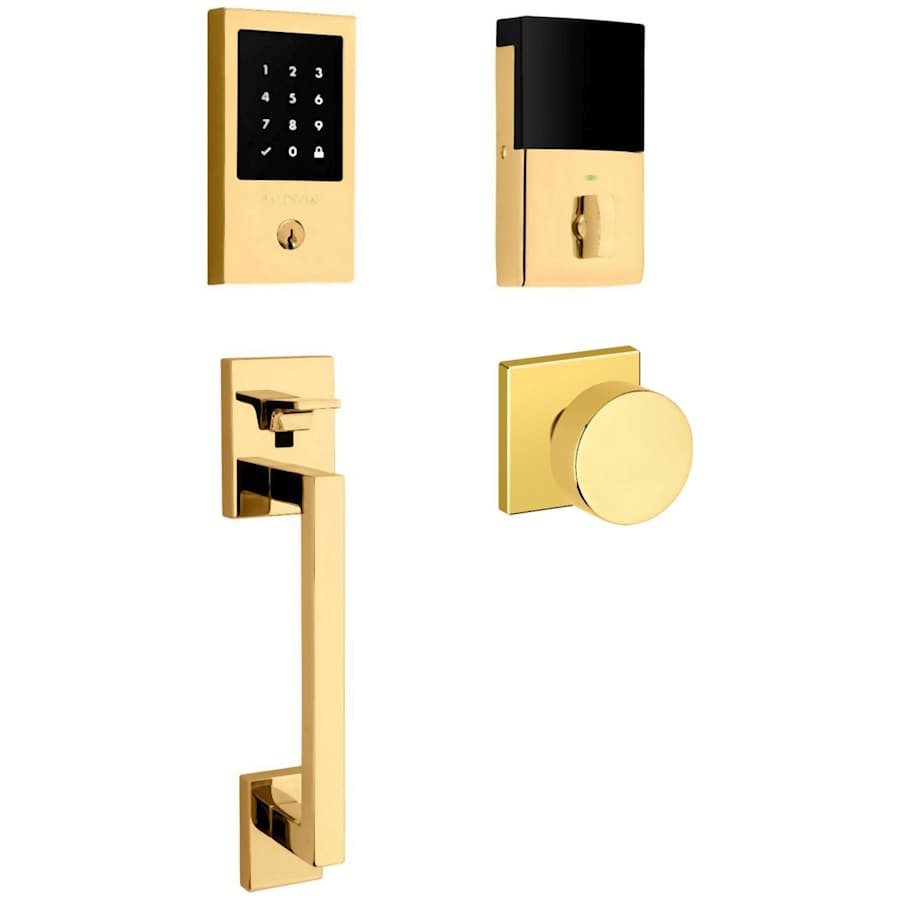

Electronic Keypad with Handleset: The electronic keypad allows you to lock and unlock the handleset without the use of a key. It has the versatility of keyless operation while still retaining the functionality of keyed entry, having both a keypad and lock cylinder on the outside and a thumb turn on the interior. It’s perfect for front doors, side or back doors, and garage entry doors.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid forged brass for durability and dependability
Installs easily with all necessary mounting hardware included
4 AA batteries required for deadbolt operation included
Up to 16 customizable user codes with 4-8 digits each
One touch locking allows for you to secure your door quickly without need of key or code
20 minute UL rated deadbolt
Covered by a limited lifetime mechanical and 1 year electronics warranty. Standard finishes have a one year limited warranty when installed in exterior applications and a five year limited warranty for interior use
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″”
Handing: Reversible Left or Right
Latch Faceplate: Square Corner
Cylinder: 5 Pin C
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8″
Overall Height: 17-3/16″
Handle Projection: 2-3/4″
Trim Height: 11-7/8″
Trim Width: 2-3/4″
Interior Handle Height: 2-1/8″
Interior Handle Width: 2-1/8″
Interior Handle Projection: 2-1/8″
Interior Trim Height: 5-5/8″
Interior Trim Width: 3″
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Minneapolis Collection
Specifications
| Material | Brass |
| Concealed Screws | Yes |
| Function | Keyless Entry, Electronic Keyless Entry |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Handle Style | Grip |
| Latch Faceplate | Square Corner |
| Solid Construction | Solid Brass |
| Thermostat | Contemporary |
| Trim Design | R017 |
| Smart Home | No |
| Keyway | C |
| Mounting | Sectional |
| Cylinder Type | Single Cylinder |
| Interconnected | No |
| Panic Proof | No |
| Lock Style | Single Point |
| Battery Quantity | 4 |
| Cylinder | 5 Pin C |
| Adjustable Throughbolt | No |
| Handle Design | Minneapolis |
| Interior Handle Style | Knob |
| Auto-Lock Capable | Yes |
| Insulation Type | Touchscreen |
| Lit Keypad | Yes |
| Number of Codes | 16 |
| Motorized Deadbolt | Yes |
| ADA | No |
| Collection | Estate |
| Manufacturer Warranty | 1 Year Electronics, 1 Year Finish, 5 Year Finish, Limited Lifetime Mechanical |
| Series | 5055, Minneapolis |
| BHMA Certification | Grade 2 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4" |
| Edge Bore | 1" |
| Handle Projection | 2.72 in. |
| Product Weight | 6.5 lbs. |
| Trim Height | 11.906 in. |
| Trim Width | 2.78 in. |
| Center to Center | 5.5 in. |
| Grip Center to Center | 8 in. |
| Interior Handle Height | 2.125 in. |
| Interior Handle Width | 2.125 in. |
| Interior Trim Height | 5.594 in. |
| Interior Trim Width | 2.97 in. |
| Overflow Height | 17.1875 in. |
| Interior Handle Projection | 2.1 in. |
| 28 Degree Latch | Yes |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Battery Included | Yes |
| Power Source | Battery |
| Battery Size | AA |
| Battery Type | Alkaline |
| Color | Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Chrome, Satin Black, Satin Brass and Black, Satin Brass and Brown, Venetian Bronze, Vintage Brass |
