Features:
Certified as ANSI/BHMA Grade 2 for residential security
Constructed of brass for premium feel and natural resistance to corrosion
Easily installs in left handed applications
Interior comes in same finish as exterior. If split finish is desired please contact customer service
Covered by a Limited Lifetime Mechanical Warranty. Standard finishes have a One Year Limited Warranty when installed in exterior applications and a Five Year Limited Warranty for interior use
Product Technologies:
Solid Forged Brass Construction: All Baldwin hardware begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Lifetime Finishes™: Baldwin’s multi-patented Lifetime Finishes™ provide unprecedented protection against the effects of weather, normal wear and tear, and even the rigorous test of coastal salt air. By adapting the vapor deposition processed used to create premium gold pens, Baldwin creates a unique surface across your door hardware that is guaranteed to withstand the ravages of time.
Living Finishes: Baldwin Living Finishes, which include Non-Lacquered Brass, Vintage Brass, Oil Rubbed Bronze, and Distressed Oil Rubbed Bronze, are designed to mimic the patina of a well-loved piece of vintage hardware, and as such will change and adapt over time naturally. For those who appreciate the well-worn look of aged door hardware, but still require the strength and durability of a Baldwin finish, Living Finishes are an ideal fit.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″
Handing: Left
Center to Center: 5-1/2″
Projection: 2-3/4″
Height: 11-15/16″
Width: 2-5/8″
Latch Faceplate: Square Corner
Cylinder: 5 Pin C
Product Variations:

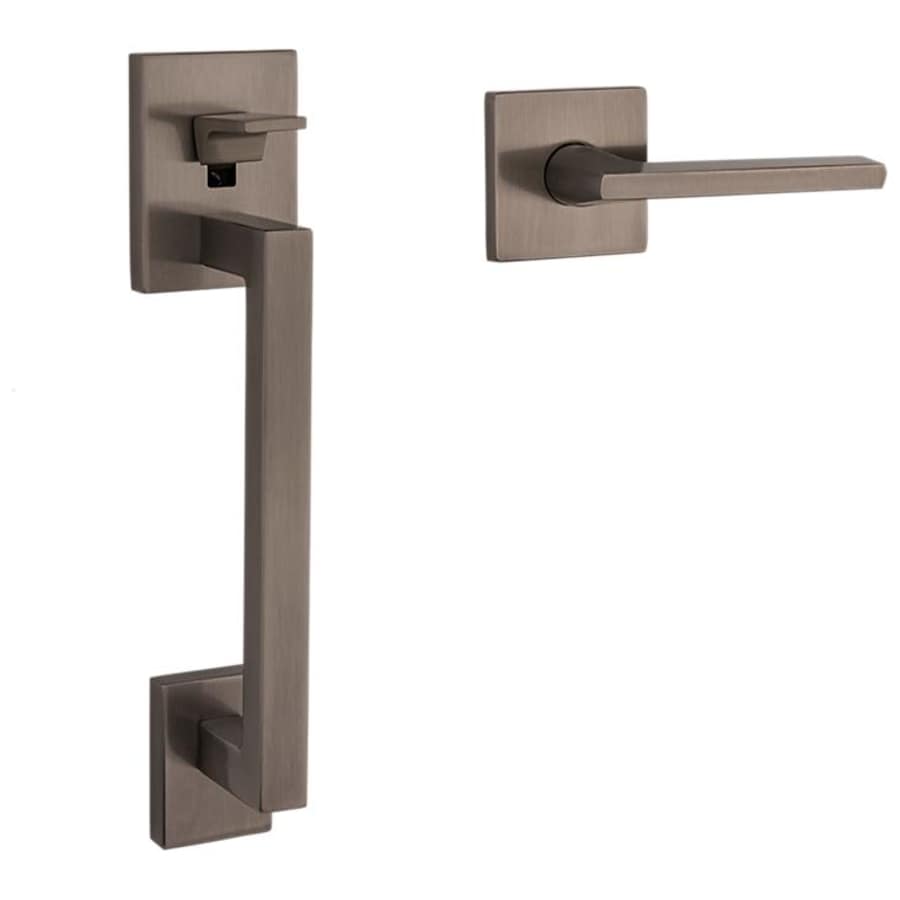

85390.ACLH (This Model): Left Handed Sectional Handleset
85390.ACRH: Right Handed Sectional Handleset
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Minneapolis Collection
Specifications
| Thermostat | Modern |
| Material | Brass |
| Handshower | Left |
| Latch Faceplate | Square Corner |
| Rosette Shape | Rectangle |
| Solid Construction | Solid Brass |
| Locking Mechanism | Thumbturn |
| Panic Proof | No |
| Trim Design | Minneapolis |
| Cylinder | 5 Pin C |
| Interior Handle Style | Lever |
| Lock Style | Single Point |
| Mounting | Sectional |
| Number of Keys | 2 |
| Collection | Estate Pre-Configured, Estate |
| Certifications | ANSI |
| Manufacturer Warranty | 1 Year Finish, 5 Year Finish, Limited Lifetime Mechanical |
| ADA | No |
| Approved for Commercial Use | No |
| ANSI Certification | A156.2 |
| Series | Minneapolis |
| BHMA Certification | Grade 2 |
| Overflow Height | 11.9063 in. |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4" |
| Handle Projection | 2.7188 in. |
| Trim Height | 3.4063 in. |
| Trim Width | 2.625 in. |
| Handle Length | 4.46 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 1" |
| Center to Center | 5.5 in. |
| Grip Center to Center | 8 in. |
| Interior Handle Projection | 2.515 in. |
| Interior Included | Yes |
| Color | Antique Nickel, Distressed Antique Nickel, Distressed Oil Rubbed Bronze, Distressed Venetian Bronze, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime PVD Satin Brass, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Polished Chrome, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Satin Nickel, Venetian Bronze, Vintage Brass |
