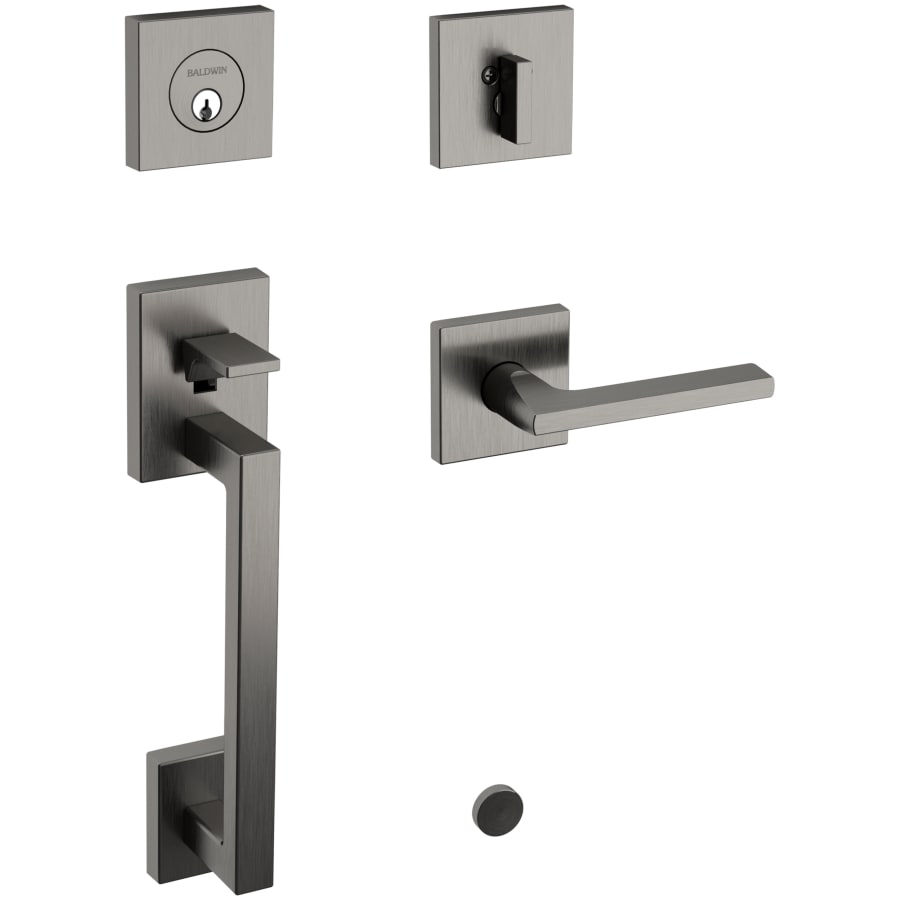

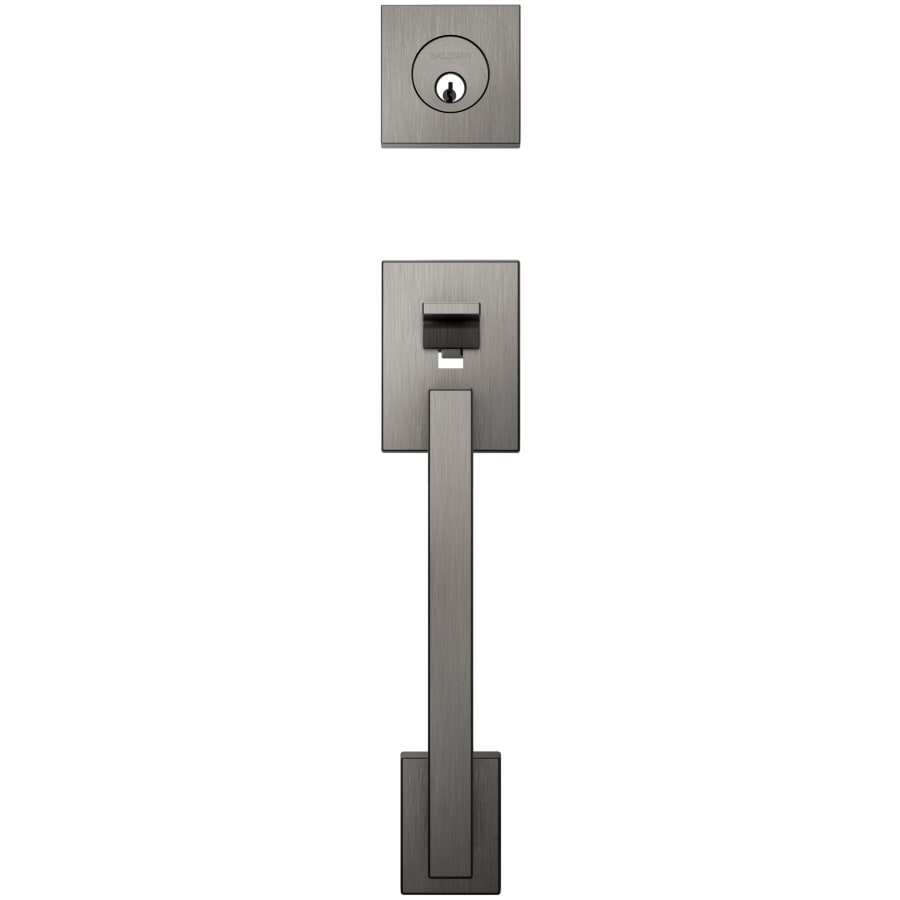

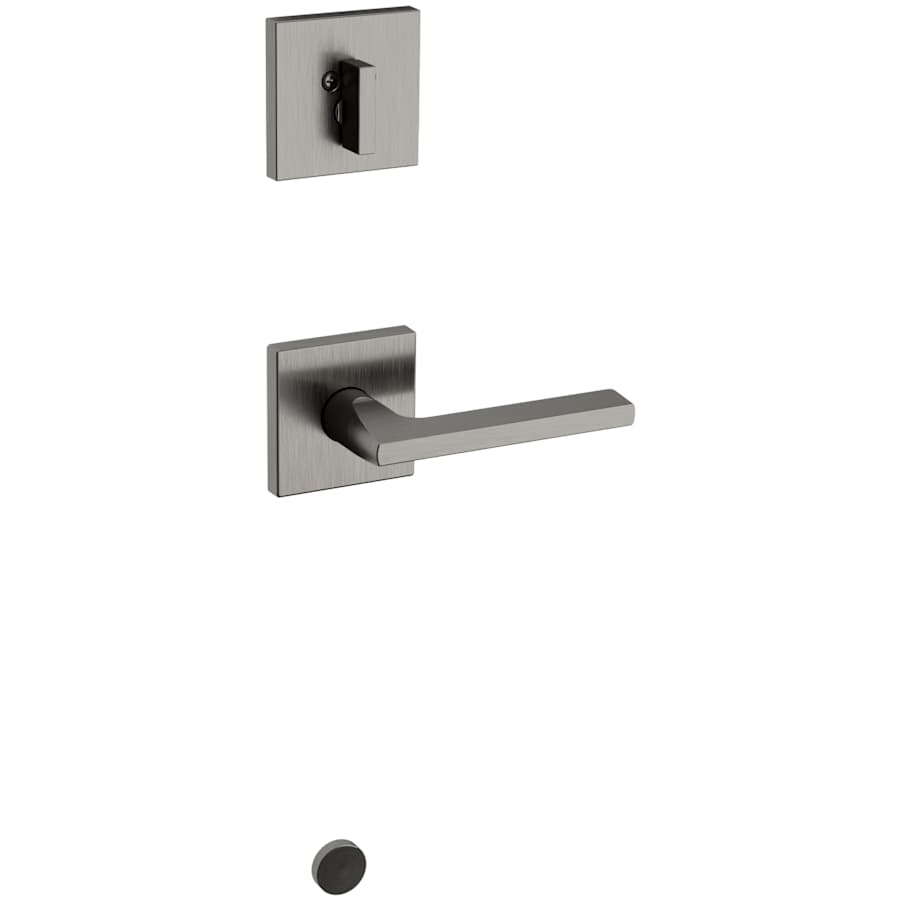

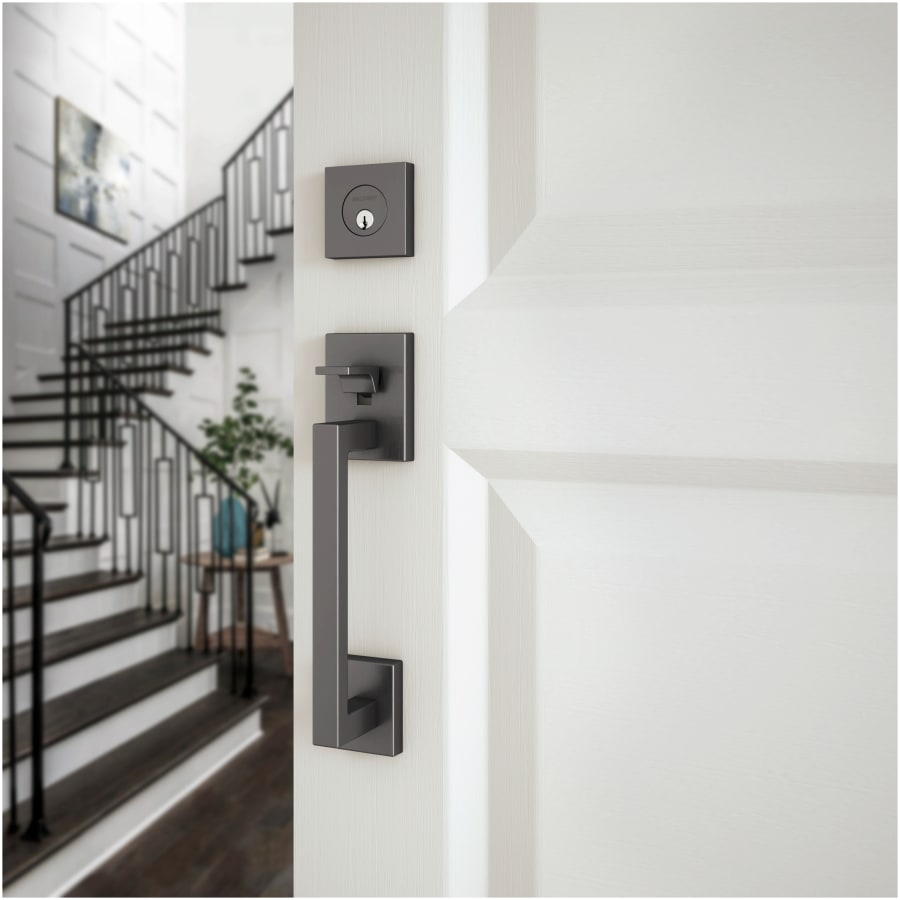

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Â
Features:
Tested to exceed ANSI/BHMA Grade 1 security requirements
Constructed of solid forged brass for durability and dependability
Covered by Baldwin’s 1 year electronics, 5 year finish, and limited lifetime mechanical manufacturer warranties
Installs easily with all necessary mounting hardware included
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8″
Door Thickness: 1-3/4″
Handing: Right
Cylinder: 5 Pin C
Latch Faceplate: Square Corner
Overall Height: 14-15/16″
Handle Height: 11-1/4″
Handle Projection: 2-3/4″
Trim Height: 11-1/4″
Trim Width: 2-5/8″
Interior Handle Length: 4-1/2″
Interior Handle Projection: 2-7/16″
Interior Trim Height: 5-5/16″
Interior Trim Width: 2-11/16″
Material: Brass
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Minneapolis Collection
Specifications
| Product Weight | 7.16, 6.8 lbs. |
| Center to Center | 5.5 in. |
| Door Thickness | 1-3/4" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Height | 11.28 in. |
| Handle Projection | 2.72, 2.71875 in. |
| Trim Height | 11.28, 11.28125 in. |
| Trim Width | 2.63, 2.625 in. |
| Grip Center to Center | 8 in. |
| Overflow Height | 14.91 in. |
| Interior Trim Height | 5.31 in. |
| Interior Trim Width | 2.66 in. |
| Interior Handle Length | 4.46875, 4.47 in. |
| Interior Handle Projection | 2.44 in. |
| Material | Brass |
| Thermostat | Modern, Contemporary |
| Handle Material | Metal |
| Handle Style | Grip |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handshower | Right |
| Keyway | C |
| Lock Style | Single Point |
| Mounting | Sectional |
| Style | Contemporary/Modern |
| Concealed Screws | Yes, No |
| Latch Faceplate | Square Corner |
| Panic Proof | No |
| Trim Design | Minneapolis |
| Cylinder | 5 Pin C, 5 Pin |
| Adjustable Throughbolt | No |
| Interconnected | No |
| Interior Handle Style | Lever |
| Solid Construction | Solid Brass |
| Handle Design | Minneapolis |
| ADA | No |
| Certifications | ANSI |
| Collection | Estate Pre-Configured, Estate |
| Approved for Commercial Use | No |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Series | Minneapolis |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.5 |
| Interior Included | Yes |
| Cylinder Included | Yes |
| 28 Degree Latch | No |
| Color | Antique Nickel, Distressed Antique Nickel, Distressed Oil Rubbed Bronze, Distressed Venetian Bronze, Lacquered Vintage Brass, Lifetime Graphite Nickel, Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Lifetime Satin Nickel, Non-Lacquered Brass, Oil Rubbed Bronze, Satin Black, Satin Brass, Satin Brass and Black, Satin Brass and Brown, Satin Chrome, Venetian Bronze, Vintage Brass, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
