Caution: Double Cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock. Please check local codes before installing.

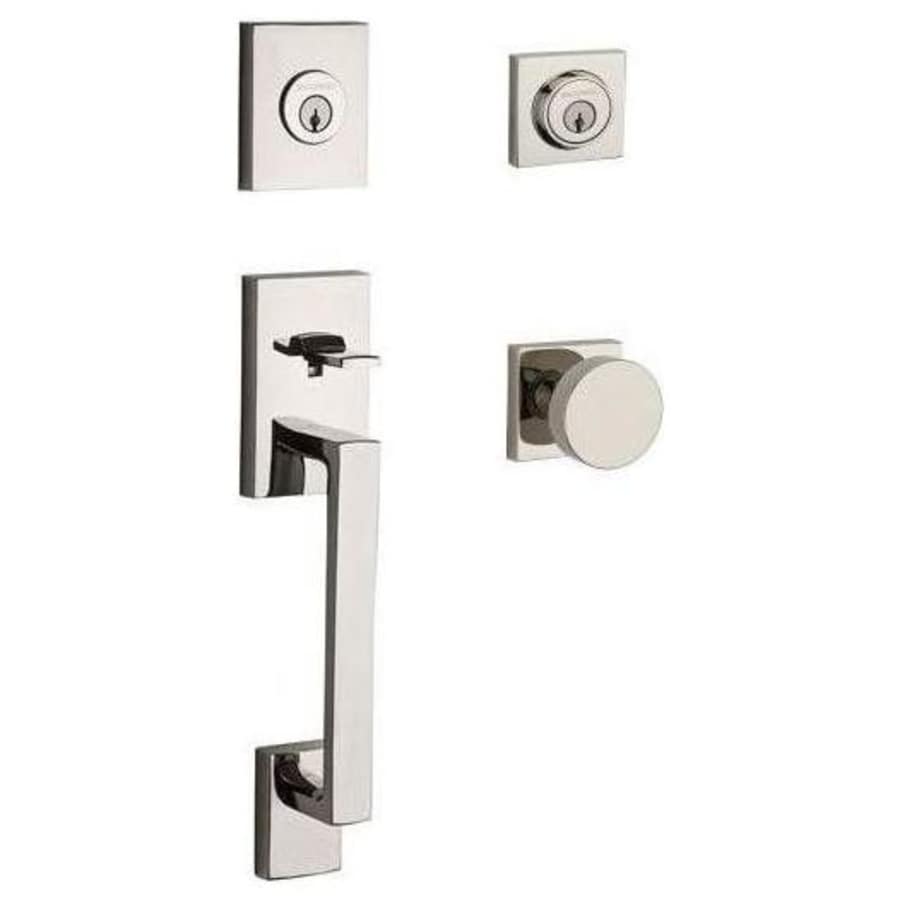

The Baldwin La Jolla handleset features geometric precision and minimalistic design which accentuates homes with contemporary style. With a choice of interior lever or knob and trim, the La Jolla handleset is customizable to match one’s personal tastes.
Features:
Tested to exceed ANSI/BHMA Grade 2 security
Solid forged brass construction built to last a lifetime
Reversible handing for maximum versatility
Includes all mounting hardware for quick and easy installation
Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
Interior comes in same finish as exterior; if split finish is desired, please contact customer service
Accommodates door thickness 1-3/4″ to 2″; up to 2-1/2″ thick door with service part kit (Part Number: 8BR0702)
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Double Cylinder Function: Double cylinder handlesets require a key to unlock the mechanism on both the interior and exterior sides of the door. Double cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock from the inside; please check local codes before installing.
Â
Solid Brass Construction: Baldwin Reserve Series products are constructed from solid brass – providing a more luxurious, higher quality feel than door hardware made with lesser metals. When you hold a Baldwin product in your hand, you will immediately notice the difference that solid brass makes – it is heavier, stronger, and smoother than most of the door hardware on the market today.
Â
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″ to 2-1/2″
Handing: Reversible Left or Right
Knob Diameter: 2.34375
Projection: 2.40625″
Center to Center: 5.5″
Grip Center to Center: 8.40625″
Latch Faceplate: Drive-In, Round Corner or Square Corner
Cylinder: 5 Pin C
Material: Brass
Manufacturer Warranty: 25 Year Finish and Limited Lifetime Mechanical
Product Variations:
SC.LAJxCON.CSR: Single Cylinder Keyed Entry
DC.LAJxCON.CSR (This Model): Double Cylinder Keyed Entry
FD.LAJxCON.CSR: Full Dummy
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin La Jolla Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Handle Material | Metal |
| Handle Style | Grip |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Concealed Screws | No |
| Cylinder | 5 Pin C |
| Cylinder Type | Double Cylinder |
| Function | Keyed Entry |
| Keyway | C |
| Panic Proof | No |
| Rosette Shape | Square |
| Mounting | Sectional |
| Solid Construction | Solid Brass |
| Lock Style | Single Point |
| Interconnected | No |
| Trim Design | Contemporary |
| Interior Handle Style | Knob |
| ADA | No |
| Collection | Reserve |
| Approved for Commercial Use | No |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| Series | La Jolla |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-3/4", 1-7/8", 2" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 1" |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8" |
| Handle Projection | 2.40625 in. |
| Grip Center to Center | 8.40625 in. |
| Trim Height | 12.46875 in. |
| Trim Width | 2.6875 in. |
| Interior Handle Width | 2.34375 in. |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Lifetime Polished Nickel, Polished Chrome, Satin Black, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
