Caution: Double Cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock. Please check local codes before installing.

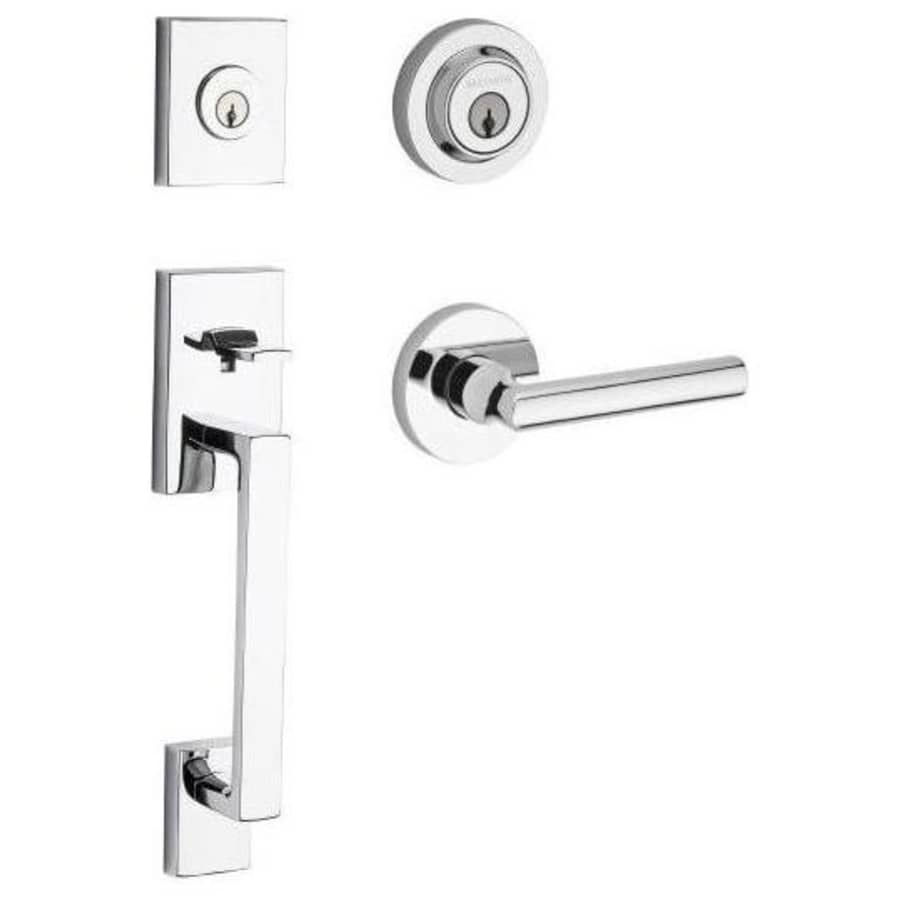

The Baldwin La Jolla handleset features geometric precision and minimalistic design which accentuates homes with contemporary style. With a choice of interior lever or knob and trim, the La Jolla handleset is customizable to match one’s personal tastes.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security
Solid forged brass construction built to last a lifetime
Includes all mounting hardware for quick and easy installation
Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
Interior comes in same finish as exterior; if split finish is desired, please contact customer service
Accommodates door thickness 2″ to 2-1/2″
Covered by Baldwin’s 25 year finish and limited lifetime mechanical manufacturer warranties
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8-3/8″
Door Thickness: 2″ to 2-1/2″
Handing: Reversible Left or Right
Cylinder: 5 Pin C
Latch Faceplate: Drive-In, Round Corner, or Square Corner
Overall Height: 12-1/2″
Handle Projection: 2-3/8″
Trim Width: 2-11/16″
Interior Handle Length: 4-1/4″
Product Variations:
SC.LAJxTUB.R.CRR: Single Cylinder Keyed Entry
DC.LAJxTUB.R.CRR (This Model): Double Cylinder Keyed Entry
FD.LAJxTUB.R.CRR: Full Dummy
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin La Jolla Collection
Specifications
| Material | Brass |
| Handle Style | Grip |
| Thermostat | Modern |
| Cylinder Type | Double Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | C |
| Handle Material | Metal |
| Concealed Screws | No |
| Function | Keyed Entry |
| Solid Construction | Solid Brass |
| Cylinder | 5 Pin C |
| Adjustable Throughbolt | No |
| Interconnected | No |
| Interior Handle Style | Lever |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lock Style | Single Point |
| Mounting | Sectional |
| Trim Design | Tube |
| Panic Proof | No |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Reserve |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| Series | La Jolla |
| BHMA Certification | Grade 2 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.40625 in. |
| Interior Handle Length | 4.25 in. |
| Trim Height | 12.46875 in. |
| Trim Width | 2.6875 in. |
| Overflow Height | 12.46875 in. |
| Grip Center to Center | 8.40625 in. |
| Interior Trim Height | 2.5625 in. |
| Interior Trim Width | 2.5625 in. |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Polished Nickel, Satin Black, Venetian Bronze, Polished Chrome |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
