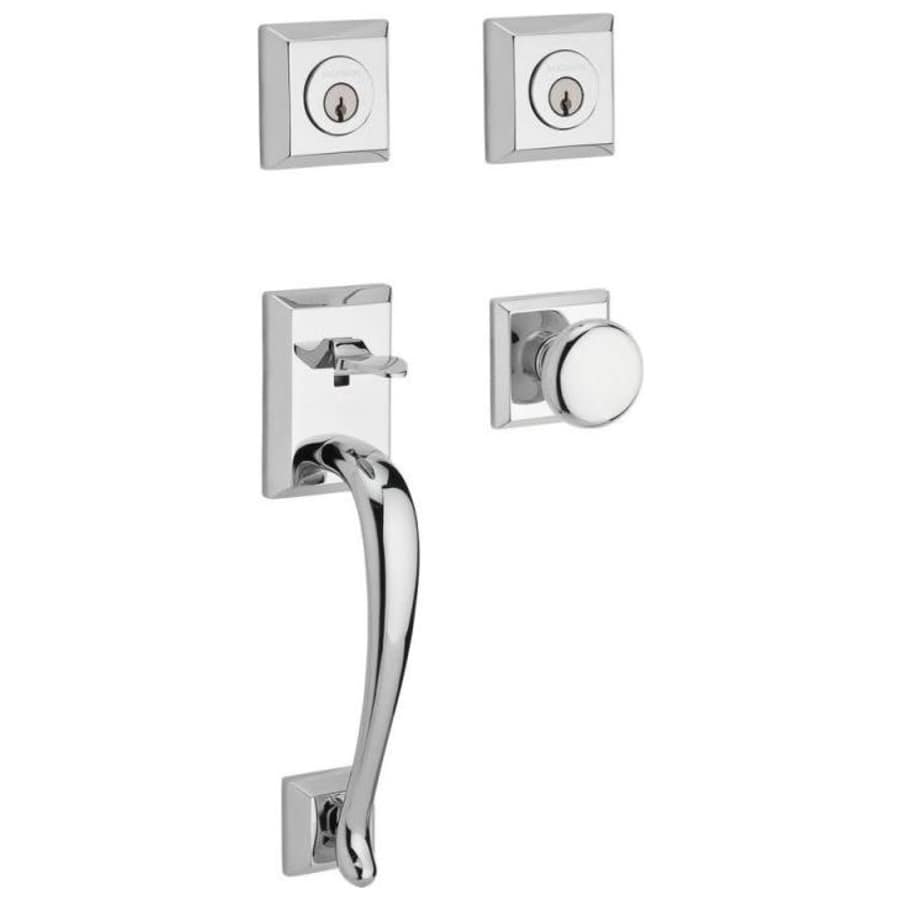

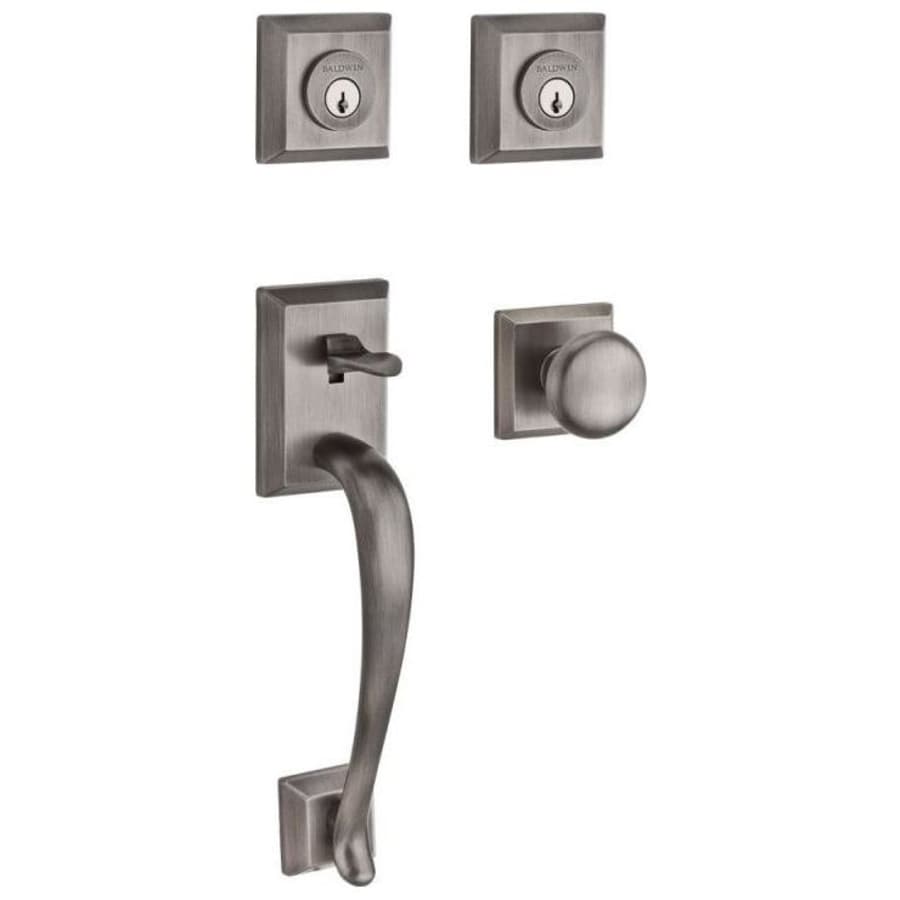

Double Cylinder Function: Baldwin double cylinder handlesets require a key to unlock the mechanism on both the interior and exterior sides of the door. Double cylinder locks can pose a safety hazard in times of emergency due to requiring a key to unlock from the inside; please check local codes before installing.
Features:
Baldwin 5-pin C-Keyway standard
Guide posts for easy installation
Tested to exceed ANSI/BHMA Grade 2 security
Reversible handing allows for installation on both left and right handed doors
Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
Interior comes in same finish as exterior. If split finish is desired, please contact customer service
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Solid Brass Construction: Baldwin Reserve Series products are constructed from solid brass – providing a more luxurious, higher quality feel than door hardware made with lesser metals. When you hold a Baldwin product in your hand, you will immediately notice the difference that solid brass makes – it is heavier, stronger, and smoother than most of the door hardware on the market today.
Specifications:
Backset: Adjustable to 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
BHMA Security: Grade 2
Handing: Reversible
Door Thickness: 1-3/4″ – 2″
Latch Faceplate: Round Corner, Square Corner, Drive-In
Projection: 2-8/9″
Grip Center to Center: 8-13/32″
Manufacturer Warranty: Limited Lifetime, 25 Year Finish Warranty
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Napa Collection
Specifications
| Collection | Reserve |
| Approved for Commercial Use | No |
| Series | Napa |
| BHMA Certification | Grade 2 |
| Thermostat | Transitional |
| Material | Brass |
| Cylinder | 5 Pin C |
| Cylinder Type | Double Cylinder |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Keyway | C |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Solid Construction | Solid Brass |
| Handle Style | Knob |
| Lock Style | Single Point |
| Mounting | Sectional |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 1" |
| Door Thickness | 2", 1-3/4", 1-7/8" |
| Edge Bore | 1" |
| Handle Projection | 2.89 in. |
| Trim Height | 11.5 in. |
| Grip Center to Center | 8.4062 in. |
| Interior Handle Width | 2.1875 in. |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Matte Antique Nickel, Matte Brass & Black, Venetian Bronze, Polished Chrome |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
