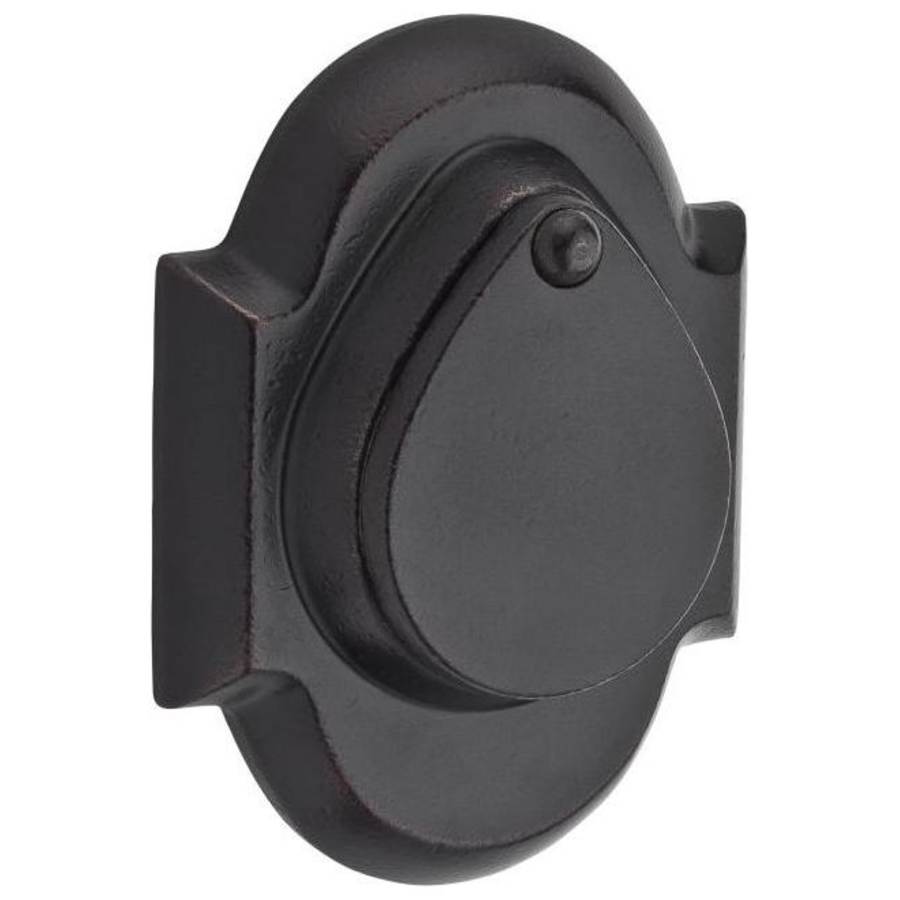

Baldwin Rustic Arch Double Cylinder Deadbolt
The style of Baldwin’s Rustic Arch Deadbolt complements the bold design of rustic architecture with its weathered surface and tear-drop flip cover. Pair this deadbolt with a Baldwin Rustic keyed or passage lever or knob with the Rustic Arch rosette for a complete entry set and a perfect match.
Double Cylinder: Baldwin’s double cylinder deadbolt has a keyed cylinder on the outside as well as a keyed cylinder on the inside, unlike a single cylinder which has a thumb turn on the interior. The deadbolt latch is locked and unlocked only via a key so it is ideal for doors near glass where someone could break the glass and turn the thumbturn on the interior. Due to fire codes, be sure to check with your local building codes to be sure a double cylinder deadbolt is able to be installed in your state.
Features:
Solid forged brass construction built to last a lifetime.
To personalize your look, this Rustic inspired design is available in 2 finishes.
Baldwin 5-pin SmartKey Re-Key Technology
Versatility and Easy Installation:
Adjustable Latch for both 2-3/8″ and 2-3/4″ backset
Round Corner, Square Corner and Drive-In Latch Plates
Includes both Round Corner and Square Corner Strike Plates
Guide Post for Easy Installation
Accommodates door thickness 1-3/4″ to 2″. Up to 2-1/2″ thick door with service part kit (Part Number: 8BR0705).
2-1/8″ cross bore and 1″ edge bore for latch.
Tested to exceed ANSI/BHMA Grade 2 security.
Features 1″ solid brass throw bolt latch with hardened steel roll pin for additional strength and security.
Features low profile cylinder projection.
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Rustic Arch Collection
Specifications
| Material | Brass |
| Thermostat | Rustic |
| Function | Keyed Entry |
| Cylinder Type | Double Cylinder |
| Latch Faceplate | Drive-In, Square Corner, Round Corner |
| Solid Construction | Solid Brass |
| Cylinder | SmartKey 5 Pin |
| Keyway | KW1 |
| Collection | Reserve |
| Approved for Commercial Use | No |
| Series | Rustic Arch |
| BHMA Certification | Grade 2 |
| Backset | Adjustable 2-3/8" or 2-3/4", 2-3/8", 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 2-1/8", 2-3/8", 2-1/2", 2", 1-7/8", 2-1/4", 1-3/4" |
| Edge Bore | 1" |
| Interior Height | 3.125 in. |
| Interior Width | 2.625 in. |
| Exterior Height | 3.125 in. |
| Exterior Projection | 1.0625 in. |
| Exterior Width | 2.625 in. |
| Interior Projection | 1.0625 in. |
| Color | Dark Bronze, White Bronze |
| Color Tone | Bronze Tones |
