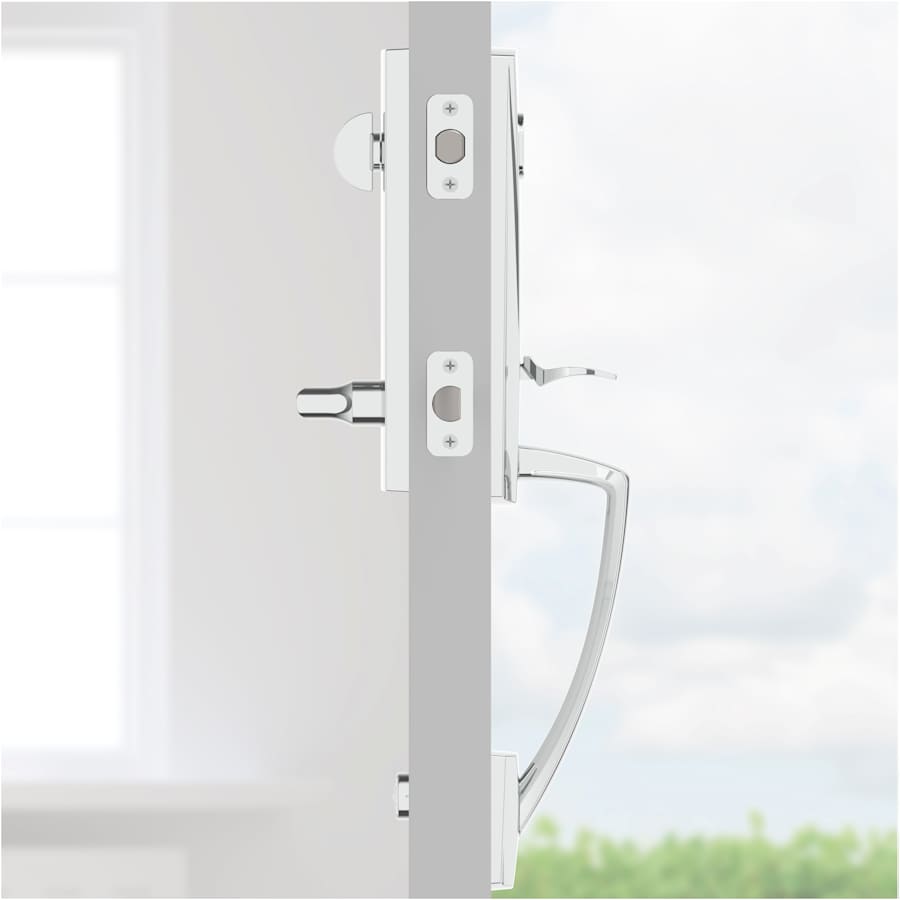

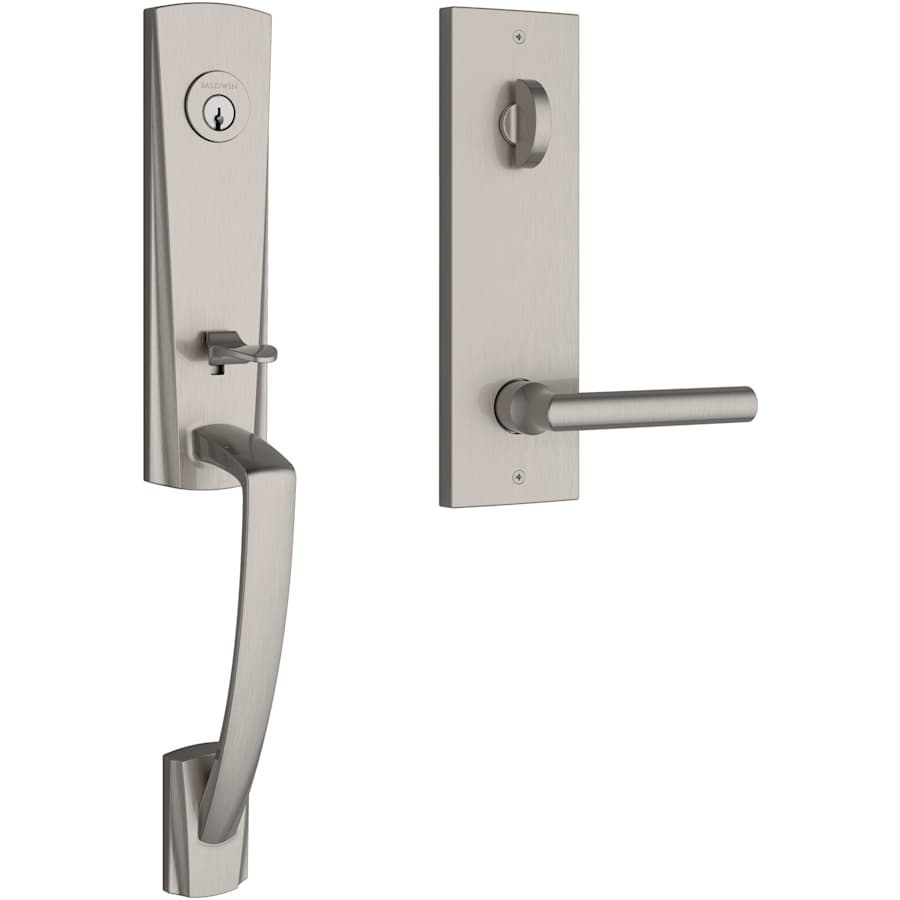

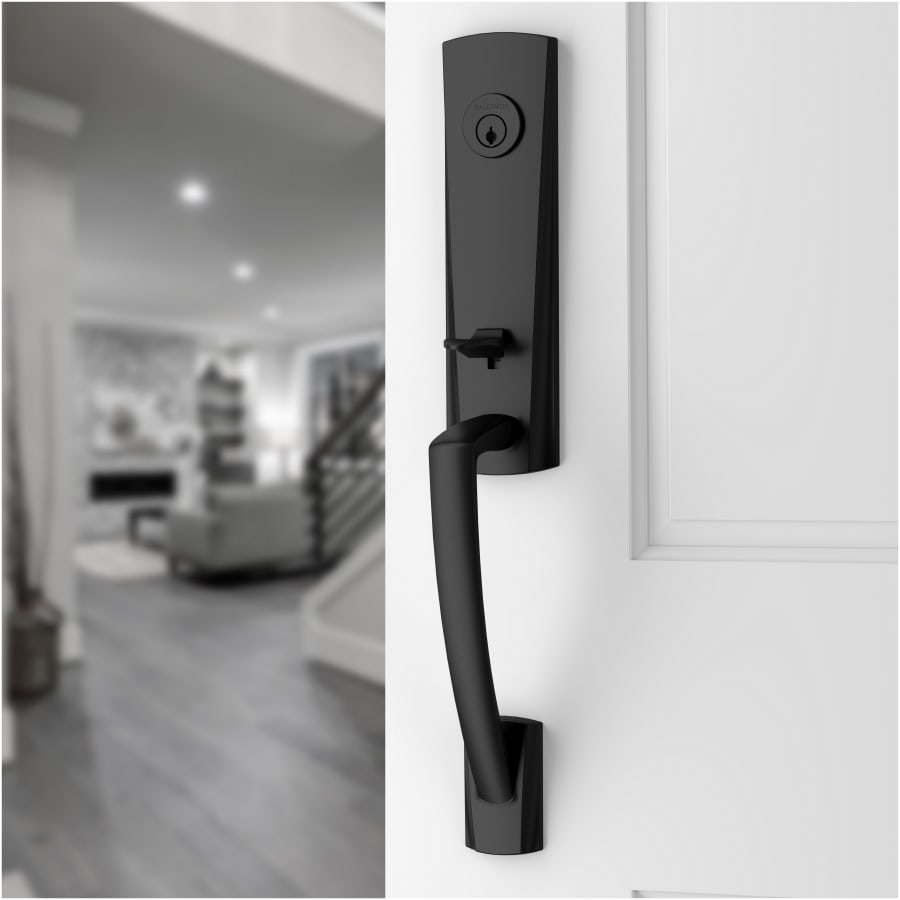

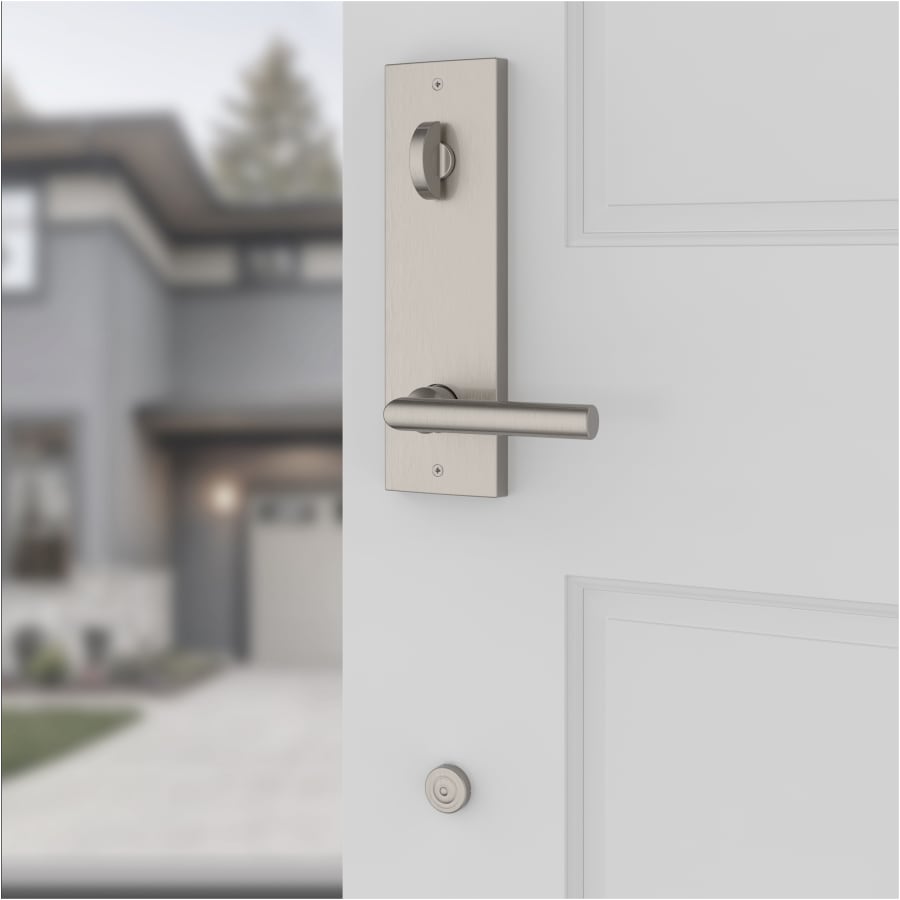

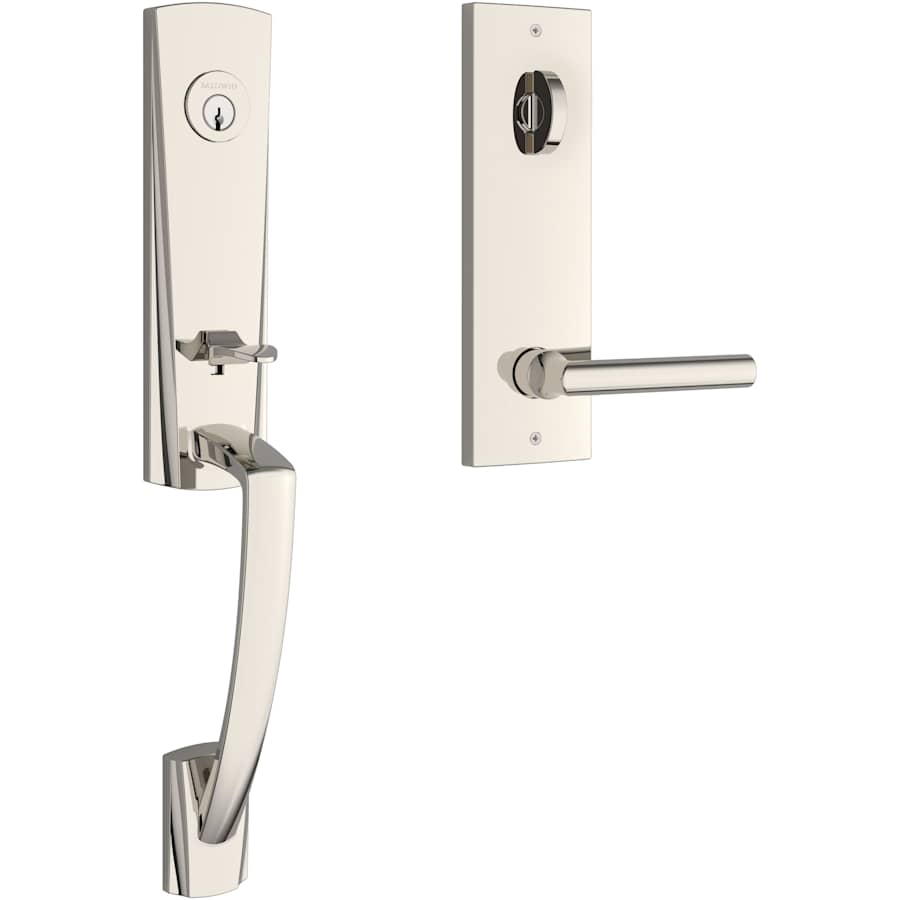

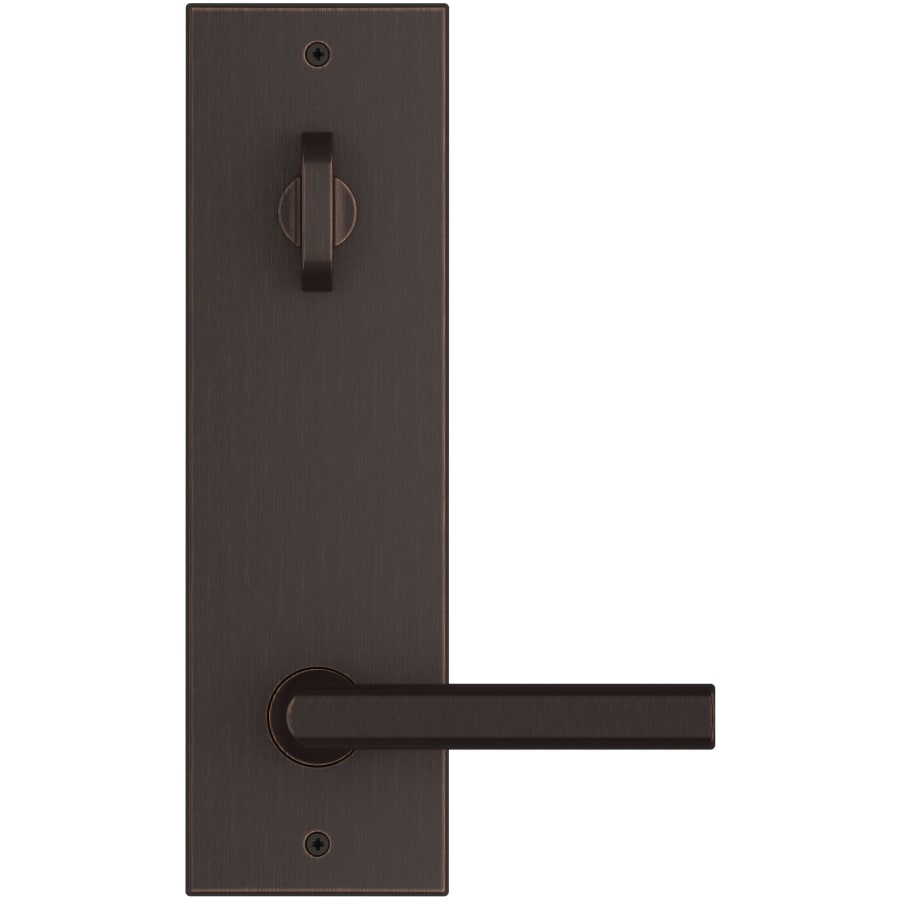

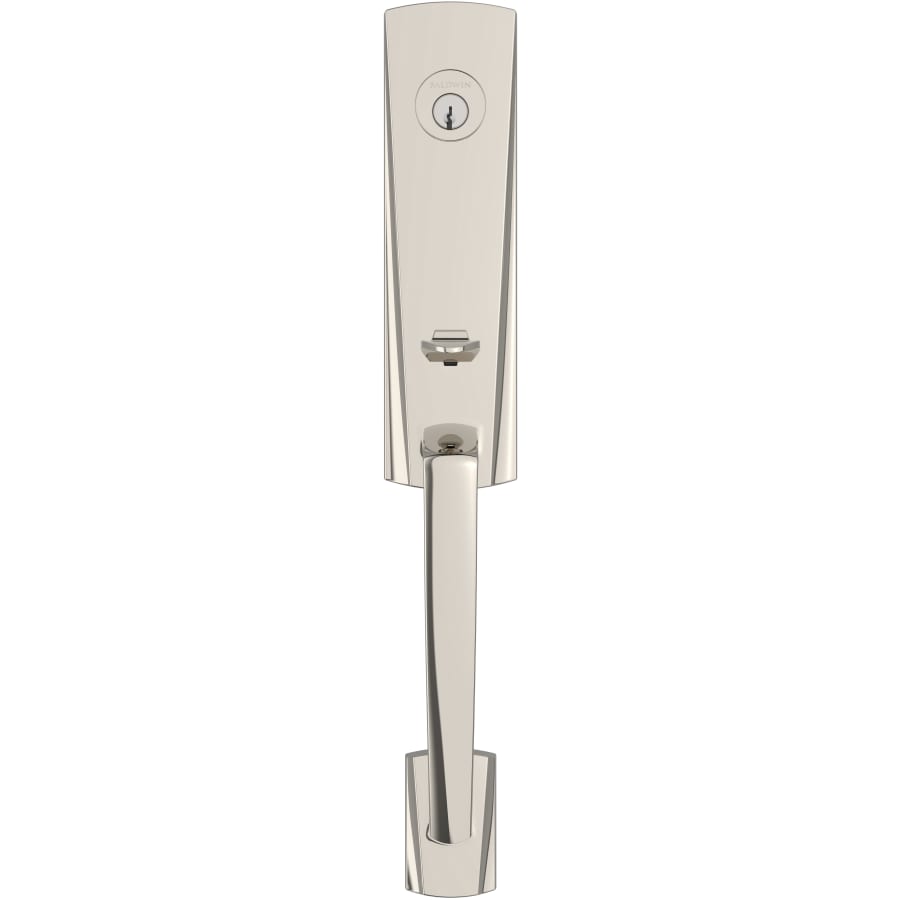

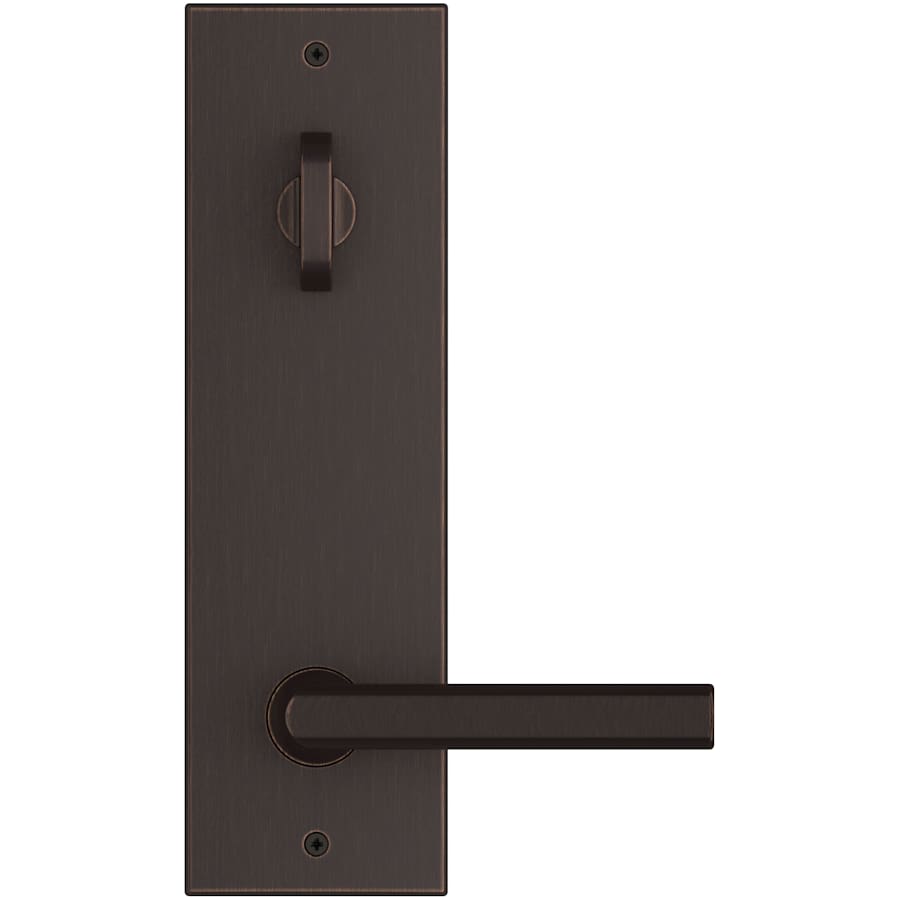

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business. Comes with Emergency Egress function which features an interconnected lock to simultaneously retract the deadbolt and door latch to quickly open your door.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid brass for durability and premium feel
Accommodates door thickness 1-3/4″ to 2″; up to 2-1/2″ with purchase of a thick door kit
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″ to 1-7/8″
Handing: Right
Latch Faceplate: Drive-In, Round Corner, or Square Corner
Cylinder: 5 Pin C Keyway
Material: Brass
Grip Center to Center: 8-3/8″
Overall Height: 18-1/16″
Handle Projection: 3″
Trim Height: 18-1/16″
Trim Width: 2-11/16″
Interior Handle Projection: 2-3/8″
Interior Handle Length: 4-1/4″
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Miami Collection
Specifications
| Material | Brass |
| Function | Keyed Entry |
| Handshower | Right, Left, Reversible |
| Handle Material | Metal |
| Handle Style | Grip |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Solid Construction | Solid Brass |
| Thermostat | Contemporary |
| Keyway | C |
| Mounting | One Piece |
| Cylinder Type | Single Cylinder |
| Interconnected | Yes |
| Panic Proof | Yes |
| Lock Style | Single Point |
| Cylinder | 5 Pin C |
| Adjustable Throughbolt | No |
| Interior Handle Style | Lever |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Reserve |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| BHMA Certification | Grade 2 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
| Edge Bore | 1" |
| Handle Projection | 3 in. |
| Product Weight | 9 lbs. |
| Trim Height | 18.0625 in. |
| Trim Width | 2.6875 in. |
| Center to Center | 5.5 in. |
| Grip Center to Center | 8.40625 in. |
| Interior Trim Height | 9.5 in. |
| Interior Trim Width | 2.8125 in. |
| Overflow Height | 18.0625 in. |
| Interior Handle Length | 4.25 in. |
| Interior Handle Projection | 2.344 in. |
| Cylinder Included | Yes |
| Interior Included | Yes |
| Color | Satin Nickel, Venetian Bronze |
