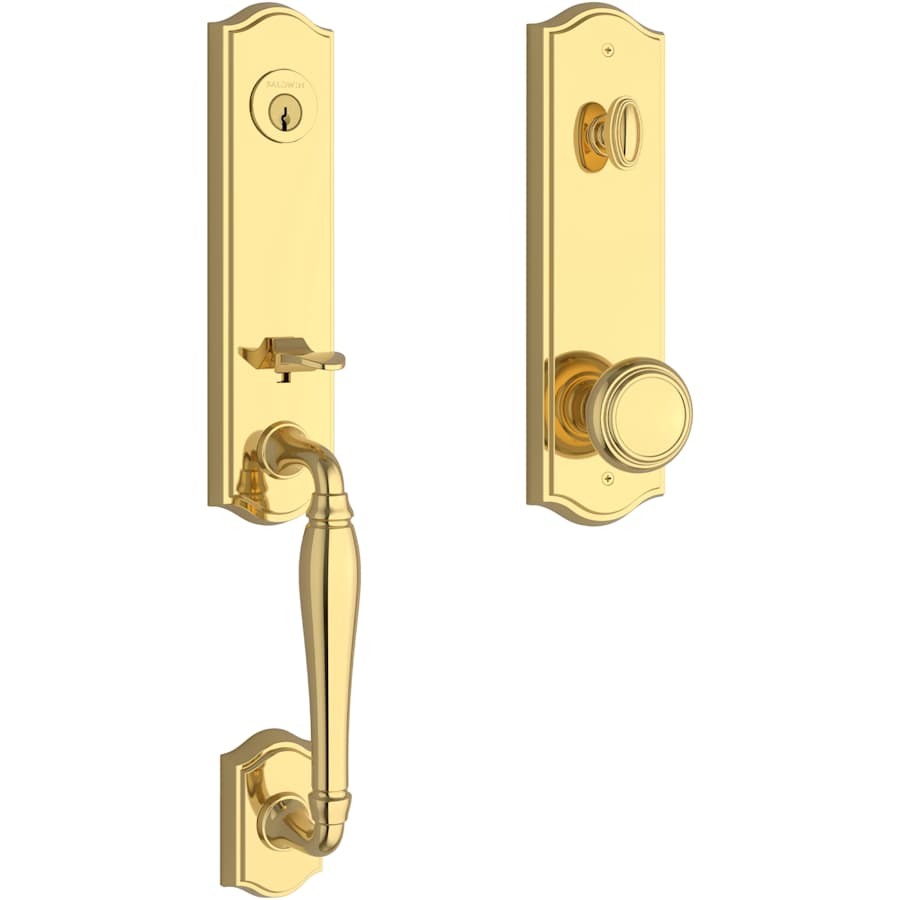

Single Cylinder Keyed Entry: Single cylinder handlesets are keyed on the exterior with an associated thumbturn on the inside that unlocks the door. The exterior handle has a thumb plate and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business. Comes with Emergency Egress function which features an interconnected lock to simultaneously retract the deadbolt and door latch to quickly open your door.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid brass for durability and premium feel
Accommodates door thickness 2″ to 2-1/2″
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 2″ to 2-1/2″
Handing: Reversible Left or Right
Latch Faceplate: Drive-In, Round Corner, or Square Corner
Cylinder: 5 Pin C Keyway
Material: Brass
Grip Center to Center: 8-3/8″
Overall Height: 17-5/8″
Handle Projection: 3-1/16″
Trim Height: 17-5/8″
Trim Width: 2-11/16″
Interior Handle Height: 2-1/4″
Interior Handle Width: 2-1/4″
Interior Handle Projection: 2-1/4″
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin New Hampshire Collection
Specifications
| Material | Brass |
| Thermostat | Traditional |
| Handle Style | Grip |
| Handle Material | Metal |
| Solid Construction | Solid Brass |
| Keyway | C |
| Handshower | Left, Reversible, Right |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Interconnected | Yes |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Panic Proof | Yes |
| Mounting | One Piece |
| Adjustable Throughbolt | No |
| Interior Handle Style | Knob |
| Lock Style | Single Point |
| Collection | Reserve |
| ADA | No |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| Approved for Commercial Use | No |
| Series | New Hampshire |
| BHMA Certification | Grade 2 |
| Product Weight | 8 lbs. |
| Center to Center | 5.5 in. |
| Door Thickness | 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 3.0625 in. |
| Trim Height | 17.625 in. |
| Trim Width | 2.6875 in. |
| Overflow Height | 17.625 in. |
| Grip Center to Center | 8.40625 in. |
| Interior Handle Width | 2.219 in. |
| Interior Trim Height | 10.40625 in. |
| Interior Trim Width | 2.875 in. |
| Interior Handle Height | 2.219 in. |
| Interior Handle Projection | 2.25 in. |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Matte Antique Nickel, Polished Chrome, Satin Black, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
