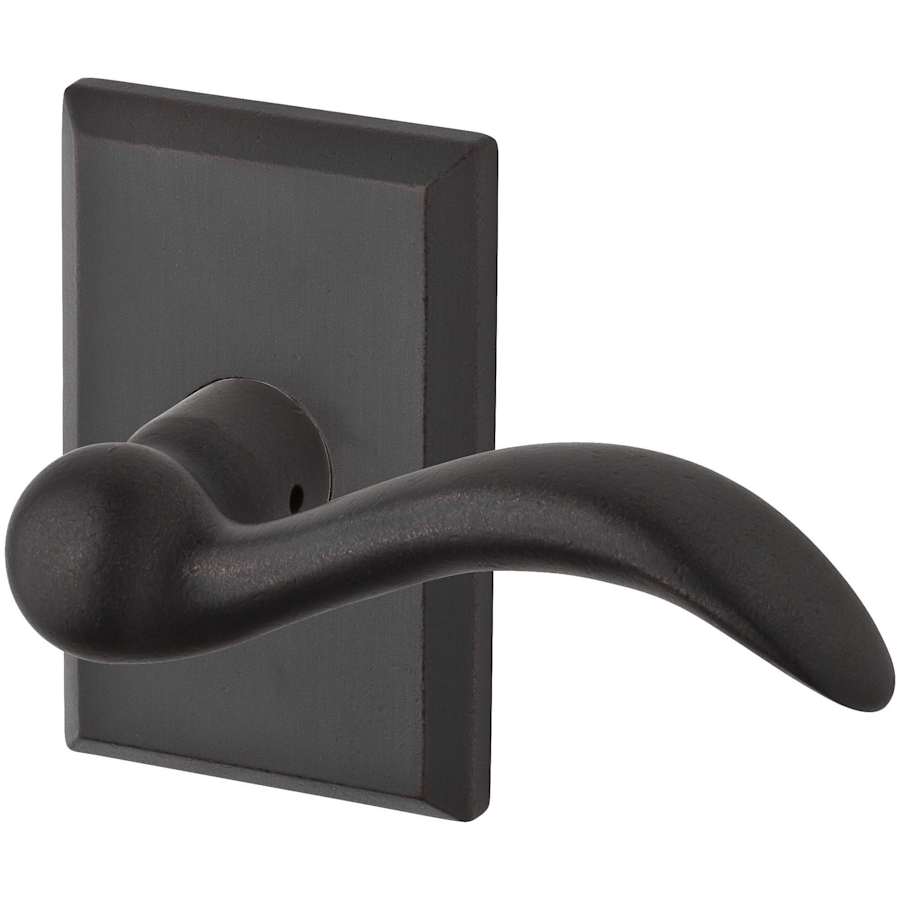

Baldwin Arch Single Cylinder Leverset with Rustic Square Rose
Baldwin’s Arch lever features a substantial size and a hand distressed look, giving the classic shape of the Arch lever a rustic appearance. The either dark or white bronze finishes are both sophisticated an luminous, while also providing a long lasting luster with their durable lacquer finish. Featuring the Rustic Square Rose which adds to the weathered look and feel of the already exquisite door lever.
Single Cylinder: Baldwin’s single cylinder leverset has a keyed cylinder on the exterior and a lever with thumbturn on the interior. Unlocking and locking the lever is done by either a key on the exterior or via the thumbturn on the interior. Pair this keyed leverset with a Baldwin deadbolt for a complete back door or entrance solution.
Features:
Solid forged brass construction built to last a lifetime.
To personalize your look, this Rustic inspired design is available in 2 finishes.
Baldwin 5-pin C-Keyway standard.
Versatility and Easy Installation:
Adjustable Latch for both 2-3/8″ and 2-3/4″ backset
Round Corner, Square Corner and Drive-In Latch Plates
Includes both Round Corner and Square Corner Strike Plates
Guide Post for Easy Installation
Accommodates door thickness 1-3/8″ to 2″. Up to 2-1/2″ thick door with service part kit (Part Number: 8BR0706).
2-1/8″ cross bore and 1″ edge bore for latch.
Tested to exceed ANSI/BHMA Grade 2 security.
Shown with Rustic Square Rose, can be customized with other Reserve roses.
Features easy-to-install spring assisted chassis for optimal operational strength.
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Arch Collection
Specifications
| Material | Brass |
| Thermostat | Transitional, Rustic |
| Concealed Screws | No |
| Handshower | Right |
| Latch Faceplate | Square Corner, Drive-In, Round Corner |
| Rosette Shape | Rectangle |
| Solid Construction | Solid Brass |
| Function | Keyed Entry |
| Lever Shape | Wave |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Locking Mechanism | Thumbturn |
| Collection | Reserve |
| Approved for Commercial Use | No |
| Series | Arch |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.5 in. |
| Handle Projection | 2.5625 in. |
| Trim Height | 4 in. |
| Trim Width | 2.625 in. |
| Color | Dark Bronze, White Bronze |
| Color Tone | Bronze Tones |
