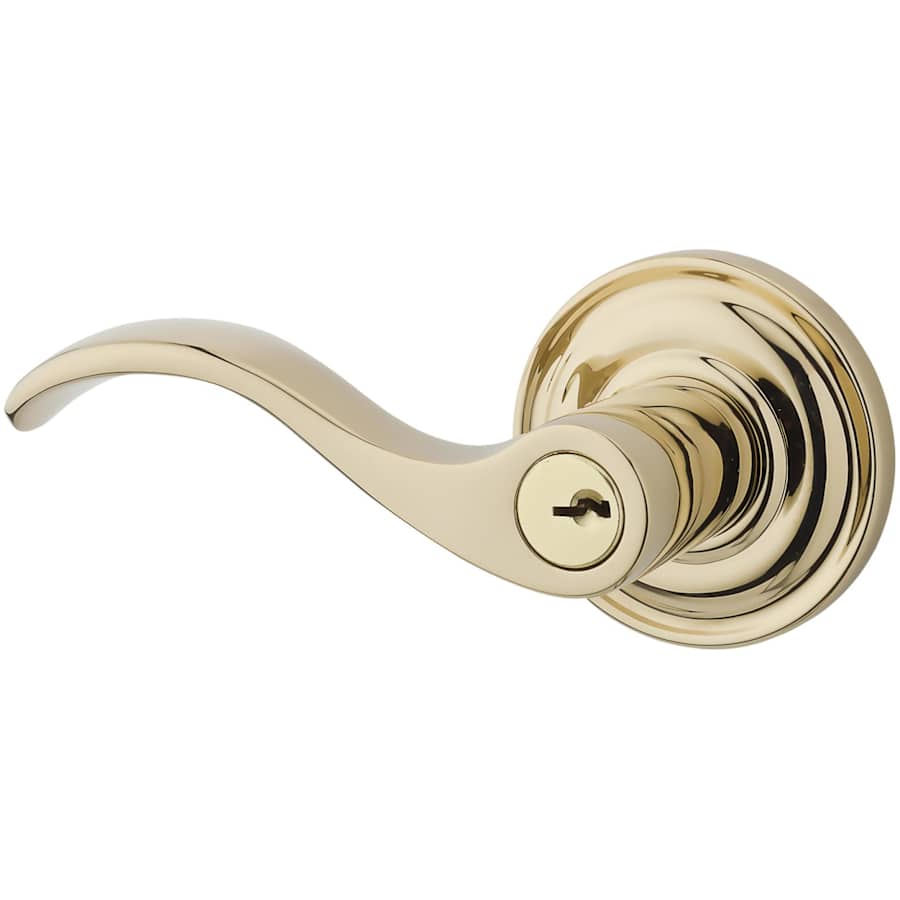

Baldwin’s Curve Lever features timeless appeal with its classic shape which are a fit to both modern sensibility and traditional styling. With its solid brass construction and availability in popular finishes such as Satin Nickel and Venetian Bronze, this lever is both durable and matches a variety of décors. Featuring the Traditional Round Rose which further adds to the traditional look and feel of the already beautifully designed lever.
Single Cylinder: Baldwin’s single cylinder leverset has a keyed cylinder on the exterior and a lever with thumbturn on the interior. Unlocking and locking the lever is done by either a key on the exterior or via the thumbturn on the interior. Pair this keyed leverset with a Baldwin deadbolt for a complete back door or entrance solution.
Features:
Solid forged brass construction built to last a lifetime.
To personalize your look, this Traditional inspired design is available in 6 finishes.
Baldwin 5-pin C-Keyway standard.
Versatility and Easy Installation:
Adjustable Latch for both 2-3/8″ and 2-3/4″ backset
Round Corner, Square Corner and Drive-In Latch Plates
Includes both Round Corner and Square Corner Strike Plates
Guide Post for Easy Installation
Accommodates door thickness 1-3/8″ to 2″. Up to 2-1/2″ thick door with service part kit (Part Number: 8BR0706).
2-1/8″ cross bore and 1″ edge bore for latch.
Tested to exceed ANSI/BHMA Grade 2 security.
Shown with Traditional Round Rose, can be customized with other Reserve roses.
Features easy-to-install spring assisted chassis for optimal operational strength.
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Curve Collection
Specifications
| Material | Brass |
| Thermostat | Transitional |
| Handshower | Left |
| Concealed Screws | No |
| Function | Keyed Entry |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lever Shape | Wave |
| Rosette Shape | Round |
| Solid Construction | Solid Brass |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Locking Mechanism | Thumbturn |
| Collection | Reserve |
| Approved for Commercial Use | No |
| Series | Curve |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8", 1-3/4" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 3.9375 in. |
| Handle Projection | 2.5625 in. |
| Trim Height | 2.5625 in. |
| Trim Width | 2.5625 in. |
| Color | Lifetime Polished Brass, Lifetime Satin Brass, Matte Antique Nickel, Matte Brass & Black, Polished Nickel, Satin Black, Venetian Bronze, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
