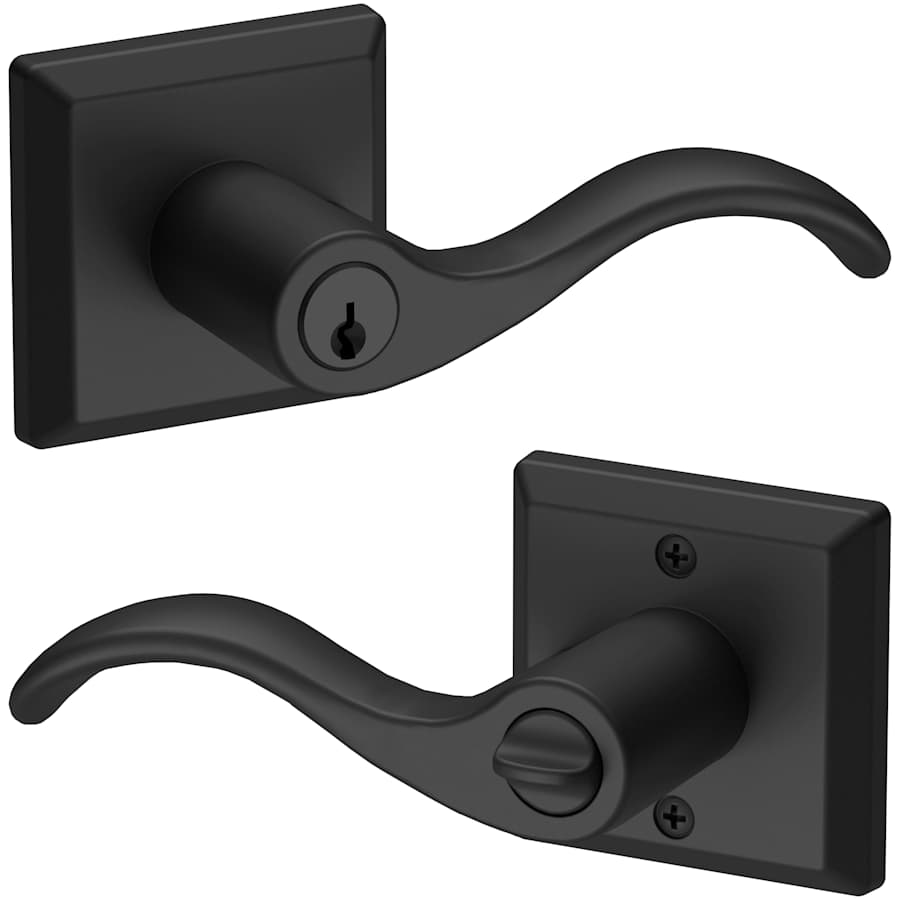

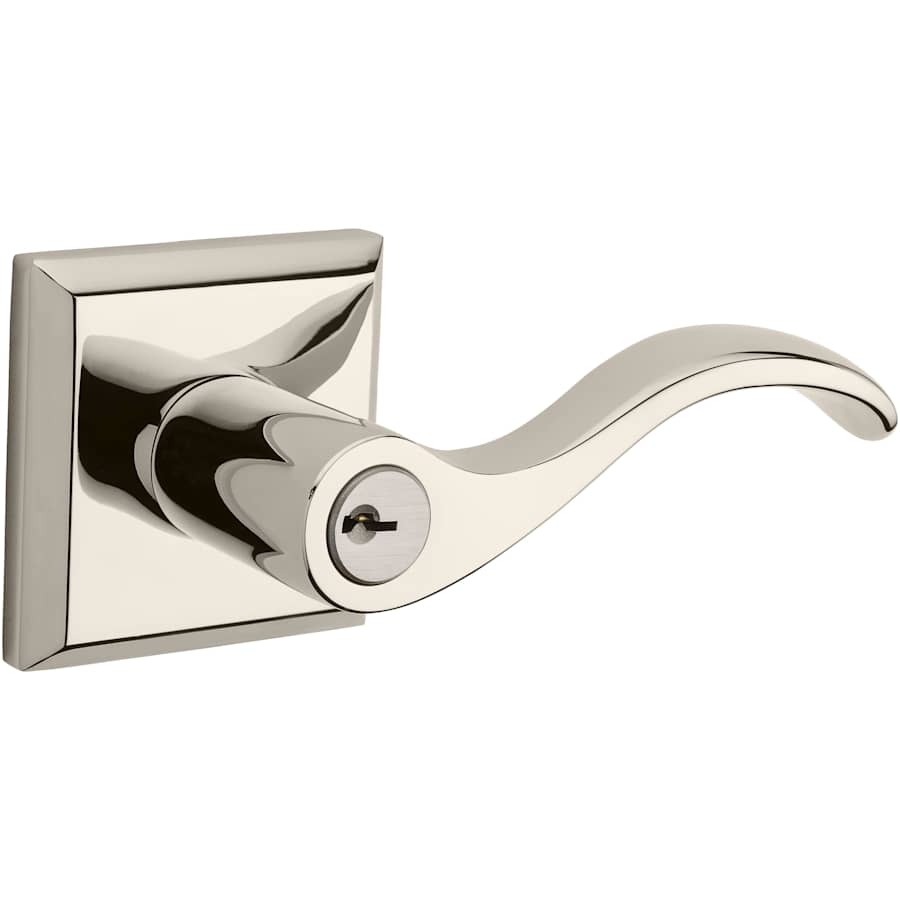

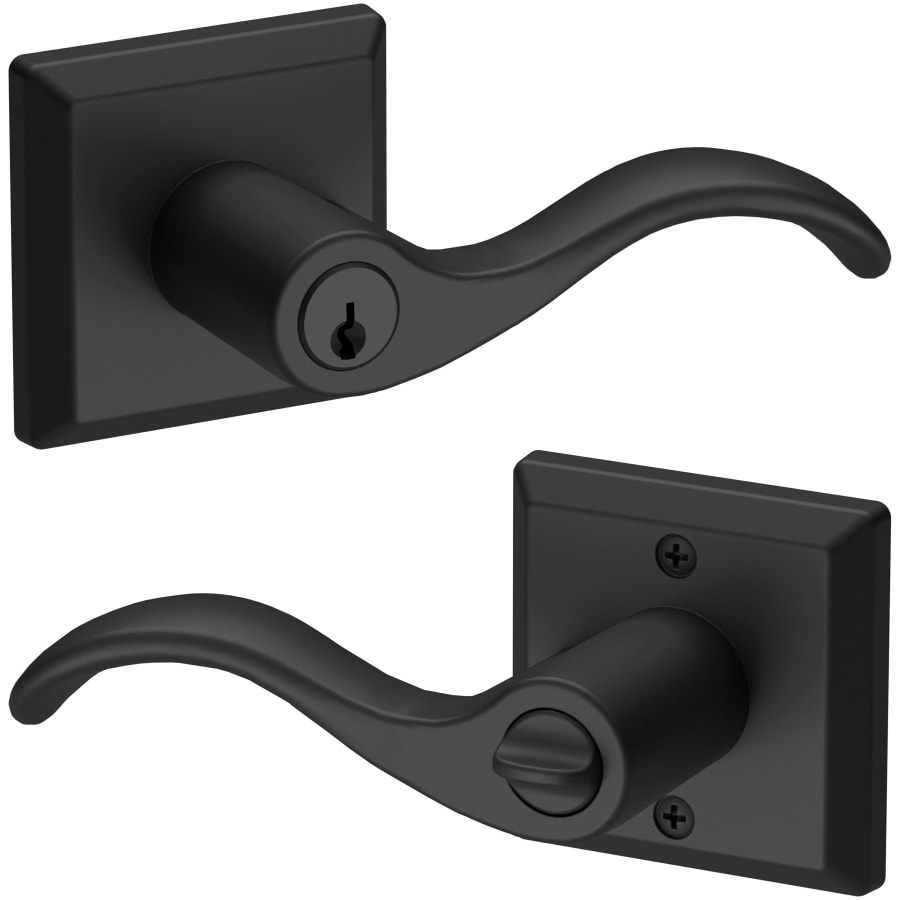

Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid brass for durability and premium feel
Accommodates door thickness 1-3/8″ to 2″; up to 2-1/2″ with purchase of a thick door kit
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2″
Handing: Right
Handle Length: 3-15/16″
Handle Projection: 2-7/16″
Trim Width: 2-10/16″
Trim Height: 2-10/16″
Product Weight: 5 lbs
Latch Faceplate: Drive-In, Round Corner, or Square Corner
Cylinder: 5 Pin C Keyway
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Curve Collection
Specifications
| Approved for Commercial Use | No |
| Collection | Reserve |
| ADA | No |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| BHMA Certification | Grade 2 |
| Fire Rated | No |
| Material | Brass |
| Thermostat | Traditional |
| Solid Construction | Solid Brass |
| Handle Style | Lever |
| Function | Keyed Entry |
| Keyway | C |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Rosette Shape | Square |
| Handshower | Right |
| Handle Material | Metal |
| Cylinder Type | Single Cylinder |
| Cylinder | 5 Pin C |
| Concealed Screws | No |
| Lever Shape | Wave |
| Panic Proof | No |
| Product Weight | 5 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Edge Bore | 1" |
| Cross Bore | 2-1/8" |
| Handle Projection | 2.4375 in. |
| Trim Height | 2.59375 in. |
| Trim Width | 2.59375 in. |
| Handle Length | 3.9375 in. |
| Cylinder Included | Yes |
| Color | Lifetime Polished Nickel, Lifetime Satin Brass, Matte Antique Nickel, Matte Brass & Black, Polished Brass, Polished Chrome, Satin Black, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
