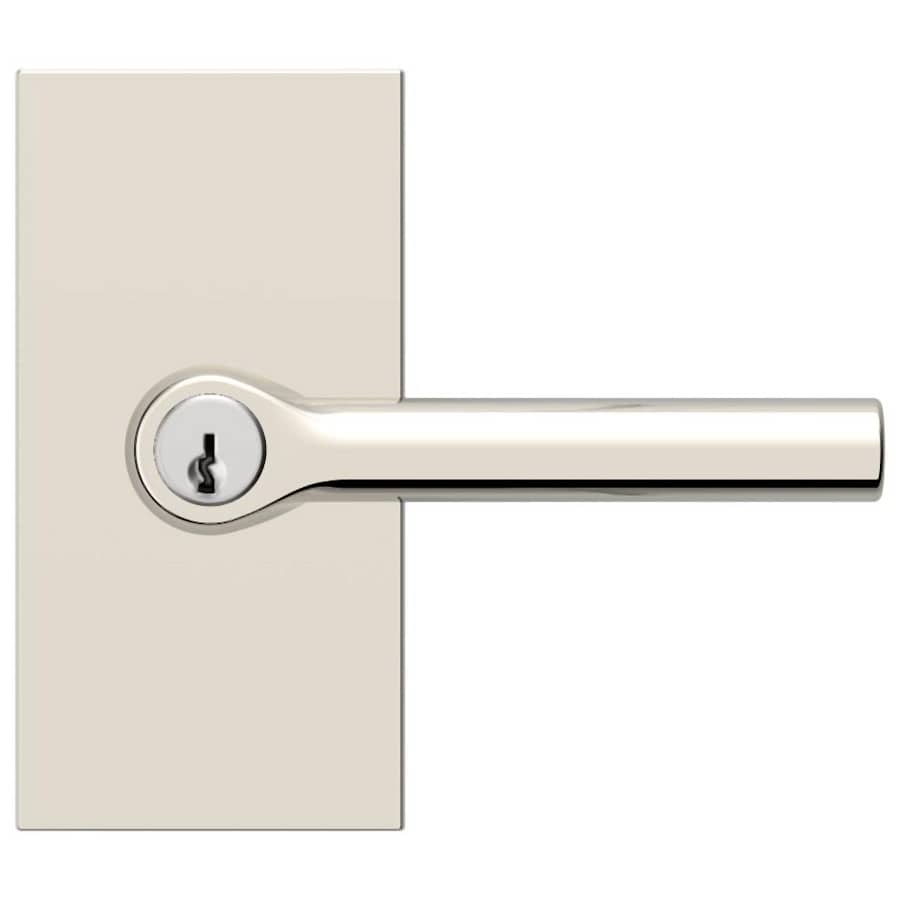

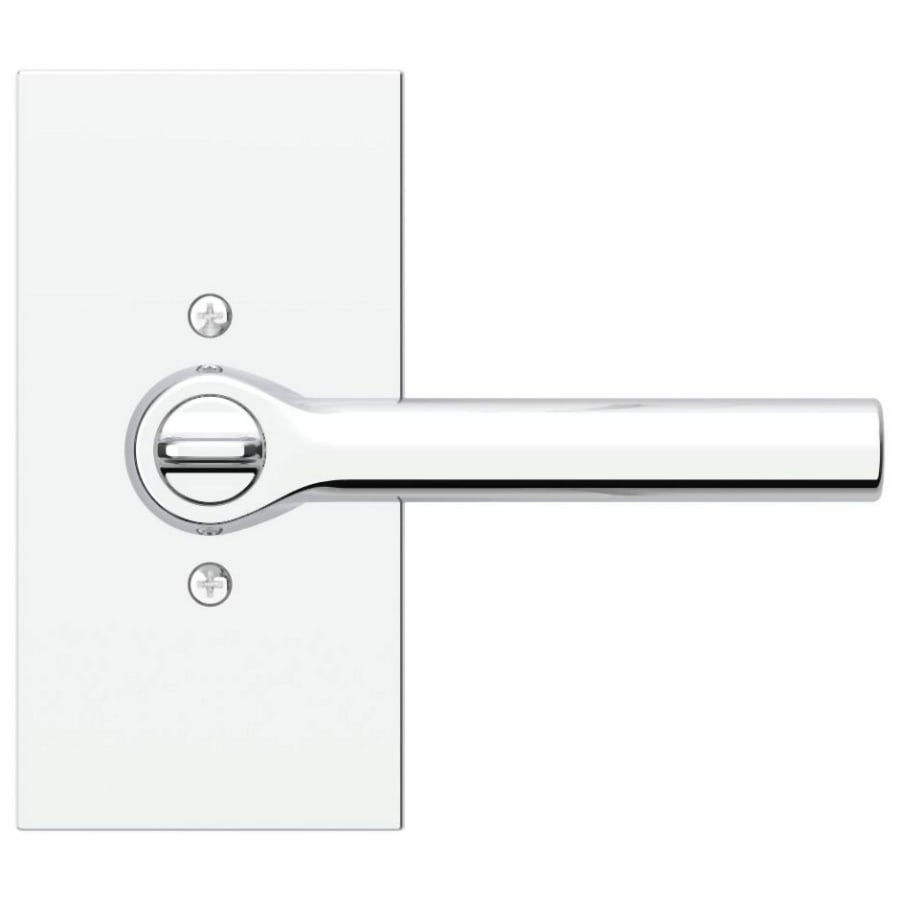

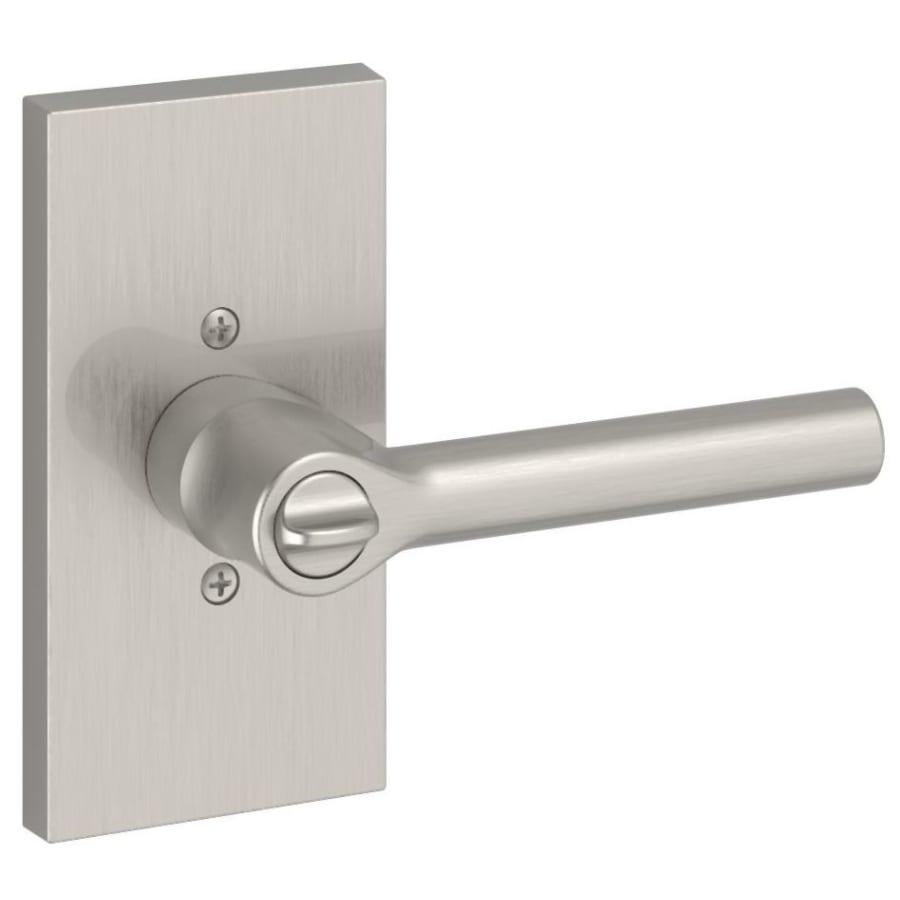

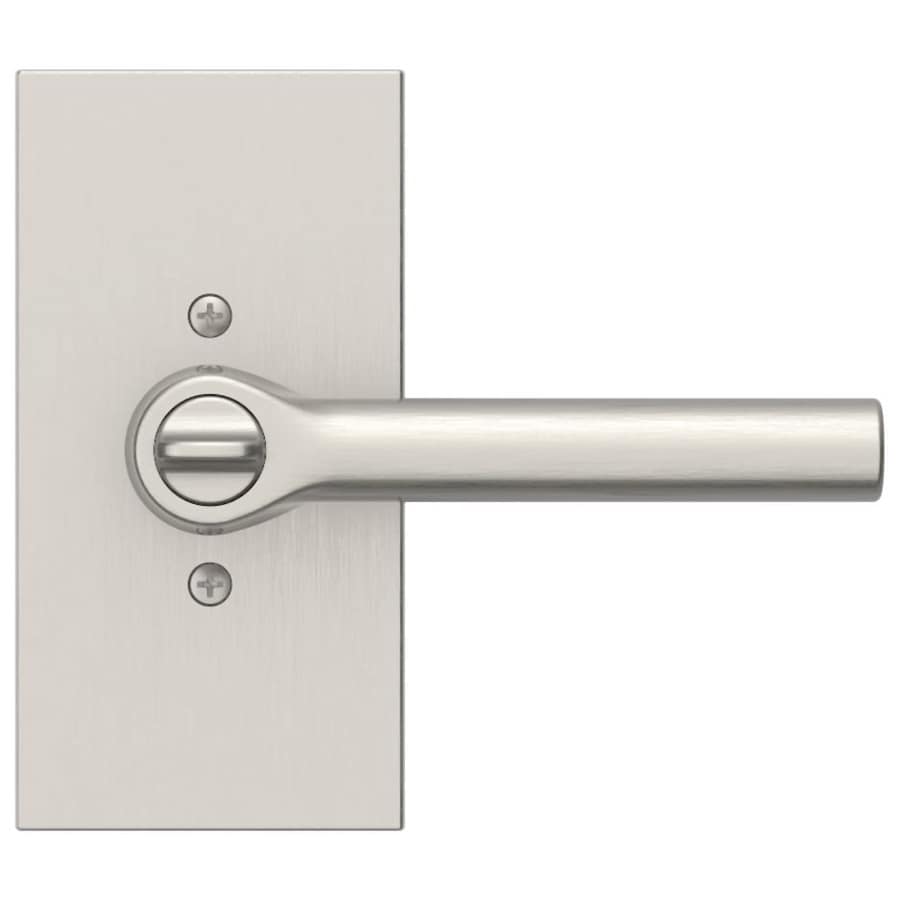

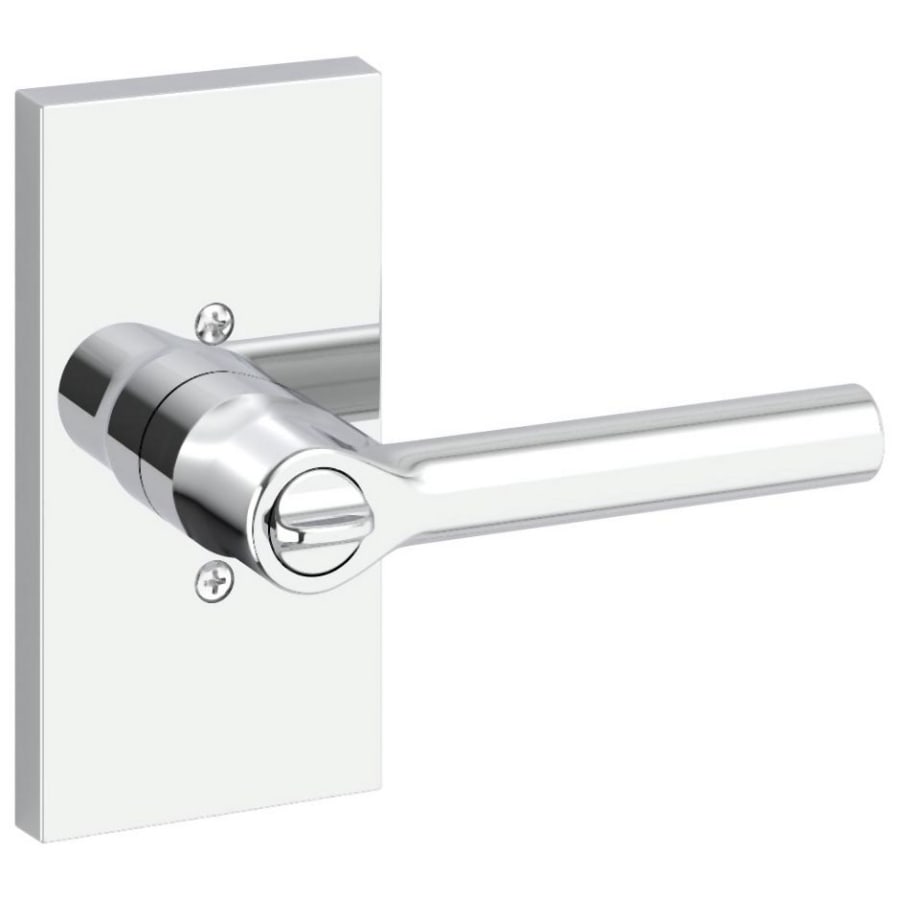

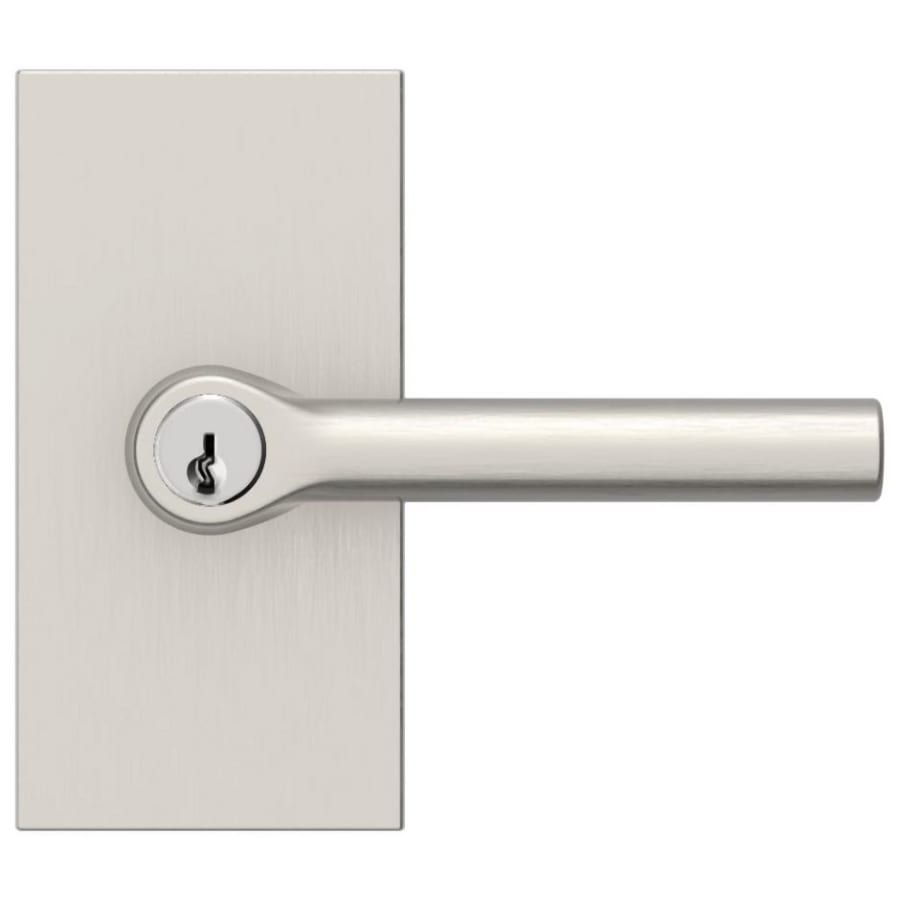

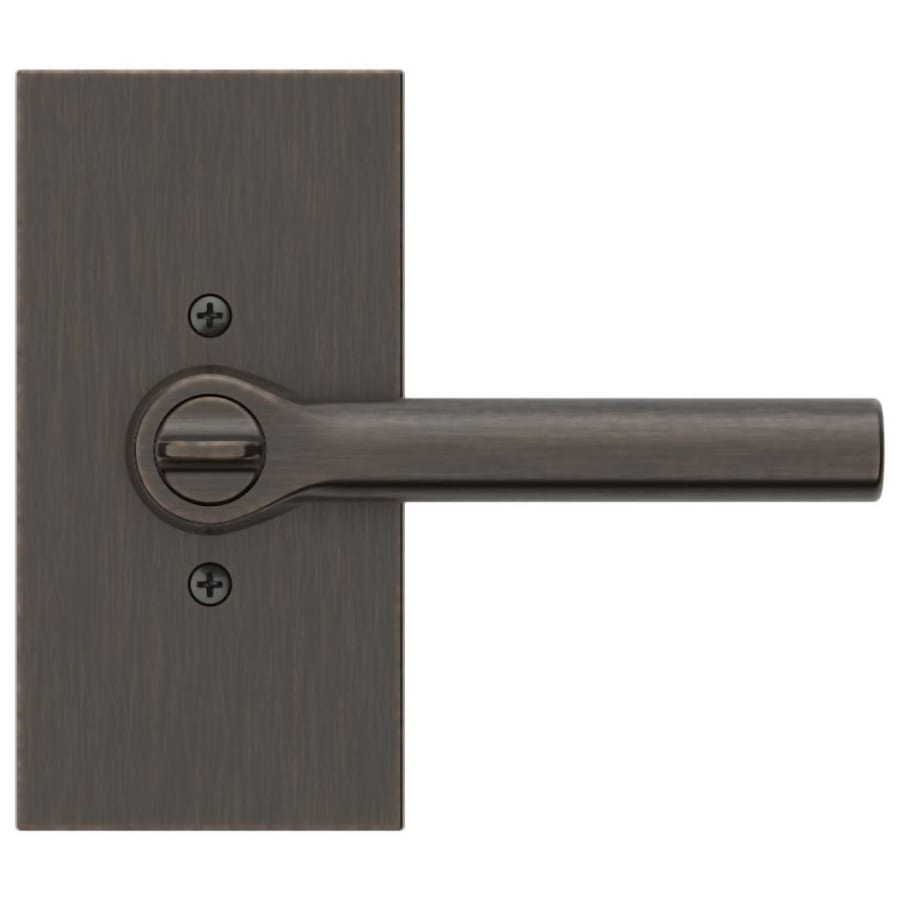

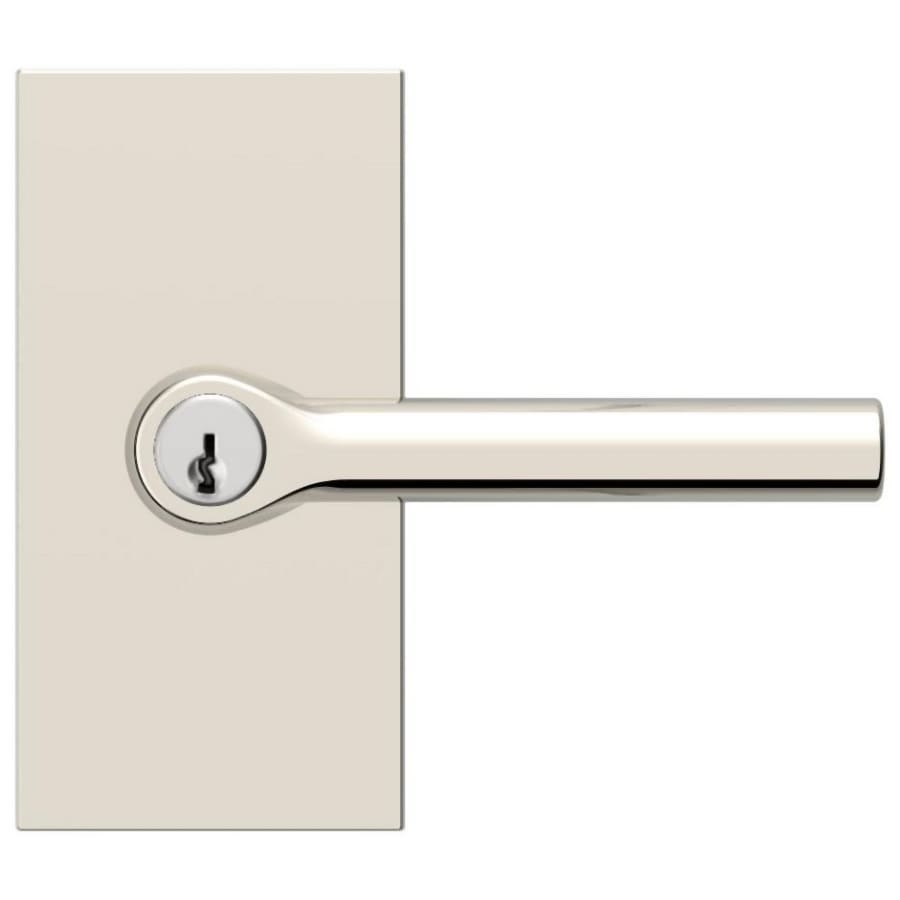

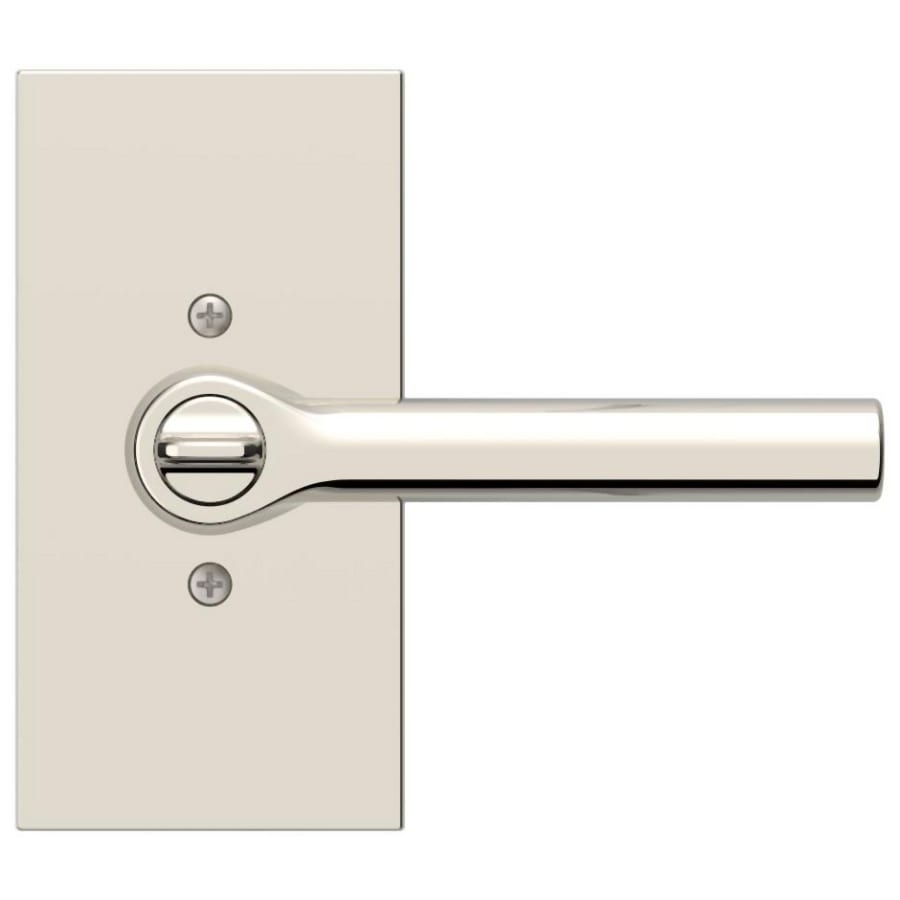

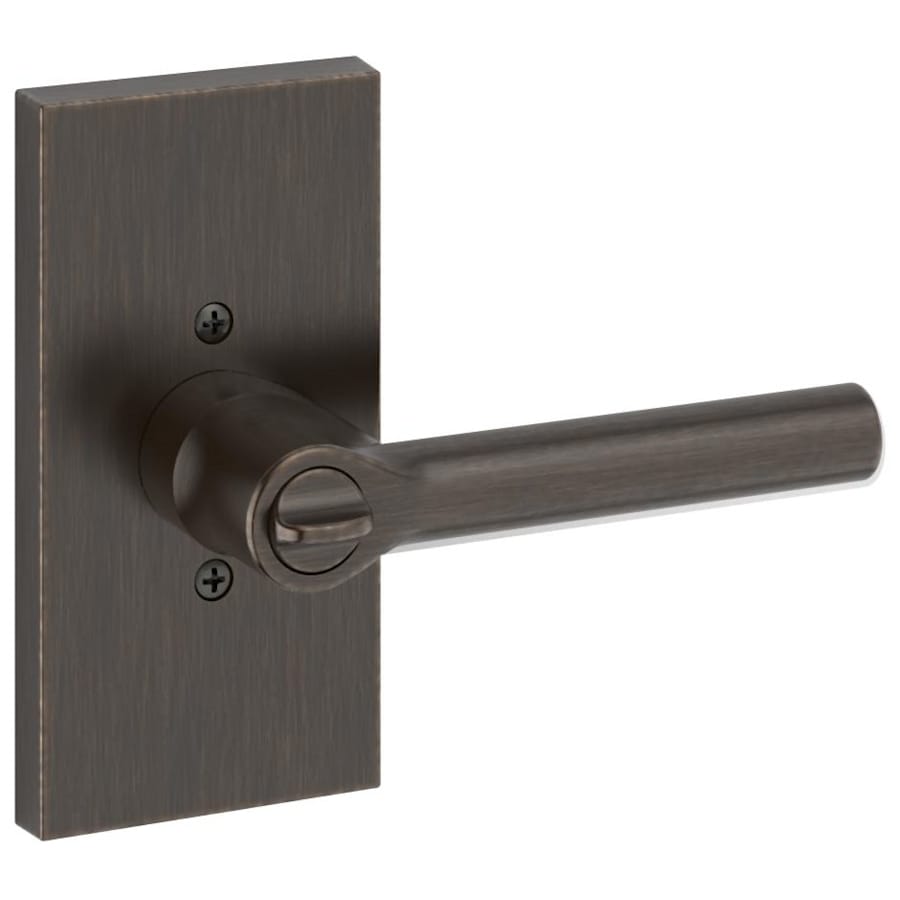

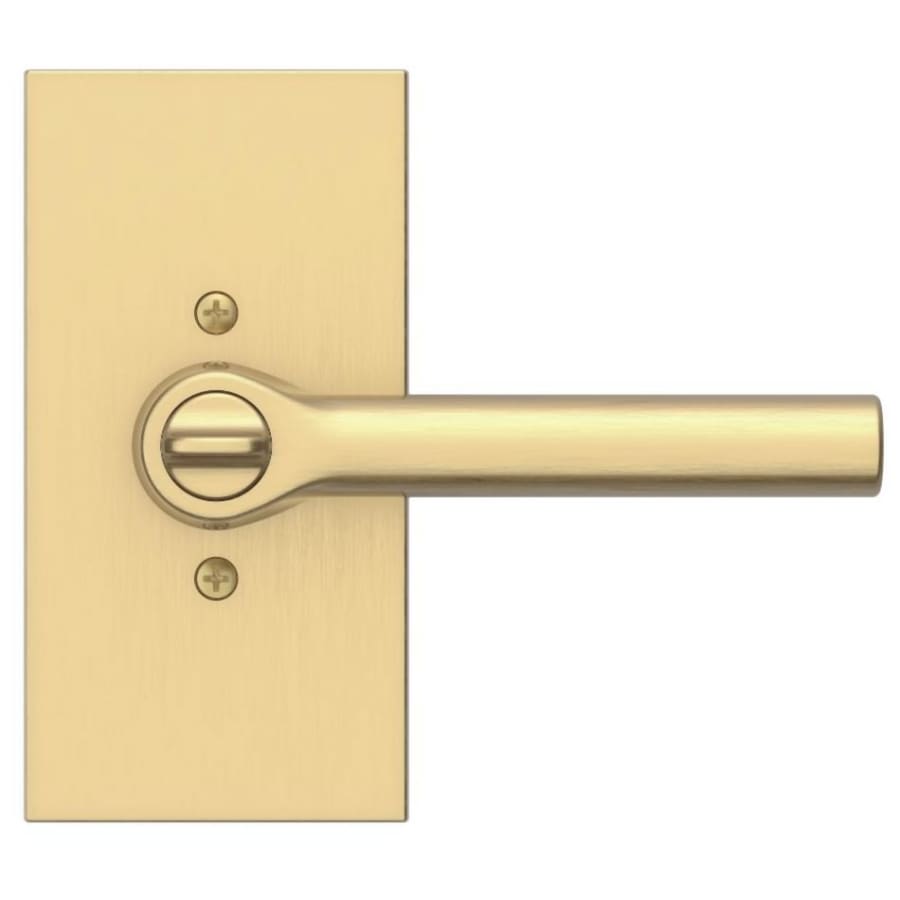

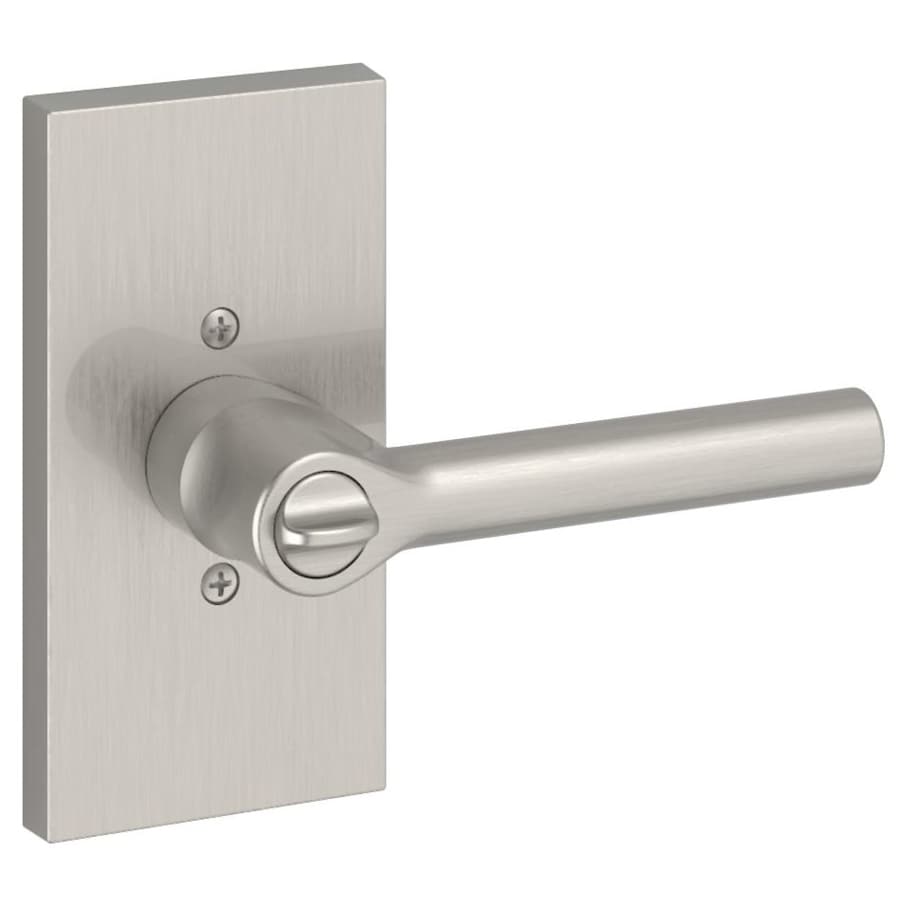

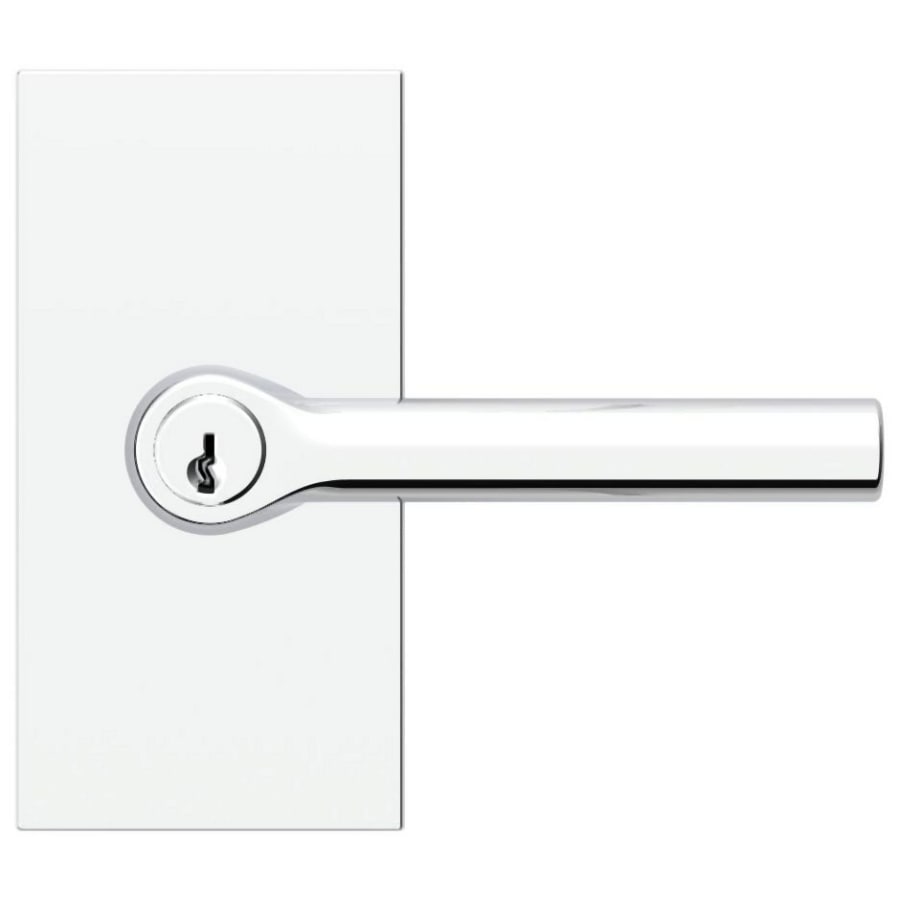

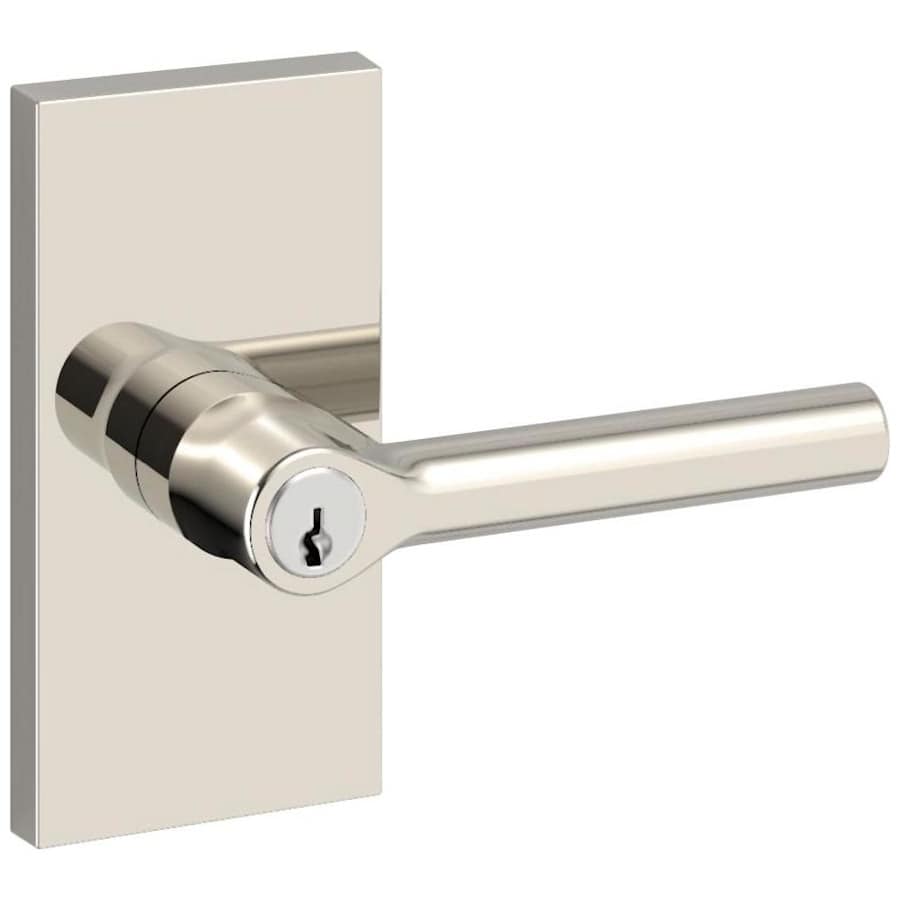

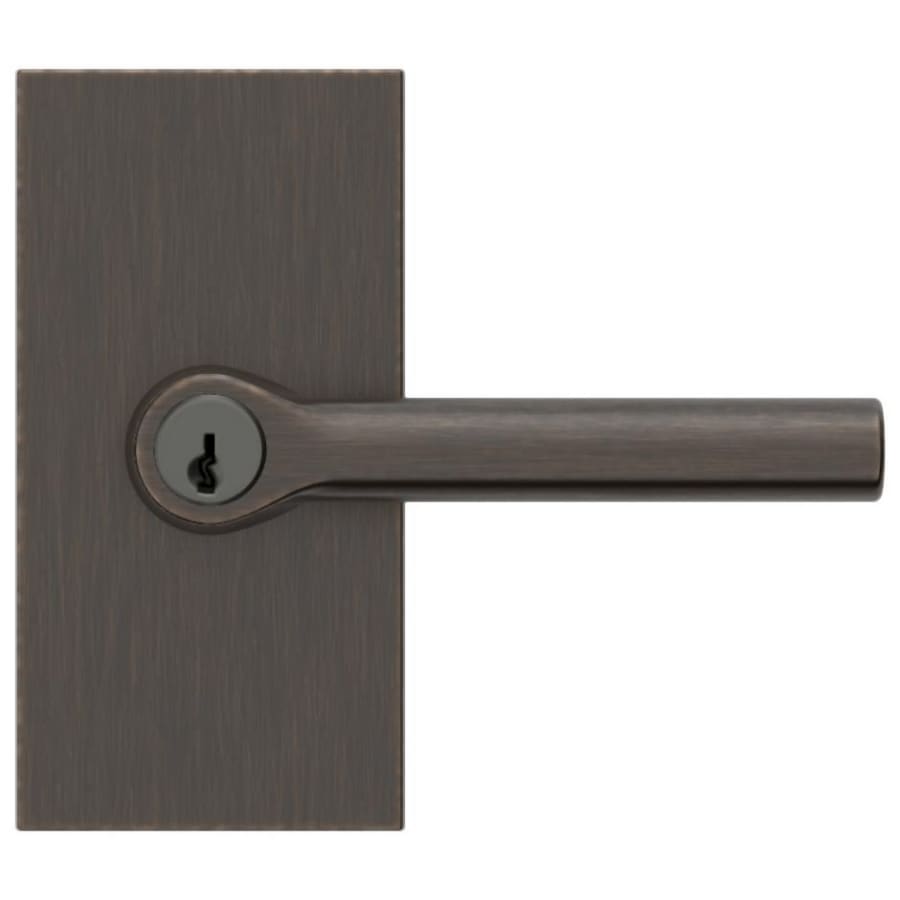

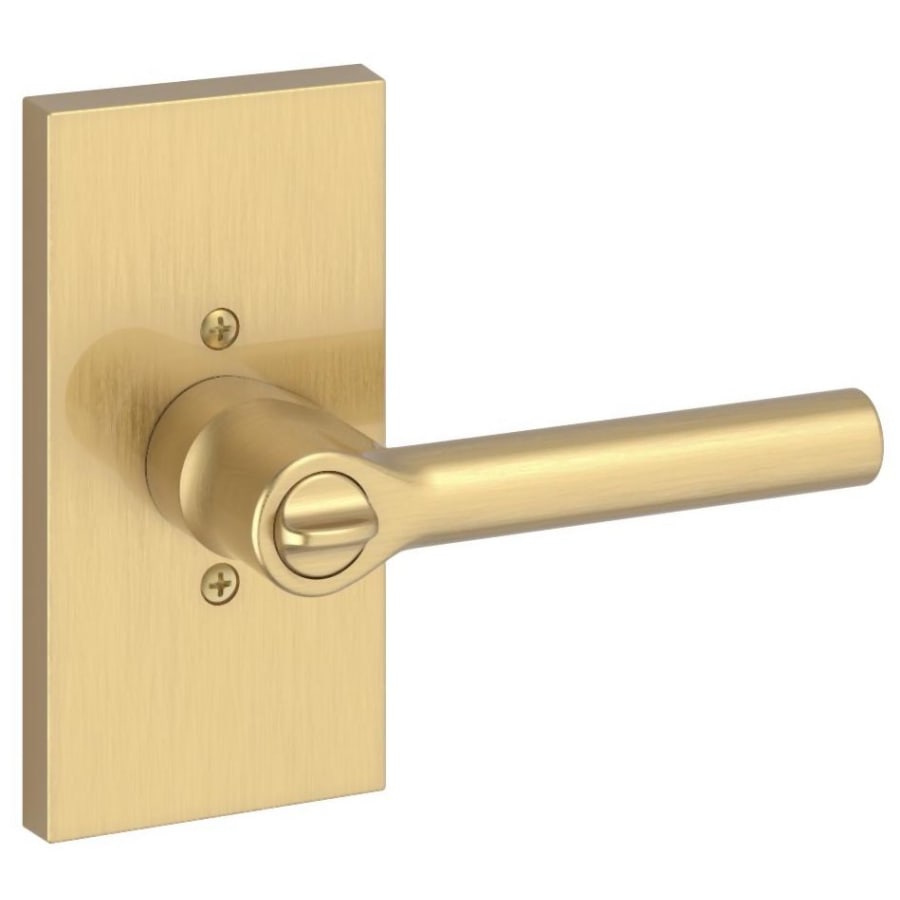

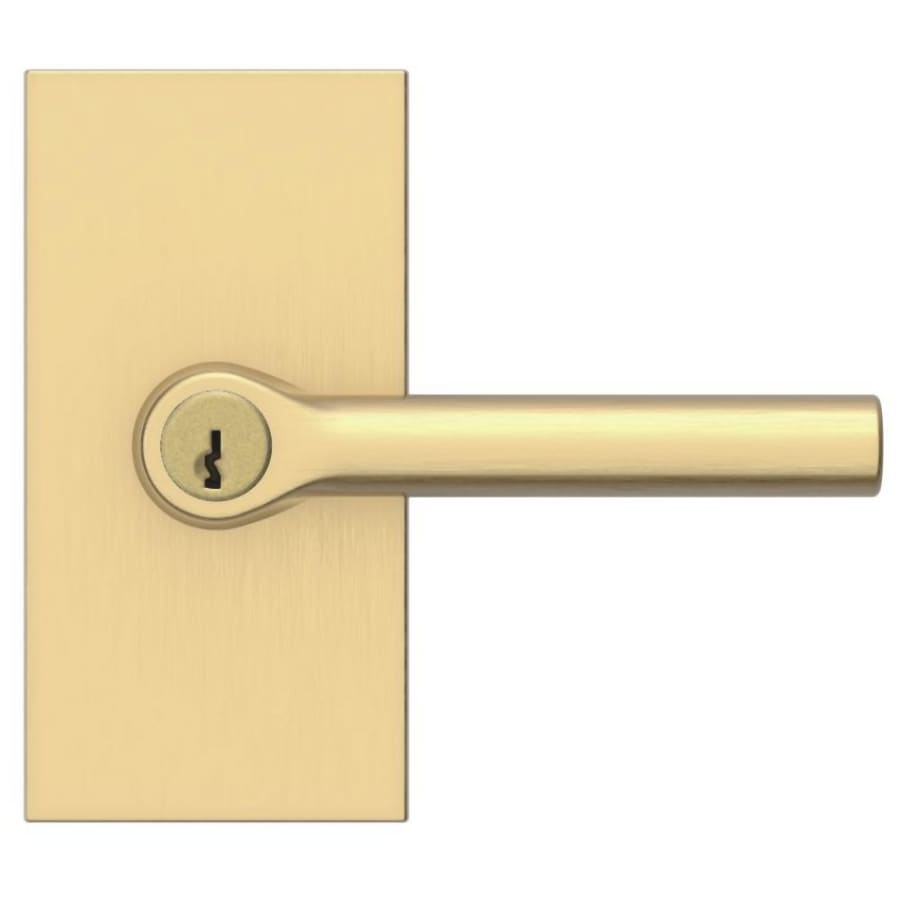

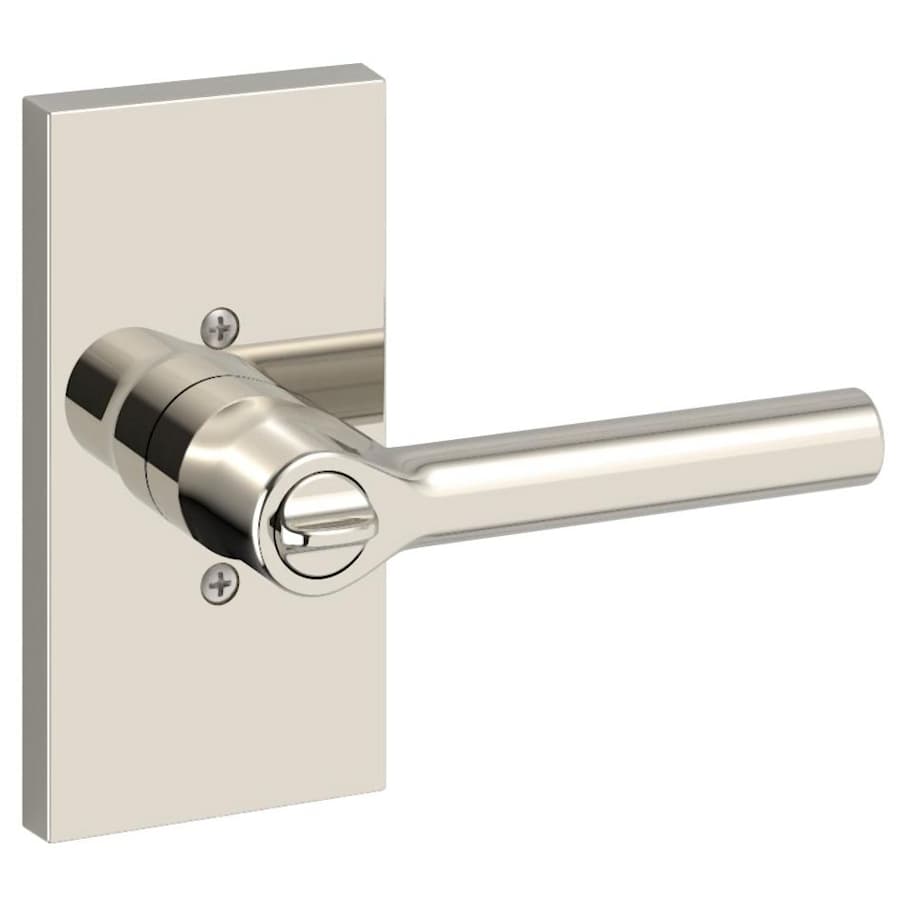

Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Baldwin’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2″
Handing: Reversible Left or Right
Handle Length: 4-1/4″
Handle Projection: 2-1/4″
Trim Width: 2-9/16″
Trim Height: 5″
Product Weight: 3 lbs.
Latch Faceplate: Round Corner or Square Corner
Cylinder: 5 Pin C
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Tube Collection
Specifications
| Material | Brass |
| Thermostat | Contemporary |
| Handle Material | Metal |
| Handle Style | Lever |
| Concealed Screws | No |
| Function | Keyed Entry |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner, Square Corner |
| Rosette Shape | Rectangle |
| Solid Construction | Solid Brass |
| Cylinder Type | Single Cylinder |
| Handle Design | Tube |
| Keyway | C |
| Lever Shape | Round, Straight |
| Cylinder | 5 Pin C |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Reserve |
| Country Of Origin | China |
| Series | Tube |
| Fire Rated | No |
| BHMA Certification | Grade 2 |
| Product Weight | 3 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Edge Bore | 1" |
| Handle Projection | 2.281 in. |
| Trim Height | 5 in. |
| Trim Width | 2.5625 in. |
| Handle Length | 4.25 in. |
| Cylinder Included | Yes |
| Color | Lifetime Polished Nickel, Lifetime Satin Brass, Satin Black, Venetian Bronze, Polished Chrome, Satin Nickel |
