Baldwin Federal Passage Leverset with Traditional Square Rose
The symmetric lines of the Baldwin Federal lever reflect the stately elegance of Colonial architecture. With its solid brass construction and availability in popular finishes such as Satin Nickel and Venetian Bronze, this lever is both durable and matches a variety of décors. Featuring the Traditional Square Rose which further adds to the traditional look and feel of the already beautifully designed lever.
Passage Function: Baldwin’s passage leversets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where no locking is necessary. Sometimes passage levers are used in conjunction with a deadbolt for an entrance or back door.
Features:
Solid forged brass construction built to last a lifetime.
To personalize your look, this Traditional inspired design is available in 6 finishes.
Versatility and Easy Installation:
Adjustable Latch for both 2-3/8″ and 2-3/4″ backset
Round Corner, Square Corner and Drive-In Latch Plates
Includes both Round Corner and Square Corner Strike Plates
Guide Post for Easy Installation
Accommodates door thickness 1-3/8″ to 2″. Up to 2-1/2″ thick door with service part kit (Part Number: 8BR0707).
2-1/8″ cross bore and 1″ edge bore for latch.
Tested to exceed ANSI/BHMA Grade 2 security.

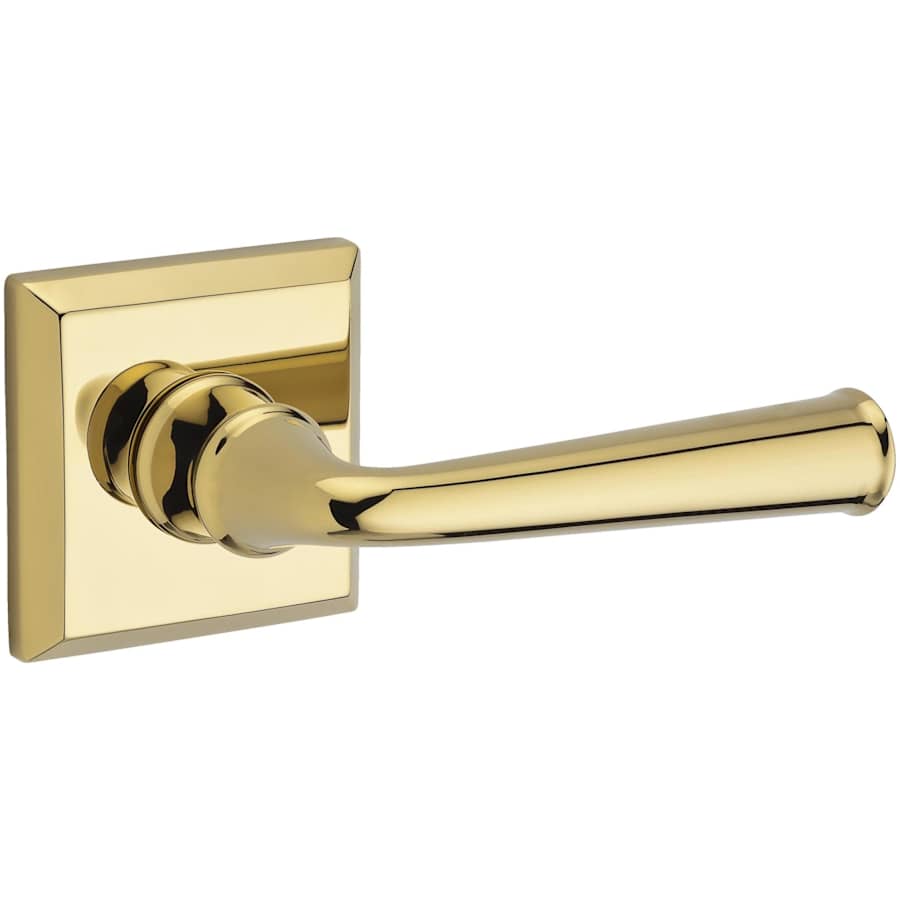

Shown with Traditional Square Rose, can be customized with other Reserve roses.
Features easy-to-install spring assisted chassis for optimal operational strength.
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Federal Collection
Specifications
| Material | Brass |
| Thermostat | Traditional |
| Solid Construction | Solid Brass |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Square Corner, Round Corner |
| Rosette Shape | Square |
| Lever Shape | Round, Straight |
| Concealed Screws | No |
| ADA | Yes |
| Approved for Commercial Use | No |
| Collection | Reserve |
| Series | Federal |
| BHMA Certification | Grade 2 |
| Backset | 2-3/4", Adjustable 2-3/8" or 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
| Edge Bore | 1" |
| Trim Height | 2.593 in. |
| Trim Width | 2.593 in. |
| Handle Projection | 2.75 in. |
| Handle Length | 4.5 in. |
| Color | Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Matte Antique Nickel, Matte Brass & Black, Polished Nickel, Satin Black, Venetian Bronze, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
