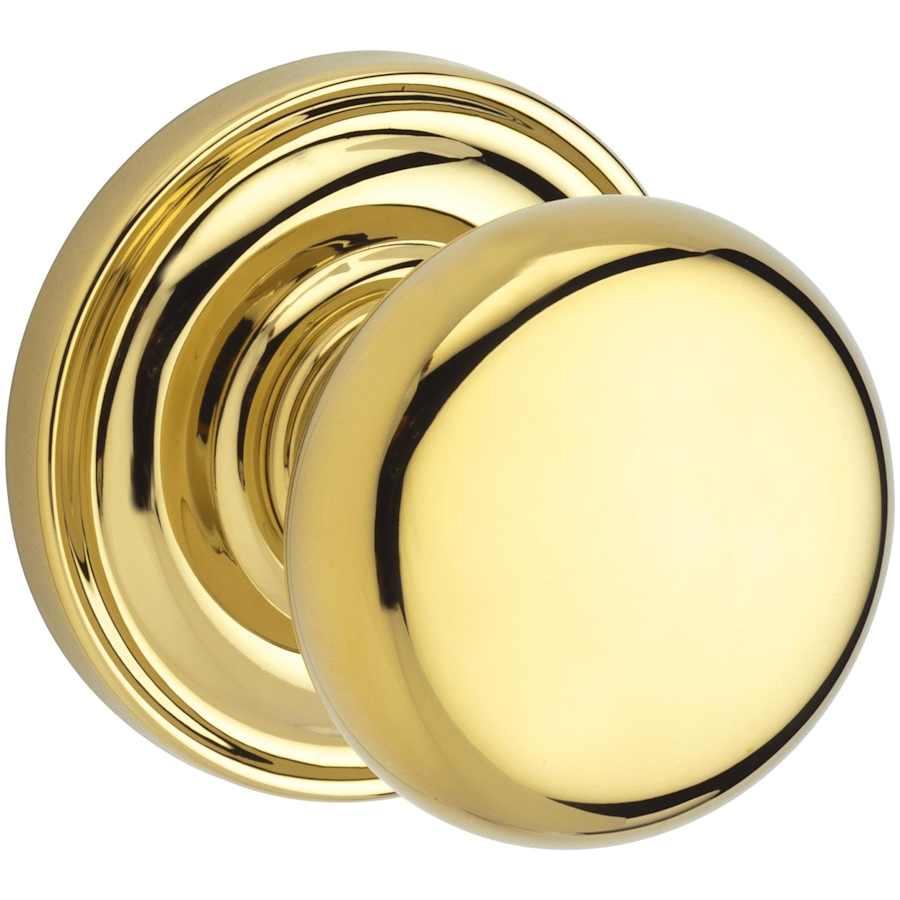

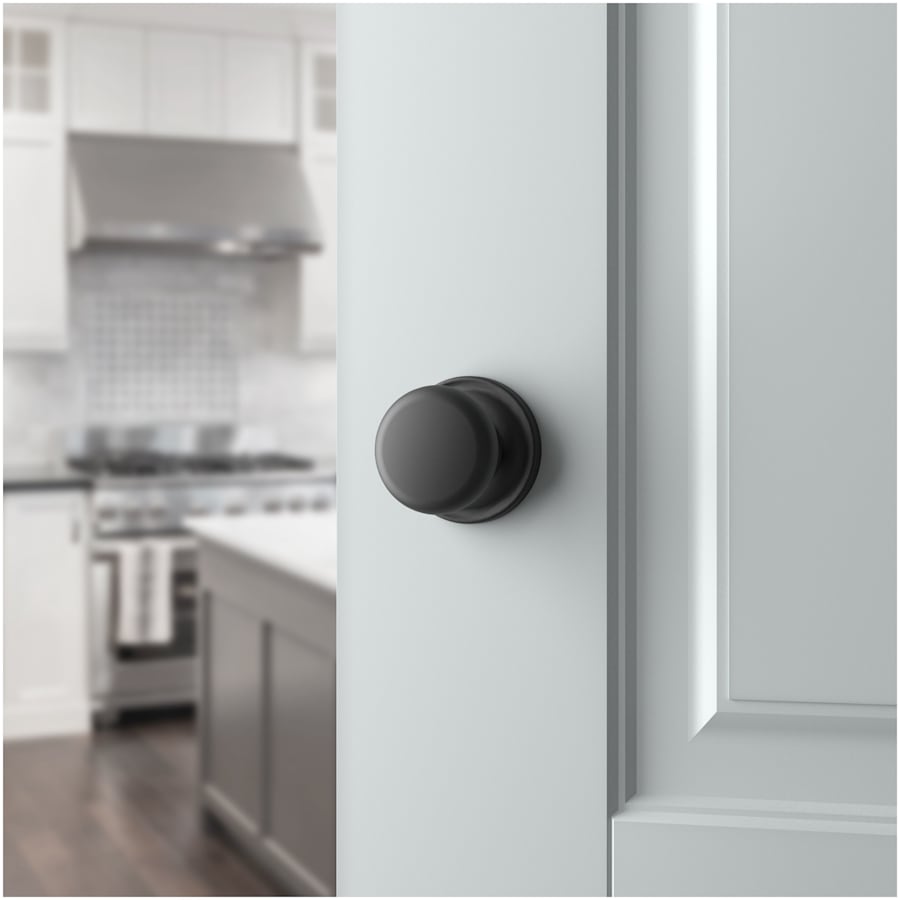

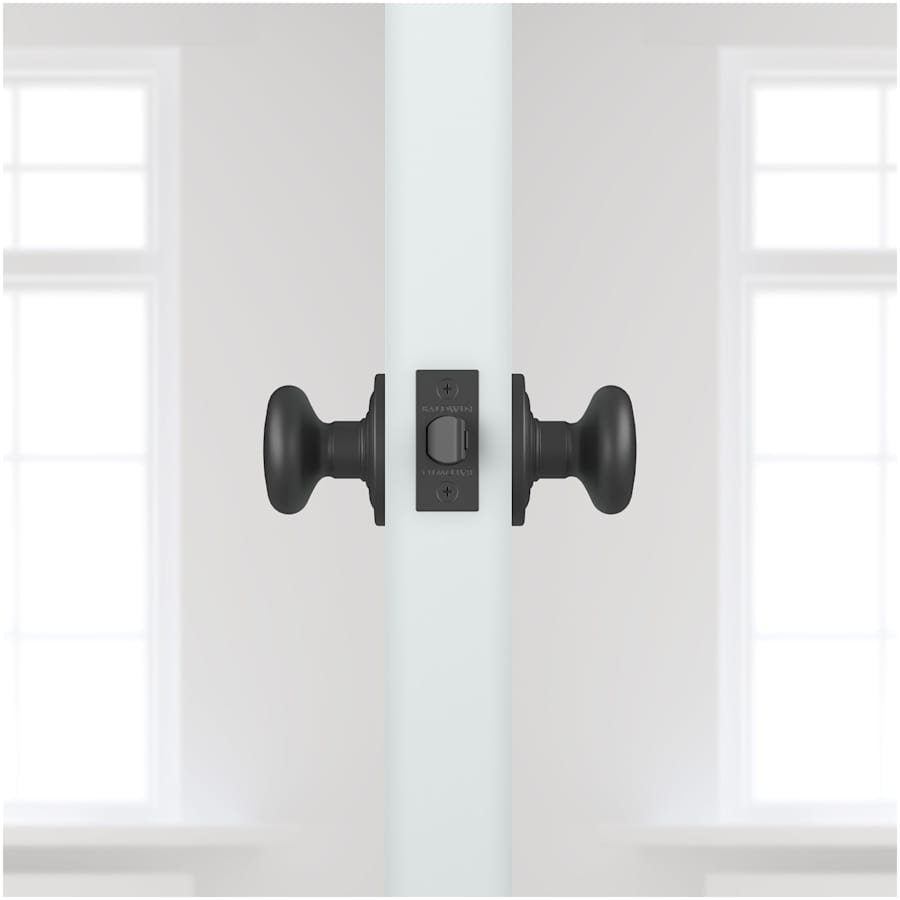

Passage: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid brass for durability and premium feel
Accommodates door thickness 1-3/8″ to 2″; up to 2-1/2″ with purchase of a thick door kit
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ – 2″
Handing: Reversible Left or Right
Handle Width: 2-3/16″
Handle Height: 2-3/16″
Handle Projection: 2-1/4″
Trim Width: 2-9/16″
Trim Height: 2-9/16″
Product Weight: 5 lbs
Latch Faceplate: Drive-In, Round Corner, or Square Corner
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Round Collection
Specifications
| Product Weight | 5 lbs. |
| Handle Height | 2.1875 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Edge Bore | 1" |
| Trim Height | 2.5625 in. |
| Trim Width | 2.5625 in. |
| Handle Projection | 2.21875 in. |
| Handle Width | 2.1875 in. |
| Material | Brass |
| Thermostat | Traditional |
| Solid Construction | Solid Brass |
| Handle Material | Metal |
| Handle Style | Knob |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Knob Shape | Ball |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Rosette Shape | Round |
| Concealed Screws | No |
| ADA | Yes |
| Approved for Commercial Use | No |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| Collection | Reserve |
| BHMA Certification | Grade 2 |
| Fire Rated | No |
| Color | Lifetime Polished Brass, Lifetime Polished Nickel, Lifetime Satin Brass, Matte Antique Nickel, Matte Brass & Black, Polished Chrome, Satin Black, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
