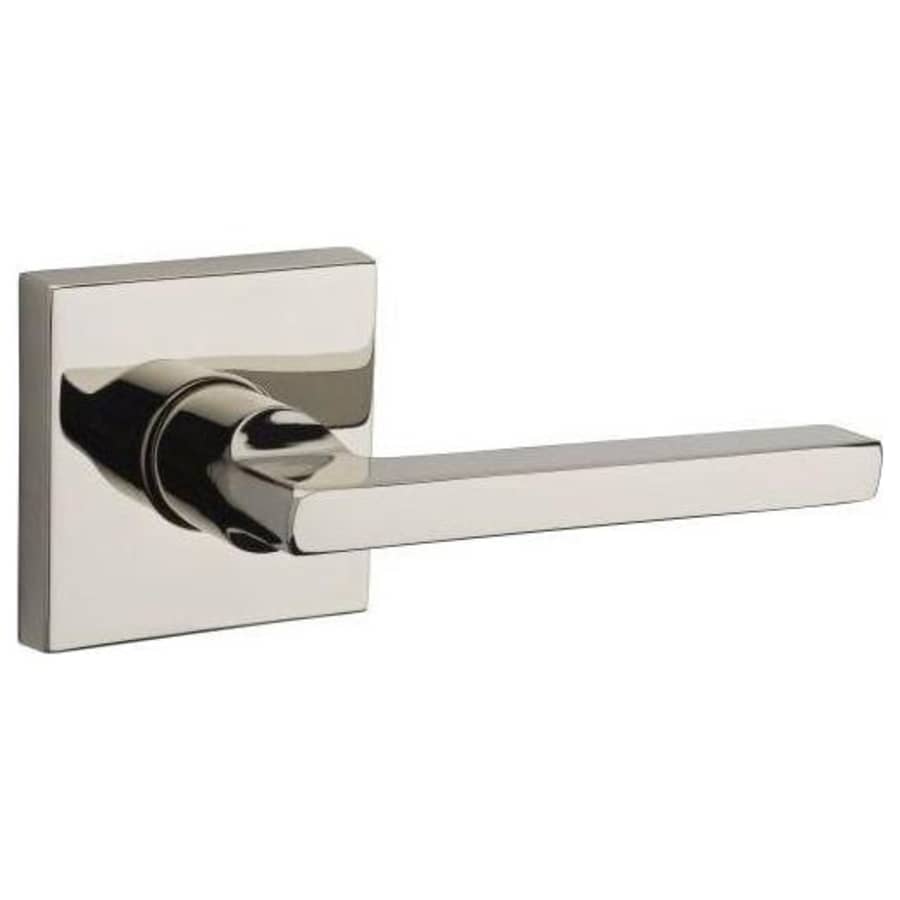

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid brass for durability and premium feel
This lever set is reversible for installation on right or left-handed applications
Includes round, square and drive-in latch faceplates
Easily installs on standard prep door from 1-3/8″ to 2″ thick, thick door kit allows up to 2-1/2″ (Product 8BR0707, purchase separately)
Features easy-to-install spring assisted chassis for optimal operational strength
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Rosette has exposed screws on one side
Product Technologies:
Solid Brass Construction: Baldwin Reserve Series products are constructed from solid brass – providing a more luxurious, higher quality feel than door hardware made with lesser metals. When you hold a Baldwin product in your hand, you will immediately notice the difference that solid brass makes – it is heavier, stronger, and smoother than most of the door hardware on the market today.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2″
Handing: reversible, left or right
Lever Length: 4-1/4″
Projection: 2-5/16″
Product Weight: 3 lbs
Latch Faceplate: round corner, square corner or drive-in
Additional Functions:
HD.SQU.L.CSR: Left Handed Single Dummy Door Lever
HD.SQU.R.CSR: Right Handed Single Dummy Door Lever
FD.SQU.CSR: Dummy Door Lever Set
PS.SQU.CSR (This Product): Passage Door Lever Set
PS.SQU.CSR: Privacy Door Lever Set
EN.SQU.CSR: Keyed Entry Door Lever Set
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Square Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Handshower | Left, Right, Reversible |
| Concealed Screws | No |
| Function | Passage |
| Latch Faceplate | Round Corner, Square Corner, Drive-In |
| Lever Shape | Square, Straight |
| Rosette Shape | Square |
| Solid Construction | Solid Brass |
| ADA | Yes |
| Manufacturer Warranty | Limited Lifetime Mechanical, 25 Year Finish |
| Collection | Reserve |
| Approved for Commercial Use | No |
| Series | Square |
| BHMA Certification | Grade 2 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 2", 2-1/2", 2-1/8", 2-3/8", 1-7/8", 2-1/4" |
| Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Length | 4.25 in. |
| Handle Projection | 2.3125 in. |
| Trim Height | 2.5625 in. |
| Trim Width | 2.5625 in. |
| Color | Lifetime Polished Nickel, Lifetime Satin Brass, Polished Nickel, Satin Black, Venetian Bronze, Vintage Brass, Polished Chrome, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
