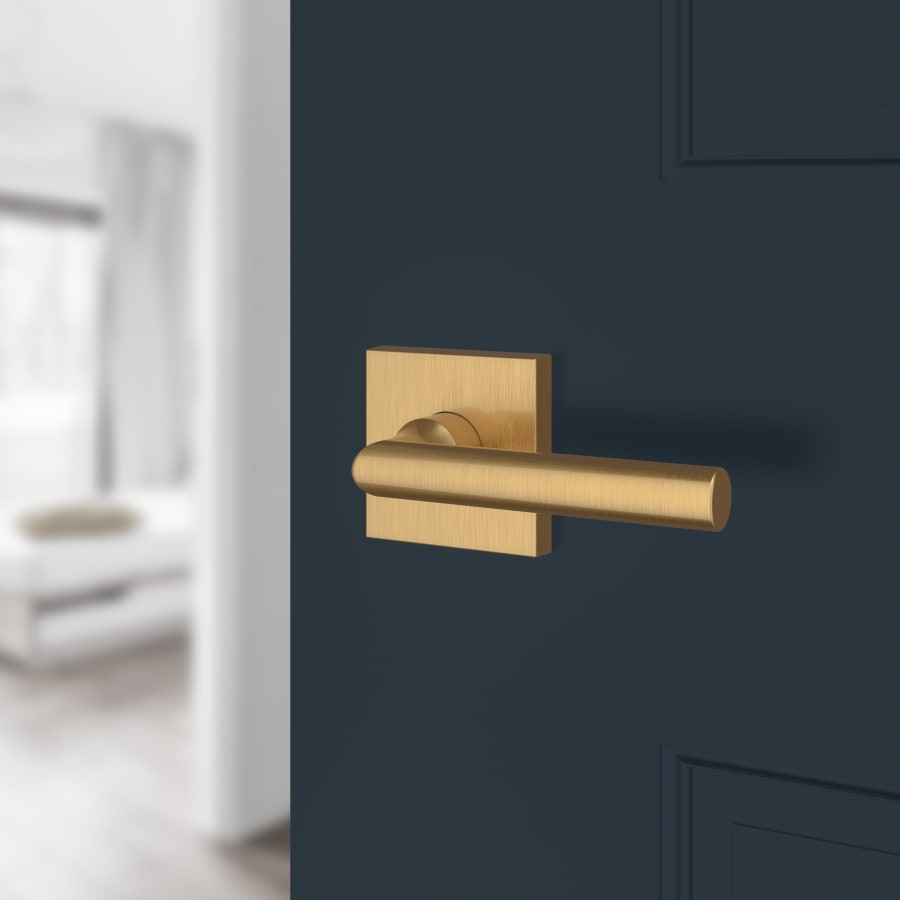

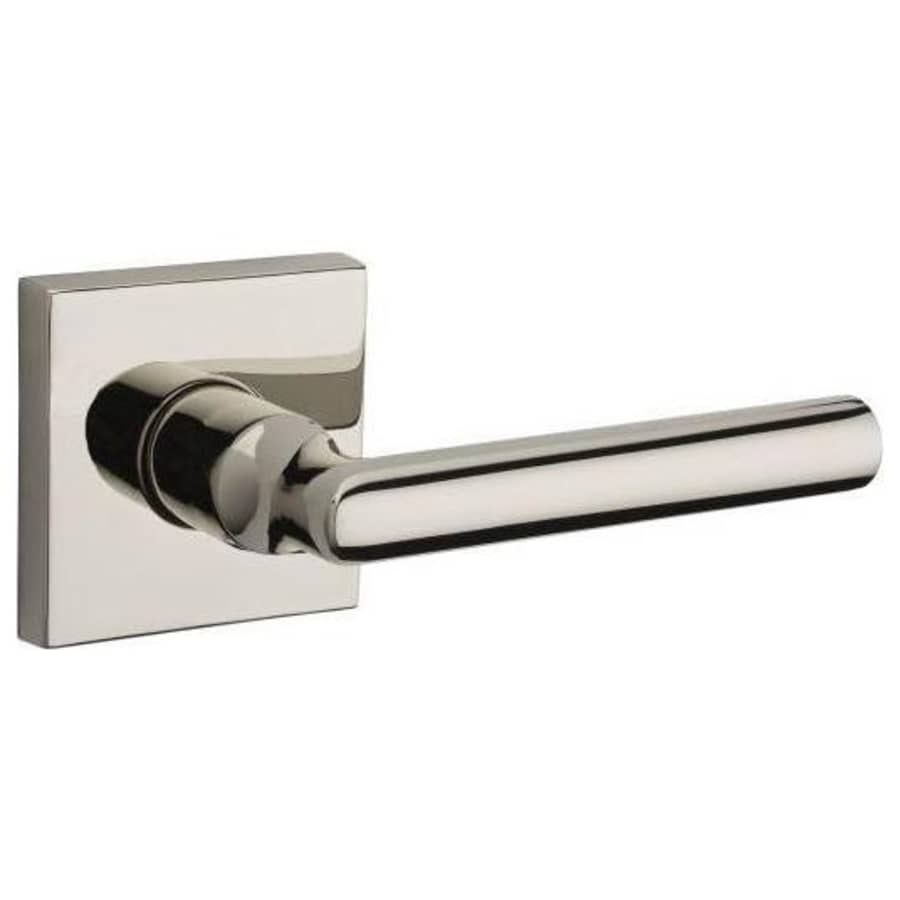

Baldwin Tube Passage Leverset with Contemporary Square Rose
The minimalistic design of the Baldwin Tube lever blend clean and modern styling to complement an urban lifestyle. Available in finishes such as Polished Chrome and Satin Nickel as well as its solid brass construction, ensure this lever will remain looking beautiful for a lifetime. Featuring the Contemporary Round Rose which further adds to the modern look and feel of the already beautifully designed lever.
Passage Function: Baldwin’s passage leversets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where no locking is necessary. Sometimes passage levers are used in conjunction with a deadbolt for an entrance or back door.
Features:
Solid forged brass construction built to last a lifetime.
To personalize your look, this Contemporary inspired design is available in 3 finishes.
Versatility and Easy Installation:
Adjustable Latch for both 2-3/8″ and 2-3/4″ backset
Round Corner, Square Corner and Drive-In Latch Plates
Includes both Round Corner and Square Corner Strike Plates
Guide Post for Easy Installation
Accommodates door thickness 1-3/8″ to 2″. Up to 2-1/2″ thick door with service part kit (Part Number: 8BR0707).
2-1/8″ cross bore and 1″ edge bore for latch.
Tested to exceed ANSI/BHMA Grade 2 security.
Shown with Contemporary Square Rose, can be customized with other Reserve roses.
Features easy-to-install spring assisted chassis for optimal operational strength.
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Tube Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Concealed Screws | No |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner, Square Corner, Drive-In |
| Rosette Shape | Square |
| Solid Construction | Solid Brass |
| Lever Shape | Round, Straight |
| Approved for Commercial Use | No |
| Collection | Reserve |
| ADA | Yes |
| Series | Tube |
| BHMA Certification | Grade 2 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/8", 2-1/4", 2-3/8" |
| Edge Bore | 1" |
| Handle Projection | 2.344 in. |
| Trim Height | 2.5625 in. |
| Trim Width | 2.5625 in. |
| Handle Length | 4.25 in. |
| Color | Lifetime Polished Nickel, Lifetime Satin Brass, Polished Chrome, Satin Black, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
