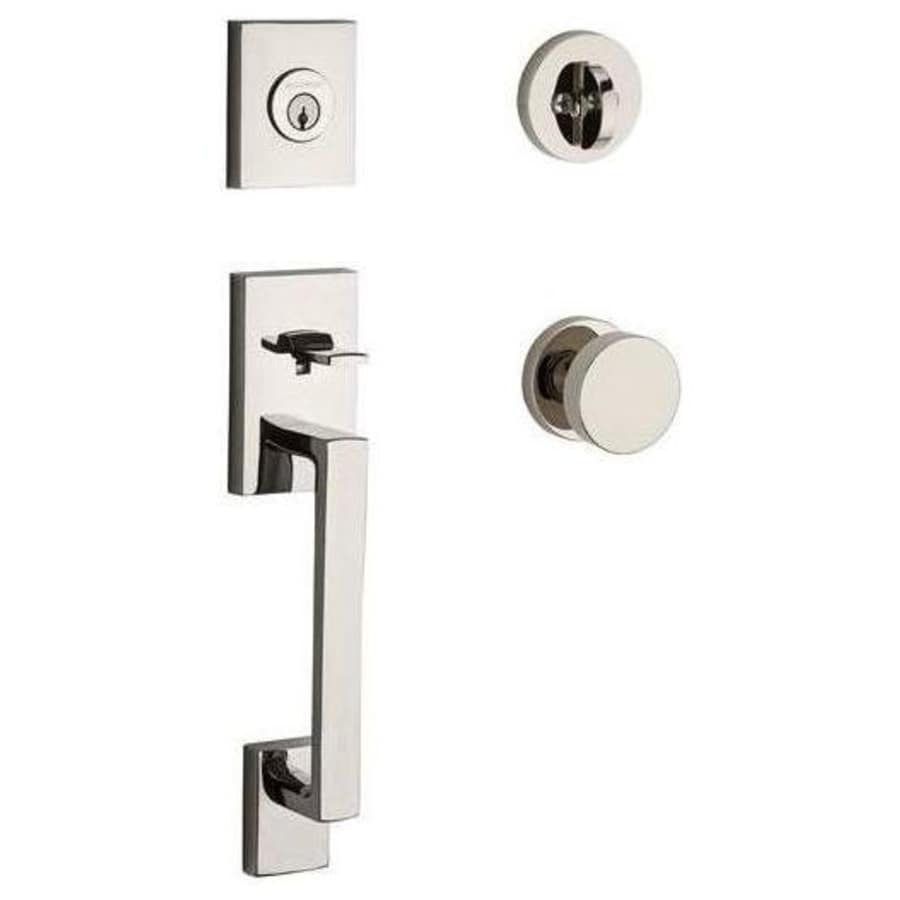

Keyed Entry (Single Cylinder) Function: This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Tested to exceed ANSI/BHMA Grade 2 security
Solid forged brass construction built to last a lifetime
Reversible handing for maximum versatility
Includes all mounting hardware for quick and easy installation
Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
Interior comes in same finish as exterior; if split finish is desired, please contact customer service
Accommodates door thickness 2″ to 2-1/2″
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Solid Forged Brass Construction: All Baldwin hardware begins with raw bars of solid brass which are heated, and pounded into specially made dies, producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands, solid brass is heavier, smoother, and naturally resists corrosion.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 2″ to 2-1/2″
Handing: Reversible Left or Right
Knob Diameter: 2.34375
Projection: 2.40625″
Center to Center: 5.5″
Grip Center to Center: 8.40625″
Latch Faceplate: Drive-In, Round Corner or Square Corner
Cylinder: 5 Pin C
Material: Brass
Manufacturer Warranty: 25 Year Finish and Limited Lifetime Mechanical
Product Variations:
SC.LAJxCON.CRR (This Model): Single Cylinder Keyed Entry
DC.LAJxCON.CRR: Double Cylinder Keyed Entry
FD.LAJxCON.CRR: Full Dummy
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin La Jolla Collection
Specifications
| Thermostat | Modern |
| Concealed Screws | No |
| Material | Brass |
| Handshower | Left, Reversible, Right |
| Function | Keyed Entry |
| Solid Construction | Solid Brass |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Handle Material | Metal |
| Handle Style | Grip |
| Interconnected | No |
| Interior Handle Style | Knob |
| Mounting | Sectional |
| Trim Design | Contemporary |
| Panic Proof | No |
| Lock Style | Single Point |
| ADA | No |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| Collection | Reserve |
| Approved for Commercial Use | No |
| BHMA Certification | Grade 2 |
| Series | La Jolla |
| Center to Center | 5.5 in. |
| Door Thickness | 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Grip Center to Center | 8.40625 in. |
| Handle Projection | 2.40625 in. |
| Trim Height | 12.46875 in. |
| Trim Width | 2.6875 in. |
| Interior Trim Height | 2.5625 in. |
| Interior Trim Width | 2.5625 in. |
| Interior Handle Width | 2.34375 in. |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Lifetime Polished Nickel, Polished Chrome, Satin Black, Satin Nickel, Venetian Bronze |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
