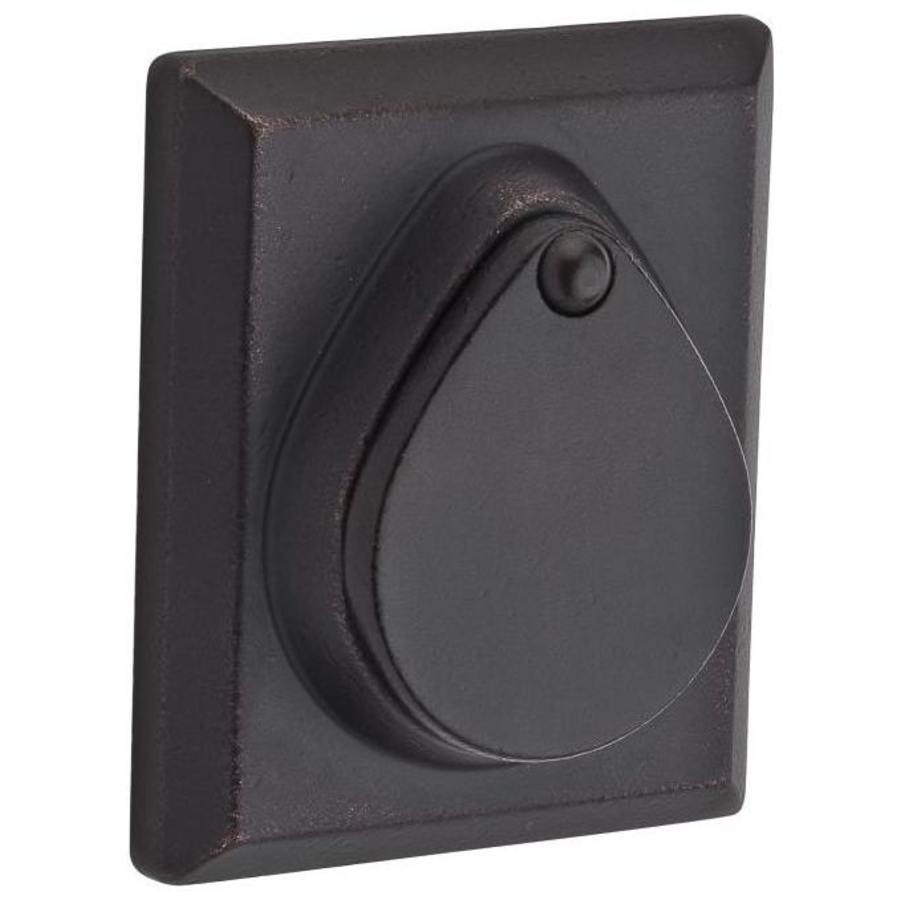

Baldwin Rustic Square Single Cylinder Deadbolt
The traditional design of Baldwin’s Rustic Square Deadbolt was updated with a larger shape, hand-distressing, and a cylinder swing cover to provide a more rustic appearance. Pair this deadbolt with a Baldwin Rustic keyed or passage lever or knob with the Rustic Square rosette for a complete entry set and a perfect match.
Single Cylinder: Baldwin’s single cylinder deadbolt has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. Paired with a Baldwin keyed or passage lever or knob makes for a perfect entry solution for a back door or garage.
Features:
Solid forged brass construction built to last a lifetime.
To personalize your look, this Rustic inspired design is available in 2 finishes.
Baldwin 5-pin SmartKey Re-Key Technology
Versatility and Easy Installation:
Adjustable Latch for both 2-3/8″ and 2-3/4″ backset
Round Corner, Square Corner and Drive-In Latch Plates
Includes both Round Corner and Square Corner Strike Plates
Guide Post for Easy Installation
Accommodates door thickness 1-3/4″ to 2″. Up to 2-1/2″ thick door with service part kit (Part Number: 8BR0704).
2-1/8″ cross bore and 1″ edge bore for latch.
Tested to exceed ANSI/BHMA Grade 2 security.
Features 1″ solid brass throw bolt latch with hardened steel roll pin for additional strength and security.
Features low profile cylinder projection.
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Rustic Square Collection
Specifications
| Material | Brass |
| Thermostat | Rustic |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Keyway | KW1 |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Function | Keyed Entry |
| Solid Construction | Solid Brass |
| Collection | Reserve |
| Approved for Commercial Use | No |
| Series | Rustic Square |
| BHMA Certification | Grade 2 |
| Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 2-1/8", 2-1/2", 2-3/8", 1-3/4", 2", 1-7/8", 2-1/4" |
| Edge Bore | 1" |
| Exterior Height | 3.625 in. |
| Exterior Projection | 1.4375 in. |
| Exterior Width | 2.6875 in. |
| Interior Height | 3.625 in. |
| Interior Width | 2.6875 in. |
| Color | Dark Bronze, White Bronze |
| Color Tone | Bronze Tones |
