Combo Pack: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key in the deadbolt and the handle, and can be locked and unlocked from the interior using the thumbturn. This entry set would be ideal for the front entry of a home.
Lever Features:

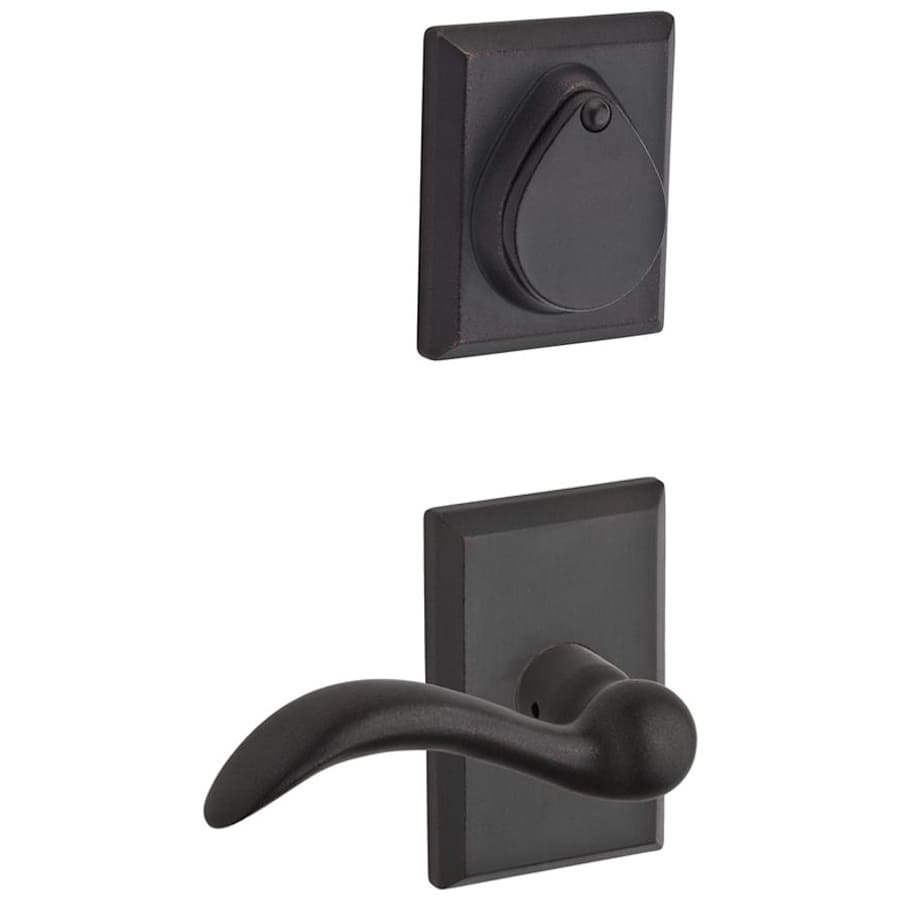

Image may differ, both deadbolt and handle are keyed entry
Lever and deadbolt both exceed ANSI/BHMA security standards
Solid brass construction for long-lasting durability and premium feel
Deadbolt and dead latch are 6 way adjustable
Installs easily into most standard prepared doors
Limited lifetime mechanical and 25 year finish warranty
Deadbolt Features:
BHMA Grade 2
Designed for both left or right handed doors
Includes round, square, and drive-in latch to fill all standard doors
Includes round corner deadbolt strike
Adjustable backset to fit all standard door preparations
Limited lifetime mechanical and 25 year finish warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Lever Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2″
Handing: Right
Latch Faceplate: Round Corner, Square Corner, Drive-In
Cylinder: 5 Pin C
Deadbolt Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2″
Handing: Reversible Left or Right
Latch Faceplate: Round Corner, Square Corner, Drive-In
Cylinder: 5 Pin C
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Arch Collection
Specifications
| Material | Brass |
| Handle Style | Lever |
| Thermostat | Rustic |
| Cylinder Type | Single Cylinder |
| Handshower | Right |
| Keyway | C |
| Handle Material | Metal |
| Concealed Screws | No |
| Function | Keyed Entry |
| Solid Construction | Solid Brass |
| Cylinder | 5 Pin C |
| Handle Design | Arch |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lock Style | Two Point |
| Panic Proof | No |
| Rosette Shape | Rectangle |
| Lever Shape | Wave |
| ADA | No |
| Approved for Commercial Use | No |
| Collection | Reserve |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| Certifications | ANSI |
| Series | Arch |
| BHMA Certification | Grade 2 |
| Fire Rated | No |
| Product Weight | 5 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.5625 in. |
| Trim Height | 4 in. |
| Trim Width | 2.625 in. |
| Handle Length | 4.5 in. |
| Cylinder Included | Yes |
| 28 Degree Latch | No |
| Color | Dark Bronze, White Bronze |
| Color Tone | Bronze Tones |
