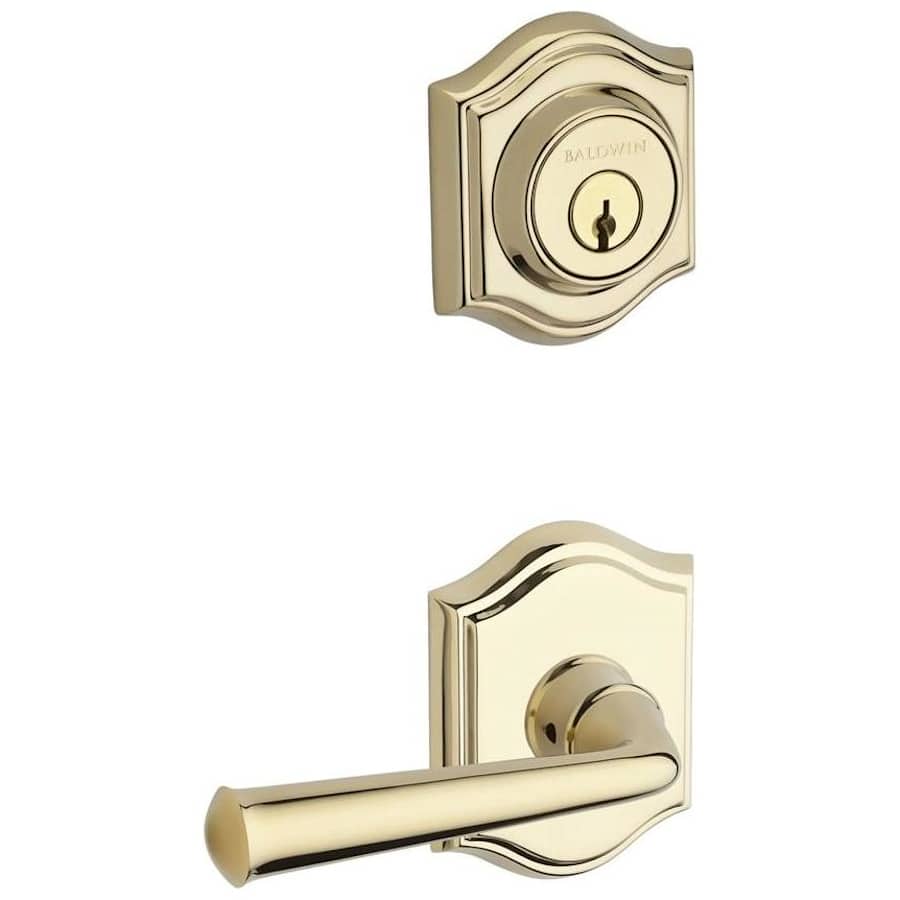

Combo Pack: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key in the deadbolt and the handle, and can be locked and unlocked from the interior using the thumbturn. This entry set would be ideal for the front entry of a home.
Lever Features:
Image may differ, both deadbolt and handle are keyed entry
Lever and deadbolt both exceed ANSI/BHMA security standards
Solid brass construction for long-lasting durability and premium feel
Deadbolt and dead latch are 6 way adjustable
Installs easily into most standard prepared doors
For 2-1/4″ thick door use service part kit (Part Number: 8BR0704)
Limited lifetime mechanical and 25 year finish warranty
Deadbolt Features:
BHMA Grade 2
Designed for both left or right handed doors
Includes round, square, and drive-in latch to fill all standard doors
Includes round corner deadbolt strike
Adjustable backset to fit all standard door preparations
Limited lifetime mechanical and 25 year finish warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Lever Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2″
Handing: Reversible Left or Right
Latch Faceplate: Round Corner, Square Corner, Drive-In
Cylinder: 5 Pin C
Deadbolt Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 2″
Handing: Reversible Left or Right
Latch Faceplate: Round Corner, Square Corner, Drive-In
Cylinder: 5 Pin C
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Federal Collection
Specifications
| Thermostat | Traditional |
| Material | Brass |
| Handshower | Left, Reversible, Right |
| Handle Style | Lever |
| Handle Material | Metal |
| Solid Construction | Solid Brass |
| Concealed Screws | No |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handle Design | Federal |
| Keyway | C |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lever Shape | Round, Straight |
| Rosette Shape | Arch |
| Panic Proof | No |
| Lock Style | Two Point |
| ADA | No |
| Collection | Reserve |
| Manufacturer Warranty | 25 Year Finish, Limited Lifetime Mechanical |
| Certifications | ANSI |
| Approved for Commercial Use | No |
| Series | Federal |
| Fire Rated | No |
| BHMA Certification | Grade 2 |
| Product Weight | 5 lbs. |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Trim Height | 3.4375 in. |
| Trim Width | 2.656 in. |
| Handle Projection | 2.5625 in. |
| Handle Length | 4.5 in. |
| Cylinder Included | Yes |
| 28 Degree Latch | No |
| Color | Lifetime Polished Brass, Lifetime Satin Brass, Matte Antique Nickel, Matte Brass & Black, Polished Chrome, Polished Nickel, Satin Nickel, Venetian Bronze |
