Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

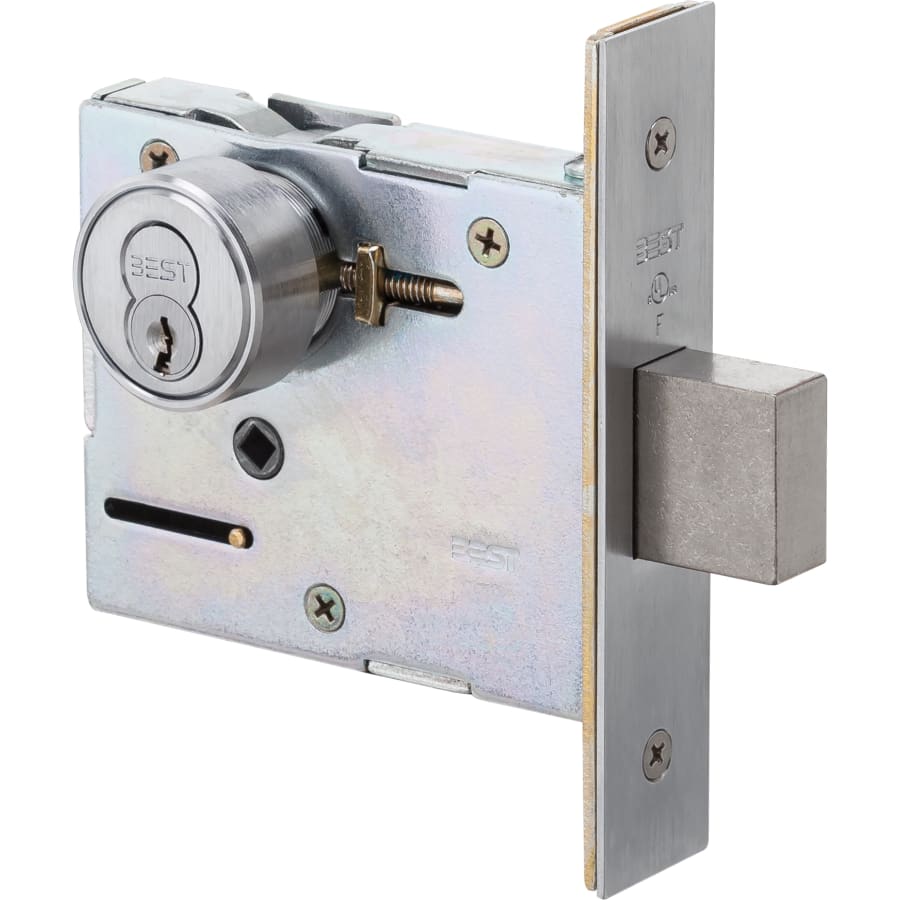

Mortise Deadlock EO6071 Function:
Operated by turning the outside key
Rotating the inside thumb turn cylinder assembly retracts the deadbolt but will not project it
Features:
Exceeds criteria for BHMA Grade 1 certification
Constructed of stainless steel and brass or bronze (material dependent upon finish selected)
R function deadlock can only be used on 1-3/4″ thick doors and will not accept a thick door kit
Reversible handing for right or left doors
Includes a square corner latch faceplate
UL Listed 3 hour rating
Accepts all Best 7-Pin SFIC cores, select above
Includes 1E74C4RP3 SFIC cylinder housing
Covered by a Limited Lifetime warranty
Specifications:
Backset: 2-3/4″
Door Thickness: 1-3/4″
Handing: Reversible Left or Right
Latch Faceplate: Square Corner
Interchangeable Core Type: SFIC
Material: Brass, Bronze, Stainless Steel
Additional Best Access Links
Browse all Best Access Products
Best Access 48H Collection
Specifications
| Height | 4.1875 in. |
| Width | 3.375 in. |
| Product Weight | 6.5 lbs. |
| Backset | 2-3/4" |
| Door Thickness | 1-3/4" |
| Material | Brass, Bronze, Stainless Steel |
| Function | Classroom, Keyed Entry |
| Handshower | Left, Reversible, Right |
| Cylinder Type | Single Cylinder |
| Latch Faceplate | Square Corner |
| Concealed Screws | No |
| Removable Core | Yes |
| Interchangeable Core Type | SFIC |
| Mortise | Yes |
| Collection | 48H |
| Approved for Commercial Use | Yes |
| ANSI Certification | A156.13 |
| Certifications | ANSI, UL |
| Manufacturer Warranty | Limited Lifetime |
| Series | 48H |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Cylinder Included | No |
| Interchangeable Core | Yes |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
