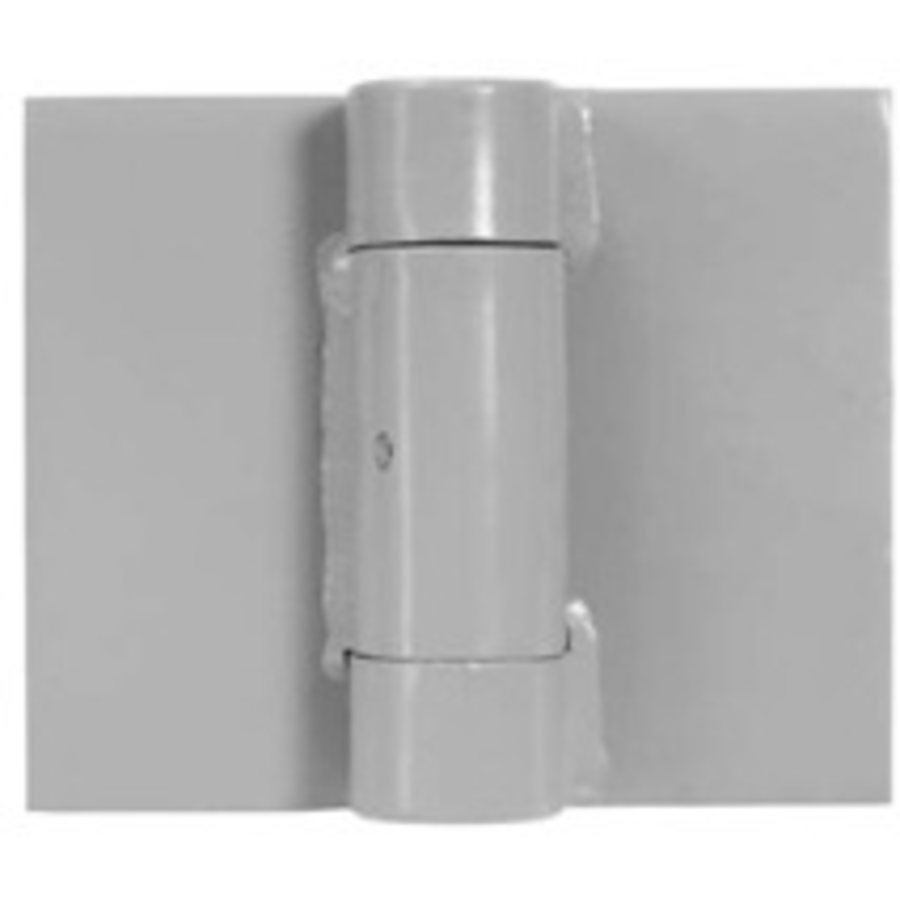

Best Access 5″ x 6″ Square Corner Ball Bearing Surface Mount Hinge – Single Hinge

Best Access Square Corner 5″ x 6″ Steel Ball Bearing Surface Mount Hinge – Single Hinge

This ultra heavy duty ball bearing hinge exceeds the strength requirements of other hinges, capable of supporting up to 2,000 lbs. Primarily used as prison hinges, it also functions for extremely heavy doors, or for lead-lined x-ray rooms.

Features:

Sold as Single Hinge
Ball Bearing Hinge
Commercial Strength
Removable Pin: No
Made of triple weight steel capable of carrying doors weighing up to 2000 lbs. (906 Kg) (Based on a 3′ x 7′ door with 3 hinges)
Square Corners
Traditional / Classic Theme

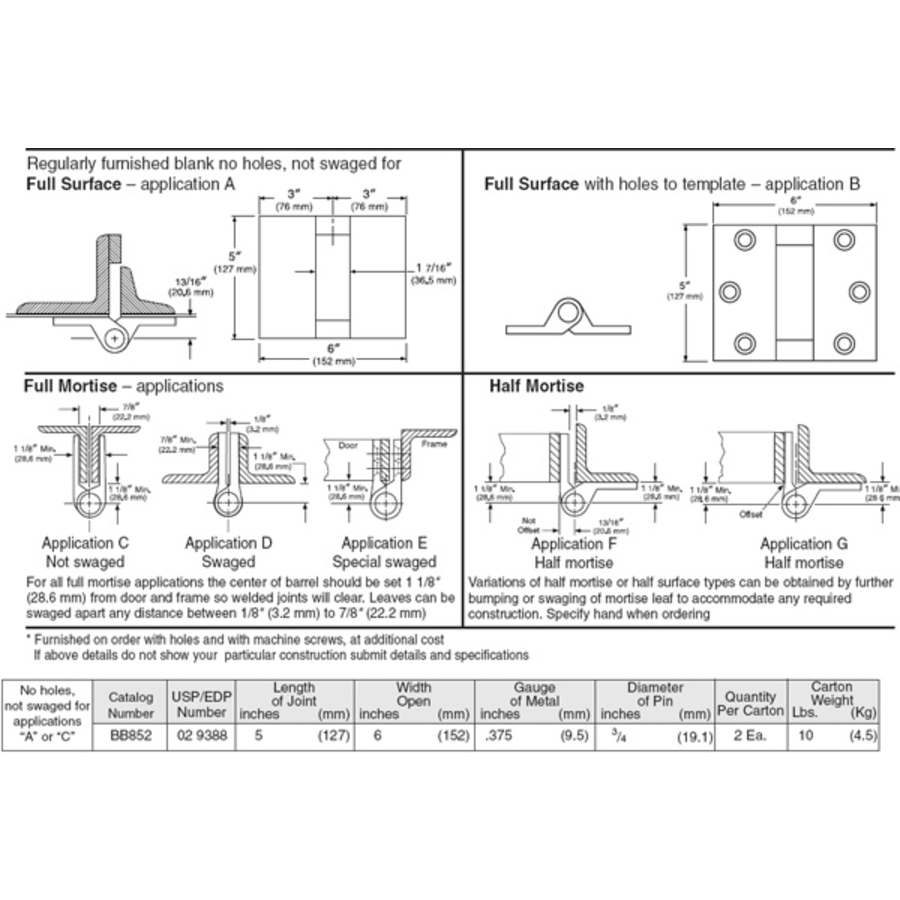

Typically made not swaged, no holes (application A) for full surface applications, or for full mortise (applications C) application. All other configurations are made to order

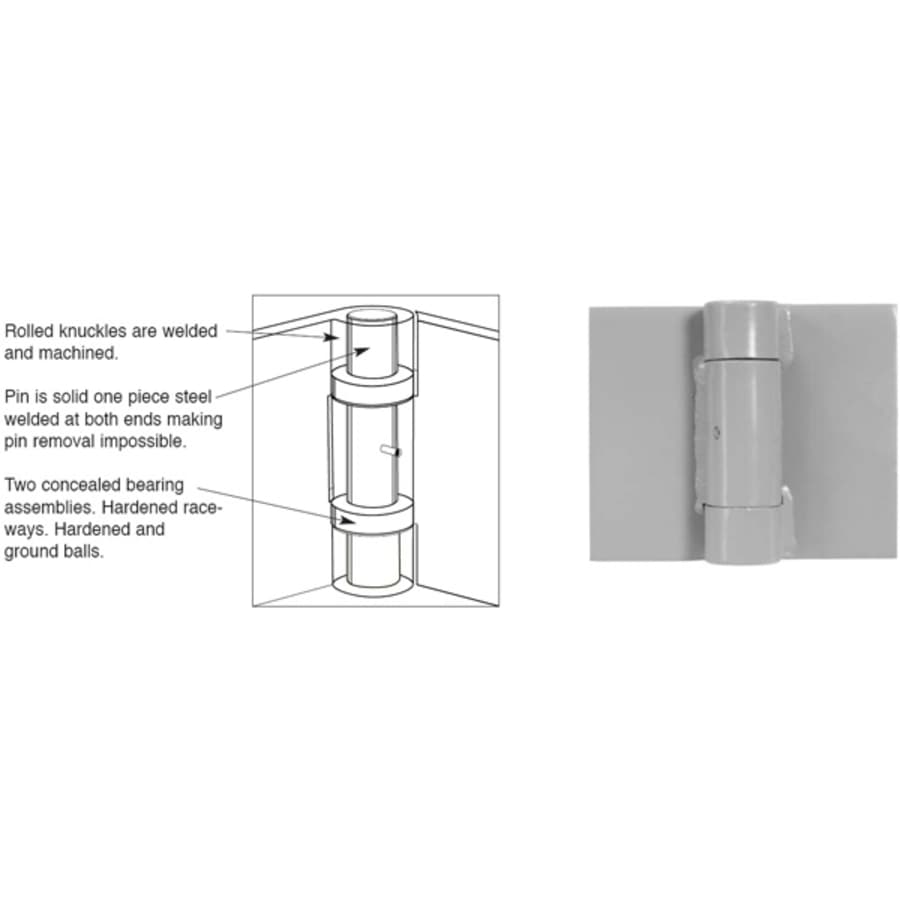

Ball Bearing Hinge: Ball bearing hinges are designed to handle the extra stress brought on by high traffic doorways. The greased bearings reduce the rotational friction extending the life of a hinge in heavy use situations. These hinges tend to be more durable than standard, or plain bearing hinges.

Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.

Mounting: The standard corners for mortised door hinges are 1/4″ radius, 5/8″ radius and square corner. It is recommended that three hinges be used on doors up to and including 7.5 feet with one additional hinge for each additional 2.5 feet. Make sure you check your current hinges before making a purchase.

Specifications:

5 Inch Height
6 Inch Width
Made from Steel
Mount: Surface Mount
Gauge: 0.375″ (Thickness of Hinge Steel)
3 Knuckles
