Features:
Well suited to work with small wall cabinets
Comes with built in CLIP Top with BLUMOTION for slam proof closing
Lift mechanism is engineered for use on one or both sides of the cabinet
Lift mechanism has a power factor range of 113 to 156 for a single lift and 225 to 312 for two lifts
Power factor (P) is calculated by multiplying door weight (D) with cabinet height (C) or P = D x C
A trial application is highly recommended if calculated power factor is borderline of lift mechanism’s range

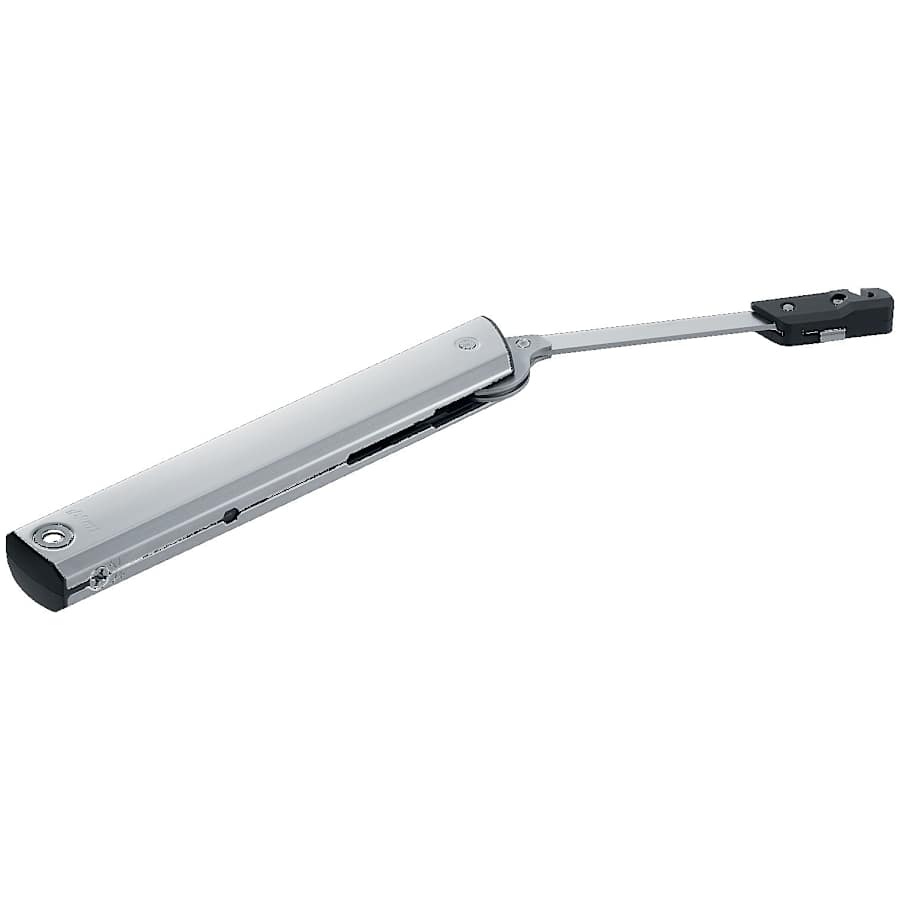

Include one (1) lift mechanism arm
Specifications:
Cabinet Height: 9-3/8″ to 24″
Maximum Internal Cabinet Width: 72″
Minimum Internal Cabinet Depth: 5″
Power Factor: 225-312 (Power Factor = Cabinet Height x Door Weight)
Product Variations:
20K1101T: TIP-ON Lift Mechanism with Power Factor from 34 to 119
20K1301T: TIP-ON Lift Mechanism with Power Factor from 120 to 224
20K1501T (This Model): TIP-ON Lift Mechanism with Power Factor from 225 to 312
Additional Blum Links
Browse all Blum Products
Blum Aventos HK-XS Collection
Specifications
| Product Weight | 4 lbs. |
| Quantity | 1 |
| Canopy Height | 24, 9.375 in. |
| Minimum Cabinet Depth | 5 in. |
| Maximum Opening Height | 24 in. |
| Maximum Opening Width | 72 in. |
| Insulation Type | Screw |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Approved for Commercial Use | No |
| Collection | AVENTOS |
| Series | HK-XS, TIP-ON, Aventos HK-XS |
| Power Factor | 225 - 312 |
| Color | Nickel |
| Color Tone | Nickel Tones |
