Features:
Standard single extension runner set
Left and right cabinet and drawer profiles
Bottom mounted
Durable epoxy coating
Smooth running synthetic rollers on tempered steel axles
Captive RH profiles / tolerance LH profiles
1/2″ side clearance
Double warning lift out stop

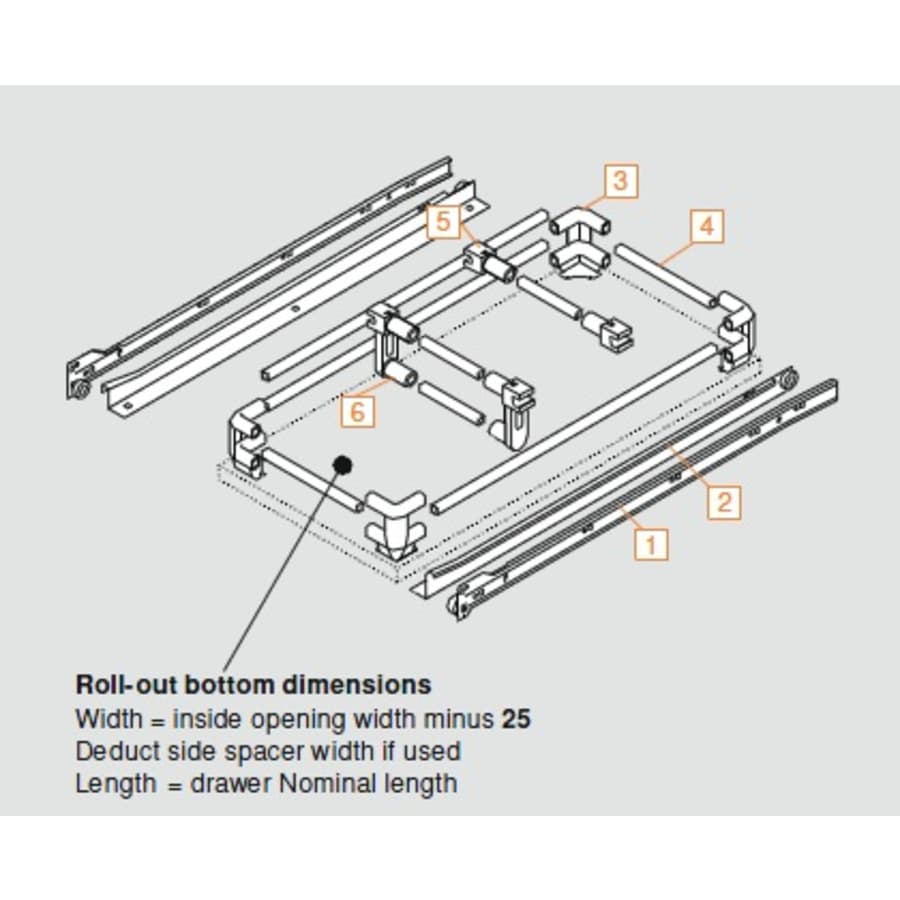

Pictured as parts 1 and 2
Actual profile length: 11.75″
Interior Cabinet Depth
Frame cabinet maximum*: 12.25″
Frame cabinet minimum*: 12.875″
*For inset drawer vary by front thickness
Panel cabinet minimum: 11.875″
11.75″ Suggested drawer length
BHMA Grade 1 certified
Blum, Inc. is a leading manufacturer of functional hardware for the kitchen cabinet and commercial casework industries specializing in lift systems, concealed hinges and drawer runner systems.
Additional Blum Links
Browse all Blum Products
Blum 230M Collection
Specifications
| Length | 12 in. |
| Nominal Length | 12 in. |
| Quantity | 2 |
| Extension | 9.375 in. |
| Length mm | 300 mm |
| Drainboard Length | 12.5 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Minimum Cabinet Depth | 12.875 in. |
| Insulation Type | Bottom Mount |
| Material | Steel |
| Mounting Type | Bottom Mount, Side Mount |
| Adjustable | No |
| Cabinet Type | Panel (Frameless) |
| Detent | Yes |
| Disconnect Style | Rail |
| Extension Type | 3/4 Extension |
| Push to Open | No |
| Self Closing | Yes |
| Slide Type | Euro Slide |
| Soft Close | No |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Series | 230M |
| BHMA Certification | Grade 1 |
| Color | White |
| Color Tone | Whites |
