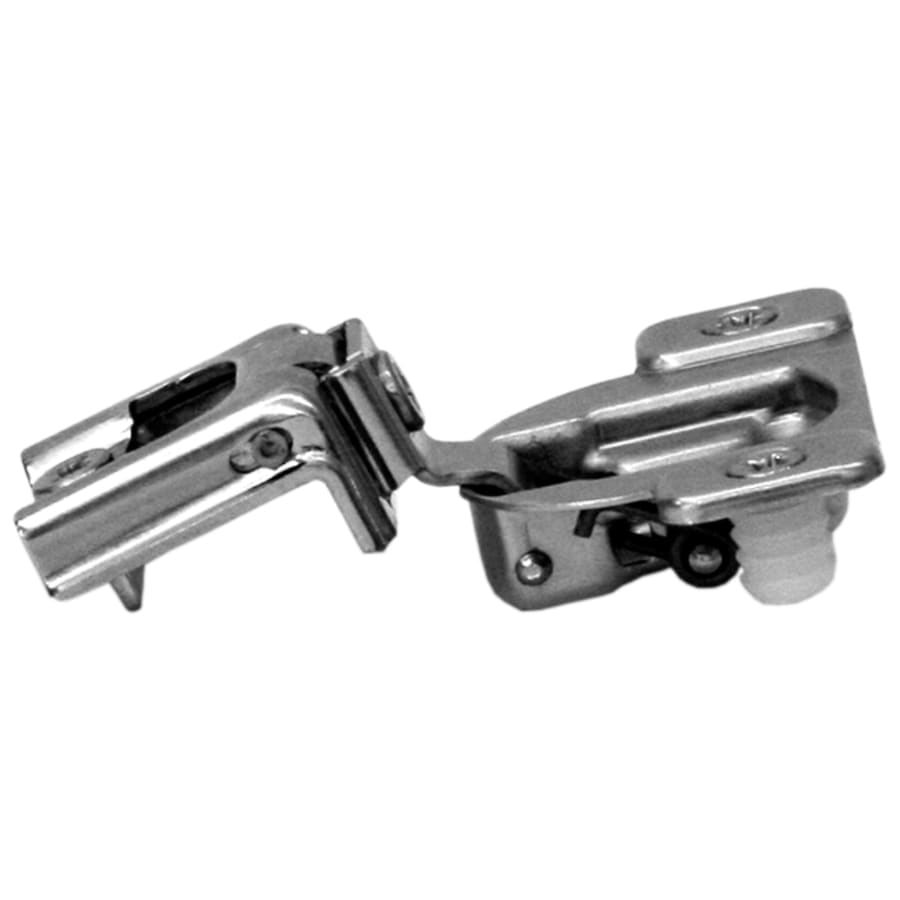

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 107 degree opening angle
All necessary mounting hardware is included
Specifications:
Hinge Mount: Full Overlay
Opening Angle: 107
Material: Steel
Installation Type: Press-In
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 2.5″, 3″
Cup Depth: 7/16″
Mount Centers: 1-3/4″
Product Technologies:
Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – Press-In: Press-in hinges are equipped with pre-mounted dowels that fit into holes drilled directly into the cabinet door. They do not require any screws, and generally make for quick installation and replacement.
Additional Blum Links
Browse all Blum Products
Blum Compact Collection
Specifications
| Insulation Type | Press-In |
| Material | Steel |
| Assembly Required | No |
| Hinge Type | Concealed Euro |
| Arm Type | Full Cranked |
| Bulk Pack | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Adjustable | Yes |
| Soft Close | No |
| Adjustable Height | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Full Overlay |
| Push to Open | No |
| Self Closing | Yes |
| Collection | Compact |
| Approved for Commercial Use | No |
| Country Of Origin | Austria, Brazil, USA |
| Manufacturer Warranty | Limited Lifetime |
| Series | COMPACT 38C |
| Made in America | Yes |
| BHMA Certification | Grade 1 |
| Product Weight | 0.5 lbs. |
| Quantity | 1 |
| Angle | 107 Degrees |
| Bottom Diameter | 2.5, 3 mm |
| Cup Depth | 0.43 in. |
| Cup Depth mm | 11 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 19 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 107 |
| Overlay | 1-1/4 Inch |
| Installation Hardware Included | Yes |
| Color | Nickel |
| Color Tone | Nickel Tones |
