Features:

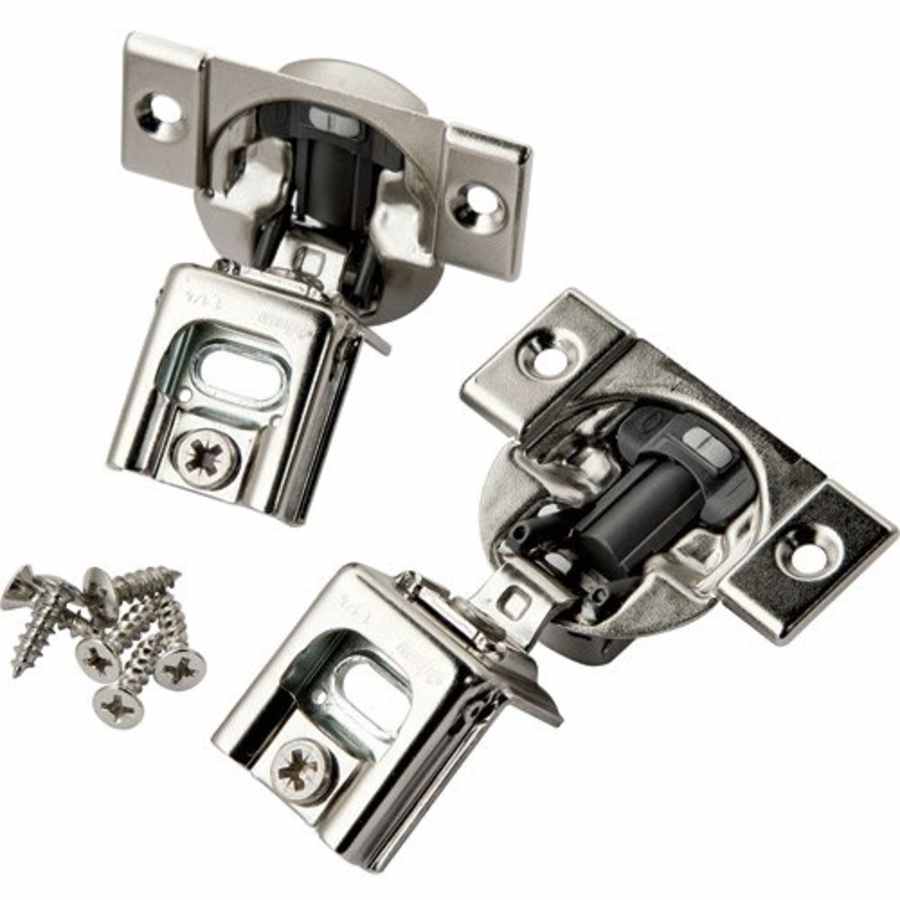

Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
Soft close function ensures your cabinet door will close quietly
3-way adjustable hinge for easy and customizable installation
Designed for a 110 degree opening angle
All necessary mounting hardware is included
Specifications:
Hinge Mount: Partial Overlay
Opening Angle: 110
Material: Steel
Installation Type: Press-In
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 2.5″, 3″
Cup Depth: 1/2″
Mount Centers: 1-3/4″
Product Technologies:

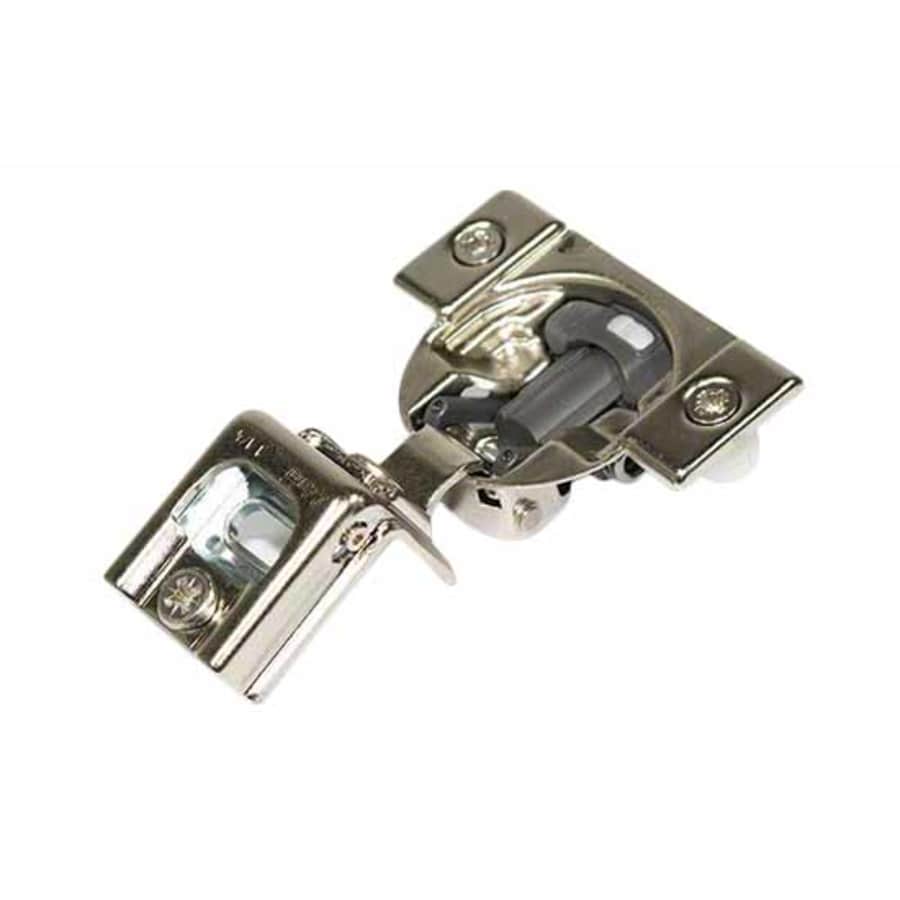

Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – Press-In: Press-in hinges are equipped with pre-mounted dowels that fit into holes drilled directly into the cabinet door. They do not require any screws, and generally make for quick installation and replacement.
BLUMOTION: BLUMOTION is the soft close system from Blum. Whether large or small, heavy or light, BLUMOTION soft closing action keeps doors and drawers from slamming closed. It adapts to various closing speeds and features overload safety which protects the system from damage through use.
Additional Blum Links
Browse all Blum Products
Specifications
| Approved for Commercial Use | No |
| Collection | Compact BLUMOTION |
| Country Of Origin | Austria, Brazil, USA |
| Manufacturer Warranty | Limited Lifetime |
| Series | Compact 39C |
| BHMA Certification | Grade 2 |
| Made in America | Yes |
| Insulation Type | Press-In |
| Material | Steel |
| Assembly Required | No |
| Hinge Type | Concealed Euro, Wrap |
| Adjustable | Yes |
| Cabinet Type | Face Frame |
| Soft Close | Yes |
| Adjustable Height | Yes |
| Bulk Pack | No |
| Arm Type | Half Cranked |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Push to Open | No |
| Self Closing | No |
| Soft Close Deactivation | Yes |
| Installation Hardware Included | Yes |
| Quantity | 1 |
| Angle | 110 Degrees |
| Bottom Diameter | 2.5, 3 mm |
| Cup Depth | 0.51 in. |
| Cup Depth mm | 13 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 19 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 110 |
| Overlay | 1-3/8 Inch |
