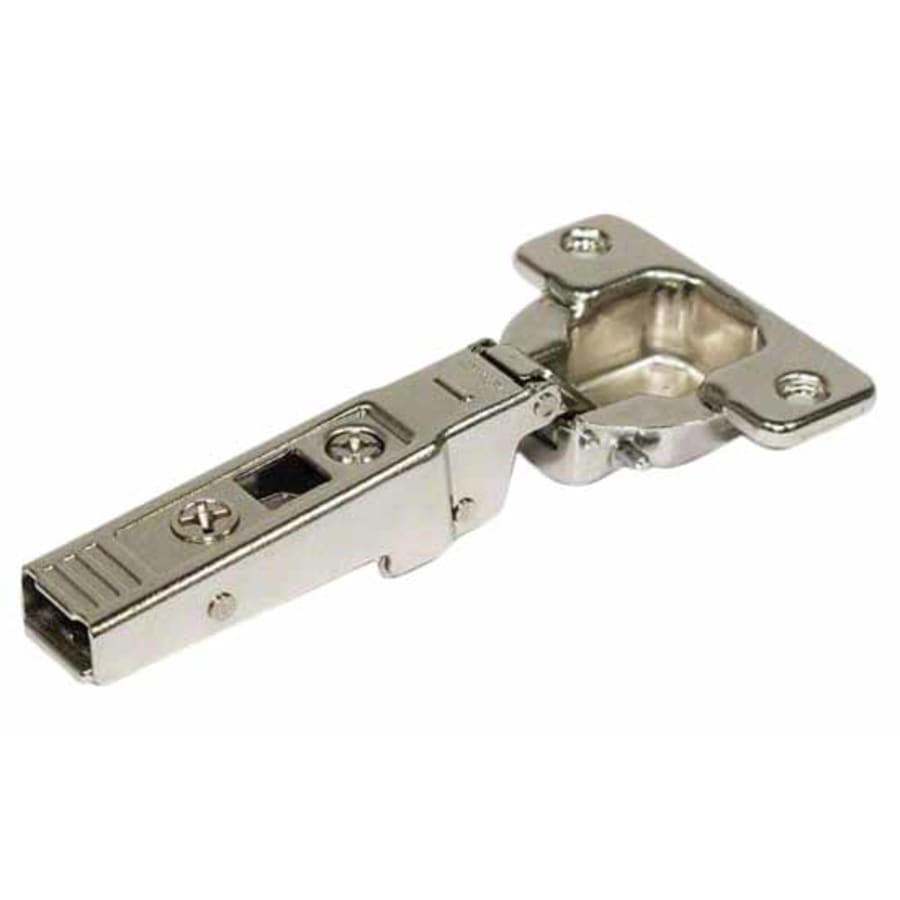

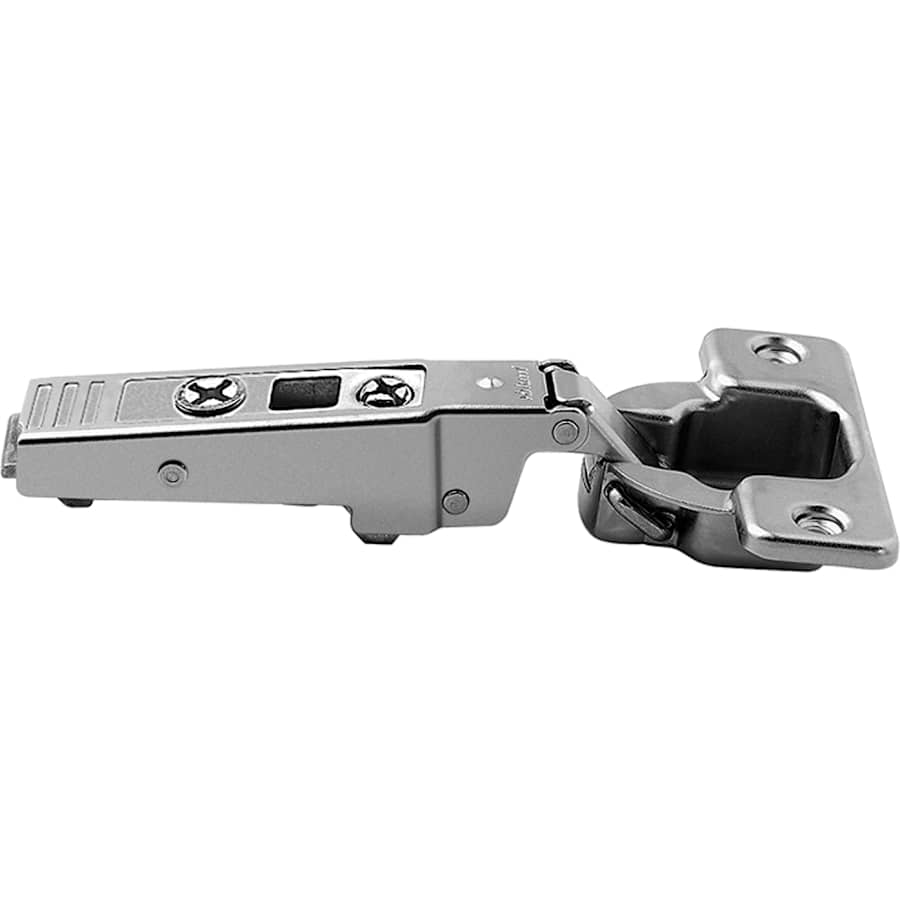

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
3-way adjustable hinge for easy and customizable installation
Designed for a 95 degree opening angle
Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
Installation screws not included
Specifications:
Hinge Mount: Full Overlay, Partial Overlay
Opening Angle: 95
Material: Steel
Installation Type: Screw On
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 3″, 7″
Cup Depth: 1/2″
Mount Centers: 1-3/4″
Product Technologies:
Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – Screw-On: The most common and standard method to secure hinges to your cabinetry. Typically using wood screws to attach the hinges to either your cabinet frame or cabinet door.
Additional Blum Links
Browse all Blum Products
Blum CLIP Top Collection
Specifications
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | Austria, Brazil, USA |
| Collection | CLIP Top |
| Series | CLIP Top 95° |
| Made in America | Yes |
| BHMA Certification | Grade 1 |
| Installation Hardware Included | No |
| Material | Steel |
| Assembly Required | No |
| Insulation Type | Screw |
| Arm Type | Straight Arm |
| Adjustable | Yes |
| Hinge Type | Concealed Euro, Full Overlay |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Face Frame |
| Demountable | Yes |
| Hinge Mount | Full Overlay, Partial Overlay |
| Self Closing | No |
| Soft Close | No |
| Bulk Pack | No |
| Push to Open | No |
| Sconce Type | Phillips |
| Quantity | 1 |
| Screw Size | 6 x 5/8 |
| Max Cabinet Door Thickness | 1.1875 in. |
| Opening Angle | 95 |
| Cup Depth mm | 12.7 mm |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness mm | 30 mm |
| Mount Centers mm | 45 mm |
| Angle | 95 Degrees |
| Bottom Diameter | 3, 7 mm |
| Cup Depth | 0.5 in. |
| Cup Diameter | 1.38 in. |
| Mount Centers | 1.77 in. |
| Overlay | Full |
| Color | Nickel |
| Color Tone | Nickel Tones |
