Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 110 degree opening angle
Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
Installation screws not included
Specifications:
Hinge Mount: Partial Overlay
Opening Angle: 110
Material: Steel
Installation Type: Screw On
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 3″, 7″
Cup Depth: 1/2″
Mount Centers: 1-3/4″
Product Technologies:

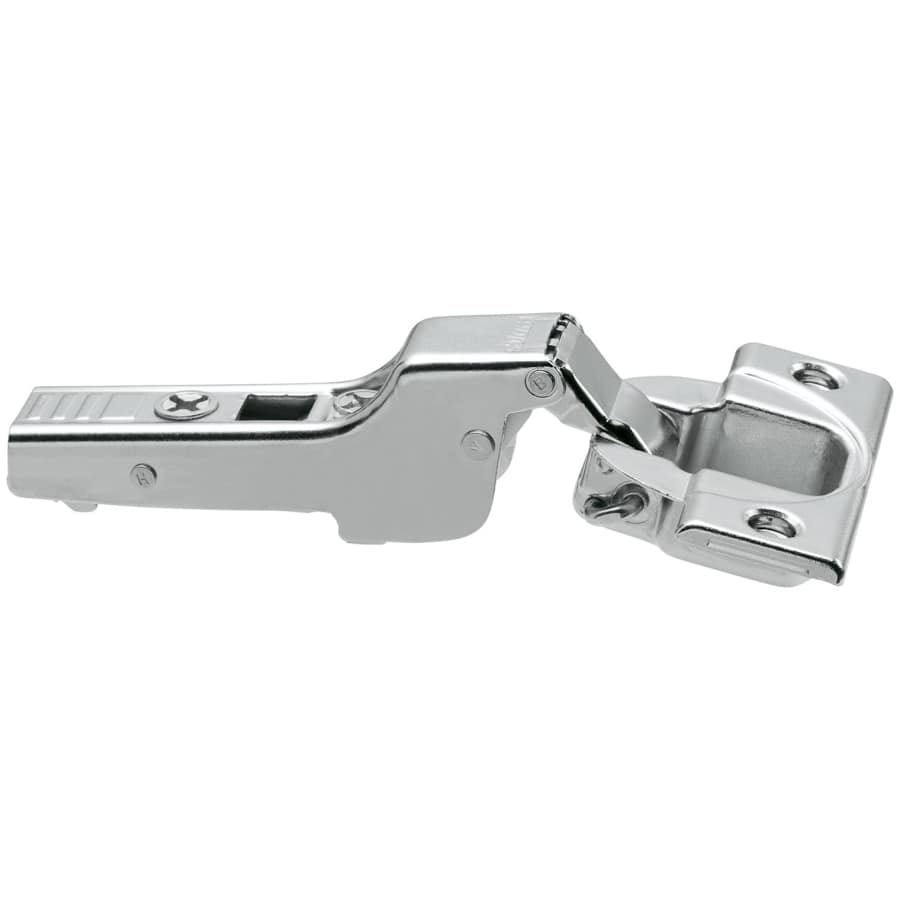

Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – Screw-On: The most common and standard method to secure hinges to your cabinetry. Typically using wood screws to attach the hinges to either your cabinet frame or cabinet door.
Additional Blum Links
Browse all Blum Products
Specifications
| Material | Steel |
| Insulation Type | Screw |
| Hinge Type | Concealed Euro, Partial Overlay |
| Bulk Pack | No |
| Adjustable | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Self Closing | Yes |
| Soft Close | No |
| Cabinet Type | Face Frame |
| Demountable | Yes |
| Hinge Mount | Partial Overlay |
| Assembly Required | No |
| Arm Type | Half Cranked |
| Push to Open | No |
| Sconce Type | Phillips |
| Country Of Origin | Austria, Brazil, USA |
| Manufacturer Warranty | Limited Lifetime |
| Collection | CLIP Top |
| Approved for Commercial Use | No |
| Series | CLIP Top 110° |
| Made in America | Yes |
| BHMA Certification | Grade 1 |
| Installation Hardware Included | No |
| Quantity | 1 |
| Opening Angle | 110 |
| Max Cabinet Door Thickness | 1 in. |
| Screw Size | 6 x 5/8 |
| Angle | 110 Degrees |
| Bottom Diameter | 3, 7 mm |
| Cup Depth | 0.51 in. |
| Cup Depth mm | 13 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness mm | 26 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Overlay | 1/4 Inch, 3/16 Inch, 5/16 Inch |
| Color | Nickel |
| Color Tone | Nickel Tones |
