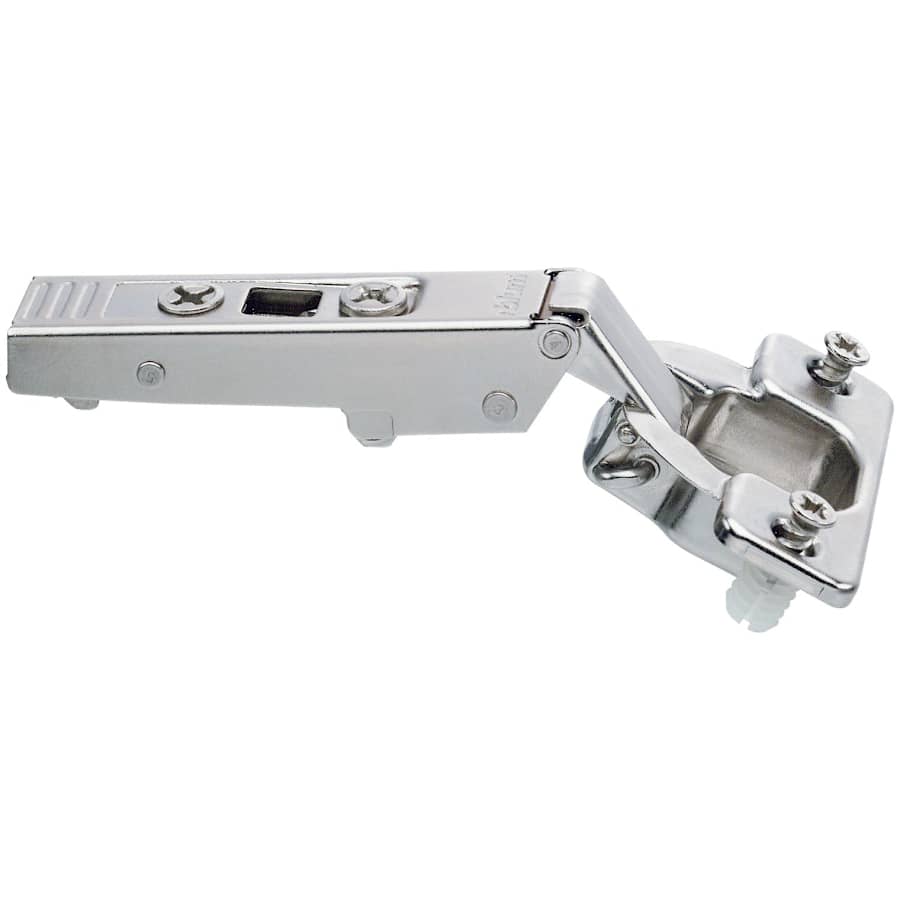

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 120 degree opening angle
Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
Specifications:
Hinge Mount: Full Overlay, Partial Overlay
Opening Angle: 120
Material: Steel
Installation Type: Screw Expanding Dowel
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 3″, 6″
Cup Depth: 1/2″
Mount Centers: 1-3/4″
Product Technologies:
Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – EXPANDO™: Blum’s unique EXPANDO™ system simplifies installation by using specialized expanding dowels and pre-drilled holes. Once the dowels have been inserted into the holes, use the attached screws to make the dowels expand and create a secure fitting.
Additional Blum Links
Browse all Blum Products
Blum CLIP Top Collection
Specifications
| Material | Steel |
| Insulation Type | Screw Expanding Dowel |
| Hinge Type | Concealed Euro, Full Overlay |
| Bulk Pack | No |
| Adjustable | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Self Closing | Yes |
| Soft Close | No |
| Cabinet Type | Face Frame |
| Demountable | Yes |
| Hinge Mount | Full Overlay, Partial Overlay |
| Assembly Required | No |
| Arm Type | Straight Arm |
| Push to Open | No |
| Country Of Origin | Austria, Brazil, USA |
| Manufacturer Warranty | Limited Lifetime |
| Collection | CLIP Top |
| Approved for Commercial Use | No |
| Series | EXPANDO, CLIP Top 120° |
| Made in America | Yes |
| BHMA Certification | Grade 1 |
| Quantity | 1 |
| Opening Angle | 120 |
| Max Cabinet Door Thickness | 0.875 in. |
| Angle | 120 Degrees |
| Bottom Diameter | 3, 6 mm |
| Cup Depth | 0.5 in. |
| Cup Depth mm | 12.7 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness mm | 22 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Overlay | Full |
| Color | Nickel |
| Color Tone | Nickel Tones |
