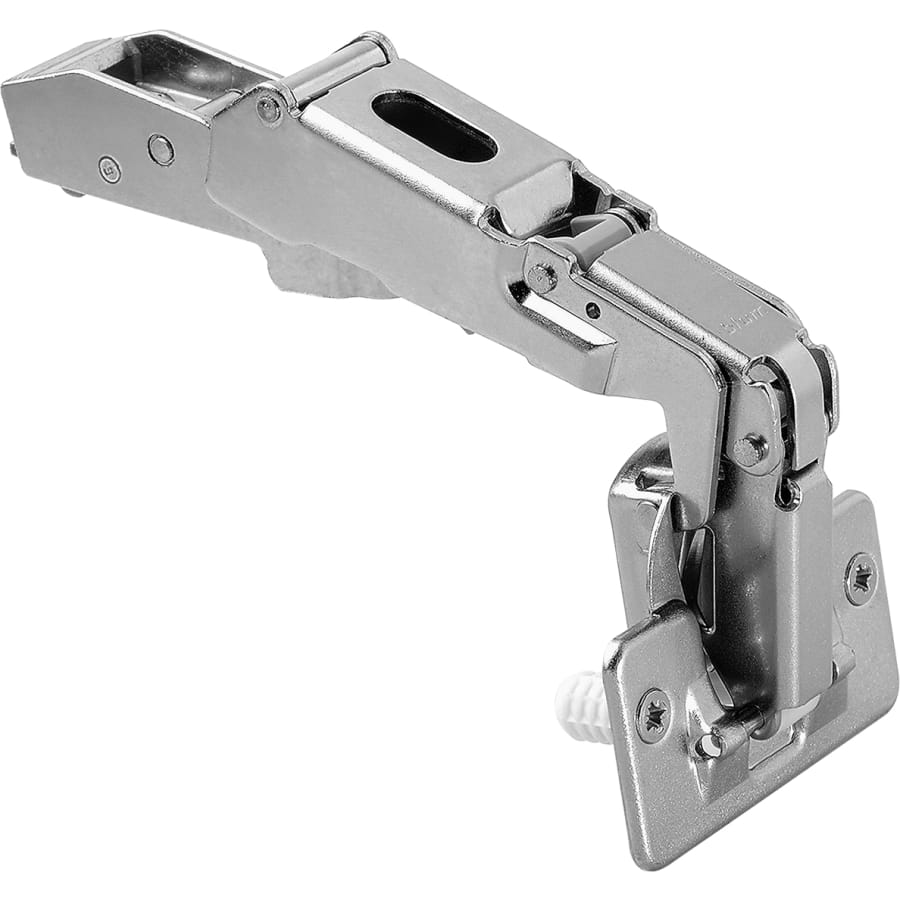

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 170 degree opening angle
Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
All necessary mounting hardware is included
Specifications:
Hinge Mount: Full Overlay, Partial Overlay
Opening Angle: 170
Material: Steel
Installation Type: Press-In
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 3″, 8″
Cup Depth: 7/16″
Mount Centers: 1-3/4″
Product Technologies:
Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – Press-In: Press-in hinges are equipped with pre-mounted dowels that fit into holes drilled directly into the cabinet door. They do not require any screws, and generally make for quick installation and replacement.
Additional Blum Links
Browse all Blum Products
Blum CLIP Top Collection
Specifications
| Installation Hardware Included | Yes |
| Material | Steel |
| Insulation Type | Press-In |
| Hinge Type | Concealed Euro, Full Overlay |
| Arm Type | Straight Arm |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Face Frame |
| Demountable | Yes |
| Hinge Mount | Full Overlay, Partial Overlay |
| Self Closing | Yes |
| Soft Close | No |
| Bulk Pack | No |
| Adjustable | Yes |
| Assembly Required | No |
| Push to Open | No |
| Approved for Commercial Use | No |
| Country Of Origin | Austria, Brazil, USA |
| Manufacturer Warranty | Limited Lifetime |
| Collection | CLIP Top |
| Series | CLIP Top 170° |
| Made in America | Yes |
| BHMA Certification | Grade 1 |
| Quantity | 1 |
| Max Cabinet Door Thickness | 0.9375 in. |
| Opening Angle | 170 |
| Angle | 170 Degrees |
| Bottom Diameter | 3, 8 mm |
| Cup Depth | 0.43 in. |
| Cup Depth mm | 11 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness mm | 26 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Overlay | Full |
| Color | Nickel |
| Color Tone | Nickel Tones |
