Blum Movento Heavy Duty 21 Inch Full Extension Undermount Concealed Drawer Slides with 170 lbs. Weight Capacity and Soft Close – Pair

Movento 21 Inch Full Extension Undermount Concealed Drawer Slides with BluMotion (Soft Close)

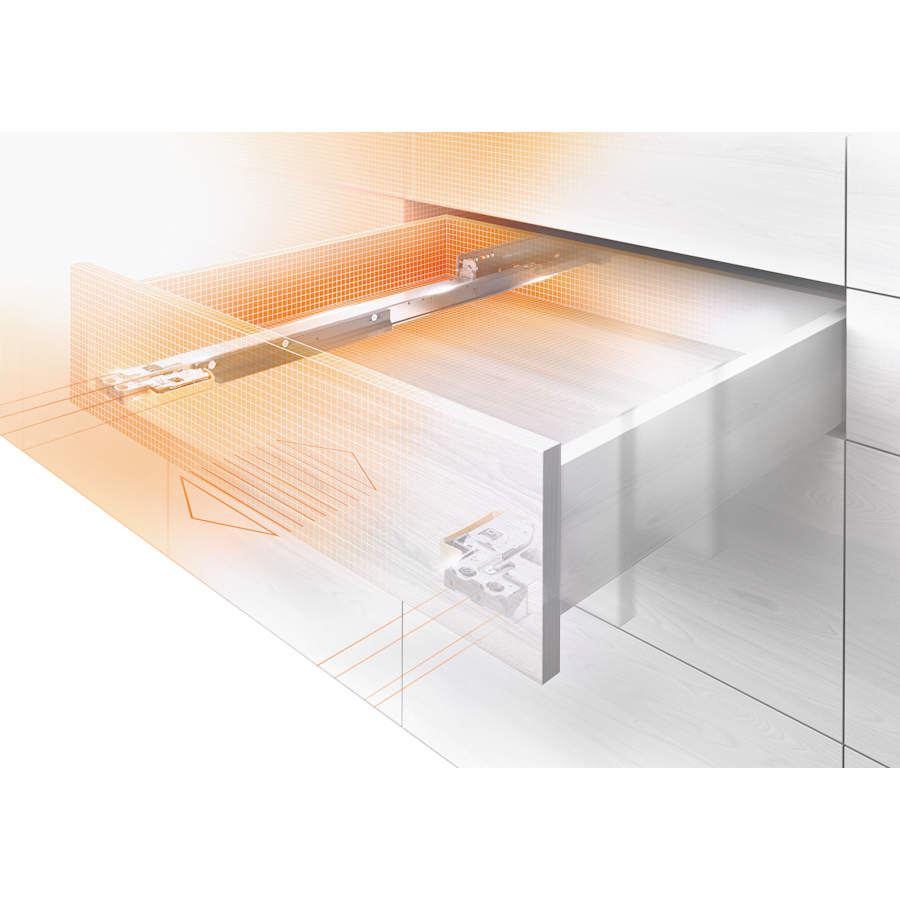

MOVENTO TECHNOLOGY: MOVENTO is the latest advancement in concealed runner technology. Standard with soft close BLUMOTION, MOVENTO runners provide multiple solutions with a single runner. Combine with our motion technologies, TIP-ON BLUMOTION or SERVO-DRIVE, to ensure drawers open with a light press of the front and close softly and quietly. MOVENTO concealed runners give you the design freedom for deep, wide draweres that will hold anything homeowners would like to store. From cast iron and stoneware to appliances and pantry items, MOVENTO rises to the challenge while enhancing user experience for generations to come.

Features:

Full Extension concealed runners for 21” drawer length and up to 24” Cabinet Depth
Designed to support up to 170 pounds of weight (Static Load Capacity)
Compatible with Frameless or Blocked-out face frame Cabinets ONLY
Four-Dimensional Adjustment & elongated holes for depth adjustment
Concealed undermount construction adds stability and support
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system
Compatible with TIP-ON BLUMOTION and SERVO-DRIVE technologies
Includes a limited lifetime manufacturer warranty
Additional Products Required for Installation

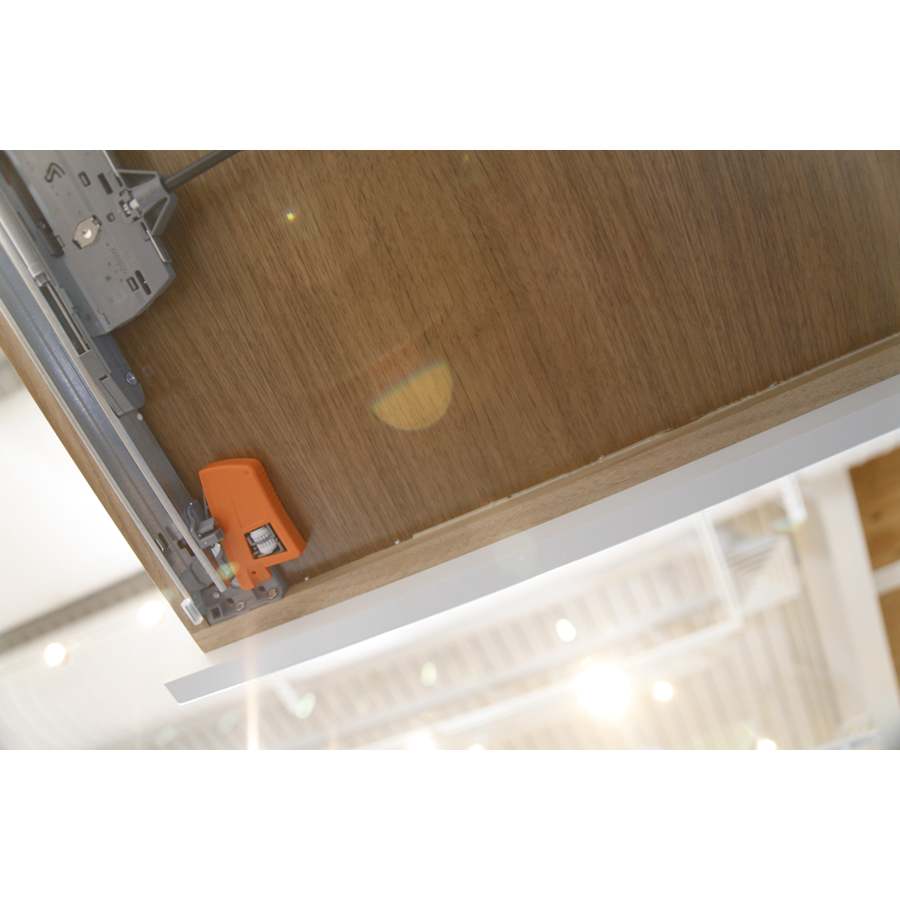

Locking Device Required: SKU T51.7601 R and T51.7601 L
Wood Screws required: SKU MCFPT587NI-1C
Note: For 769. series runners, rear brackets and sockets cannot be used. Cabinet sides must be blocked-out flush with the inside of the frame. See page 13 of Movento Catalog for more details.

Product Technologies:

Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.
Blumotion: Blum’s patented soft-closing technology is an industry standard, having found its way into the homes, garages and offices of customers all across the country. Its design has been adapted to be used in a variety of different hinge and drawer slide systems making it a system you can count on in any application within your home.

Specifications:

1/2″ (13mm) to 5/8″ (16mm) drawer thickness
Recommended Drawer Length: 21”
Slide Length: 21.75″
Extension Type: Full Extension
Slide Type: Concealed
Weight Capacity: 170lbs
Material: Zinc
Cabinet Type:  Frameless, Blocked-out Face Frame Cabinets Only
Quantity: 2
BHMA Certification: Grade 1
