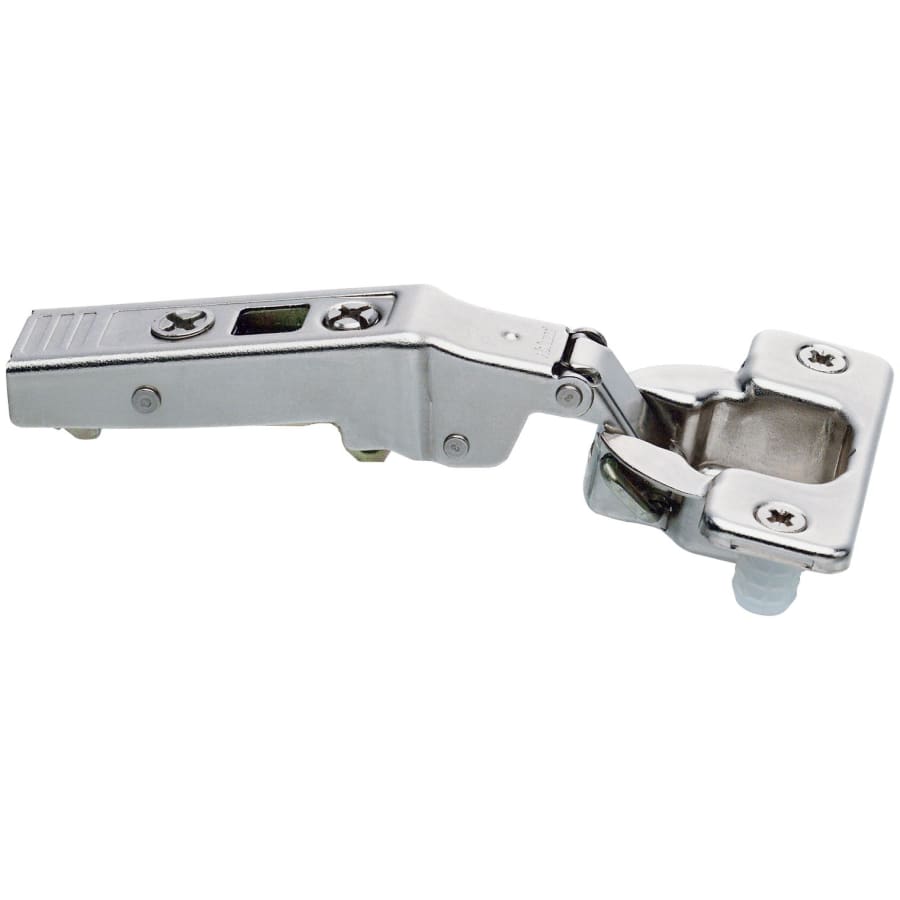

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 95 degree opening angle
Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
All necessary mounting hardware is included
Specifications:
Hinge Mount: Full Inset, Partial Overlay
Opening Angle: 95
Material: Steel
Installation Type: Clip On
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 3″, 7″
Cup Depth: 1/2″
Mount Centers: 1-3/4″
Product Technologies:
Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – INSERTA™: Blum’s unique INSERTA™ system simplifies installation by using specialized expanding dowels with a push down lever and pre-drilled holes. Once the dowel have been inserted into the holes, just push down the lever to cause the dowels to expand and create a secure fitting. No tools needed once the holes have been drilled.
Additional Blum Links
Browse all Blum Products
Blum CLIP Top Collection
Specifications
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | Austria, Brazil, USA |
| Collection | CLIP Top |
| Series | INSERTA, Clip Top Angled |
| Made in America | Yes |
| BHMA Certification | Grade 1 |
| Installation Hardware Included | Yes |
| Material | Steel |
| Assembly Required | No |
| Insulation Type | Clip On |
| Arm Type | Full Cranked |
| Adjustable | Yes |
| Hinge Type | Angled, Concealed Euro, Partial Overlay |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Panel (Frameless), Face Frame |
| Demountable | Yes |
| Hinge Mount | Full Inset, Partial Overlay |
| Self Closing | Yes |
| Soft Close | No |
| Bulk Pack | No |
| Push to Open | No |
| Front Angle | 10 Degree Positive, 15 Degree Positive, 20 Degree Positive |
| Quantity | 1 |
| Inset | Full |
| Max Cabinet Door Thickness | 0.75 in. |
| Opening Angle | 95 |
| Cup Depth mm | 13 mm |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness mm | 19 mm |
| Mount Centers mm | 45 mm |
| Angle | 95 Degrees |
| Bottom Diameter | 3, 7 mm |
| Cup Depth | 0.51 in. |
| Cup Diameter | 1.38 in. |
| Mount Centers | 1.77 in. |
| Overlay | Partial |
| Color | Nickel |
| Color Tone | Nickel Tones |
