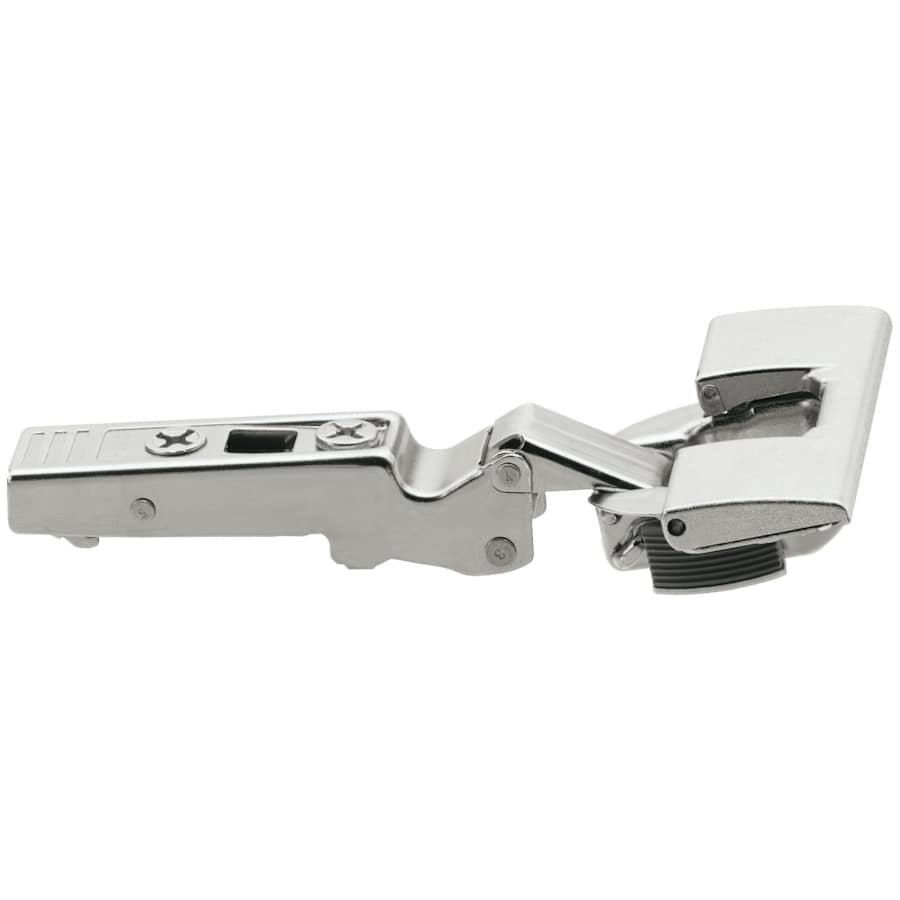

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
Soft close function ensures your cabinet door will close quietly
2-way adjustable hinge for easy and customizable installation
Designed for a 30 degree opening angle
Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
All necessary mounting hardware is included
Specifications:
Hinge Mount: Partial Overlay
Opening Angle: 30
Material: Steel
Installation Type: Screw On
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 3″, 7″
Cup Depth: 1/2″
Mount Centers: 1-3/4″
Product Technologies:
Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – Screw-On: The most common and standard method to secure hinges to your cabinetry. Typically using wood screws to attach the hinges to either your cabinet frame or cabinet door.
BLUMOTION: BLUMOTION is the soft close system from Blum. Whether large or small, heavy or light, BLUMOTION soft closing action keeps doors and drawers from slamming closed. It adapts to various closing speeds and features overload safety which protects the system from damage through use.
Mounting Type – INSERTA™: Blum’s unique INSERTA™ system simplifies installation by using specialized expanding dowels with a push down lever and pre-drilled holes. Once the dowel have been inserted into the holes, just push down the lever to cause the dowels to expand and create a secure fitting. No tools needed once the holes have been drilled.
Additional Blum Links
Browse all Blum Products
Blum BLUMOTION Collection
Specifications
| Collection | CLIP Top BLUMOTION |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Country Of Origin | Austria, Brazil, USA |
| Made in America | Yes |
| Series | Clip Top Angled |
| BHMA Certification | Grade 1 |
| Insulation Type | Screw |
| Material | Steel |
| Adjustable | Yes |
| Assembly Required | No |
| Soft Close | Yes |
| Bulk Pack | No |
| Adjustable Height | No |
| 3-Way Adjustable | No |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Arm Type | Half Cranked |
| Cabinet Type | Face Frame |
| Demountable | Yes |
| Hinge Mount | Partial Overlay |
| Hinge Type | Concealed Euro, Partial Overlay |
| Push to Open | No |
| Self Closing | No |
| Front Angle | 30 Degree Negative |
| Soft Close Deactivation | Yes |
| Quantity | 1 |
| Angle | 30 Degrees |
| Bottom Diameter | 3, 7 mm |
| Cup Depth | 0.51 in. |
| Cup Depth mm | 13 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 19 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 30 |
| Overlay | Inset |
| Installation Hardware Included | Yes |
| Color | Nickel |
