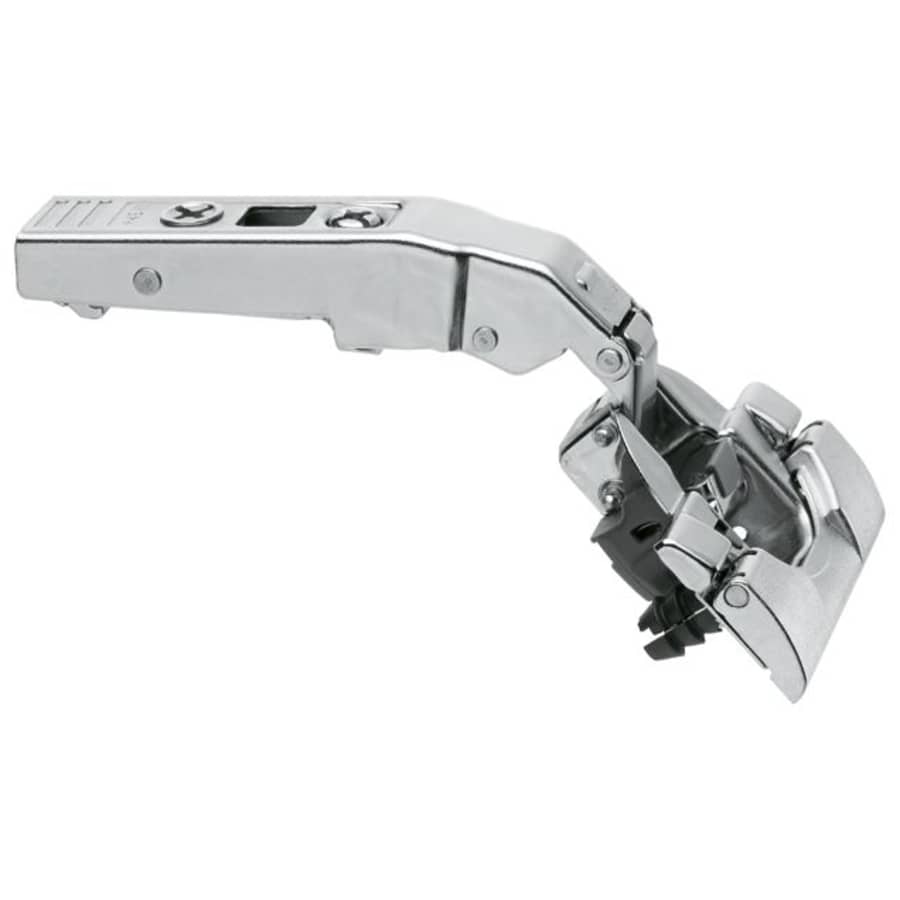

45-Degree CLIP Top Blumotion Self-Closing Inserta Hinge
Blumotion hinges enable easy three-dimensional adjustment with Blum’s spiral tech depth adjustment. Designed for use at temperatures between 65° and 82° F, though lower or higher temperatures will not cause damage to the hinge.Â
Features:
Designed for Panel (Frameless) Cabinets
Accommodates Cabinet Front Angels from -45° to +45°
Spiral Tech Depth Adjustment Eliminates Loosening and Re-Tightening of Adjustment Screws
Boring Distance Range: 3mm to 7mm
Blum, Inc. is a leading manufacturer of functional hardware for the kitchen cabinet and commercial casework industries specializing in lift systems, concealed hinges and drawer runner systems.
Additional Blum Links
Browse all Blum Products
Blum CLIP Top Collection
Specifications
| Installation Hardware Included | Yes |
| Material | Steel |
| Insulation Type | Clip On |
| Hinge Type | Angled, Concealed Euro, Partial Overlay |
| Arm Type | Half Cranked |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Panel (Frameless), Face Frame |
| Demountable | Yes |
| Hinge Mount | Partial Overlay |
| Self Closing | Yes |
| Soft Close | Yes |
| Bulk Pack | No |
| Adjustable | Yes |
| Assembly Required | No |
| Push to Open | No |
| Front Angle | 40 Degree Positive, 45 Degree Positive |
| Soft Close Deactivation | Yes |
| Approved for Commercial Use | No |
| Country Of Origin | Austria, Brazil, USA |
| Manufacturer Warranty | Limited Lifetime |
| Collection | CLIP Top BLUMOTION |
| Series | Clip Top Angled, INSERTA |
| Made in America | Yes |
| BHMA Certification | Grade 1 |
| Quantity | 1 |
| Max Cabinet Door Thickness | 0.75 in. |
| Opening Angle | 95 |
| Angle | 95 Degrees |
| Bottom Diameter | 3, 7 mm |
| Cup Depth | 0.51 in. |
| Cup Depth mm | 13 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness mm | 19 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Overlay | 1/4 Inch, 5/8 Inch |
