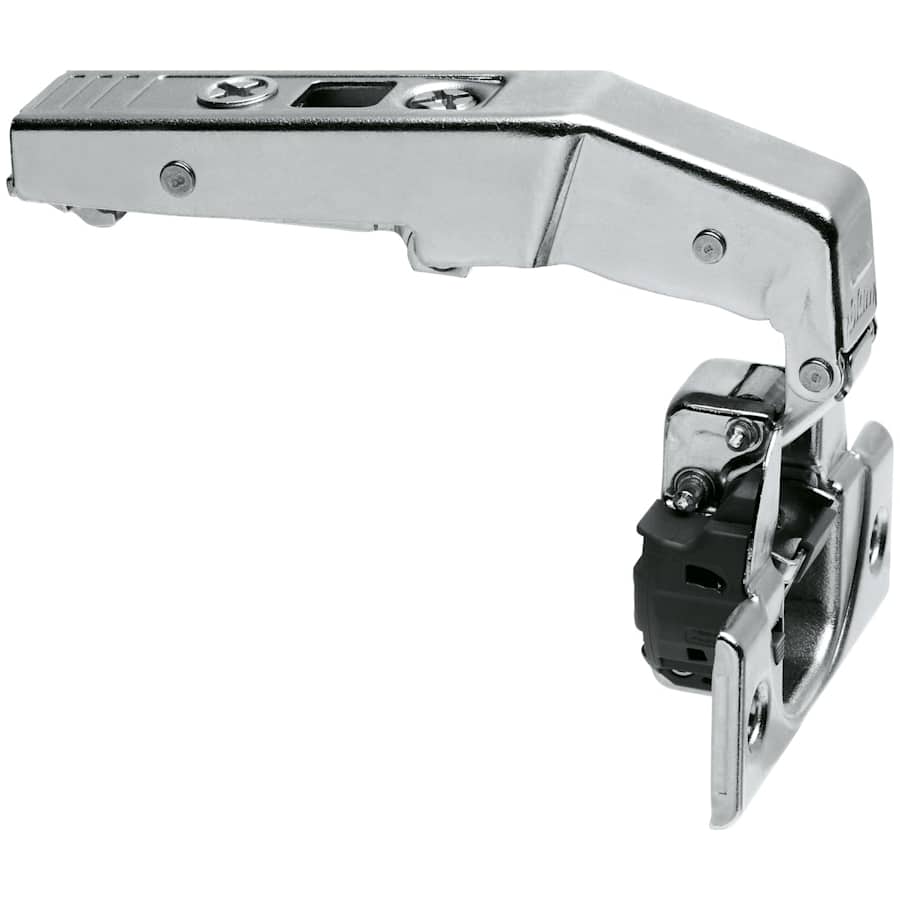

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel for durability and dependability
Covered by Blum’s limited lifetime manufacturer warranty
Soft close function ensures your cabinet door will close quietly
3-way adjustable hinge for easy and customizable installation
Designed for a 95 degree opening angle
Demountable to allow for quick and easy removal of the cabinet door for cleaning or other purposes
Installation screws not included
Specifications:
Hinge Mount: Full Inset
Opening Angle: 95
Material: Steel
Installation Type: Screw On
Cup Diameter: 1-3/8″
Bore Distance Min/Max: 3″, 7″
Cup Depth: 1/2″
Mount Centers: 1-3/4″
Product Technologies:
Concealed Hinge: Modernize your kitchen cabinets with a concealed hinge to create a seamless design and a new smooth functionality and feel. It’s important to know your desired overlay measurements and size compatibility before ordering, but once a successful installation is completed, you’ll be amazed at the big difference a small upgrade can make.
Material – Steel: Steel is cheap strong and durable making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
Mounting Type – Screw-On: The most common and standard method to secure hinges to your cabinetry. Typically using wood screws to attach the hinges to either your cabinet frame or cabinet door.
BLUMOTION: BLUMOTION is the soft close system from Blum. Whether large or small, heavy or light, BLUMOTION soft closing action keeps doors and drawers from slamming closed. It adapts to various closing speeds and features overload safety which protects the system from damage through use.
Additional Blum Links
Browse all Blum Products
Blum BLUMOTION Collection
Specifications
| Installation Hardware Included | No |
| Assembly Required | No |
| Insulation Type | Screw |
| Material | Steel |
| Hinge Type | Concealed Euro, Inset |
| Bulk Pack | No |
| Arm Type | Full Cranked |
| Cabinet Type | Face Frame, Panel (Frameless) |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Demountable | Yes |
| Hinge Mount | Full Inset |
| Self Closing | No |
| Soft Close | Yes |
| Adjustable | Yes |
| Push to Open | No |
| Soft Close Deactivation | Yes |
| Sconce Type | Phillips |
| Approved for Commercial Use | No |
| Collection | CLIP Top BLUMOTION |
| Country Of Origin | Austria, Brazil, USA |
| Manufacturer Warranty | Limited Lifetime |
| Series | CLIP Top 95° |
| Made in America | Yes |
| BHMA Certification | Grade 1 |
| Quantity | 1 |
| Inset | Full |
| Max Cabinet Door Thickness | 0.9375 in. |
| Opening Angle | 95 |
| Screw Size | 6 x 5/8 |
| Angle | 95 Degrees |
| Bottom Diameter | 3, 7 mm |
| Cup Depth | 0.51 in. |
| Cup Depth mm | 13 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness mm | 24 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Overlay | Inset |
| Color | Nickel |
| Color Tone | Nickel Tones |
