Bosch’s inventive ventilation systems keep mealtime fresh by quietly purifying the air while you cook. They’re beautifully designed to seamlessly integrate into any kitchen with under-the cabinet, chimney, island, pull-out and downdraft styles. You’ll breathe easier knowing that smoke, steam, grease and odors are quietly and effectively taken care of.
Bosch Cooking Quality
Features:
Blower outputs up to 500 CFM to keep your kitchen free of cooking fumes and odors
Carbon filters, mesh filters effectively trap and filter out unwanted smoke, odors, and grease
3 available speeds provide just the right amount of ventilation
Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
2 Halogen lights illuminate the cooking area (bulbs included)
Complements items from the 500 Series collection
Slide controls allow you to easily set the power level of your range hood
Front stainless steel visor panel can be replaced with the user’s own custom strip to match surrounding cabinetry (Custom Strip Not Provided)
Converts to recirculation mode with accessory kit (Separate Purchase Required)
For areas with Make-Up Air Requirements, Bosch’s CFM Reducer Kit reduces the CFM to under 300 (Separate Purchase Required)
Covered under a 1 year limited manufacturer warranty
Product Technologies:
Integrated Pull Out Hood: Get a sleek flush look for your kitchen without sacrificing performance. The integrated hood pulls out when you need it, then retracts to become flush with your cabinetry
Specifications:
CFM: 200, 470, 500
Sones: 2.5, 9.5

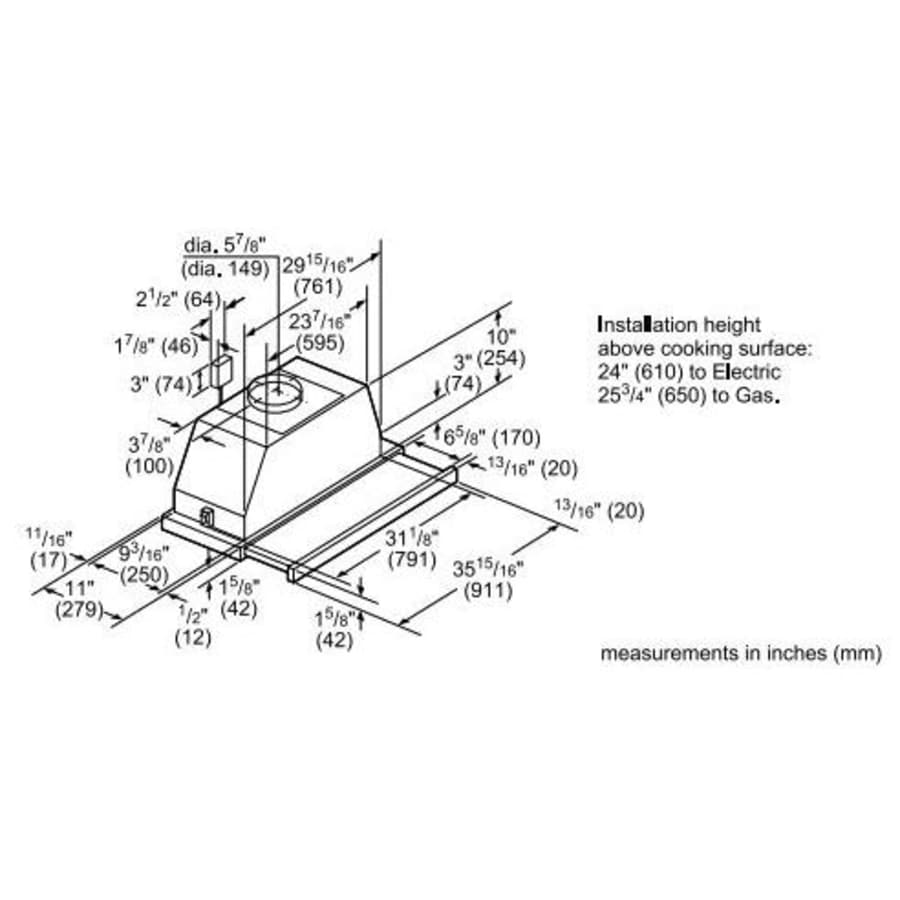

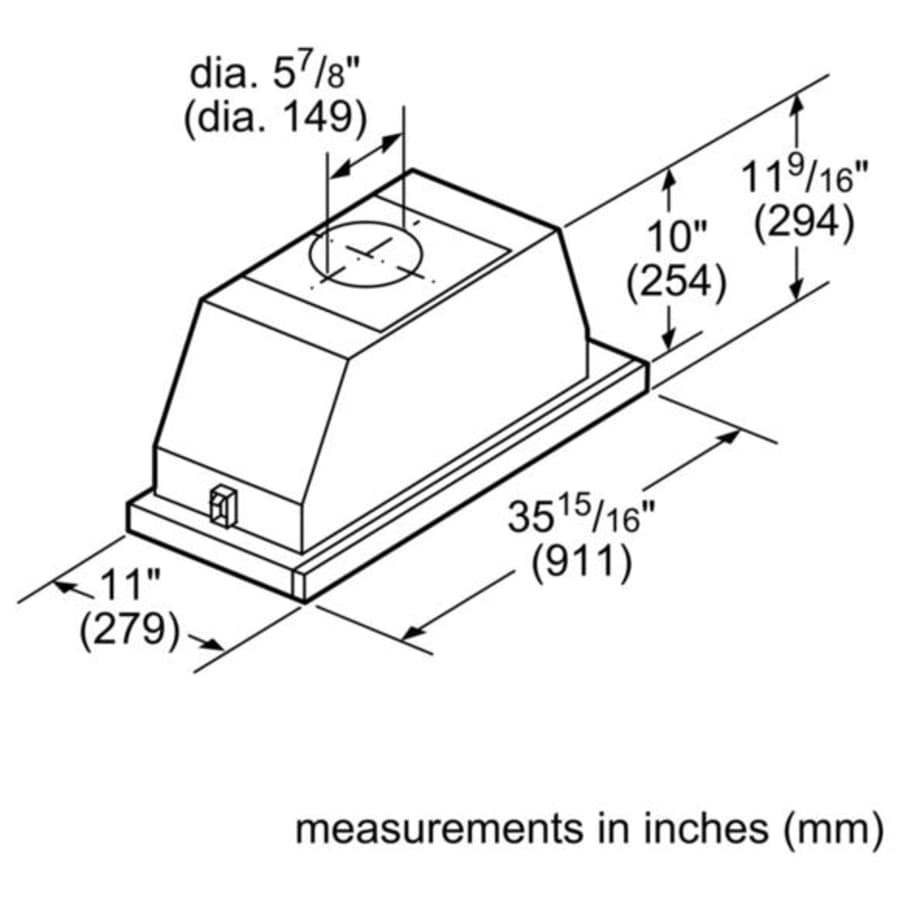

Nominal Width: 36″
Width: 35-7/8″
Height: 11-9/16″
Depth: 11″
Duct Size: 6″ Round
Ceiling Height: 30″ – 30″
Height Above Cooktop: 30″
Voltage: 120V
Wattage: 370W
Additional Bosch Links
Browse all Bosch Products
Bosch 500 Series Collection
Specifications
| Width | 35.875 in. |
| Height | 11.5625 in. |
| Product Weight | 32.5 lbs. |
| Depth | 11 in. |
| Nominal Width | 36 in. |
| CFM | 200, 470, 500 |
| CFM (High) | 500 |
| Height Above Cooktop | 30" |
| Duct Size | 6" Round |
| Ceiling Height (Max) | 30 in. |
| Ceiling Height (Min) | 30 in. |
| Height Above Cooktop (Min) | 24 in. |
| Thermostat | Contemporary |
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Number of Bulbs | 2 |
| Bubbler Type | Halogen |
| Control Type | Slide |
| Blower Type | Internal |
| Filter Type | Carbon Filters, Mesh Filters |
| Duct Discharge | Vertical |
| Fingerprint Resistant | No |
| Panel Ready | No |
| Manufacturer Warranty | 1 Year Limited |
| Country Of Origin | Italy |
| Collection | 500 Series |
| Certifications | UL |
| ADA | No |
| Outdoor Approved | No |
| Energy Star | No |
| Bulb Included | Yes |
| Available Without Blower | No |
| Ductless | No |
| Includes Remote | No |
| Convertible to Ductless / Recirculating | Yes |
| Voltage | 120 |
| Wattage | 370 |
| Watts Per Bulb | 20 |
| Frequency | 60 Hertz |
| Speeds | 3 |
| Sones | 2.5, 9.5 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
