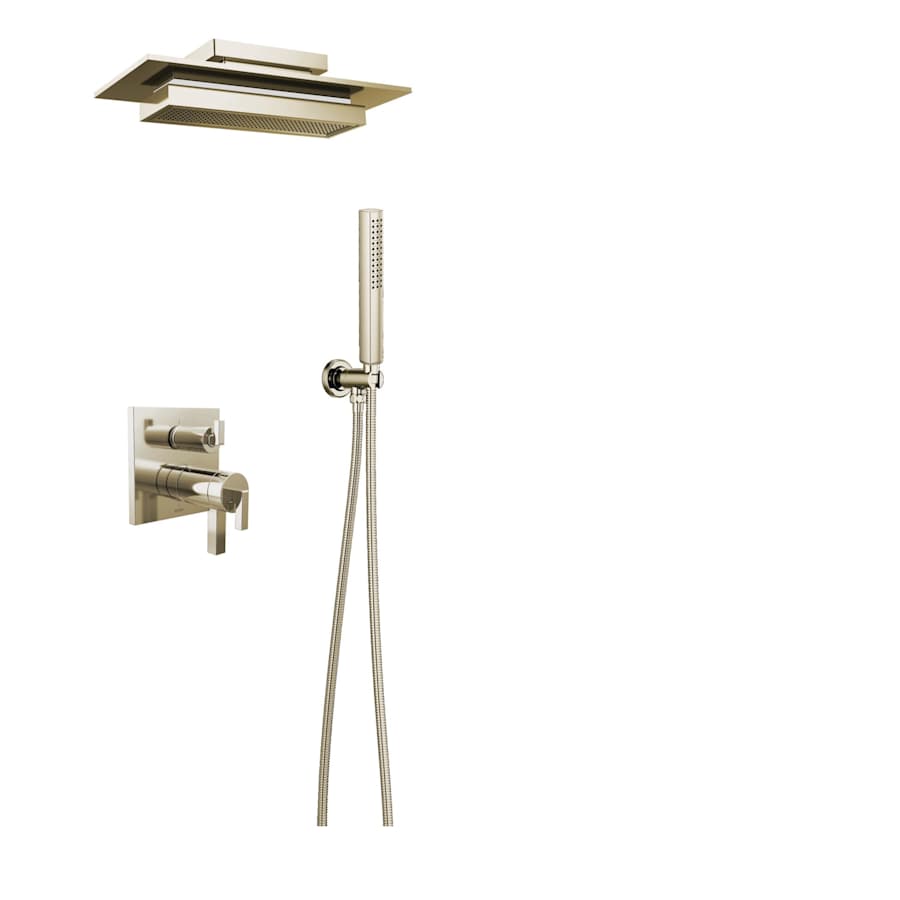

Brizo BSS-FLW-T75522-02 Shower System Includes:
Frank Lloyd Wright TempAssure Mixing Trim (T75522-LHP)
Frank Lloyd Wright Handle (HL7522)
Hand Shower Holder w/ Integrated Elbow (RP76775)
Hand Shower Hose (RP49645)
Shower Head (81422)
Hand Shower (85006)
Mixing Rough-In Valve (R75000-WS) Shower Only NO Tub Outlet
Do you like this Brizo shower system, but want to make changes to it? Give us a call! One of our customer care experts will help customize your own personal Brizo shower.
Brizo BSS-FLW-T75522-02 Shower System Features:
Covered under Brizo’s Limited Lifetime Faucet and Finish Warranty
Thermostatic operation for precise temperature control
Thermostatic wax element maintains the outlet temperature to ±3.6° F
Top handle controls diverter functions
Bottom handle controls on / off and adjusts volume
Top dial on bottom handle controls temperature
Integrated 3 function shower diverter for 2 shower applications
2 individual positions, 1 shared position
Optional non shared cartridge available RP72123 – not included
Single function 21″ x 10″ ceiling rain showerhead with integrated LED light
Single function hand shower
Hand shower holder with integrated wall elbow
Includes 60″-82″ stretchable hose
Integrated Service Stops on Mixing Rough-In Valve
Note: the RIGHT side diverter port MUST be capped
Brizo BSS-FLW-T75522-02 Shower System Specifications:
Shower Trim Dimensions: 6-13/16″ W x 6-13/16″ H
Shower Head Dimensions: 21″ W x 10″ L x 5-7/16″ H
Hand Shower Dimensions: 1-1/16″ W x 8-15/16″ H
Shower Head Flow Rate: 1.75 gpm @ 80psi
Hand Shower Flow Rate: 1.75 gpm @ 80 psi
Shower Head Settings: 1
Hand Shower Settings: 1
Connection size: 1/2”
Additional Brizo Links
View the Manufacturer Warranty
Browse all Brizo Products
Brizo Frank Lloyd Wright Collection
Specifications
| Material | Brass, Plastic |
| Thermostat | Modern |
| Insulation Type | Wall Mounted, Ceiling Mounted |
| Faucet Type | Shower System |
| Handle Material | Metal |
| Handle Style | Lever |
| Number Of Handles | 3 |
| Valve Type | Thermostatic |
| Pause Control | No |
| Scald Guard | Yes |
| Showerhead | Single Function |
| Showerhead Shape | Rectangular |
| Spray Pattern | Full |
| Spray Settings | 1 |
| Diverter Location | Valve Trim |
| Handshower | Single Function |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Collection | Frank Lloyd Wright |
| Country Of Origin | China |
| CA Drought Compliant | No |
| Flow Rate (GPM) | 1.75, 3.5 |
| Hose Length | 60 in. |
| Showerhead Flow Rate (GPM) | 1.75 |
| Showerhead Height | 5.4375 in. |
| Showerhead Width | 21 in. |
| Valve Trim Height | 6.9125 in. |
| Valve Trim Width | 6.9125 in. |
| Handshower Flow Rate | 1.75 |
| Handshower Included | Yes |
| Valve Included | Yes |
| Diverter Included | Yes |
| Integrated Diverter | Yes |
| Shower Head Included | Yes |
| Volume Control | Yes |
| Bodysprays Included | No |
| Hose Included | Yes |
| Slide Bar Included | No |
| Wall Supply Included | Yes |
| Color | Brilliance Polished Nickel |
