All items in this package are covered under Brizo’s faucet and finish limited lifetime warranty

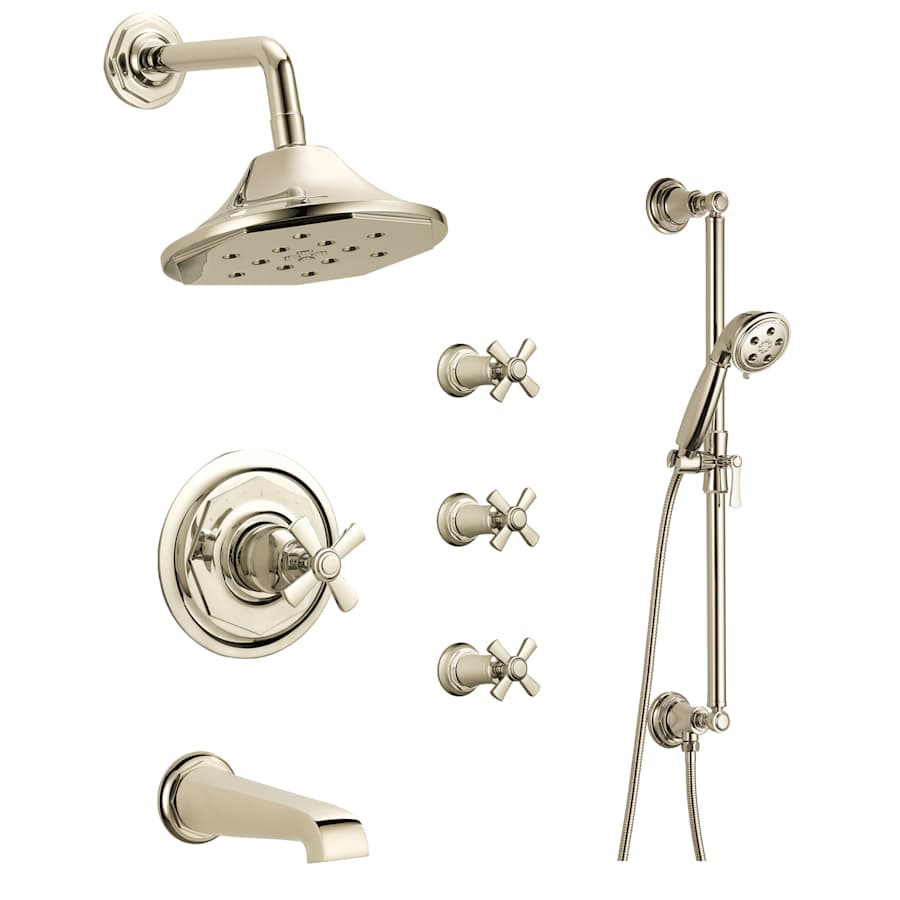

Brizo BSS-Rook-T66T05-X Shower System Includes:
Rook Thermostatic Valve Trim (T66T061)
Rook Multi-Function Shower Head with H2Okinetic® Technology (87461)
Rook Wall Mount Shower Arm (RP78580)
Rook Multi-Function Handshower with Slide Bar (88761)
Rook Volume Control Trim (T66661 – Set of 3)
Rook Tub Spout (RP78582)
Sensori® Volume Control Rough-In Valve (R35600 – Set of 3)
Sensori® Thermostatic Rough-In Valve with Integral Stops (R35000-WS)
Do you like this Brizo shower system, but want to make changes to it? Give us a call & one of our customer care experts will help customize your own personal Brizo shower.
Brizo BSS-Rook-T66T05-X Thermostatic Valve Trim / Volume Control Trim Specifications:
Valve trim and volume control dials rotate 90° in either direction
Temperature control includes pre-set safety stop with override
Valve Trim Diameter: 7″
Volume Control Diameter: 2-7/16″
Volume Control Projection (From Wall): 4″
All necessary mounting hardware and valves are included
Brizo BSS-Rook-T66T05-X Shower Head / Shower Arm / Tub Spout Specifications:
Multi-function shower head featuring four spray patterns – massaging spray, H2Okinetic full body, H2Okinetic Invigorating, and pause
Shower Head Diameter: 7-15/16″
Shower Head Height: 3-15/16″
Flow Rate: 1.75 gpm (gallons-per-minute)
Shower Arm Reach: 7″
Tub Spout Reach: 9-3/4″
Brizo BSS-Rook-T66T05-X Handshower / Slide Bar Specifications:
Handshower features three spray patterns – H2Okinetic spray, massaging, and pause
Slide bar includes integrated wall supply – can be installed on top or bottom
Handshower Height: 10″
Flow Rate: 1.75 gpm (gallons-per-minute)
Slide Bar Length: 28-1/4″ (center-to-center distance between installation holes)
Slide Bar Projection (From Wall): 3-13/16″
Hose Length: 60″ – 82″ (stretchable metal hose)
Brizo BSS-Rook-T66T05-X Shower System Technologies / Benefits:
Sensori® Thermostatic Valving: Brizo’s Sensori® Technology works like a thermostat in high-flow showers to measure and monitor the temperature of the water and automatically adjust the water mix to maintain a more precise water temperature.
H2Okinetic®: Brizo’s proprietary H2Okinetic® Technology uses the science of fluidics to create a warmer shower experience that feels like more water, without using more water. This is accomplished through larger water droplets that leave the spray head in a unique wave pattern. H2Okinetic® showers are self-cleaning, have larger spray holes that don’t clog, and do not use any moving parts, so they are very low-maintenance.
Brilliance Finishes: Brizo Brilliance Finishes are designed to not corrode, tarnish or discolor for a “like-new” look for life. Through a process known as Physical Vapor Deposition (PVD) finish molecules are embedded deep in within the surface of the faucet, creating a bond that is virtually indestructible with an incredibly reflective shine.
Additional Brizo Links
View the Manufacturer Warranty
Browse all Brizo Products
Brizo Rook Collection
Specifications
| Thermostat | Traditional |
| Insulation Type | Wall Mounted |
| Valve Type | Thermostatic |
| Handle Style | Cross |
| Handshower | Multi Function |
| Faucet Type | Shower System |
| Number Of Handles | 4 |
| Showerhead | Multi Function |
| Showerhead Shape | Round |
| Scald Guard | Yes |
| Pause Control | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Rook |
| ADA | No |
| CA Drought Compliant | Yes |
| WaterSense Certified | Yes |
| Handshower Included | Yes |
| Hose Included | Yes |
| Slide Bar Included | Yes |
| Valve Included | Yes |
| Diverter Included | No |
| Shower Head Included | Yes |
| Volume Control | Yes |
| Bodysprays Included | No |
| Wall Supply Included | Yes |
| Tub Spout Included | Yes |
| Flow Rate (GPM) | 1.75 |
| Spout Reach | 9.75 in. |
| Shower Arm Reach | 7 in. |
| Showerhead Width | 7.9375 in. |
| Hose Length | 60, 82 in. |
| Base Diameter | 7 in. |
| Showerhead Flow Rate (GPM) | 1.75 |
| Valve Trim Height | 7 in. |
| Valve Trim Width | 7 in. |
| Handshower Flow Rate | 1.75 |
| Showerhead Height | 3.9375 in. |
| Color | Brilliance Polished Nickel, Luxe Nickel, Luxe Nickel/Matte Black, Venetian Bronze, Chrome |
| Color Tone | Bronze Tones, Nickel Tones, Silver Tones |
