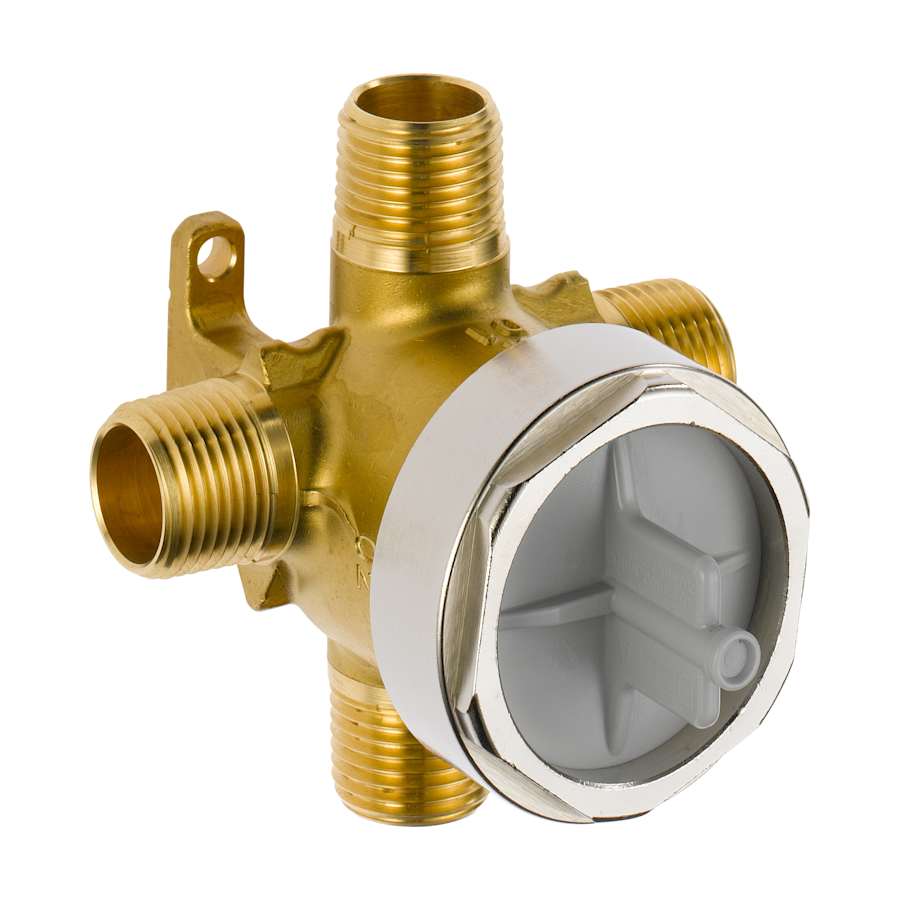

Brizo Universal Diverter Rough-In Valve – For Use with All Brizo 3 or 6 Function Diverter Trims

Product Features:

Covered under Brizo’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
Valve is constructed of forged brass ensuring durability and dependability
Controls direction of water from mixing valve to custom shower systems
Does not control volume of water – that is done at the mixing valve
For use with Brizo 3 function and 6 function diverter trims
Accepts multiple diverter cartrides – diverter trim ships with shared function cartridge
RP72123 – non shared 2 function cartridge for 2 applications (optional, not included)
RP72124 – non shared 3 function cartridge for 3 applications (optional, not included)
RP51918 – shared 3 function cartridge for 2 applications (included with diverter trim)
RP51919 – shared 6 function cartridge for 3 applications (included with diverter trim)
Heat-resistant pressure test cap for air/water testing before cartridge is installed
0.5-in inlet/outlet connections
Six function diverter valve with 3 individual positions, 3 shared positions
Use plug (included) in right outlet for three function trims (2 individual positions, 1 shared position)
Heat-resistant pressure test cap for air/water testing before cartridge is installed
Note: this is the rough-in only – valve trim (which includes the cartridge) required to complete
Designed for use with U.S. plumbing connections
Extra secure mounting assembly
All necessary mounting hardware included
Please Note: for 2 applications the Right port MUST be capped

3 Function Diverter – 2 Individual Positions, 1 Shared Position

6 Function Diverter – 3 Individual Positions, 3 Shared Positions

Additional Brizo Links
View the Manufacturer Warranty
Browse all Brizo Products

Specifications
