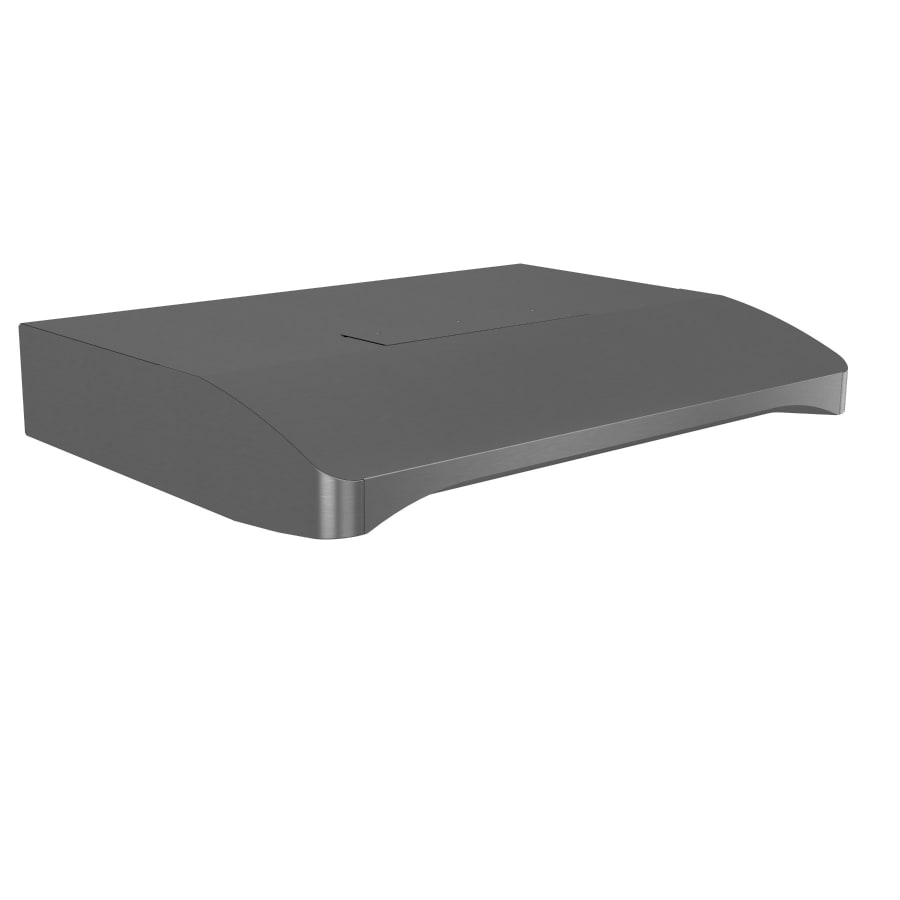

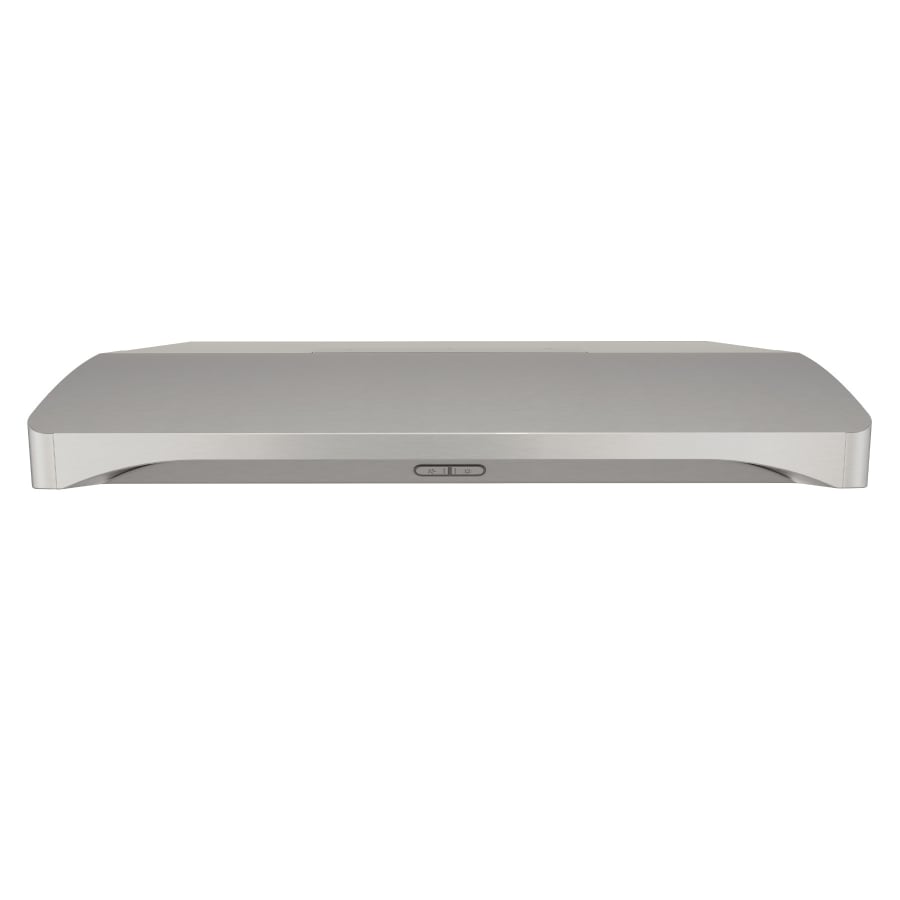

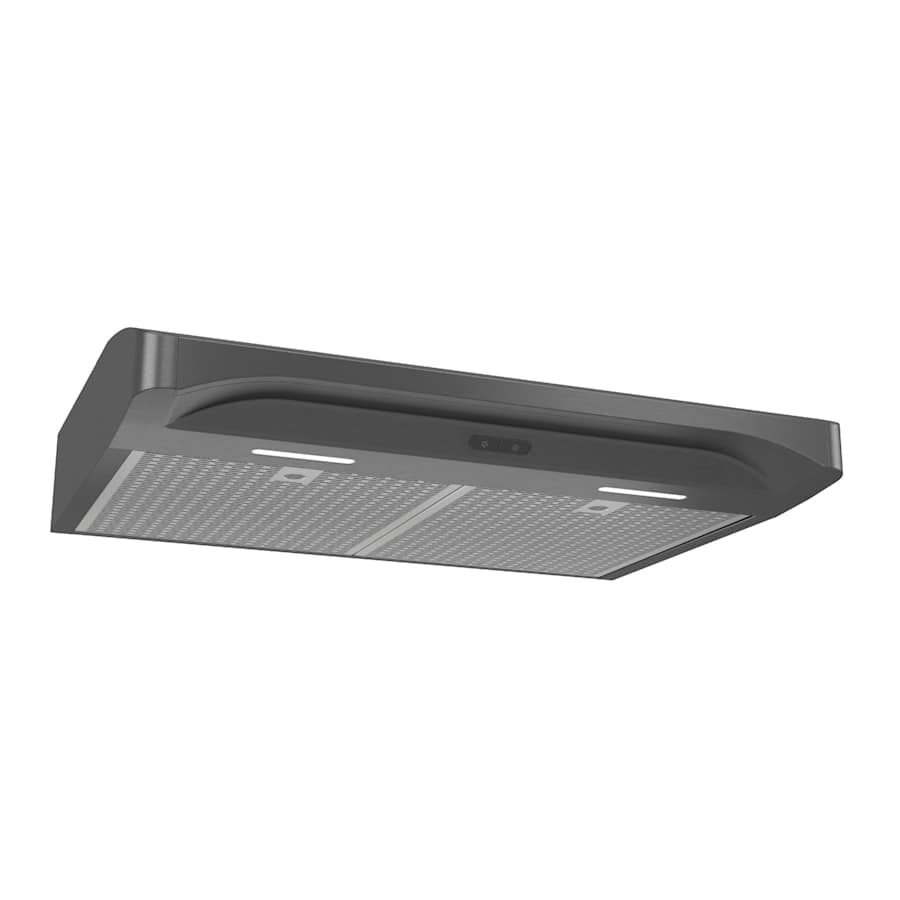

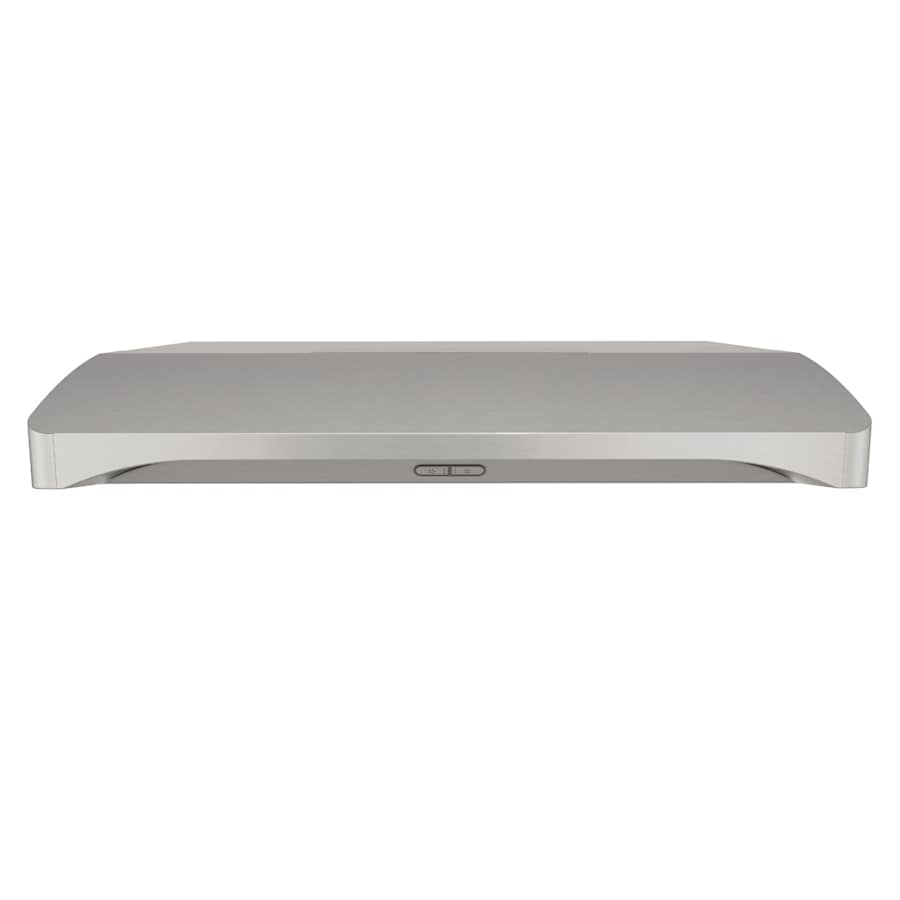

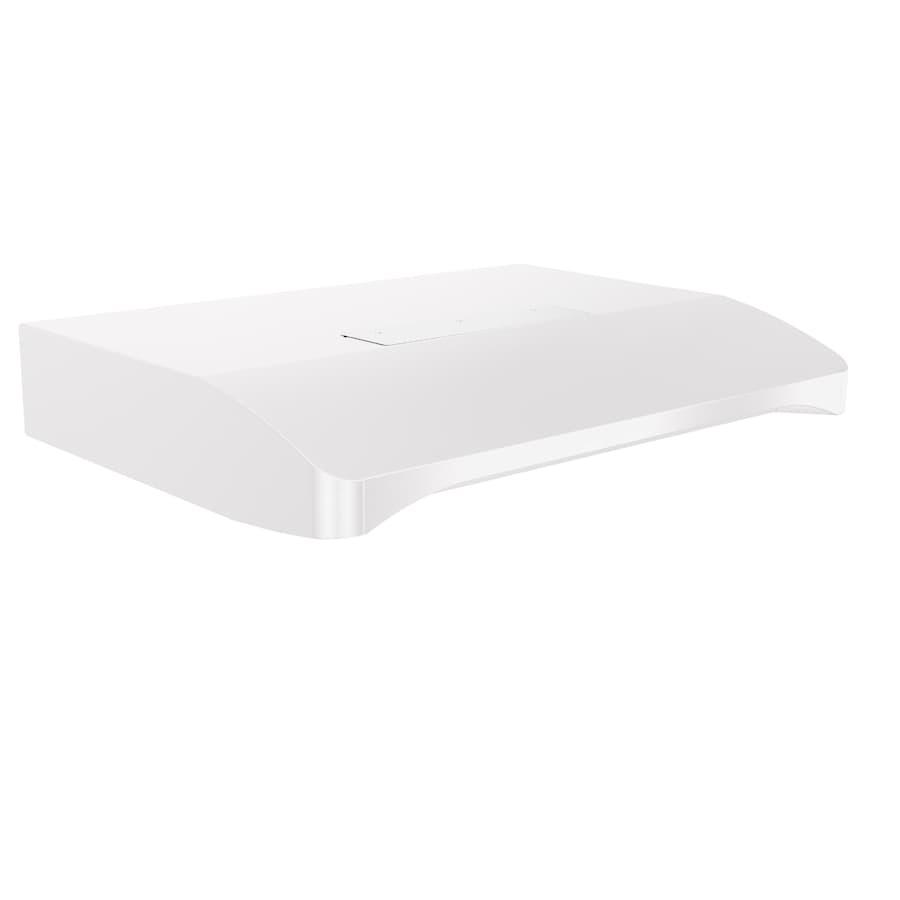

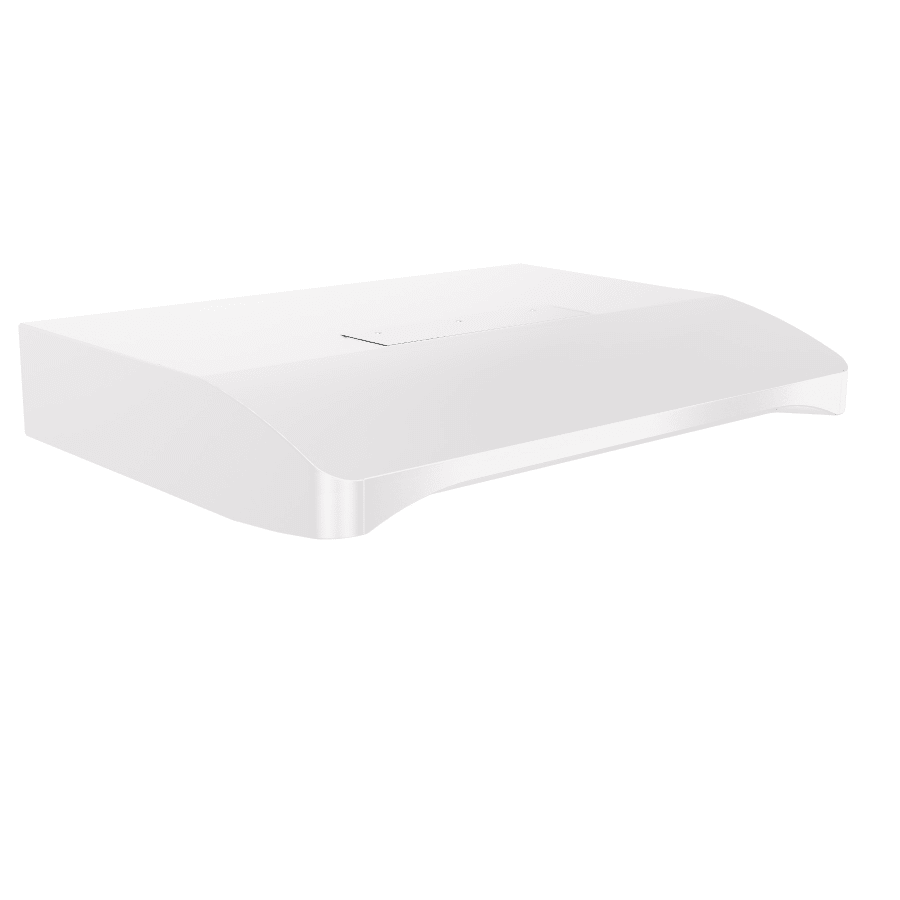

The sculpted lines of Alta™ bring an exciting, new choice to typical range hood shapes. Wide curves, tap-touch capacitive controls and LED lighting present a clean, striking design. Equipped with the exclusive Broan Captur™ system, which combines advanced blower design with new filter technology, this 375 MAX Blower CFM-rated hood provides 98.1% removal of smoke and odor to protect your home and family from airborne pollutants caused from cooking.
Features:
Blower outputs up to 375 CFM to keep your kitchen free of cooking fumes and odors
Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
Smooth-flow blower wheel design ensures quiet operation at 1.2 audible sones
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
Can be installed for ADA compliance with the purchase of a standard UL approved wall switch (sold separately)
2 LED lights illuminate the cooking area
Complements items from the Alta 2 collection
Range hood is installed as hardwired or with an optional power cord kit (SHCK44 sold separately)
Hood can be converted to ductless ventilation with the use of charcoal filters (not included) for improved efficiency and flexible installation options
Touch controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Covered under a 1 year manufacturer warranty and a 3 year LED module manufacturer warranty
Product Technologies:
Captur™ : Advanced blower design features a forward positioned centric inlet to remove smoke and odor faster
Specifications:
CFM: 260
Sones: 1.5

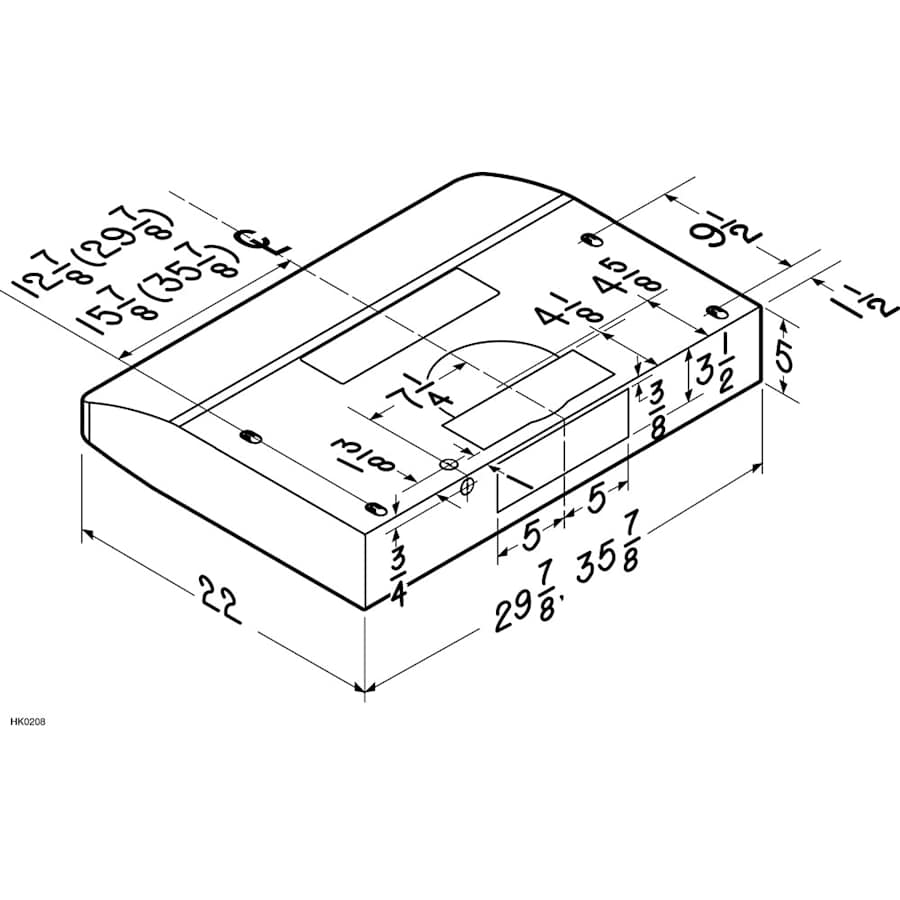

Nominal Width: 36″
Width: 29-7/8″, 35-7/8″
Height: 5″
Depth: 22″
Duct Size: 3-1/4″ x 10″, 7″ Round
Height Above Cooktop: 18″ to 24″
Frequency: 60 Hz
Amperage: 0.65A
Voltage: 120V
Wattage: 78W
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Broan Alta 2 Collection
Specifications
| Height | 5 in. |
| Width | 29.875, 35.875 in. |
| Product Weight | 21.6 lbs. |
| Depth | 22 in. |
| Nominal Width | 36 in. |
| Duct Size | 3-1/4" x 10", 7" Round |
| CFM | 260 |
| Height Above Cooktop | 18" to 24" |
| CFM (High) | 375 |
| Height Above Cooktop (Max) | 24 in. |
| Height Above Cooktop (Min) | 18 in. |
| Bulb Included | Yes |
| Light Included | Yes |
| Includes Remote | No |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Bubbler Type | LED |
| Material | Steel |
| Number of Bulbs | 2 |
| Insulation Type | Full Installation |
| Control Type | Touch |
| Panel Ready | No |
| Duct Discharge | Horizontal, Vertical |
| Blower Type | Internal |
| Filter Type | Mesh Filters |
| Voltage | 120 |
| Wattage | 78 |
| Amperage | 0.65 |
| Frequency | 60 Hertz |
| Sones | 1.5 |
| Speeds | 3 |
| ADA | Yes |
| Certifications | UL |
| Collection | Alta 2 |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 1 Year, 3 Year LED |
| Approved for Commercial Use | No |
| Outdoor Approved | No |
| Energy Star | No |
| Title 24 | Yes |
| Color | Black Stainless, Stainless Steel |
