The BBN1 powerpack insert series is ideal for cabinet installations. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability. Featuring a smooth, stainless steel surface that is easy to clean with quick-release dishwasher-safe filters. The bright, long lasting, heat resistant LED lighting enhances your cooking experience.
Features:
Powerful 300 MAX Blower removes smoke, odors and cooking pollutants
Bright 1-level, heat resistant LED modules enhance your cooking experience

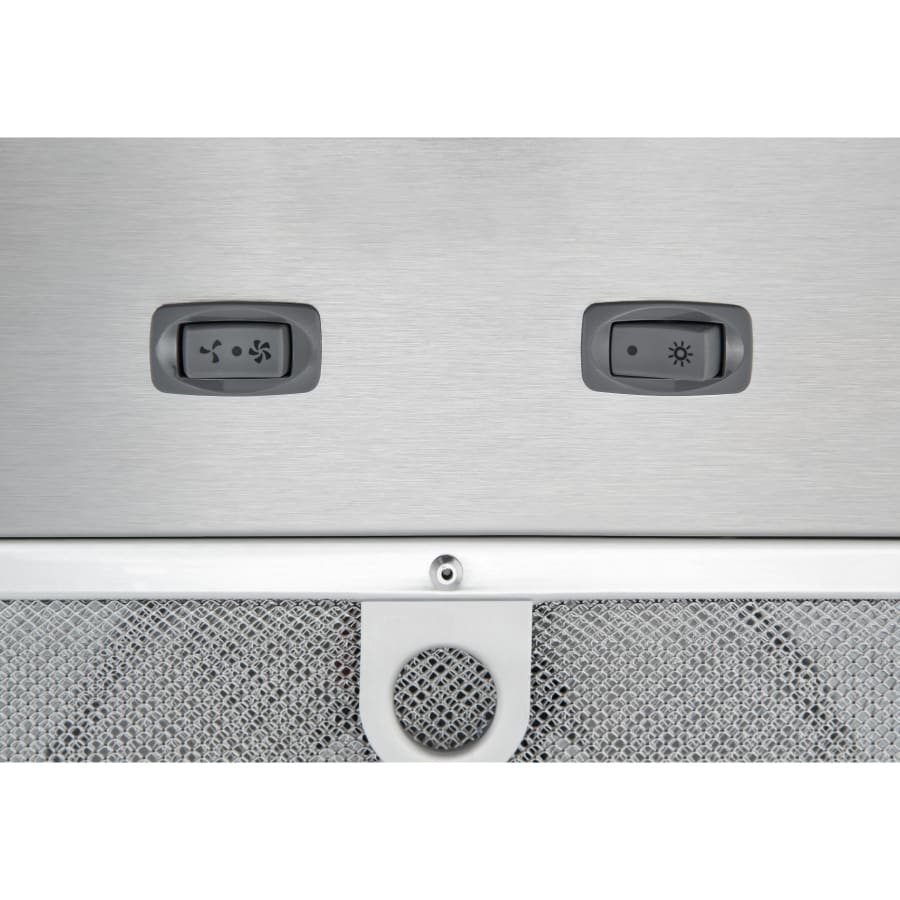

4-Speed electronic controls makes operation easy
2-Speed rocker controls operate the fan speeds
Stainless liner extension accommodates up to 13” deep cabinets, with extensions available to accommodate cabinets up to 15” deep
Easy-to-clean, fully enclosed bottom with dishwasher-safe aluminum mesh filter
Optional non-duct recirculation kit and filters (Model HARKBN24) available for indoor exhaust recirculation to suit your needs
Specifications:
CFM: 140, 260, 300
Sones: 3.0, 7.0

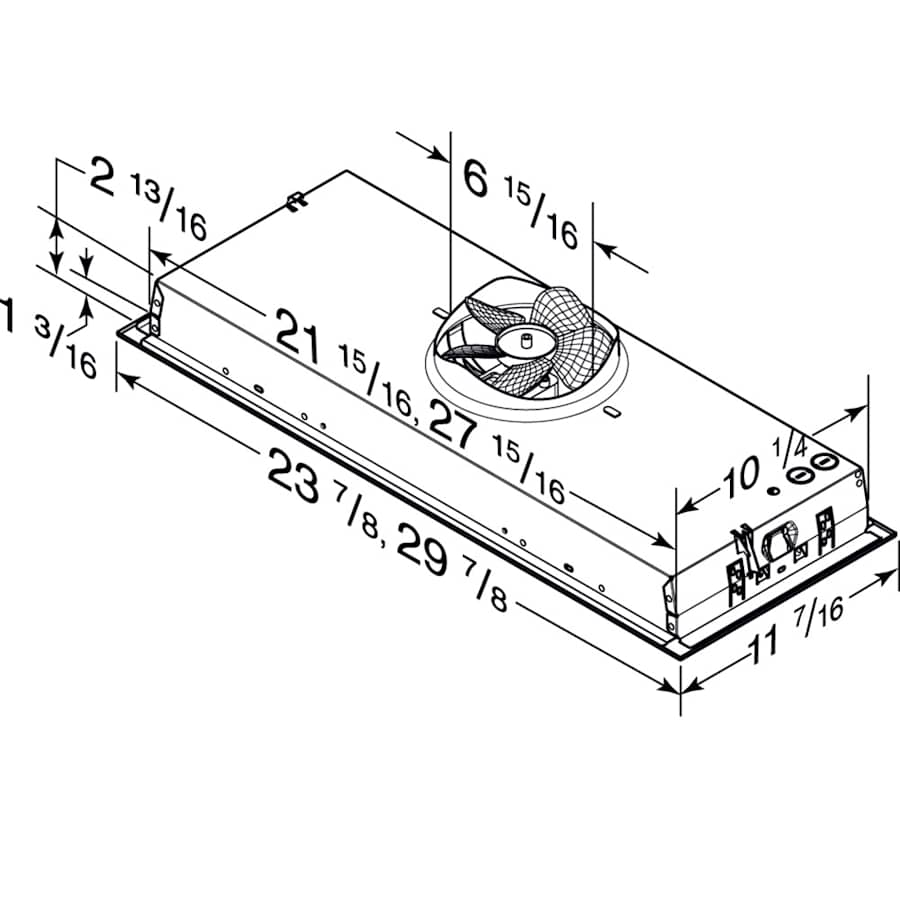

Width: 23-7/8″
Depth: 11-7/16″
Height Above Cooktop: 24″-30″”
Blower Speeds: 2
Ducting: 7″ Round – Vertical
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Specifications
| Material | Stainless Steel |
| Bubbler Type | LED |
| Insulation Type | Full Installation |
| Number of Bulbs | 2 |
| Control Type | Rocker |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| Nominal Width | 24.875 in. |
| Width | 24 in. |
| Depth | 11.4375 in. |
| CFM | 115, 140, 260, 300 |
| Duct Size | 7" Round |
| Height Above Cooktop | 24" to 30" |
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Voltage | 120 |
| Frequency | 60 Hertz |
| Amperage | 2.3 |
| Sones | 3, 7 |
| Speeds | 2 |
| ADA | Yes |
| Certifications | UL, HVI |
| Manufacturer Warranty | 1 Year |
| Approved for Commercial Use | No |
| Energy Star | No |
| Outdoor Approved | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
