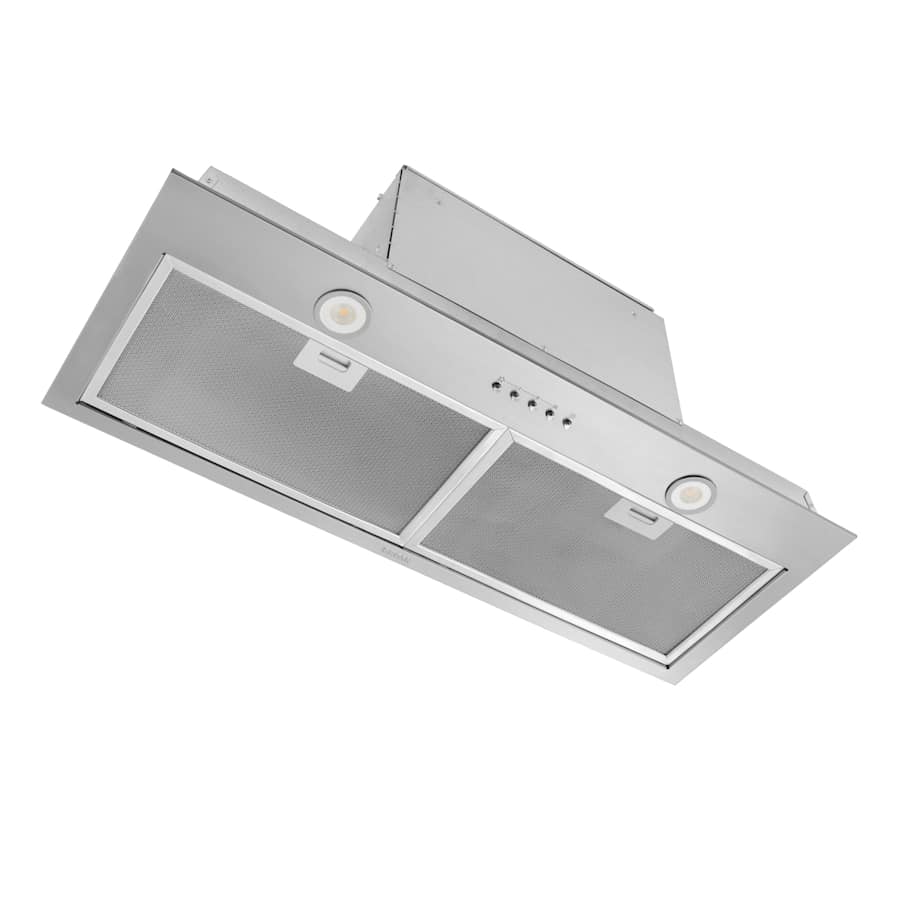

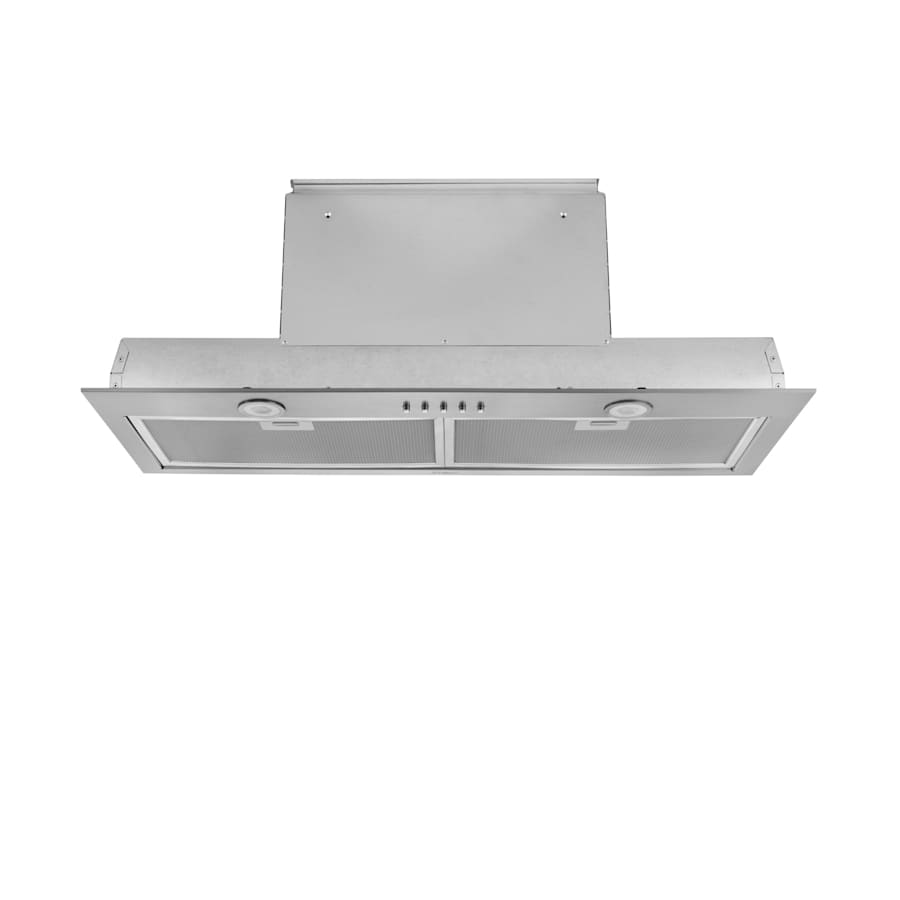

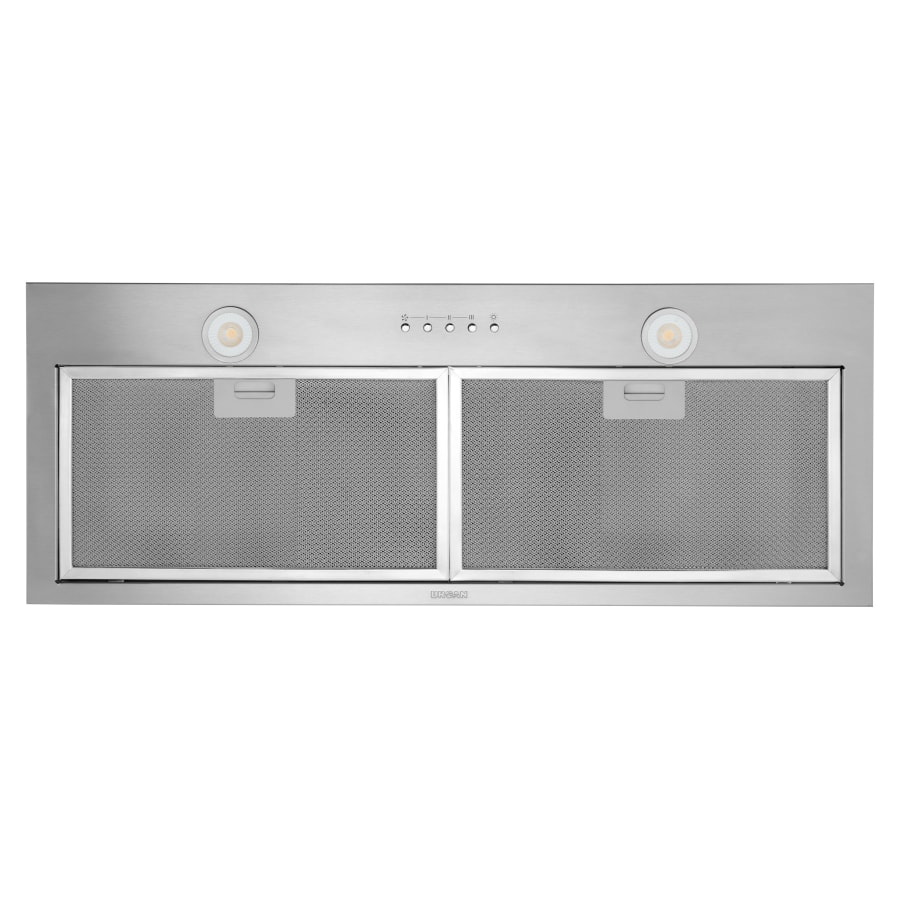

From the leader in residential indoor air quality, this Broan® custom range hood insert is the perfect solution for cabinet installations and custom kitchen designs. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability featuring a smooth, stainless-steel surface that is easy to clean with quick-release dishwasher-safe filters.Â
The kitchen is the most polluted room in the house regardless of type of cooking appliance; everything from smoke, odors and chemicals is in the air. The range hood is often forgotten as the primary and most effective way to get the pollutants out of the home. This range hood is HVI certified, providing efficient ventilation with 350 Max Blower CFM to remove the pollutants and improve the air you breathe. While ventilating the kitchen air this range hood is still quiet at 1 sones on normal speed which is as loud as refrigerator noise.Â
The bright 1-level, heat resistant LED lighting makes even the worst cook’s recipe look great. The EZ1 Installation System allows for 1-person installation, making installation fast for both the professional and DiY installers. At Broan-NuTone, we believe that better quality of air means better quality of life.
Features:
Blower outputs up to 350 CFM to keep your kitchen free of cooking fumes and odors

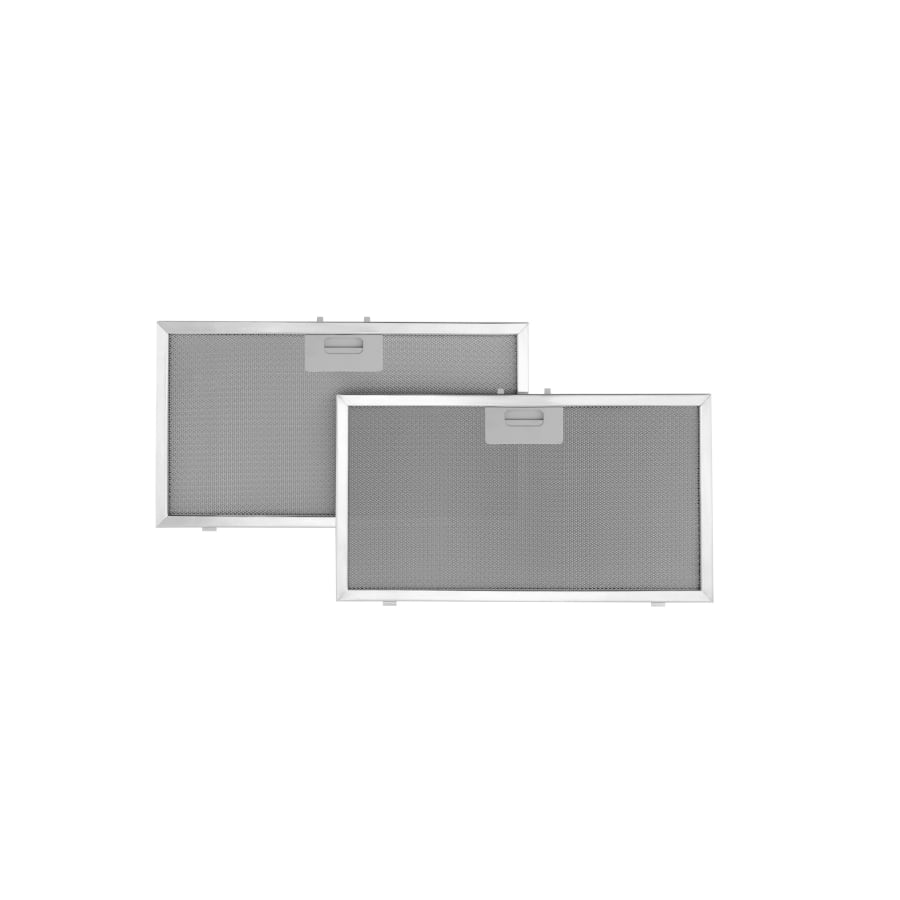

Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
Hood is Energy Star certified providing better performance and longer life
EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
2 LED lights illuminate the cooking area

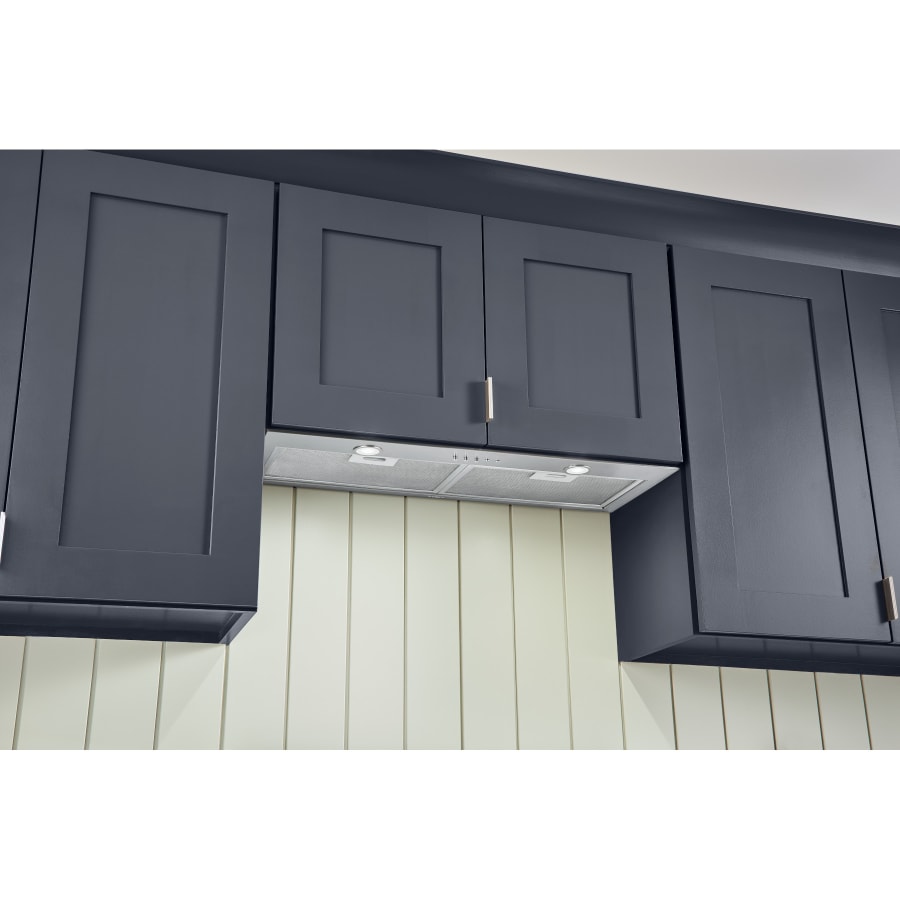

Design your dream kitchen with the custom insert range hood that can be built-in to cabinets
Hood can be converted to ductless ventilation for improved efficiency and flexible installation options

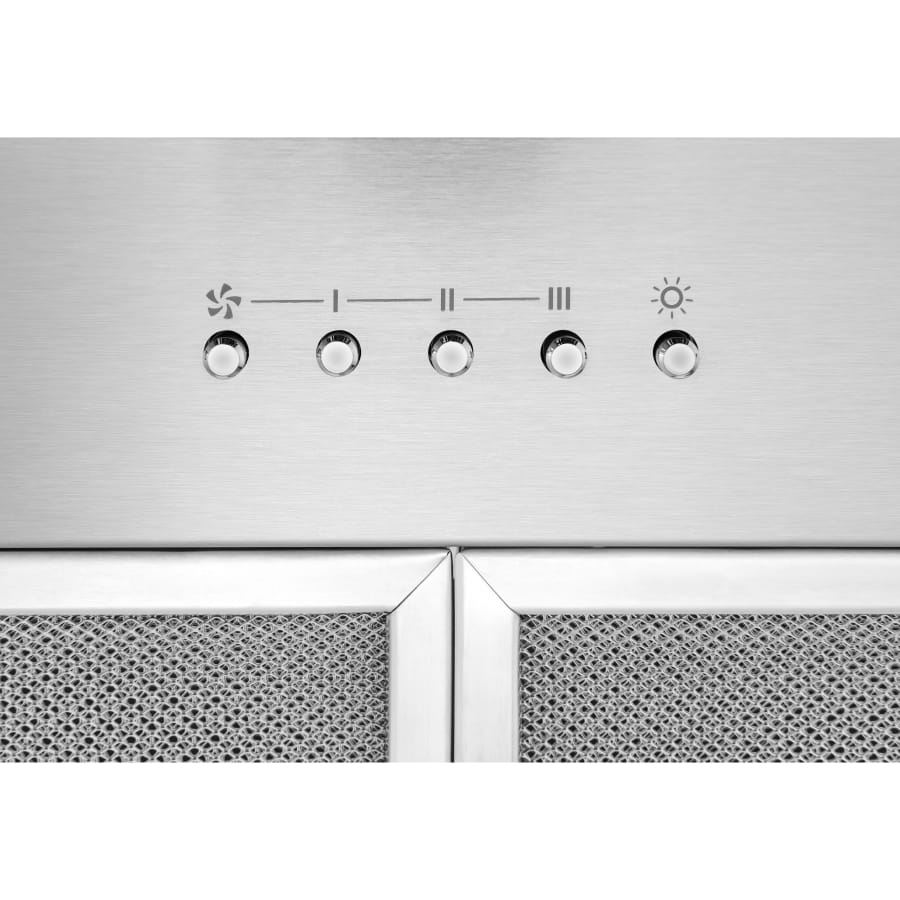

Push button controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Covered under a 1 year manufacturer warranty
Specifications:
Sones: 1

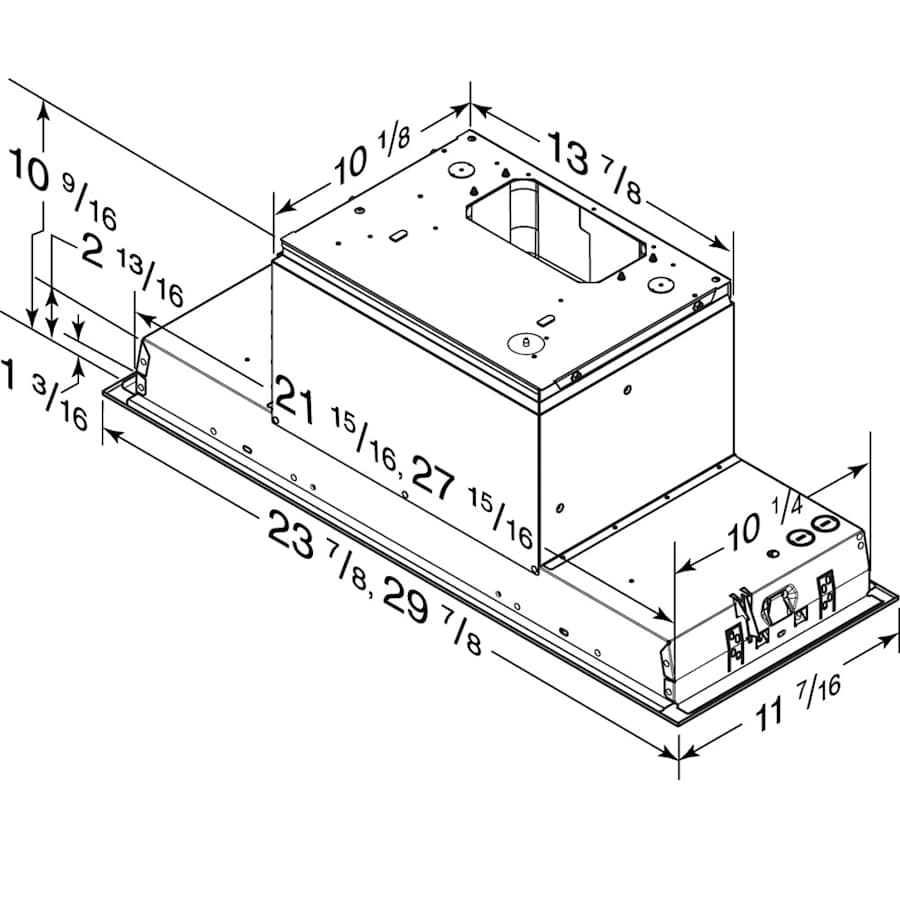

Nominal Width: 24″
Height: 10-9/16″
Depth: 11-7/16″
Duct Size: 3-1/4″ x 10″, 6″ Round
Height Above Cooktop: 24″ to 30″
Frequency: 60 Hz
Amperage: 2.3A
Voltage: 120V
Wattage: 276W
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Specifications
| Depth | 11.4375 in. |
| Height | 10.5625 in. |
| Width | 23.875, 29.875 in. |
| Nominal Width | 24 in. |
| Product Weight | 16.05 lbs. |
| CFM | 290, 350 |
| Duct Size | 3-1/4" x 10", 6" Round |
| Height Above Cooktop | 24" to 30" |
| Height Above Cooktop (Max) | 30 in. |
| Height Above Cooktop (Min) | 24 in. |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | No |
| Material | Stainless Steel |
| Control Type | Push Button |
| Insulation Type | Full Installation |
| Bubbler Type | LED |
| Number of Bulbs | 2 |
| Panel Ready | No |
| Blower Type | Internal |
| Duct Discharge | Horizontal, Vertical |
| Filter Type | Mesh Filters |
| Approved for Commercial Use | No |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 1 Year |
| Certifications | HVI, UL |
| ADA | No |
| Outdoor Approved | No |
| Energy Star | Yes |
| Title 24 | Yes |
| Amperage | 2.3 |
| Voltage | 120 |
| Wattage | 276 |
| Frequency | 60 Hertz |
| Sones | 1 |
| Speeds | 3 |
| Color | Stainless Steel |
