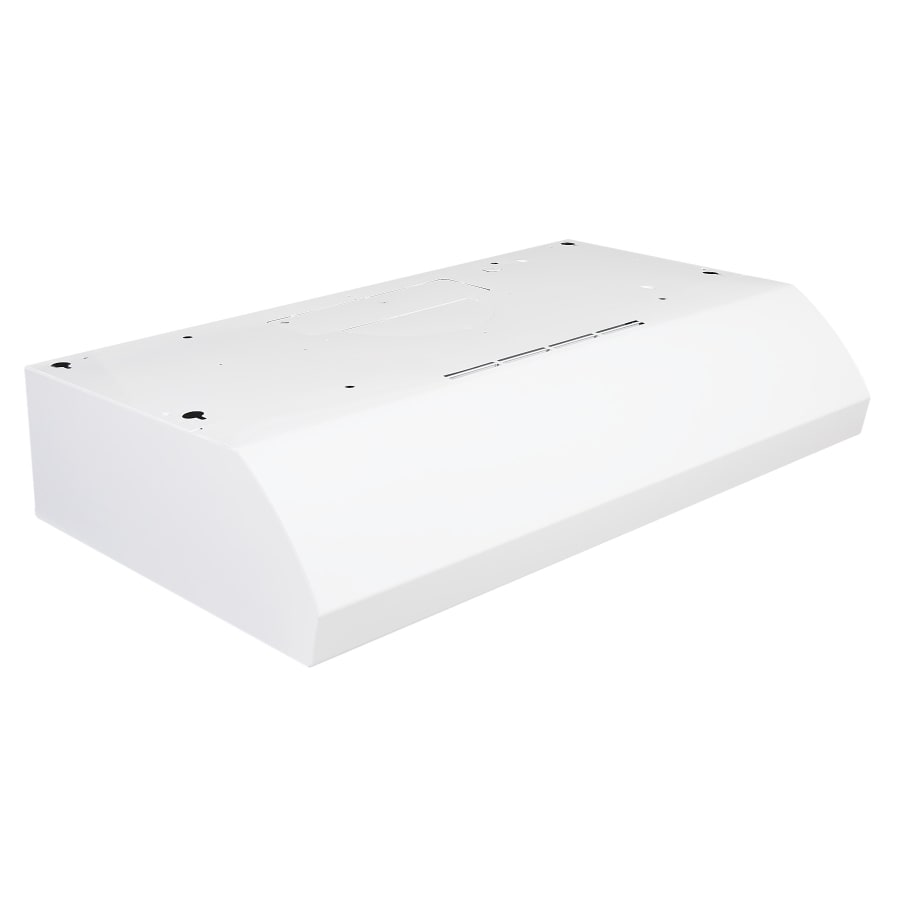

The BXT1 Series Kitchen Exhaust Ventilation Range Hood offers a transitional style with gently round surfaces that make it a great choice for today’s contemporary kitchens. The clean design uses hidden rocker controls to make operation easy and convenient for any user. The hood includes easy to clean features like a large dishwasher-safe filter, fully integrated light panel and top oriented recirculation louvers. The one-level lighting system includes a bright LED bulb to illuminate the cooktop. Four-Way convertibility provides flexible, easy installation options.
Features:
Perfect for replacement as well as new installations, this powerful 4-way convertible range hood will fit into most all applications. The enclosed light and fan/filter assembly makes for easier cleaning
The 4-way convertibility of this hood provides flexible installation for use in either ducted or non-ducted applications. Discrete recirculation louvers are hidden at the top of the hood, which helps to provide a smooth, clean appearance
With a powerful 2-speed fan offering 270 Max Blower CFM, this range hood provides adequate capture for electric and most gas ranges
The 18” deep design provides 20% more coverage over the cooktop than the standard over-the-range microwave combination units

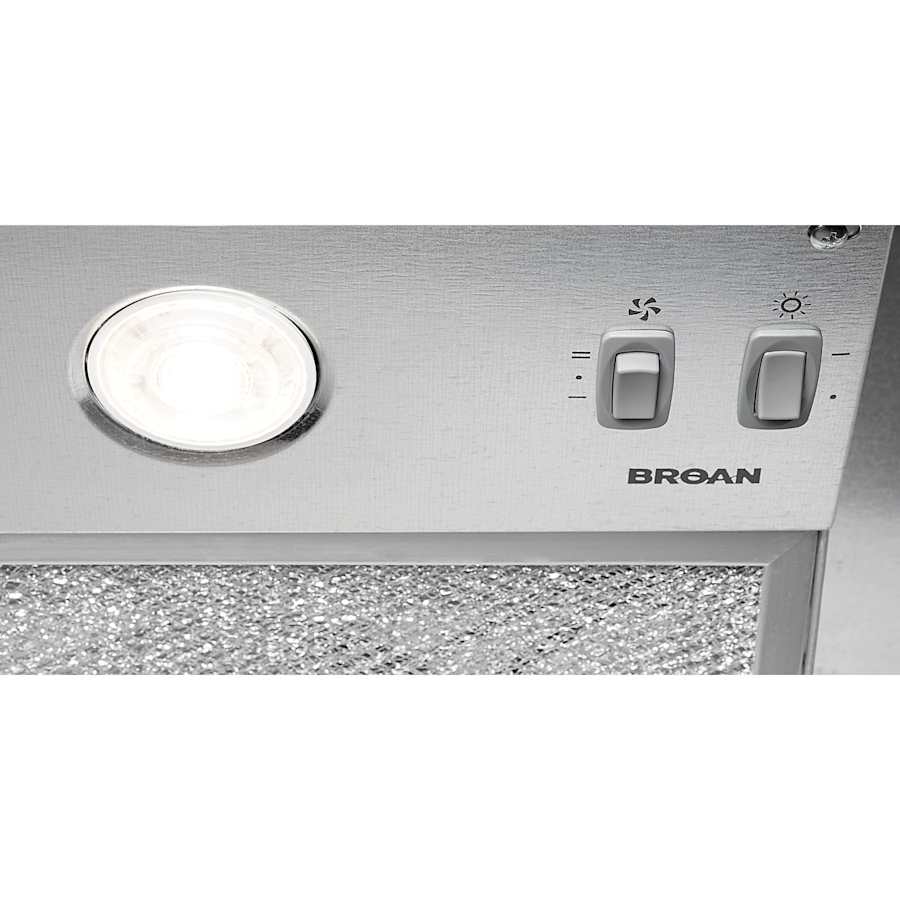

One-level lighting system includes a bright LED bulb to illuminate the cooking surface (bulb included)

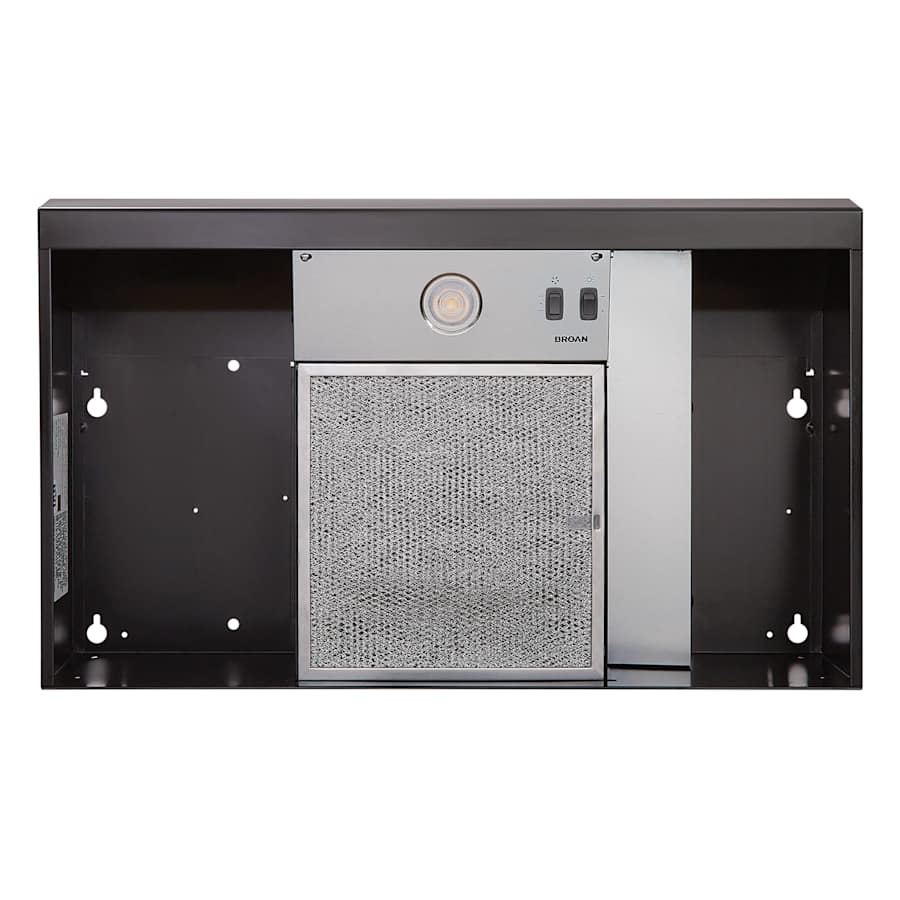

Dishwasher-safe aluminum mesh filter provides highly efficient grease removal
ADA compliant, remote operation is possible using a standard UL approved wall switch
Optional 7 in. round BP87Q damper sold separately
Non-duct capable with use of charcoal filter (HPFX1), sold separately. Hidden ductless louvers on top of hood exhaust away from cabinetry
Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Specifications:
CFM: 270 Max

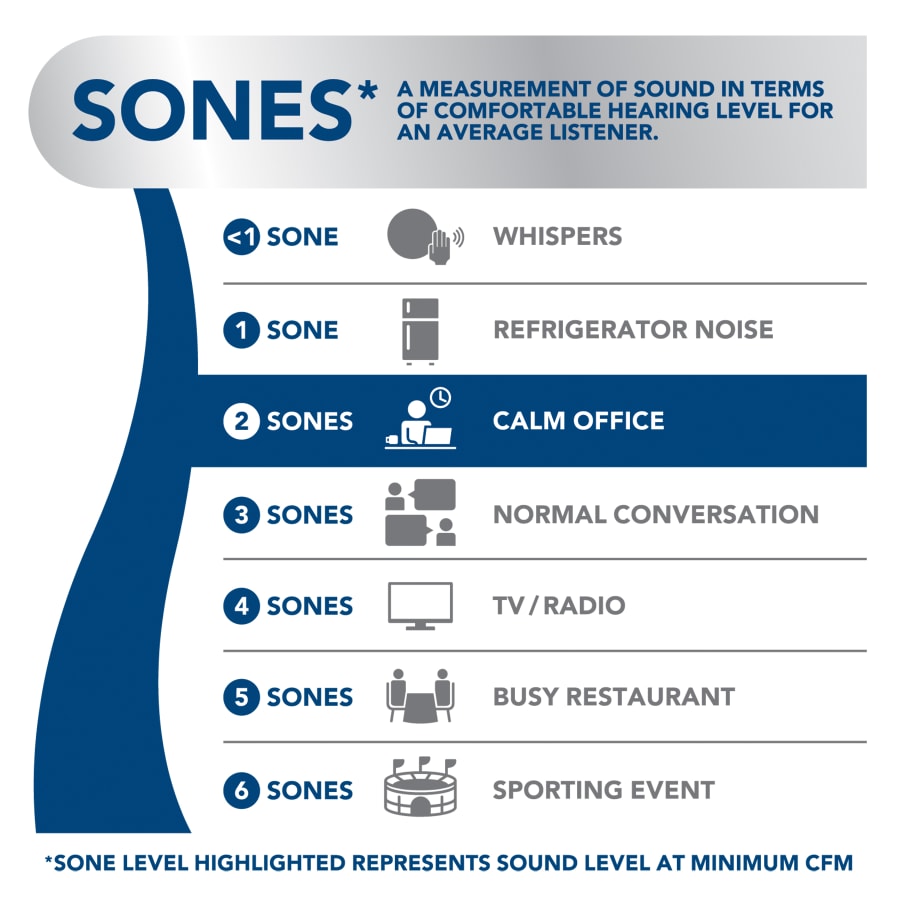

Sones: 2
Speeds: 2
Duct Size: 3-1/4″ X 10″, 7″ Round
Bulb Type: LED
Width: 29-7/8″
Depth: 18″
Height: 6″
Height Above Cooktop: 20 “- 25”
Voltage: 120V
Watts Per Bulb: 4W
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Specifications
| Depth | 18 in. |
| Width | 29.875 in. |
| Product Weight | 16.8 lbs. |
| Height | 6 in. |
| Nominal Width | 30 in. |
| Height Above Cooktop (Max) | 25 in. |
| Height Above Cooktop (Min) | 20 in. |
| CFM (High) | 270 |
| ADA | Yes |
| Certifications | HVI, UL |
| Country Of Origin | USA |
| Made in America | Yes |
| Collection | BXT1 |
| Manufacturer Warranty | 1 Year |
| Energy Star | No |
| Outdoor Approved | No |
| Title 24 | Yes |
| Title 20 Compliant | Yes |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | Yes |
| Convertible to Ductless / Recirculating | Yes |
| Includes Remote | No |
| Smart Home | No |
| Number of Bulbs | 1 |
| Frequency | 60 Hertz |
| Voltage | 120 |
| Speeds | 2 |
| Color | Black, Stainless Steel, White |
