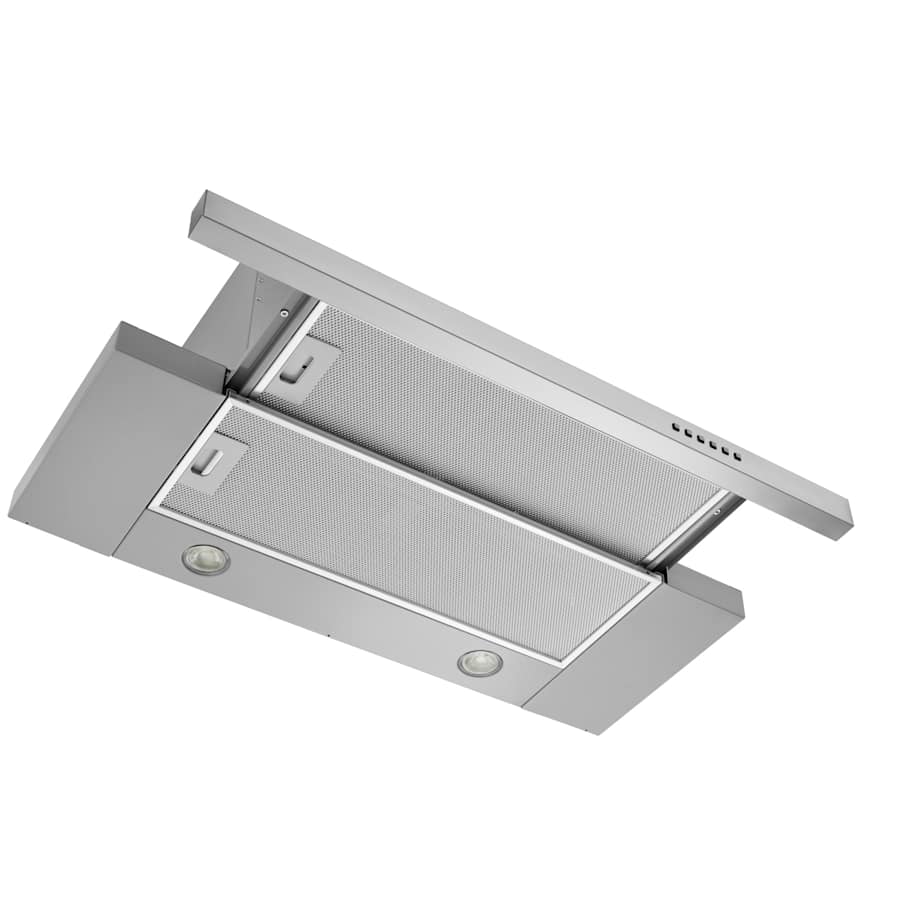

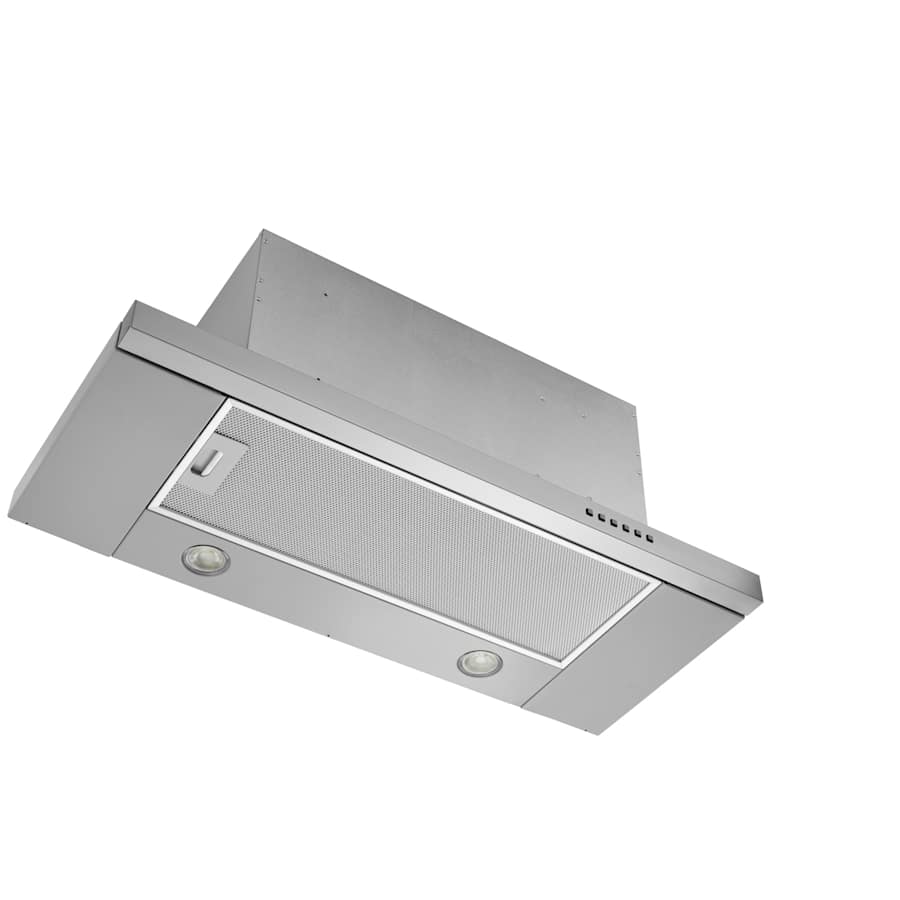

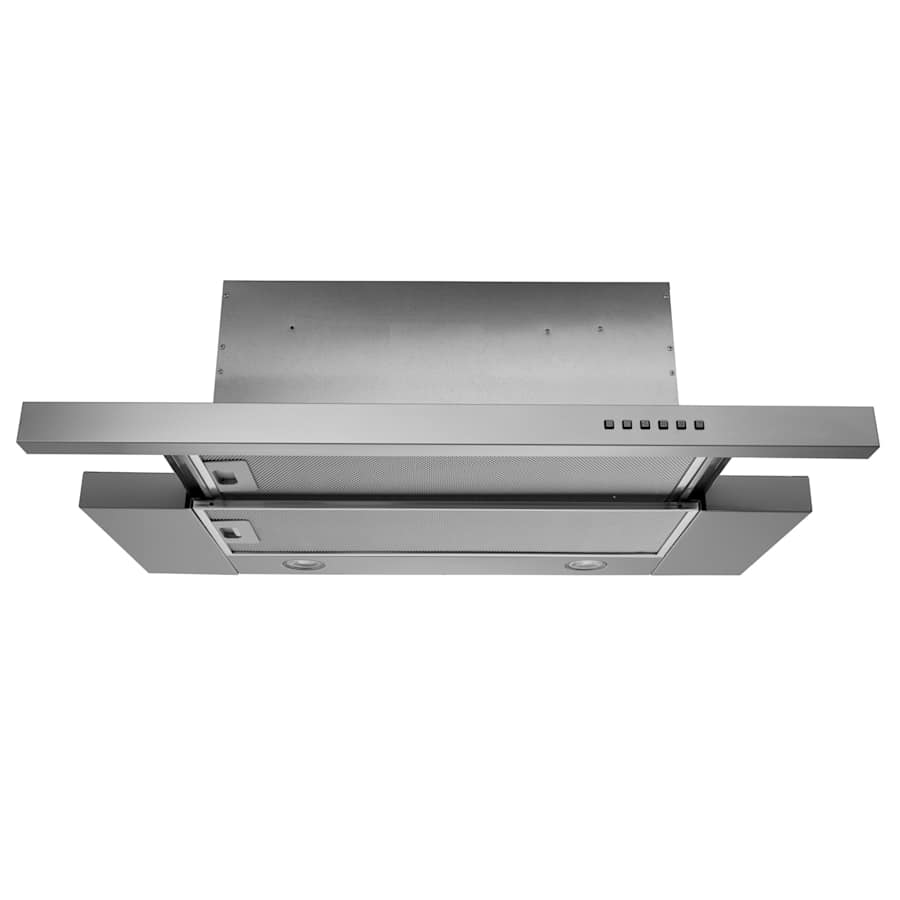

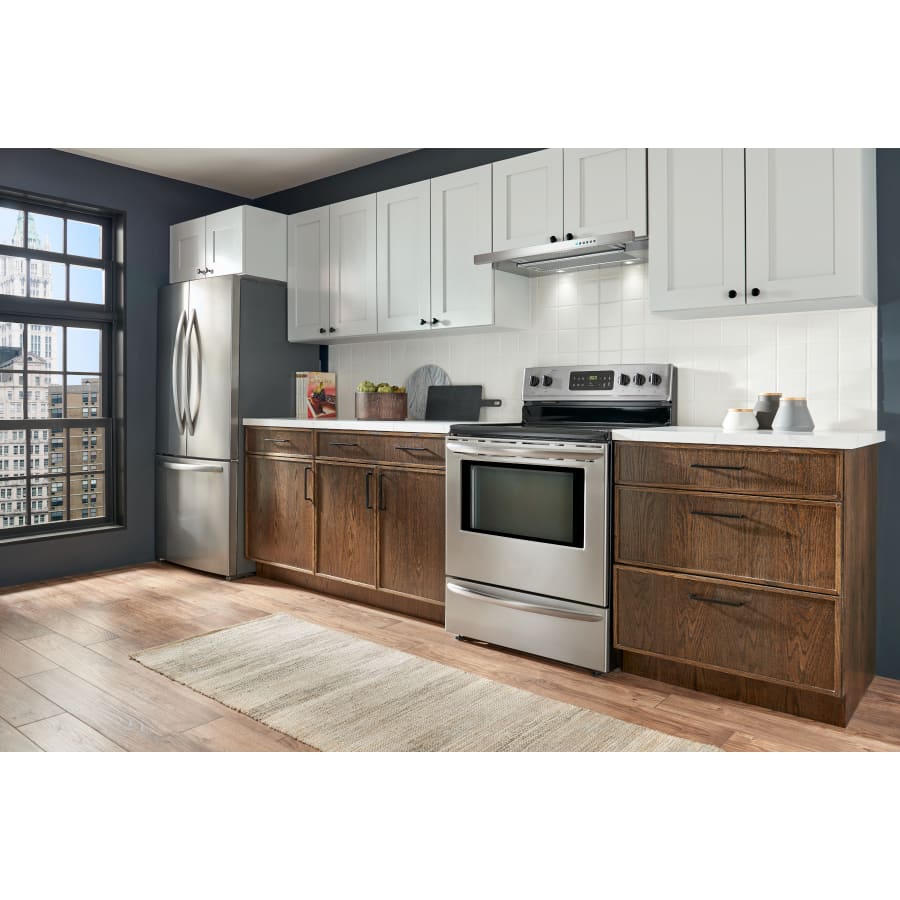

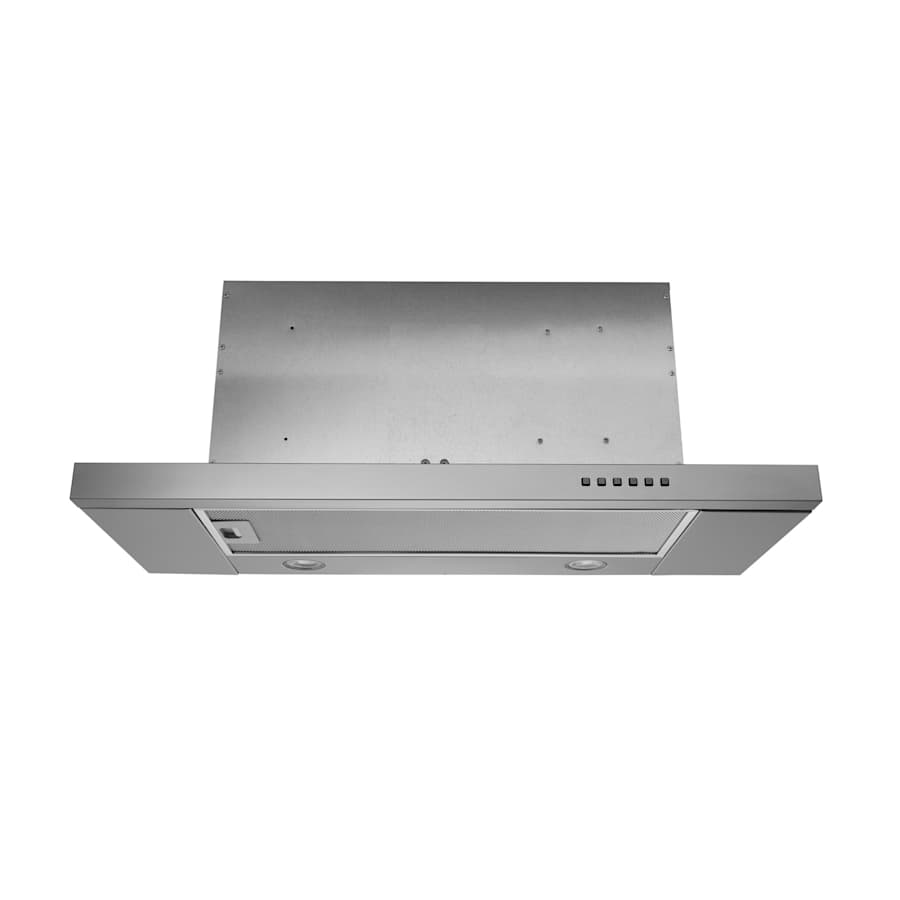

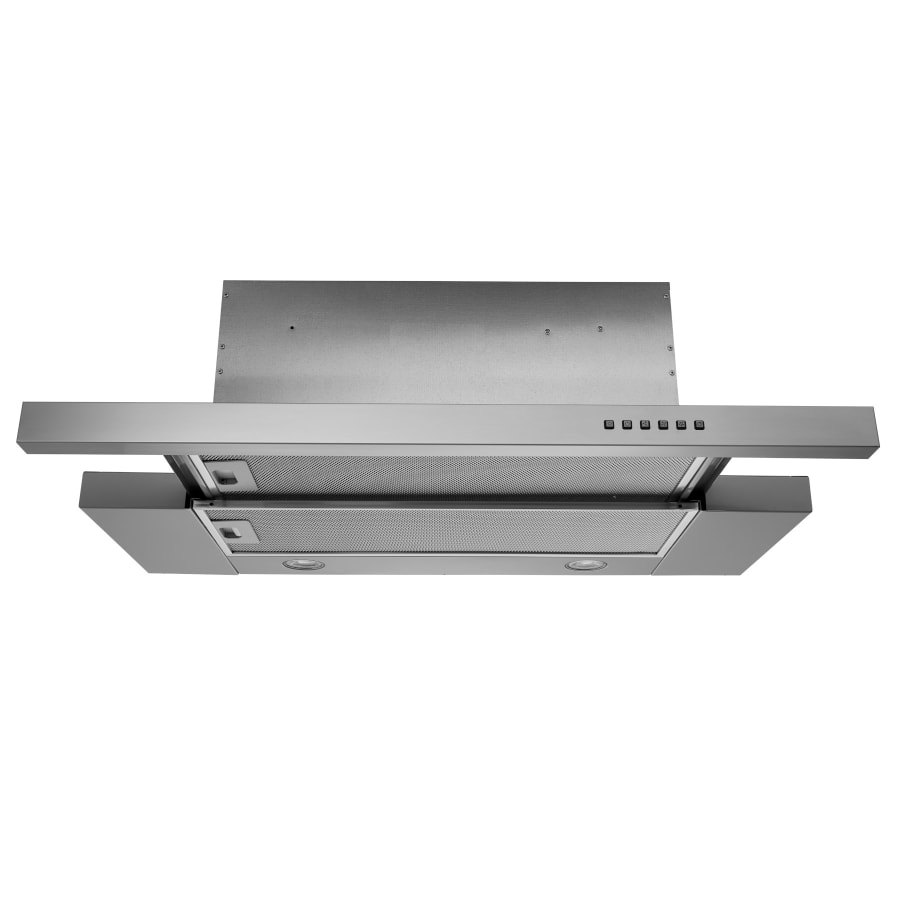

The Broan EBS1 Series of Slide-out Range Hood is a European design that mounts into a cabinet above the cooktop with only a slim sliding drawer visible, fitting seamlessly into today’s modern kitchen. The easy to clean design features bright LED lighting, powerful 400 CFM Max blower speed, while remaining quiet at 1.2 sones at normal speed.
Features:
Blower outputs up to 400 CFM to keep your kitchen free of cooking fumes and odors

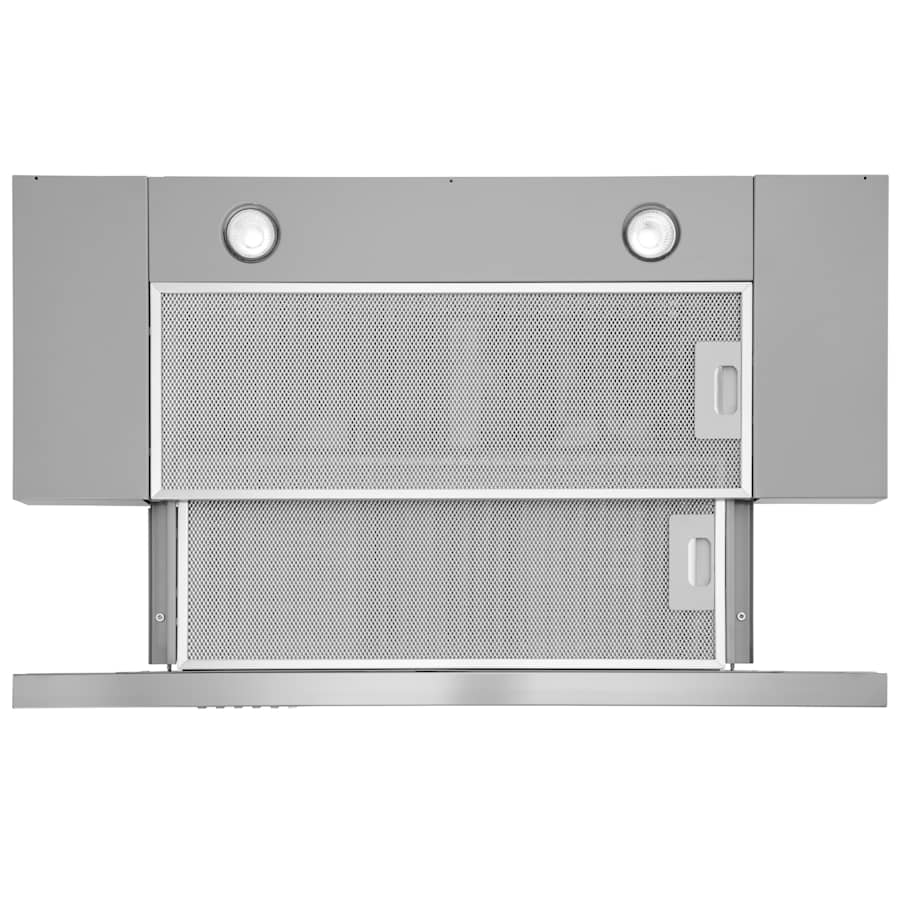

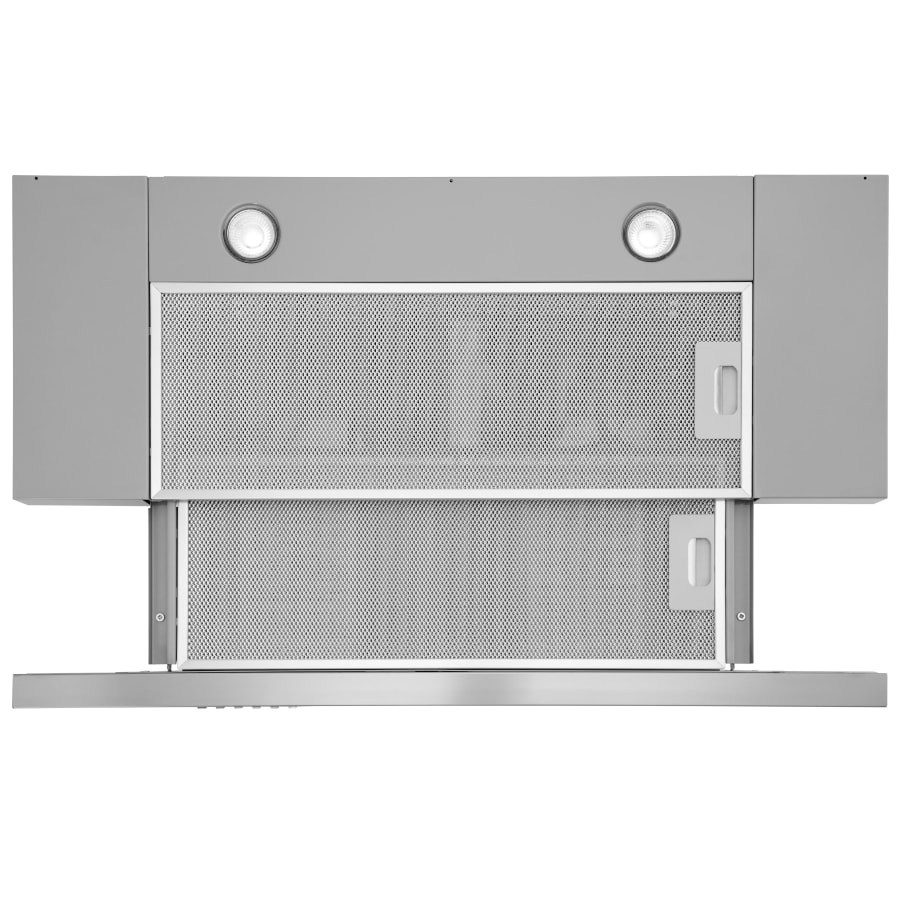

Mesh filters effectively trap and filter out unwanted smoke, odors, and grease
Quiet operation at 1.2 sones
10 minute delay off function keeps hood running after cooking to ensure smoke and odors have cleared the environment
Optional non-duct kit available, sold separately (S1104971)
Intended for installation into frameless cabinets only
2 LED lights illuminate the cooking area
Hood can be converted to ductless ventilation for improved efficiency and flexible installation options

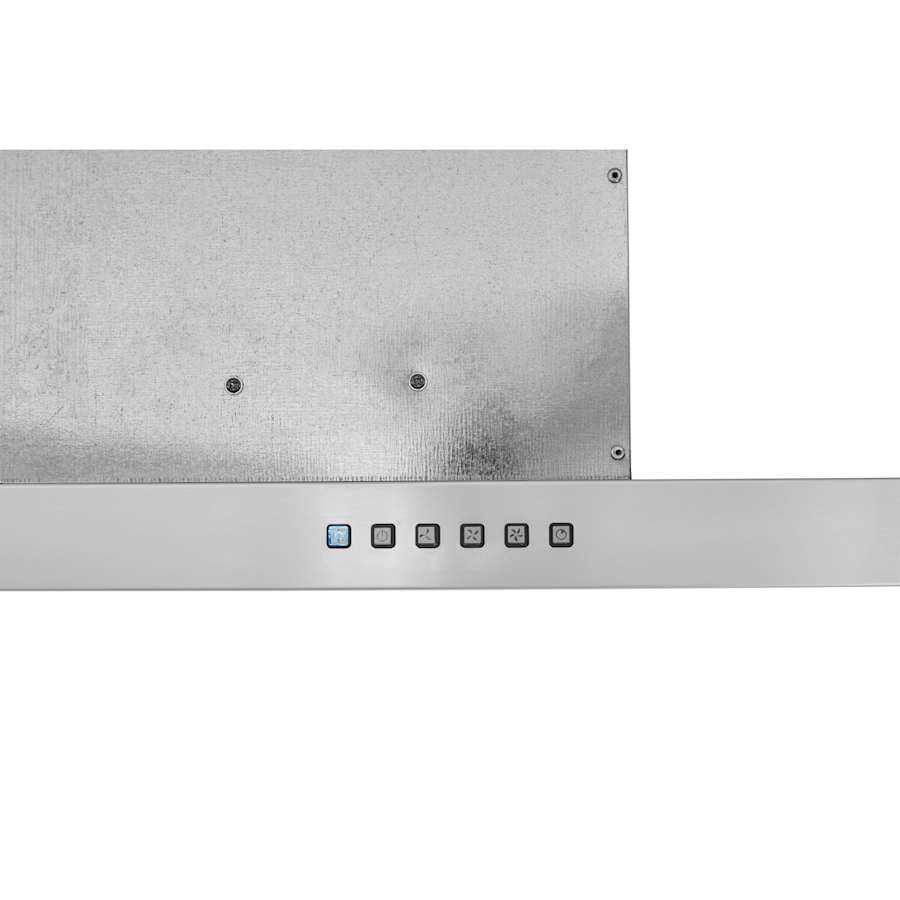

Push button controls allow you to easily set the power level of your range hood
3 available speeds provide just the right amount of ventilation
Covered under a 1 year manufacturer warranty
Specifications:
CFM: 370
Sones: 1.2

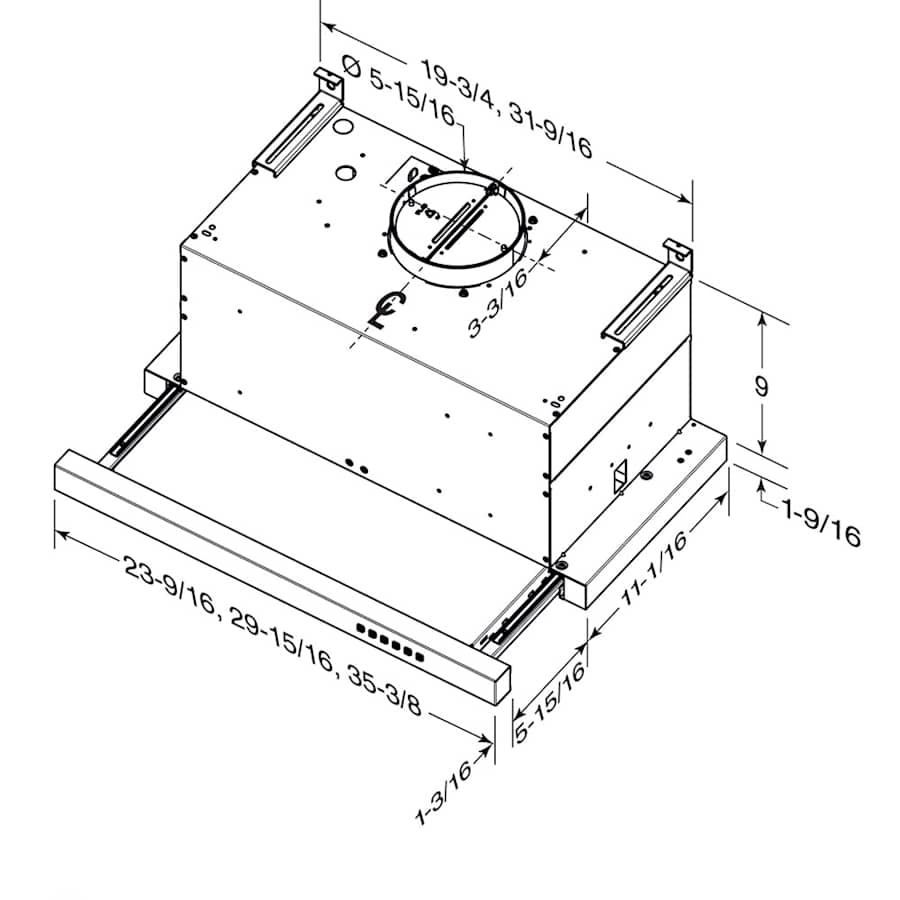

Nominal Width: 24″
Width: 23-5/8″
Height: 9″
Depth: 19″
Duct Size: 6″ Round
Height Above Cooktop: 24″ to 32″
Frequency: 60 Hz
Voltage: 120V
Wattage: 430W
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Specifications
| Material | Stainless Steel |
| Insulation Type | Full Installation |
| Bulb Base | GU10 |
| Number of Bulbs | 2 |
| Bubbler Type | LED |
| Panel Ready | No |
| Control Type | Push Button |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| ADA | No |
| Approved for Commercial Use | No |
| Manufacturer Warranty | 1 Year |
| Country Of Origin | Italy |
| Certifications | HVI, UL |
| Outdoor Approved | No |
| Title 24 | Yes |
| Energy Star | No |
| Height | 9 in. |
| Depth | 18.975 in. |
| Width | 23.625 in. |
| Product Weight | 39.7 lbs. |
| Nominal Width | 24 in. |
| Duct Size | 6" Round |
| CFM | 370, 400 |
| Height Above Cooktop | 24" to 32" |
| Height Above Cooktop (Max) | 32 in. |
| Height Above Cooktop (Min) | 24 in. |
| Bulb Included | Yes |
| Light Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Includes Remote | No |
| Voltage | 120 |
| Wattage | 430 |
| Amperage | 3.6 |
| Frequency | 60 Hertz |
| Sones | 1.2 |
| Speeds | 3 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
