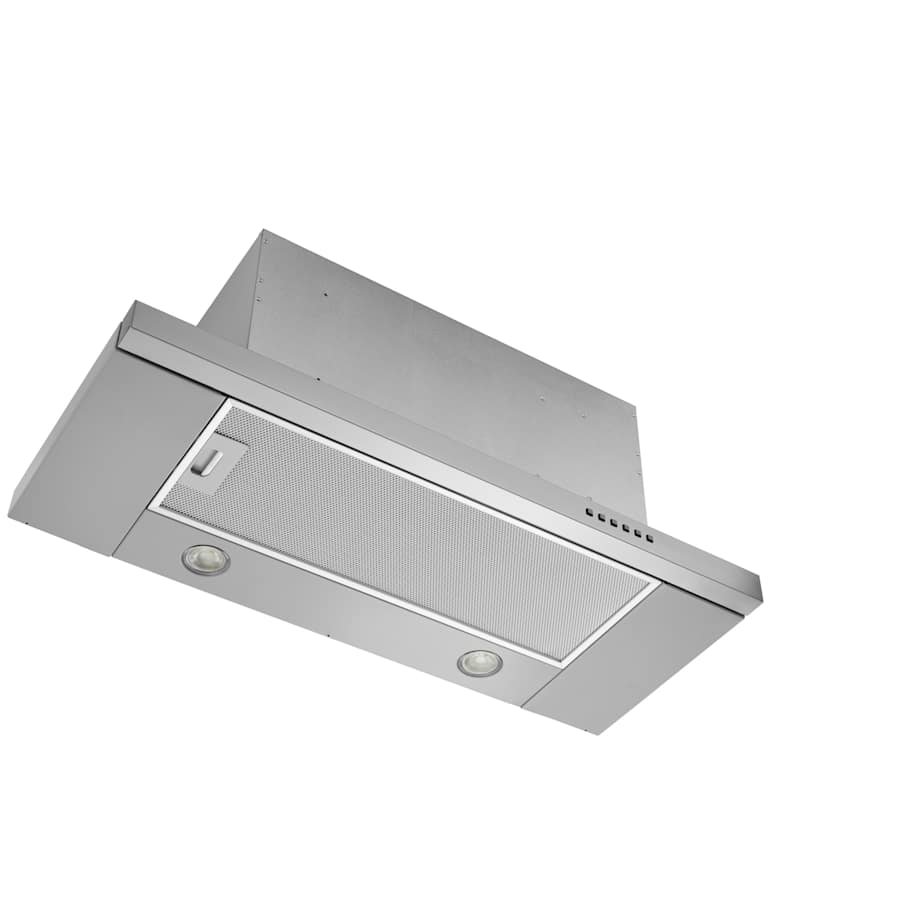

The EBS1 is a European design that mounts into a cabinet above the cooktop with only a slim sliding drawer visible, fitting seamlessly into today’s modern kitchen. The easy to clean design features bright LED lighting, powerful 400 CFM Max blower speed, while remaining quiet at 5 sones at high speed.
Features:
Quiet operation at 1.2 sone at normal speed, comparable to a whisper
Bright 1-level LED modules (2)
3-Speed backlit push-button
Efficient 400 Max Blower CFM (Max Blower CFM indicates the performance of the hood blower in open air)
370 CFM – 190 CFM
Dishwasher-safe micro mesh filters featuring a quick-release latch for an easy removal
10 minute delay off setting
Optional non-duct kit available, sold separately (S1104971)
Intended for installation into frameless cabinets only
Specifications:
CFM: 190, 270, 350, 400
Sones: 1.2, 3.0, 5.0
Width: 29-15/16″
Depth: 12-1/4″ (17-3/16″ when extended)
Height Above Cooktop: 27″-32″”
Blower Speeds: 3
Ducting: 6″ Round – Vertical
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Specifications
| Depth | 12.25 in. |
| Nominal Width | 29.9375 in. |
| Width | 30 in. |
| Duct Size | 6" Round |
| CFM | 400, 370, 350, 270, 190 |
| Height Above Cooktop | 27" to 32" |
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | Yes |
| Ductless | No |
| Insulation Type | Full Installation |
| Material | Stainless Steel |
| Bubbler Type | LED |
| Number of Bulbs | 2 |
| Control Type | Push Button |
| Blower Type | Internal |
| Duct Discharge | Vertical |
| Filter Type | Mesh Filters |
| ADA | No |
| Approved for Commercial Use | No |
| Manufacturer Warranty | 1 Year |
| Certifications | UL, HVI |
| Outdoor Approved | No |
| Energy Star | No |
| Amperage | 3.6 |
| Voltage | 120 |
| Frequency | 60 Hertz |
| Speeds | 3 |
| Sones | 5, 3, 1.2 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
