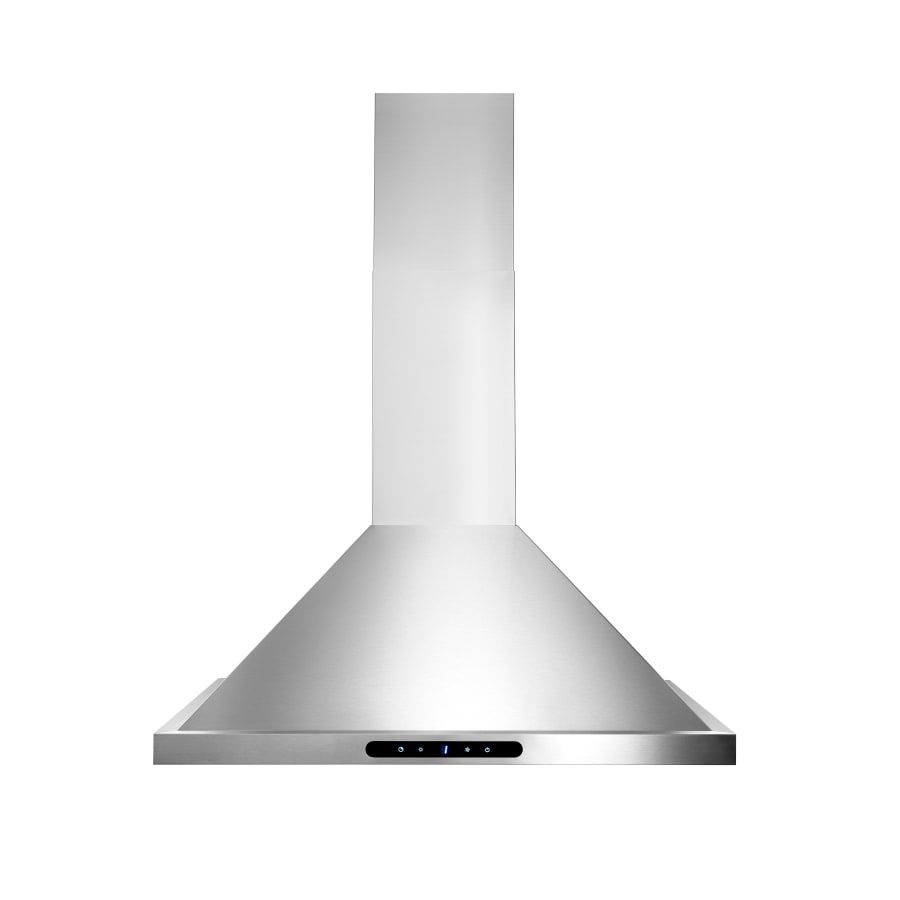

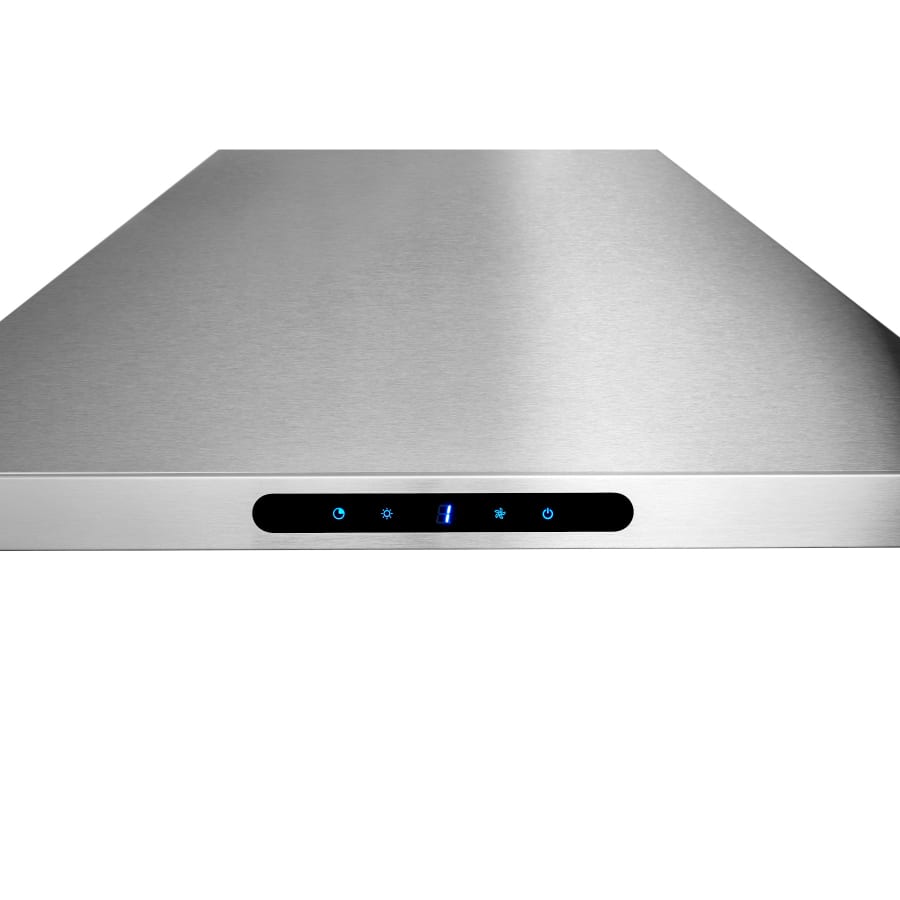

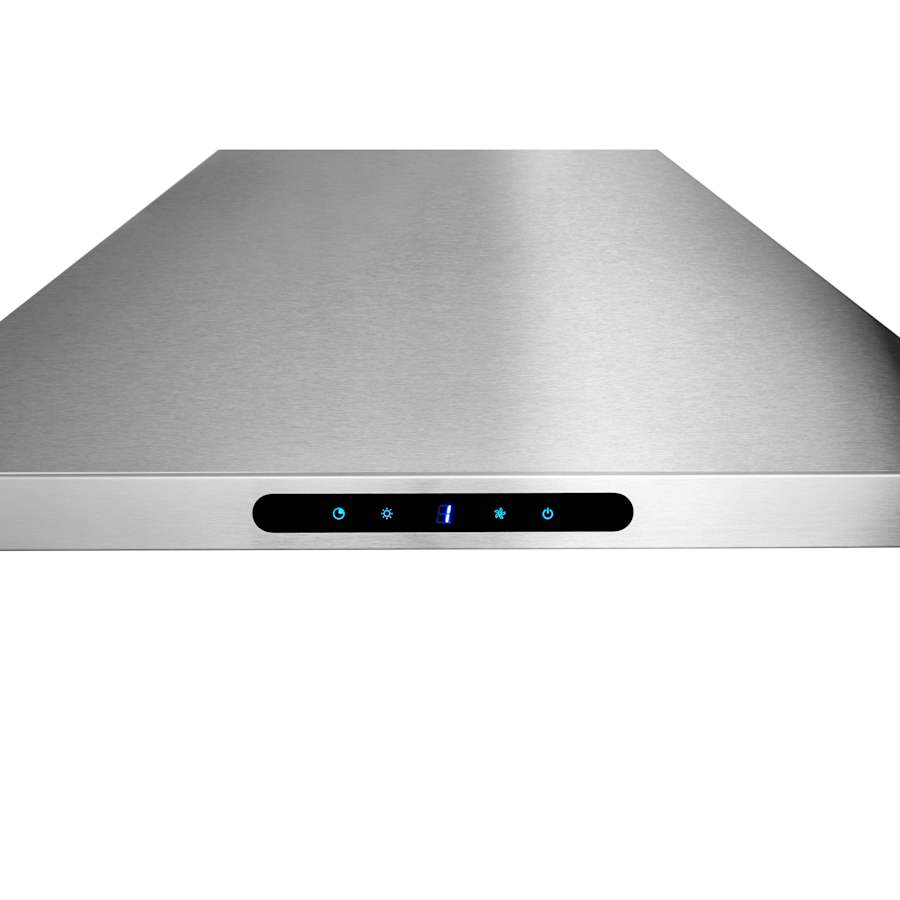

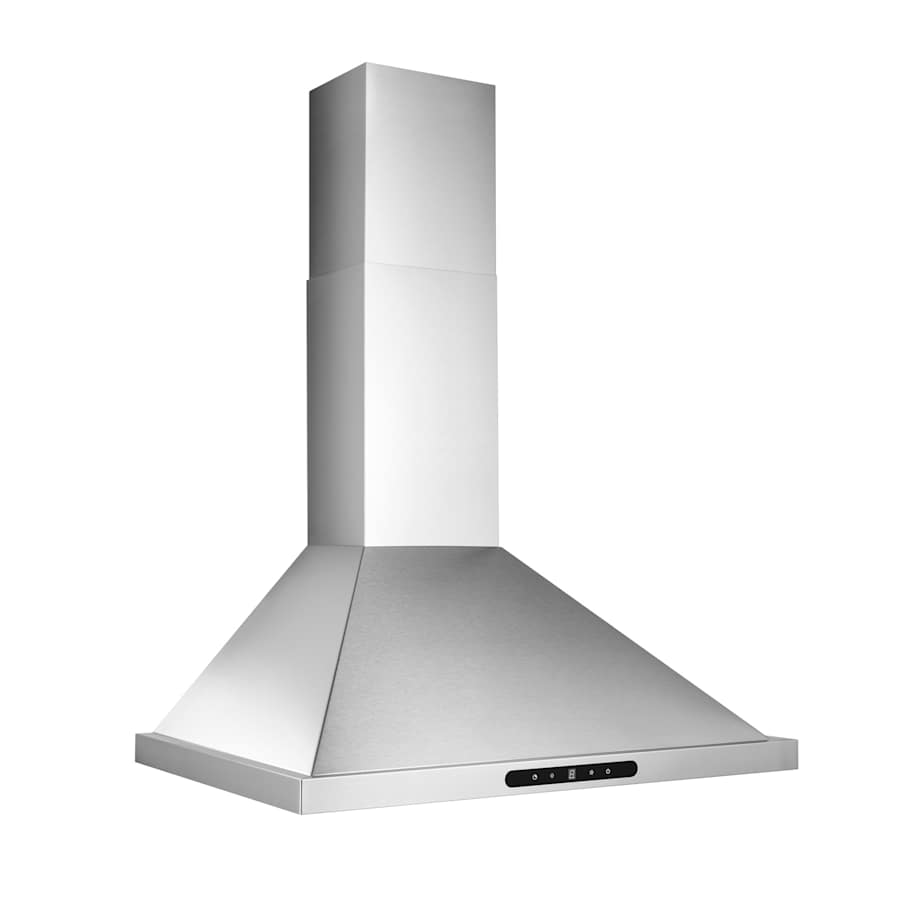

Classic style and superior performance make this chimney range hood the perfect addition to any kitchen. Quiet operation and bright LED lighting enhance your cooking experience, while the sleek 4-speed capacitive touch control makes operation and clean-up easy.
Features:
Easy-to-clean surface
Super quiet operation at < 0.3 sone at normal speed
Bright 2-level LED modules provide ample cooktop lighting
Dishwasher-safe hybrid baffle filters offer superior grease capture
Optional remote (Model HCR4) provides ADA capable remote operation
Non-duct kit is available for non-duct operation where ducting to the outside is not an option - model ARKBWP
Adjustable telescopic flue fits 8'-9' ceilings. Optional extension for 10 ft. ceilings
Specifications:
CFM: 110, 390, 510, 640
Sones: 0.3, 6.5, 9.5, 12.5
Speeds: 4
Duct Size: 6"
Duct Discharge: Vertical
Bulb Type: 2x 5.5W LED

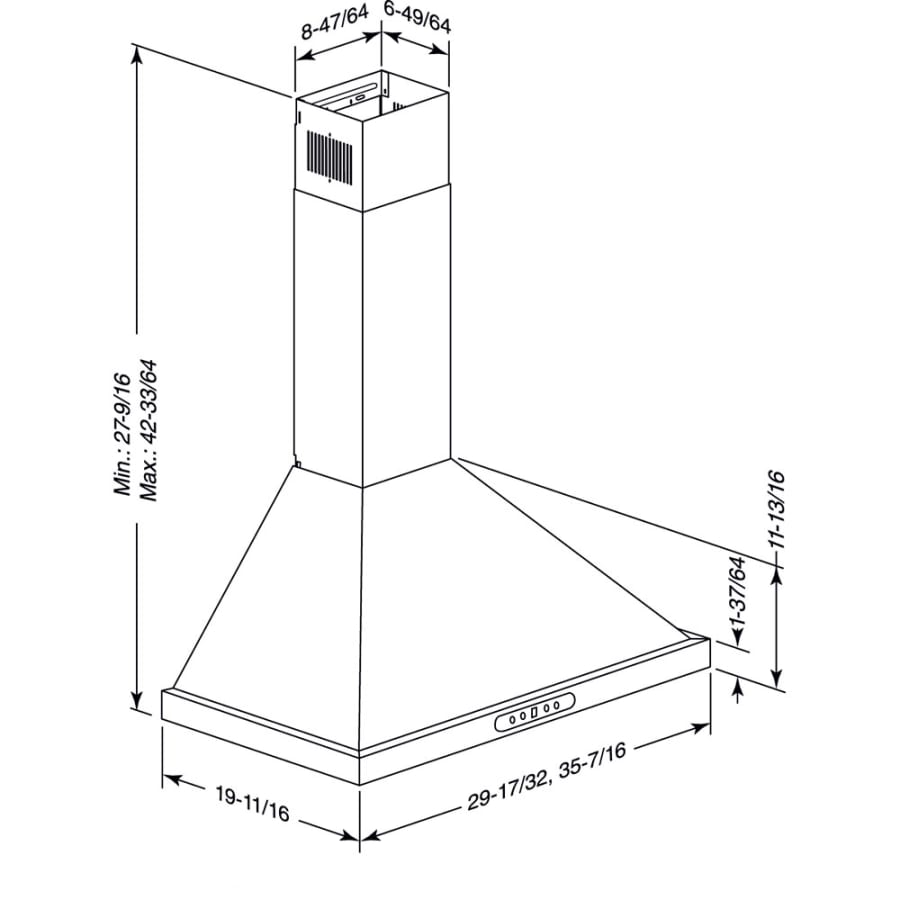

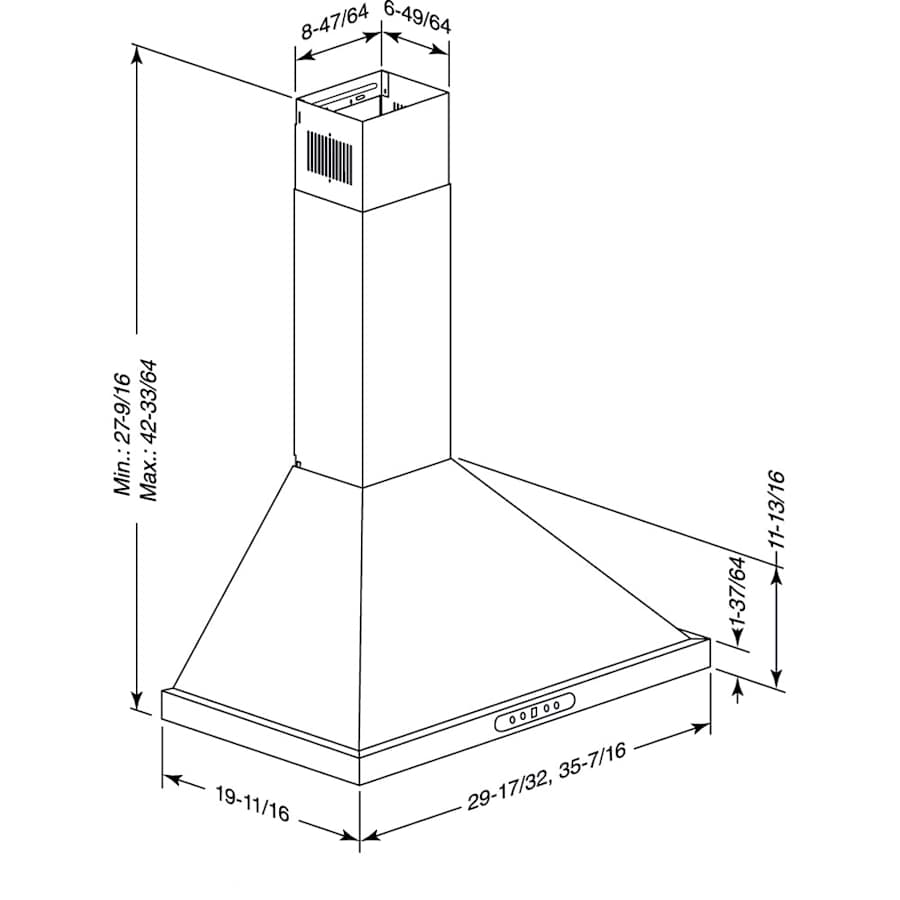

Width: 35-7/16"
Depth: 19-11/16"
Height: 27-9/16" - 42-1/2"
Ceiling Height: 96" to 108"
Height Above Cooktop: 26" to 30"
Voltage: 120V
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Specifications
| Material | Stainless Steel |
| Insulation Type | Wall Mount |
| Bubbler Type | LED |
| Number of Bulbs | 2 |
| Filter Type | Baffle Filters |
| Panel Ready | No |
| Number Of Lights | 2 |
| Blower Type | Built-In |
| Duct Discharge | Vertical |
| Manufacturer Warranty | 1 Year |
| Country Of Origin | China |
| Certifications | HVI |
| Made in America | No |
| Energy Star | No |
| Title 24 | Yes |
| Outdoor Approved | No |
| Series | Elite |
| Depth | 19.69 in. |
| Height | 27.53, 42.5 in. |
| Nominal Width | 36 in. |
| Width | 35.53 in. |
| Duct Size | 6" Round |
| CFM | 110, 640 |
| Ceiling Height (Max) | 108 in. |
| Ceiling Height (Min) | 96 in. |
| Height Above Cooktop (Min) | 26 in. |
| Light Included | Yes |
| Bulb Included | Yes |
| Includes Remote | No |
| Ductless | No |
| Convertible to Ductless / Recirculating | Yes |
| Voltage | 120 |
| Amperage | 3.7 |
| Wattage | 444 |
| Watts Per Bulb | 5.5 |
| Frequency | 60 Hertz |
| Speeds | 4 |
| Sones | 0.3, 6.5, 9.5, 12 |
| Fan Speeds | 4 |
| Maximum Sones | 12 |
| Minimum Sones | 0.3 |
| Color | Stainless Steel |
