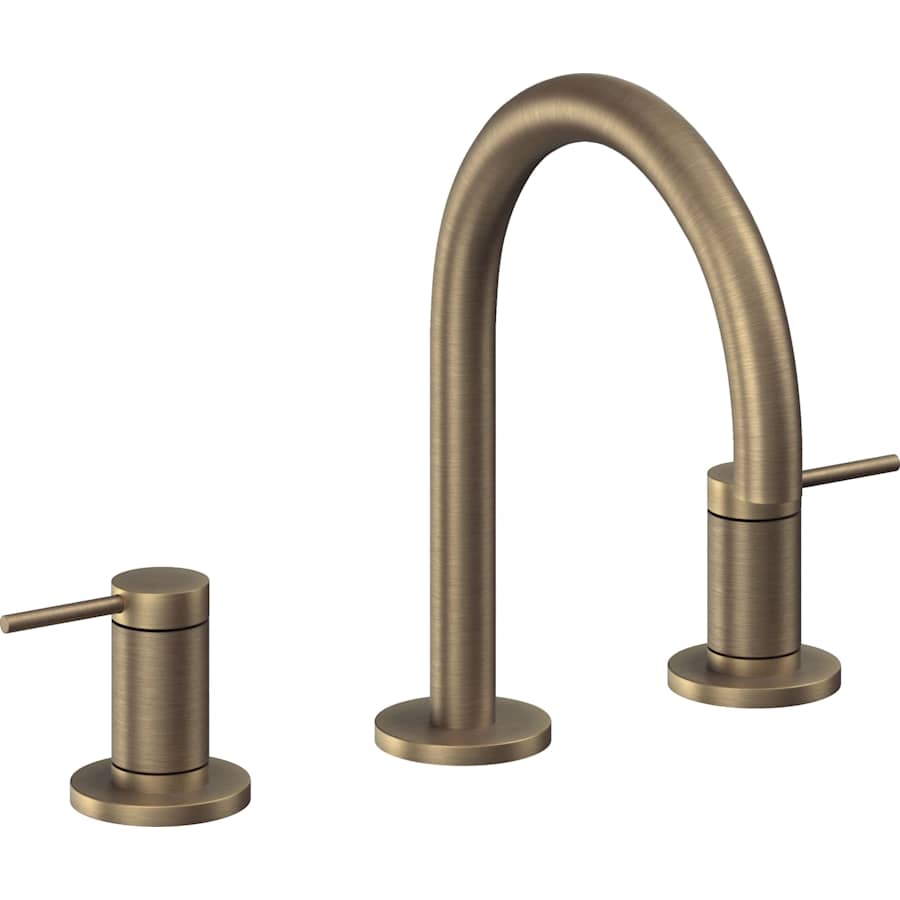

California Faucets 5202 Features:
Covered under California Faucets’ limited lifetime warranty
Faucet body constructed of brass
Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
Coordinates with products from the D Street line
Widespread mounting type – 3 hole faucet with 8″ centers
Deck mounted installation – 3 hole faucet mounts directly to sink or countertop
Dual lever handles control the flow and temperature of water
Faucet includes valve
Includes 1-1/4″ all brass touch style pop-up drain assembly
Complies with ADA standards
1/4 turn ceramic disc cartridge(s)
California Faucets 5202 Specifications:
Height: 8-1/16″ (deck to top of faucet)
Spout Height: 4-1/8″ (deck to spout outlet)
Spout Reach: 6″ (faucet base to spout outlet)
Flow Rate: 1.2 gallons-per-minute
Faucet Centers: 8″ (distance between centers of outside faucet holes)
Maximum Deck Thickness: 1-13/16″ (cannot mount on thicker decks)
Faucet Holes: 3 (minimum number of holes required for installation)
Additional California Faucets Links
View the Manufacturer Warranty
Browse all California Faucets Products
California Faucets D Street Collection
Specifications
| Height | 8.0625 in. |
| Faucet Centers | 8 in. |
| Faucet Hole Size | 1.375 in. |
| Flow Rate (GPM) | 1.2 |
| Max Deck Thickness | 1.8125 in. |
| Spout Height | 4.125 in. |
| Spout Reach | 6 in. |
| Water Connection | 1/2" |
| Escutcheon Width | 2 in. |
| Material | Brass |
| Thermostat | Contemporary |
| Faucet Holes | 3 |
| Insulation Type | Deck Mounted |
| Handle Style | Lever |
| Mounting Type | Widespread |
| Number Of Handles | 2 |
| Spout Type | Fixed |
| Valve Type | Ceramic Disc |
| Waterfall Faucet | No |
| Electronic | No |
| Bridge Faucet | No |
| Water Connection Type | NPSM |
| Touchless Faucet | No |
| Vessel Faucet | No |
| Collection | D Street |
| Approved for Commercial Use | Yes |
| Certifications | ASME, CSA, EPA, NSF |
| Manufacturer Warranty | Limited Lifetime |
| Commercial Warranty | 2 Year Limited |
| ADA | Yes |
| ASSE Code | A112.18.1 |
| CA Drought Compliant | Yes |
| CSA Code | B125.1 |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| WaterSense Certified | Yes |
| Handshower Included | Yes |
| Installation Hardware Included | Yes |
| Drain Assembly Included | Yes |
| Escutcheon Included | Yes |
| Pop-Up Included | Yes |
| Valve Included | Yes |
| Color | Antique Brass Flat, Antique Copper Flat, Antique Nickel Flat, Bella Terra Bronze, Black, Black Nickel, Burnished Brass Uncoated, Burnished Nickel Uncoated, Carbon, French Gold, Graphite, Lifetime Polished Gold, Lifetime Satin Gold, Matte Black, Matte White, Oil Rubbed Bronze, Polished Brass, Polished Brass Uncoated, Polished Chrome, Polished Nickel, Satin Brass, Satin Bronze, Satin Chrome, Satin Nickel, Ultra Stainless Steel, White |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Copper Tones, Gold Tones, Greys, Neutrals, Nickel Tones, Silver Tones, Stainless Steel, Whites |
